24V 36V 48V 60V 72V to 12V 5A 10A 15A 20A DC DC Buck Step Down Voltage Power Converter 48 60 72 Volt to 12 Volt
- Category: Power Supplies >>>
- Supplier: Shenzhen Fulree Electronics Co. Ltd.
Share on (62279853844):
Product Overview
Description
24V 36V 48V 60V 72V to 12V 5A 10A 15A 20A DC DC Buck Step Down Voltage Power Converter 48 60 72 Volt to 12 Volt
Product Description
Product Name | 24V 36V 48V 60V 72V to 12V DC DC Converter | |
Brand | Fulree | |
Model No. | F**J12V*A5L | |
Module Properties | non-isolated buck module | |
Rectification | synchronous rectification | |
Input | ||
Input Voltage | DC 24V 36V 48V 60V 72V | |
Input Voltage Range | DC 30-90V / DC 20-72V / DC 20-60V / DC 15-40V | |
Output | ||
Output Voltage | DC 12V | |
Output Current | 5A / 8A / 10A / 12A / 15A / 20A Max | |
Output Power | 60W / 96W / 120W / 144W / 180W / 240W Max | |
Conversion Efficiency | 92% | |
Voltage regulation | ±1% | |
Load regulation | ± 2% | |
Ripple (Full load test) | < 100mV | |
No-load current | <100mA | |
Working Temperature | -40~80℃ | |
Waterproof Rating | IP68 | |
Protection | Over-current protection | |
Overheat protection | ||
Short-circuit protection | ||
Application | 12V speaker,audio,stereo and etc load device | |
Certification | CE/RoHS | |
Case Material | Aluminum | |

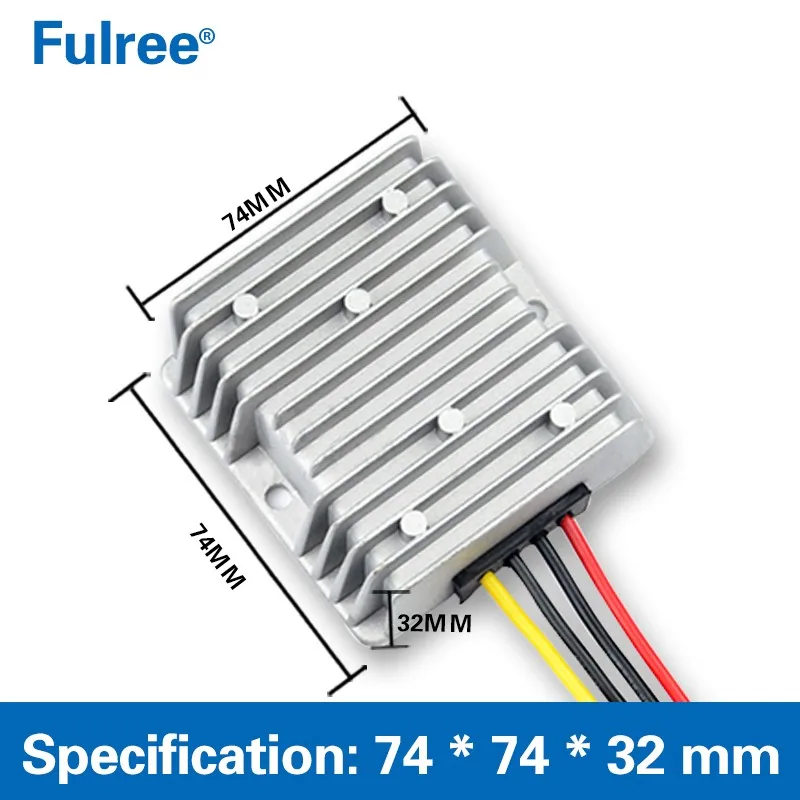

Product Size (L x W x H) | 74*74*32mm excluding cable | |
Product Weight | 280g | |
Warranty | 12 months, lifetime up to 100,000 hours | |
Cooling Way | Free air convection | |
OEM&ODM Service | Accept | |
Product Picture
