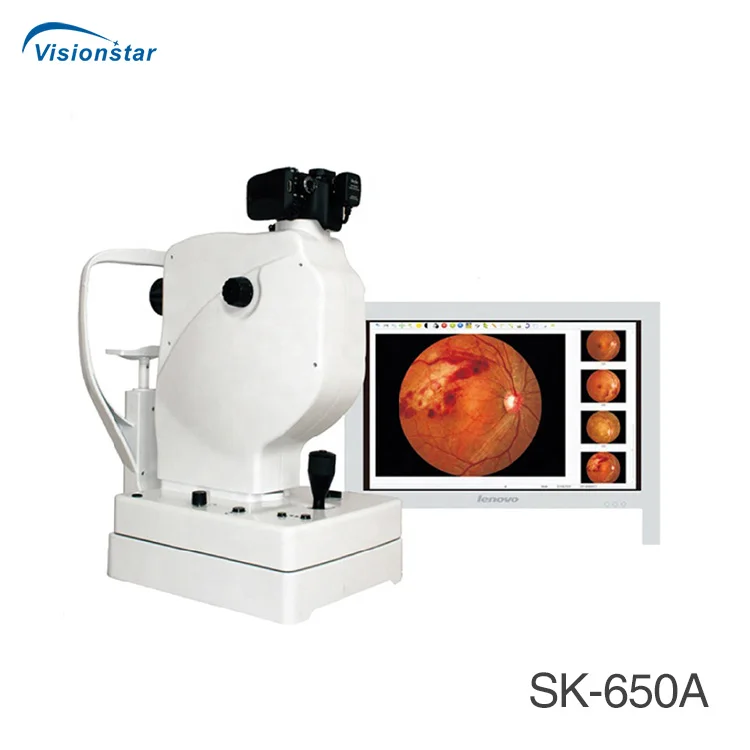

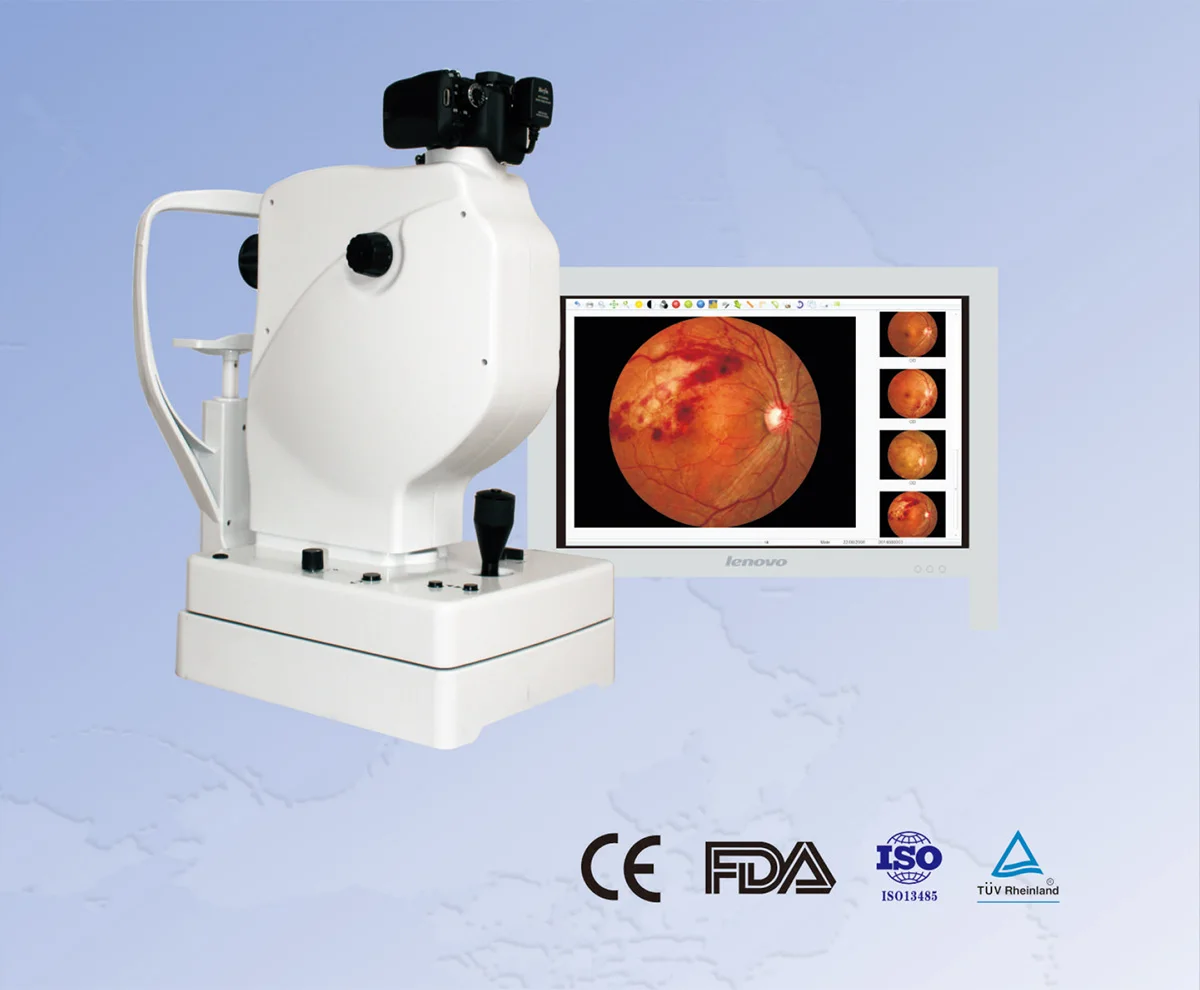

Popular Model SK 650B Non mydriatic Fundus Camera
- Category: Medical Optical Instruments >>>
- Supplier: Chongqing Vision Star Optical Co. Ltd.
Share on (62279880471):
Product Overview
Description
Popular Model SK-650B Non-mydriatic Fundus Camera
Features:
1.Reduce the pain and inconvenience of patient
2.Save time for patients and doctors,dilating need about 20 minutes
3.Won't affect patients' activity which improving their compliance
4.Non-mydriatic image with reliable quality
5.45 full-circle design
6.Switching anterior-posterior,para-position compensation lens

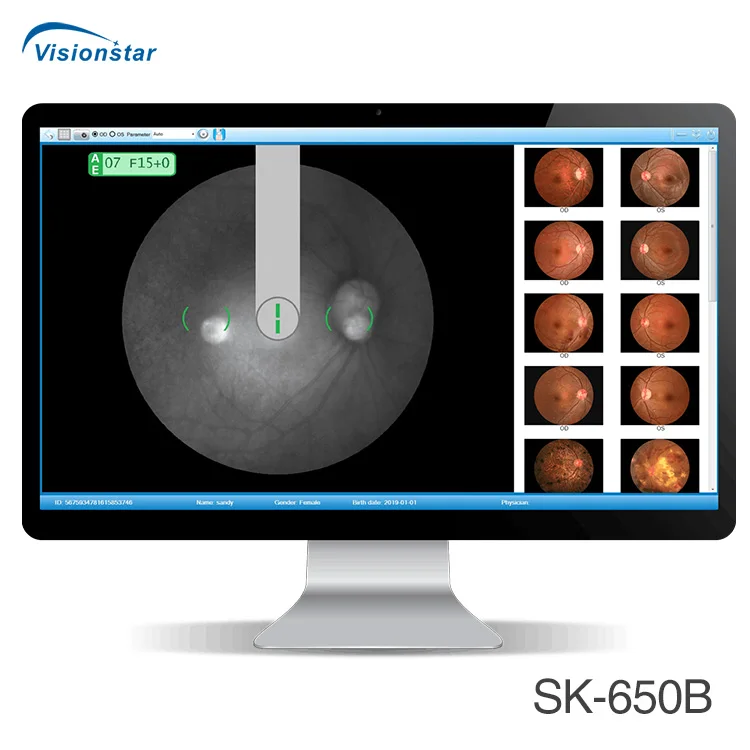

7.Split-line aligning focus
8.Exposure intensity automatic control
Specifications:
Model | SK-650B |
Optical lens | Aspherics system |

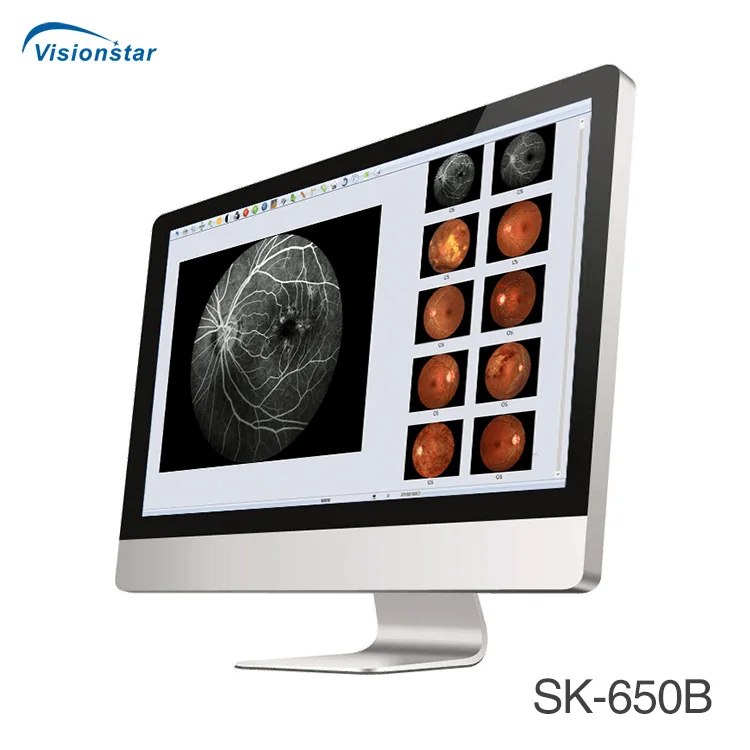

Test mode | Non-mydriatic and FFA |
Fundus Observation | Moved platform |
Red-Free | No |
Focus | Split-line aligning focusing |
Digital Camera | CANON EOS Technology |
Color Image Resolution | 5184*3456 |
Monochrome Image resolution | 1360*1024 |
Min.Pupil Size | 3.3mm |
Compensation range | -25D~+30D
|
Fundus Observation para-position indication | Dots overlap |
Fixation target | External eye fixation lamp & 9 internal fixation target (LED dot matrix-Fully controlled by software) |
Maximum angle of view | 53 |
Optical head tilting |
|
Working distance | 40mm±2mm |

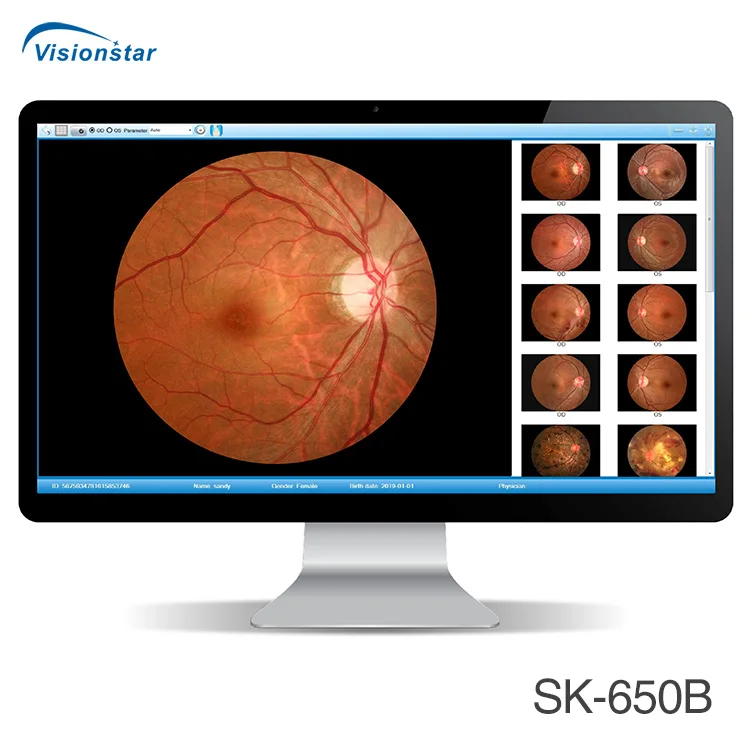

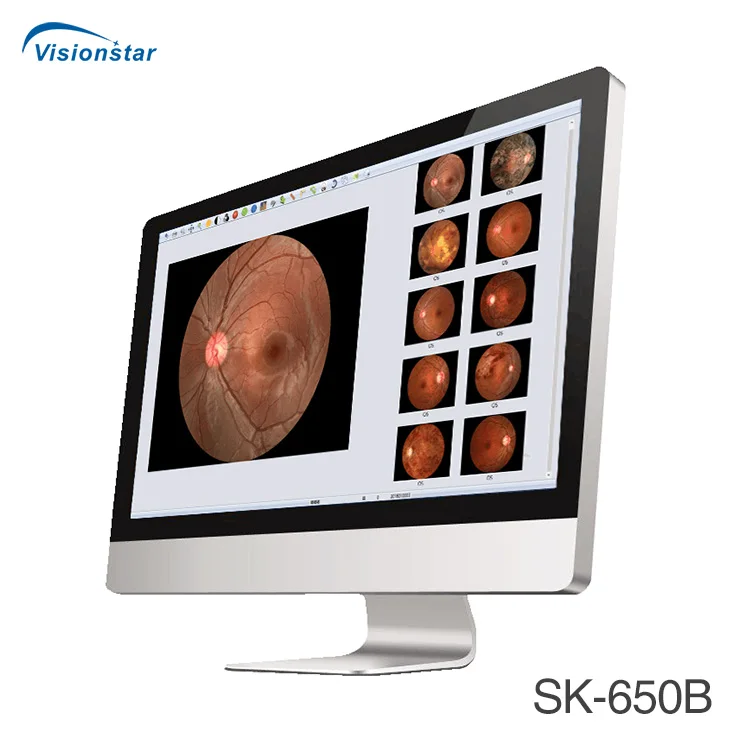

software | Support Dicom 3.0, support hospital HIS/PACS system Image processing easily operate, strong analysis, support fundus Mosaic, image post processing, measurement, patient profile management |
