2w 250 25 /2w 250 25 / 2w250 25 type 1inch solenoid valve for water
- Category: >>>
- Supplier: Ningbo Beot Automation Machinery Co. Ltd.
Share on (62280115890):
Product Overview
Description
Products Description

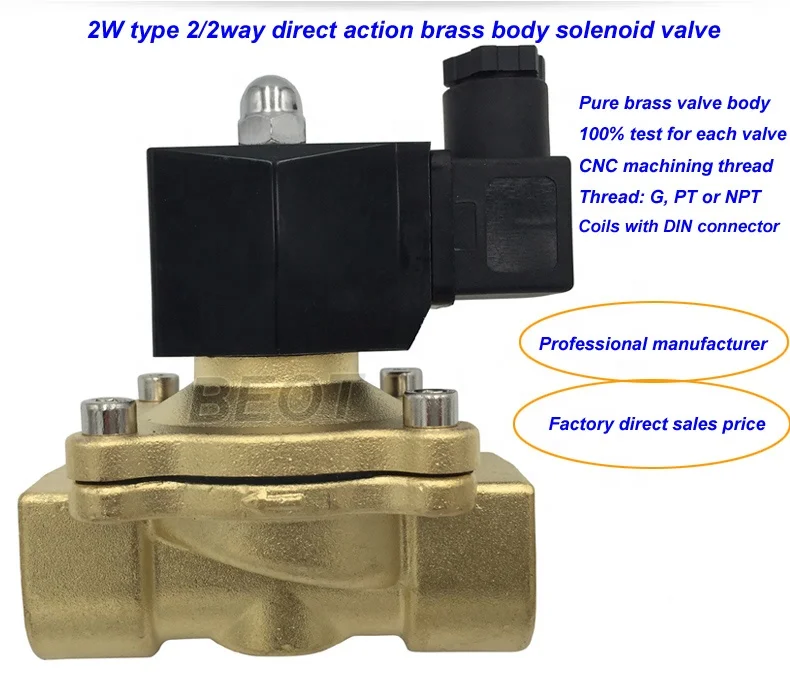

2W type 2way direct action water solenoid valve
It is are 2/2way, direct action type.
It are most popular valves for many conditions, especially in the water treatment system, such as water heater.
It can start working at zero differential pressure.
This type of water solenoid valve can change the coils to be as explosion-proof solenoid valve or water-proof solenoid valve to be used in water, especially for the music fountain control.
Normal is G thread, NPT & PT is optional.
Specifications | ||||||||||||||||||
Model | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 | 2W650-65 | 2W800-80 | |||||||||
Orifice Size(mm) | 16mm | 16mm | 20mm | 25mm | 35mm | 40mm | 50mm | 65mm | 80mm | |||||||||
Port Size | G3/8" | G1/2" | G3/4" | G1" | G 1 1/4" | G1 1/2" | G2" | G2 1/2" | G3" | |||||||||
CV Value | 4.8 | 4.8 | 7.6 | 12 | 24 | 29 | 48 | |||||||||||
Working Medium | Air,Water,Oil | |||||||||||||||||
Operation | Direct Action | |||||||||||||||||
Acting Type | Normal Close / Normal Open | |||||||||||||||||
Operation Fluid Viscosity | 20 CST Below | |||||||||||||||||
Operating Pressure | Air:0~1.0MPa,Water:0~0.7MPa,Oil:0~0.9MPa | |||||||||||||||||
Max. Pressure Resistance | NC:1MPa; NO:0.8MPa | |||||||||||||||||
Material of Oil Seal | NBR or VITON | |||||||||||||||||
Operating Temperature | NBR for -5 ~80°C and VITON for -5~150°C | |||||||||||||||||
Voltage Range | ±10% | |||||||||||||||||
Material of Body | Brass | |||||||||||||||||

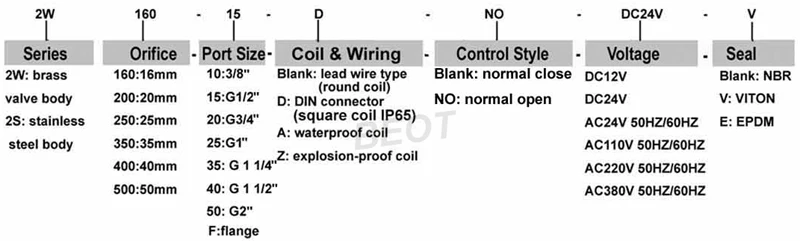

Ordering Code

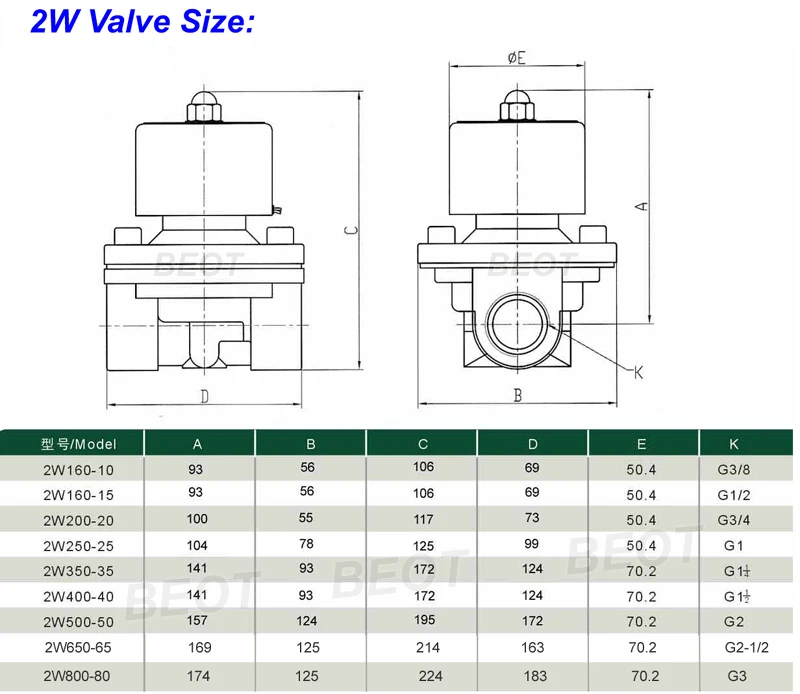

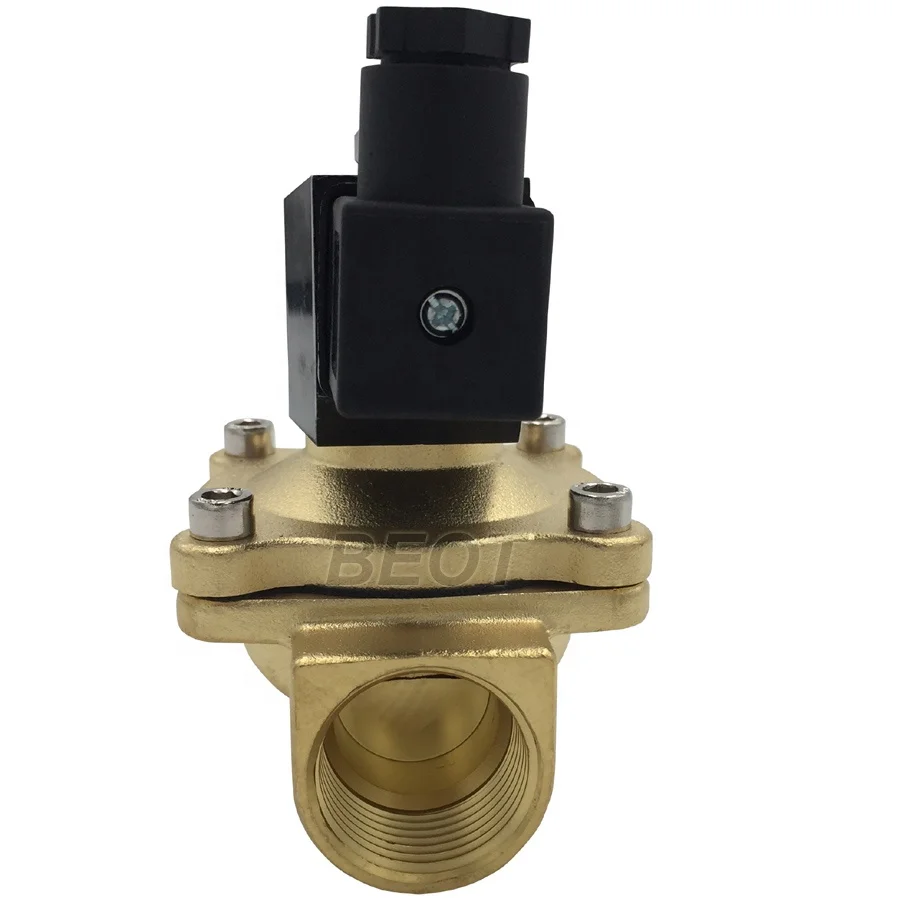

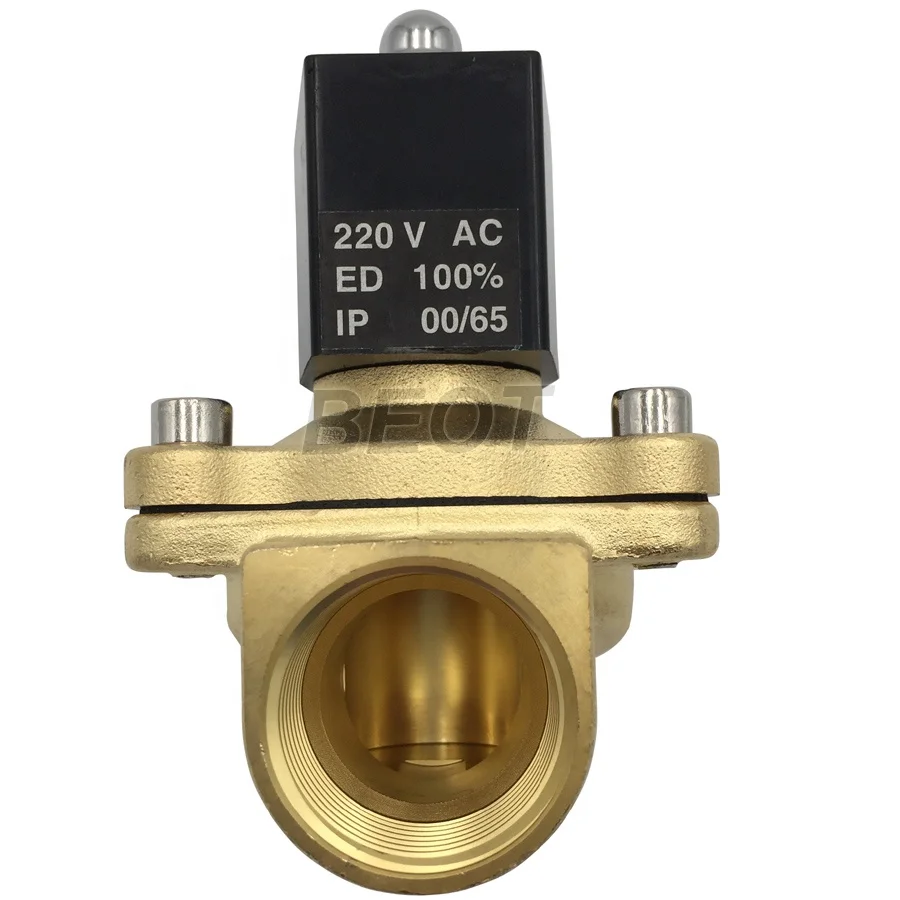

2W Valve Photos
