UHV 645 Transformer Oil Test Equipment Professional High Performance Gas Chromatography System
- Category: >>>
- Supplier: Wuhan Huatian Electric Power Automation Co. Ltd.
Share on (62280129894):
Product Overview
Description
Related products
Product overview
HTYSP-H oil chromatographic analyzer in accordance with the power system, "insulating oil dissolved gas component content mensuration (chromatography)" requirement, uses micro-computer control, full keyboard, large screen LCD display, with high precision, stable and reliable performance, high sensitivity, good repeatability etc. The instrument uses two columns in parallel shunt system. Equipped with TCD and double FID and methane reformer, one sample injection can achieve full analysis of seven components of the oil dissolved gas (H2, CH4, C2H2, C2H4, C2H6, CO, CO2), if necessary can do full analysis of nine components (H2, O2, N2, CH4, C2H2, C2H4, C2H6, CO, CO2)
Products features

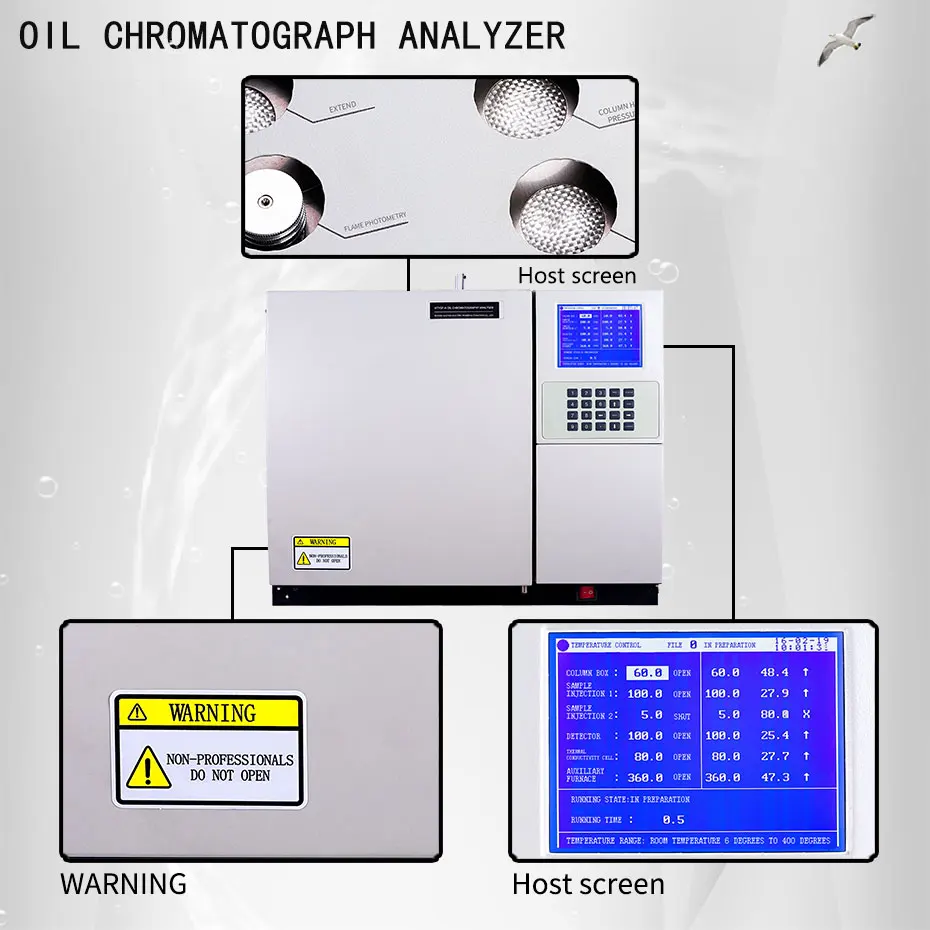

1. Micro-computer keyboard operation: to achieve the five heating zone temperature control, sensor control, over-temperature protection, "zero" degree protection, breakaway protection. The most effective protection of the chromatographic column and the thermal conduction tungsten rhenium wire
2. Advanced chromatographic process: adopts one sample injection, three detectors analysis process, greatly improve the detection sensitivity of hydrocarbon gas. Dual hydrogen flame set reduce the detection effect caused by differences gas content
Technique parameters
Temperature Range | Column chamber:room temperature +15℃~399℃ |
Evaporation chamber:room temperature +30℃~399℃ | |
Reformer:room temperature +30℃~399℃ | |
Thermal conductivity detector (TCD):room temperature +30℃~399℃ | |
Hydrogen flame detector:room temperature +30℃~399℃ | |
Temperature-control accuracy | ≤±0.1℃ |
Thermal conductivity detector | Sensitivity:The minimum detected density of hydrogen ≤5μl/L |
Noise:≤0.05mv | |
Setting drift:≤0.15mv/30min | |
Hydrogen flame detector | The minimum detected density of hydrocarbon ≥0.1μl/L |
The minimum detected density of CO,CO2 ≤5μl/L | |
Noise:≤0.05mv | |
Setting drift:≤0.15mv/30min | |
The start-up time of host | Less than 3 hours |
