Airtac 4v210 4v210 08 dc12v solenoid valve wiring diagram

Product Overview

Description

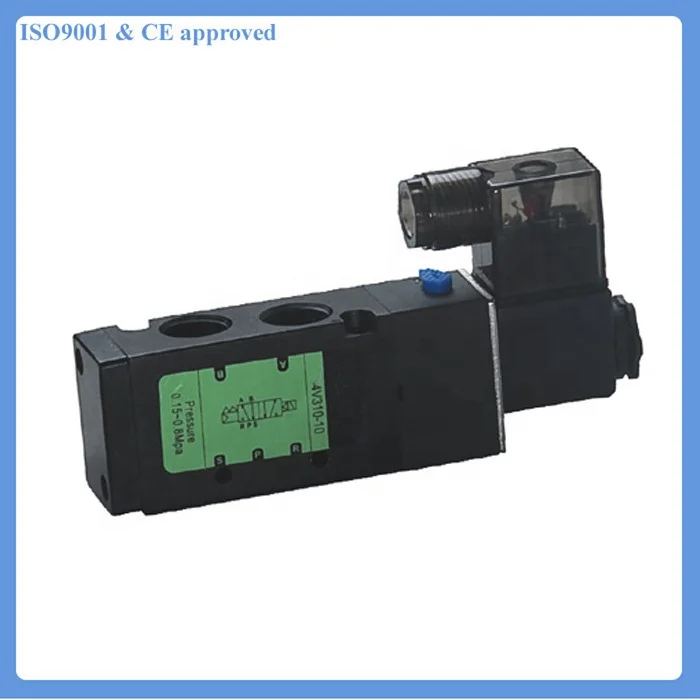

Airtac 4v210 4v210-08 dc12v solenoid valve wiring diagram, It is same as & nice replacement for AIRTAC valve. Internal Piloted directional control valve 5/2way. Thread type or NAMUR type. Normal is aluminium natural color for valve body, black color are optional.

CNC machined, we will do full test before shipment. Long working life time, it can work 10 million times without any problems.



Specification:

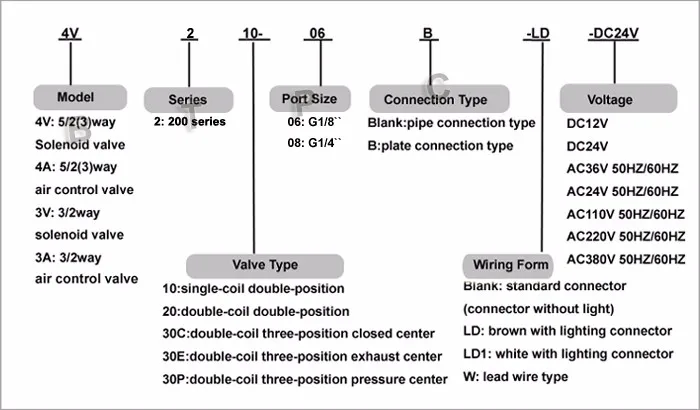

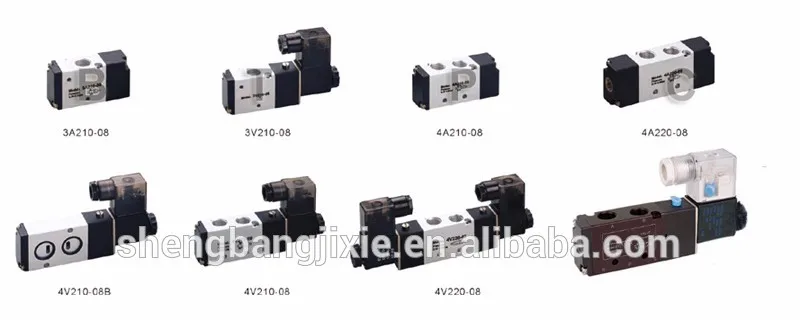

Model

4V210-06

4V220-06

4V230C-06

4V230E-06

4V230P-06

4V210-08

4V220-08

4V230C-08

4V230E-08

4V230P-08

3V210-06

3V220-06

3V210-08

3V220-08

4A210-06

4A220-06

4A230C-06

4A230E-06

4A230P-06

4A210-08

4A220-08

4A230C-08

4A230E-08

4A230P-08

3A210-06

3A220-06

3A210-08

3A220-08

Valve type

5/2way

5/3way

5/2way

5/3way

3/2way

Effective Cross Section Area

14mm2(CV=0.78)

12mm2(CV=0.67)

16mm2(CV=0.89)

12mm2(CV=0.67)

14mm2 (CV=0.78)

16mm2 (CV=0.89)

Port Size

In=Out=Exhaust=G1/8"

In=Out=G1/4"  Exhaust=G1/8"

In=Out= Exhaust=G1/8"

In=Out= Exhaust=G1/4"

Working Medium

40μ Micron filtered air

Acting Type

Internal Piloted

Working pressure

0.15~0.8MPa

Max. Test Pressure

1.2MPa

Ambient Temperature

5~50oC

Operating Voltage Tolerance

±10%

Power Consumption

AC:5.5VA   DC:4.8W

Insulation

F Class

Protection

IP65

Wiring/Connector

Lead wire or DIN Connector type

Switching Frequency

5 cycle/sec

Response Time

0.05 sec
