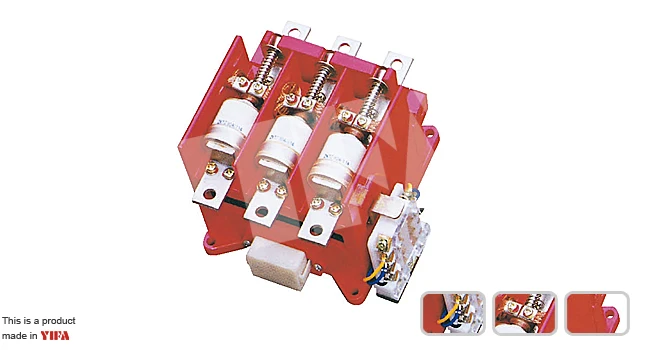

YIFA CKJ5 type 125A, 250A, 400A, 630A AC Low Voltage Vacuum Contactor ac contactor
- Category: >>>
- Supplier: Yifa Holding Group Co. Ltd. [Zhejiang China]Yifa
Share on (62280168283):
Product Overview
Description
CKJ5 type AC LV Vacuum Contactor
Product Description
| Product type | CKJ5-125 | CKJ5-250 | CKJ5-400 | CKJ5-630 | |
| Rated voltage | Main circuit | 1140 | 1140 | 1140 | 1140 |
| Control circuit | 36,110,220,380 | 36,110,220,380 | 36,110,220,380 | 36,110,220,380 | |
| Rated current(main circuit) | 125 | 250 | 400 | 630 | |
| Rated voltage | Torque(mm) | 1.8 0.2 | 2 0.2 | 2 0.2 | 2 0.2 |
| Over stroke(mm) | 1 0.2 | 1 0.2 | 1 0.2 | 1 0.2 | |
| Final pressure(N) | 30 3 | 78 7.8 | |||
| Line frequency withstand voltage(virtual value) | Main circuit | 4200 | 4200 | 4200 | 4200 |
| Auxiliary circuit | 2500 | 2500 | 2500 | 2500 | |
| Control circuit | 2000 | 2000 | 2000 | 2000 | |
| Product type | CKJ5-125 | CKJ5-250 | CKJ5-400 | CKJ5-630 | |
| Making capacity | 10Ie,100times | 10Ie,100times | 10Ie,100times | 10Ie,100times | |
| Breaking capacity | 8Ie, 25times | 8Ie, 25times | 8Ie, 25times | 8Ie, 25times | |
| Limit breaking current(A) | 2000, 3times | 4500, 3times | 4500, 3times | 4500, 3times | |
| Electric life(times) | AC-3 | 60 104 | 60 104 | 60 104 | 60 104 |
| AC-4 | 60 104 | 60 104 | 2 104 | 0.5 104 | |
| Mechanical life(times) | 300 104 | 300 104 | 300 104 | 300 104 | |
| Weight(kg) | 4 | 8 | 12 | 20 | |
