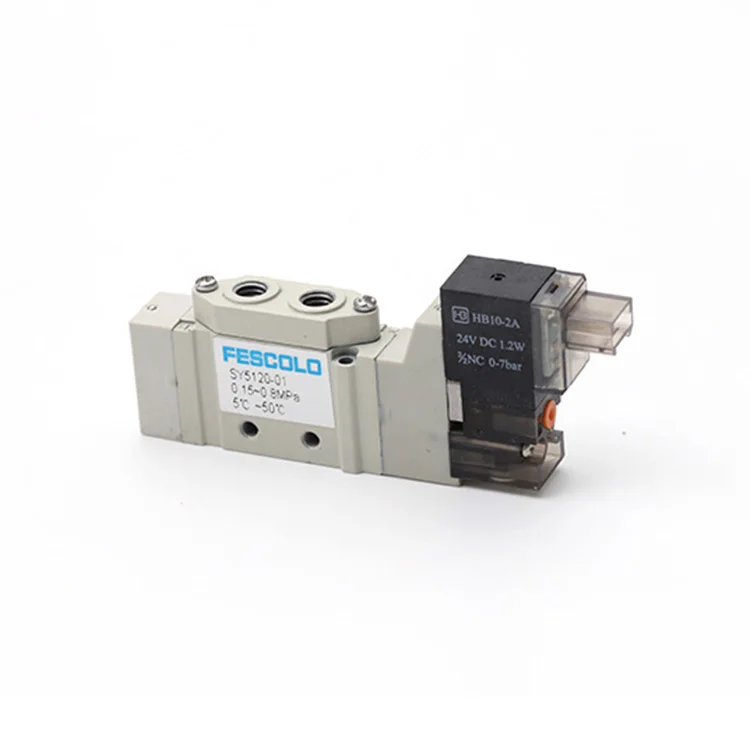

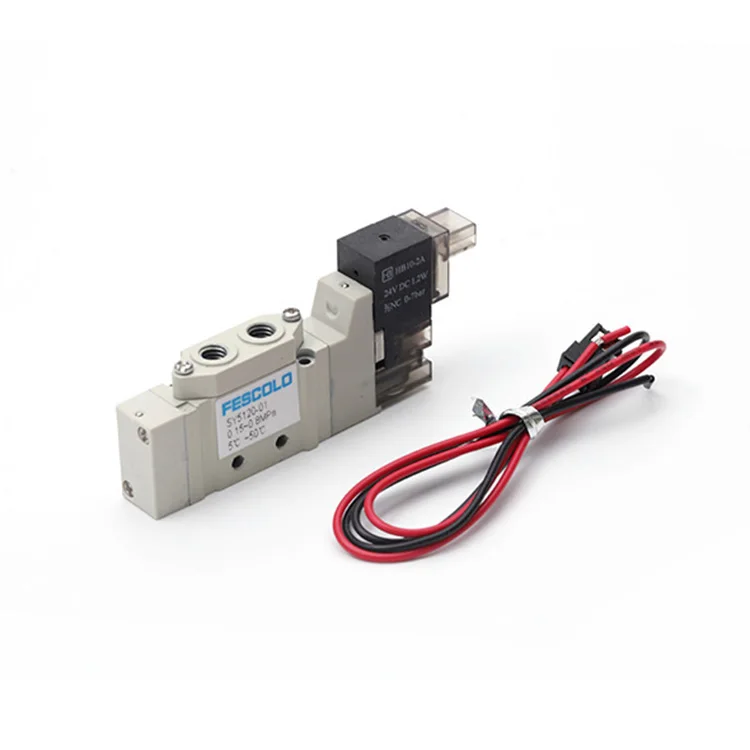

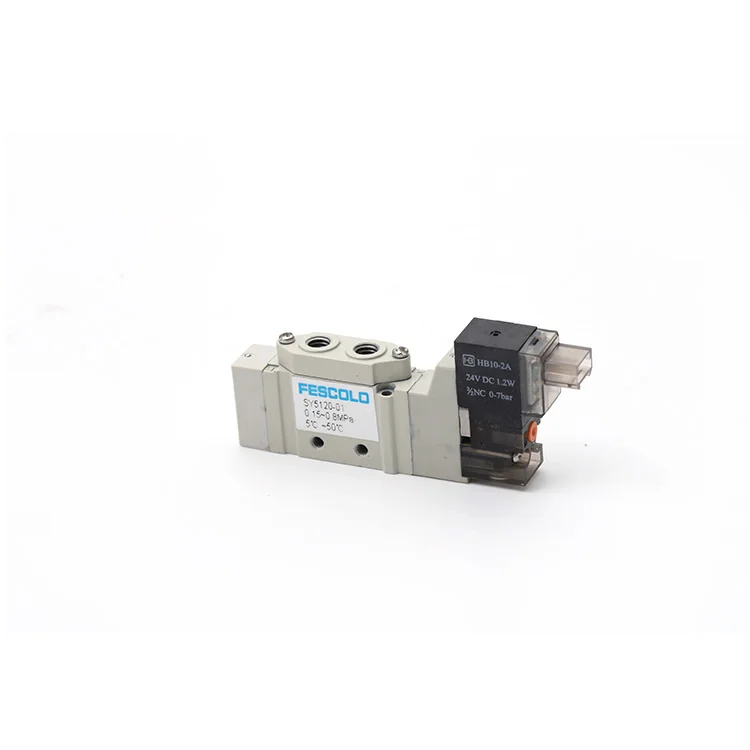

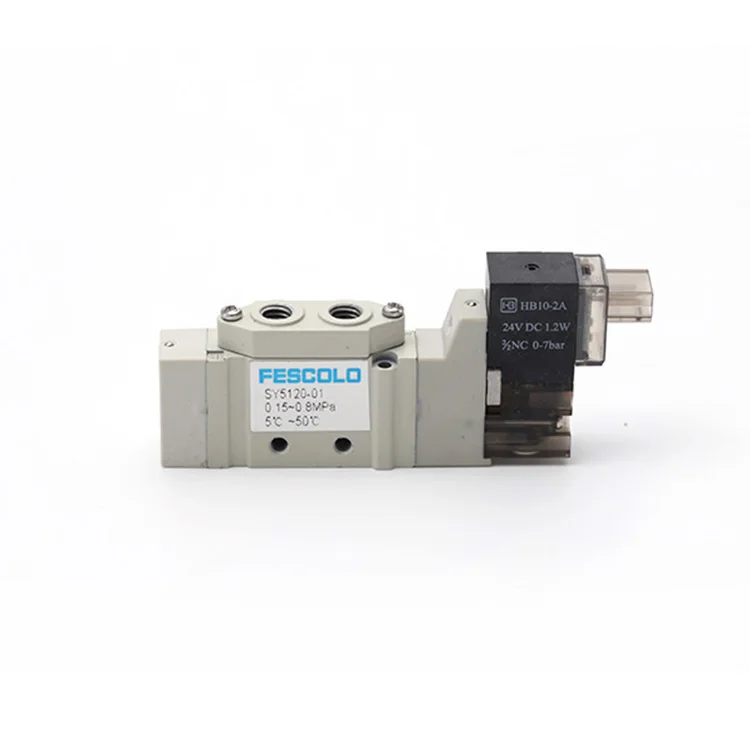

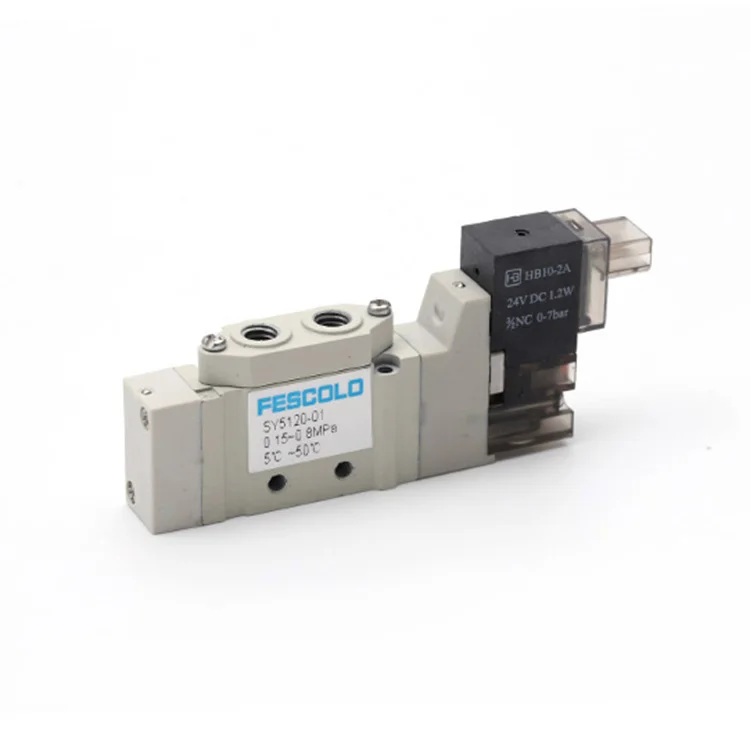

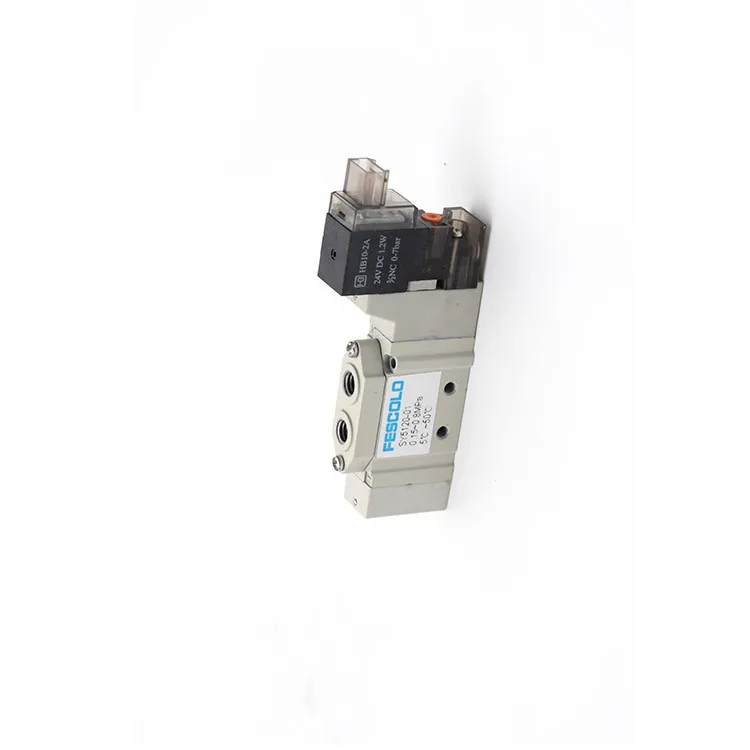

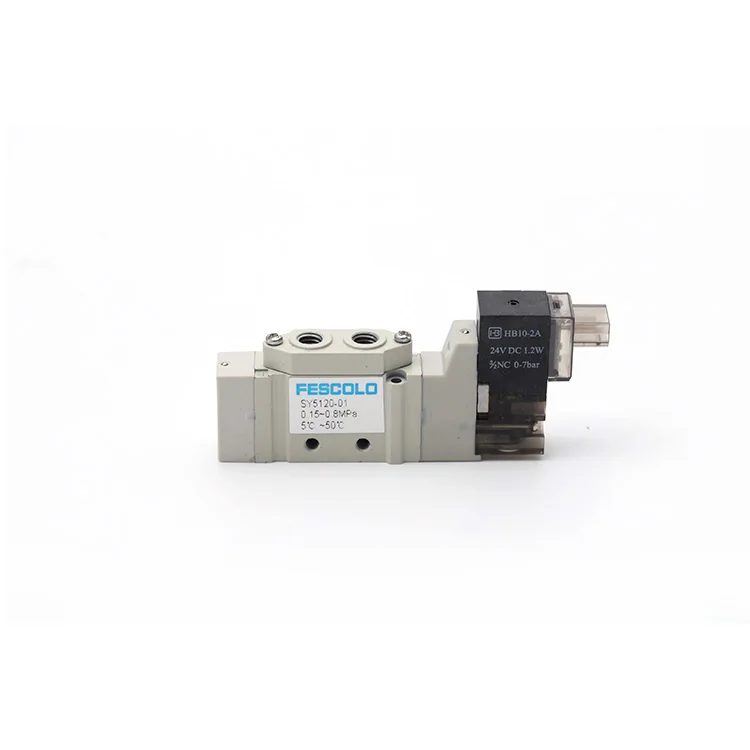

Mitsubishi brand sealing parts air electromagnetic valves SY3120 series solenoid valve with long life
- Category: >>>
- Supplier: Ningbo Fescolo Pneumatic Manufacturer
Share on (62280206920):
Product Overview
Description
Product Overviews

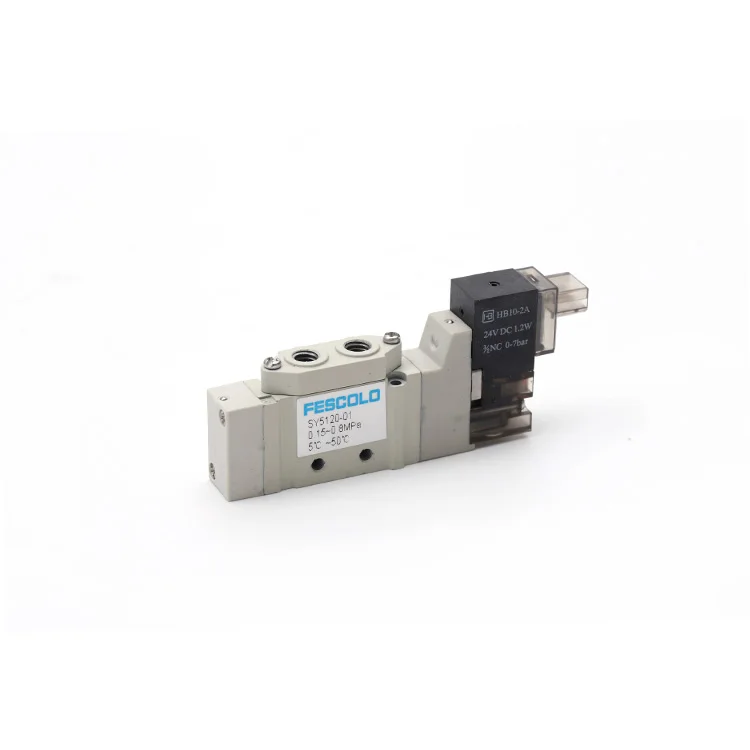

♦ Product name: SY3120/SY3220 series solenoid valve
♦ Ordering code:
SY 3 1 20 - DC24V
Model Valve body Head number Port size Voltage
3: 3/2ways 1: Single head
5: 5/2ways 2: Double head
♦ Characteristic:
1) The protection grade for this series solenoid valve is IP65.
2) Different voltages are available for coils.
3) Pressure unit: 1kgf/cm2=1bar=0.1MPa=100KPa=14.5psi
4) Lead wire type is available, please remind when you order.
5) Different thread types can be offered according to customers' requirements, e.g.: PT, NPT etc.
♦ Specification:
Applicable Medium | Compressed air | |
Applicable pressure range | 0.15~0.70Mpa | |
Proof pressure | 0.8Mpa | |
Ambient and fluid temperature | -5~60°C | |
Material of body | Aluminum alloy | |
Standard voltage | DC5V,DC12V,DC24V,AC24V,AC110V,AC220V | |
Allowable voltage range | -15%~10% | |
IP rate | IP65 | |
Insulation rate | Class F | |
Action | Internally piloted | |
Min. activate time | 0.05 s | |
Lubrication | Needless | |
Advantages
Production Flow
company profile
Certifications
FAQ
1) Can you provide a sample before a big order?
Answer: Yes, we can provide a sample.
2) What 's the delivery date?
Answer: It depends on the quantity you order. Normally, it will take 10~15working days for our regular products.
3) Can you make NPT thread for the port size?
Answer: Yes, we can make NPT thread. But here is MOQ requirement for the quantity.
4) Are you able to make Non-standard or customized air cylinders?
Answer: One of our biggest advantage is for non-standard and customized products.
5) Which port can you delivery?
Answer: Ningbo, Shanghai, Guangzhou, Qingdao.
