TS Filter Manufactured Absolute Rated Beta 5000 Pleated Cartridge Wine Filter Housing Machine for Beverage and Beer Industry
- Category: Cleaning Equipment >>>
- Supplier: Hangzhou Kosma Membrane Technology Co. Ltd.
Share on (62280213841):
Product Overview
Description
TS Filter Manufactured Absolute Rated Beta 5000 Pleated Cartridge Wine Filter Housing Machine for Beverage and Beer Industry
Materials of Construction | Filter Media: | Asymmetric polyethersulfone (PES) membrane |
| Support Layers: | Polypropylene | |
| Micron Ratings: | 0.04,0.1,0.2,0.45,0.65,0.85,1.2 | |
| innerr core: | Polypropylene | |
| Cage,Endcap: | Polypropylene | |
| Seal Method: | Thermal bonded, no adhesive | |
| O-rings/Gaskets: | Silicone,Nitrile,Viton, EPDM, etc. | |
Dimensions | OD: | 69 (2.75") |
| ID: | 33 (1.30") | |
| Length(base on DOE): | 10"-254mm, 20"-508mm, 30"-752mm, 40"-1016mm | |
| Filtration Area(M2) | 0.65m2 per 10" | |
Operation Conditions | Normal Operation Temperature: | Up to 60℃ (140℉) |
| Max Operation Temperature: | 85℃ (185℉) @ ΔP ≤ 1.0Bar (14PSI) | |
| Max Differential Pressure: | ||
| Normal Flow Direction: | 4.2Bar (60PSI) @ 25℃ (77℉) | |
| Reverse Flow Direction: | 2.1Bar (30PSI) @ 25℃ (77℉) | |
| Ph Value Compatiblity: | 2-13 | |
| Sterilization: | steam sterilization for 30mins at 121℃ (250℉) /Cumulative time: 8 hours | |
Material Safety | Endotoxin: | <0.25EU/ml |
| Extractables: | 0.03g/10" |

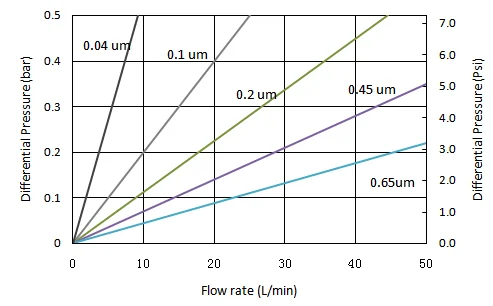

Table 1: typical water flow rate @ 25 ℃ (77℉)
Ordering information
| Grade | Product | Micron | Adaptor | Length | O-ring/Gaskets |
| C-chemical | IPS | 010-0.10μm | AA-DOE | 10-10" | S-silicone,N-nitrile, E-EPDM,T-felon,V-viton |
| E-electronic | 020-0.20μm | CN-226/fin | 20-20" | ||
| P-pharmaceutical | 045-0.45μm | BN-222/fin | 30-30" | How to order? Examples | |
| F-food & beverage | 065-0.65μm | CF-226/flat | 40-40" | pharmaceutical grade, 0.45 μm, length:10", adaptor: DOE, gasket:silicone | |
| BF-222/flat | Selection code: PIPS045AA10S | ||||
| EN- 222 three locking ears/fin |
Product category
Packaging & Shipping
Our Services
1. 24-hour Response
We will reply your inquiry within 24 hours for saving your time and labor.
2. OEM service
OEM service is available, like product, package, etc.
3. Supporting System
The system consists of claims systems, technical support system, inquiry system and ordering following system. The system will provide after-sales service in full range.
4. Free Training
We provide free training to all of our clients and distributors. The training will give you ample knowledge of our product, and make it easy for your work.
5. Free Storage Area
We are providing free storage area for clients to achieve mixmum loading purposes.
Company Information
FAQ
Q1: Are you trading company or manufacturer ?
A: We are manufacturer with our own factory located in Hangzhou City, Zhejiang Province, China, since 2001.
Q2: Do you provide samples ?
A: Yes, we can offer samples for our new clients, but you need to afford the sample fee and shipping cost. When you issued the formal order, the sample fee will be refund.
Q3:What is your terms of payment?
A: We can accept L/C, T/T, Paper, Western Union, MoneyGram, Paypal.
Q4: How long is your delivery time?
A: Generally, we will deliver your goods within 7 working days after your payment. Mostly, it depends on your quantity.
Q5: How do you make our business long-term and good relationship?
A:1. We provide good quality and competitive price to ensure our customers’ benefits;
2. We respect every customer as our friend and we sincerely do business with them, no matter where they come from.
