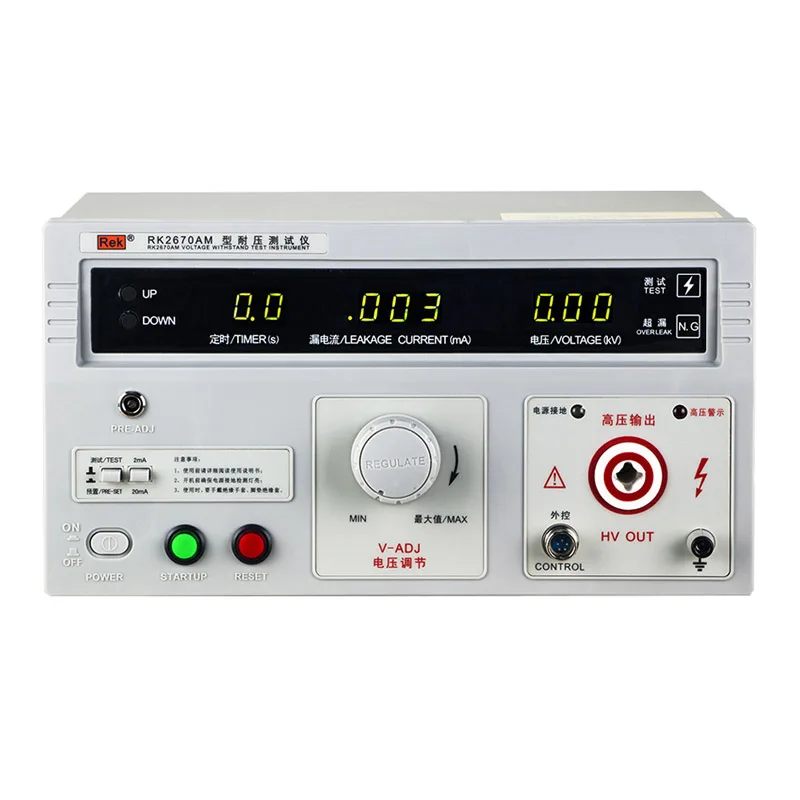

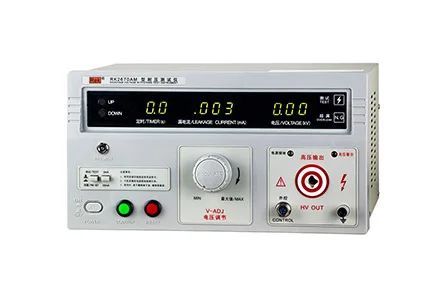

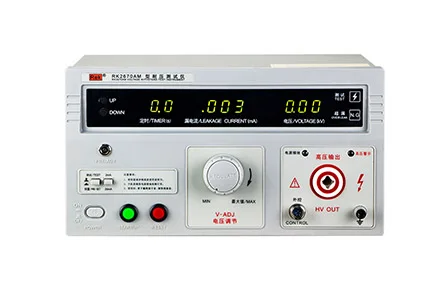

Rek RK2670AM High Accuracy AC 5KV & AC 20mA Withstanding Voltage Tester pressure Hipot tester Break Down Voltage (BDV)Tester
- Category: >>>
- Supplier: Shenzhen Meiruike Electronic Technology Co. Ltd.
Share on (62280387003):
Product Overview
Description
Product Description
model | RK2670AM |
The output voltage | AC 0 to 5kV |
Test current | AC 0-2/20mA |
Test accuracy | ± (5% + 3 words) |
testing time | 0.0s to 999s 0.0=Continuous test |
Transformer capacity | 100VA |
PLC interface | Optional |
Power requirement | AC 220V ± 10% 50Hz / 60Hz ± 3Hz |
working environment | Temperature (0-40) °C Humidity ≤ 75% RH |
Dimensions | 320*270*180mm |
weight | 8.5kg |

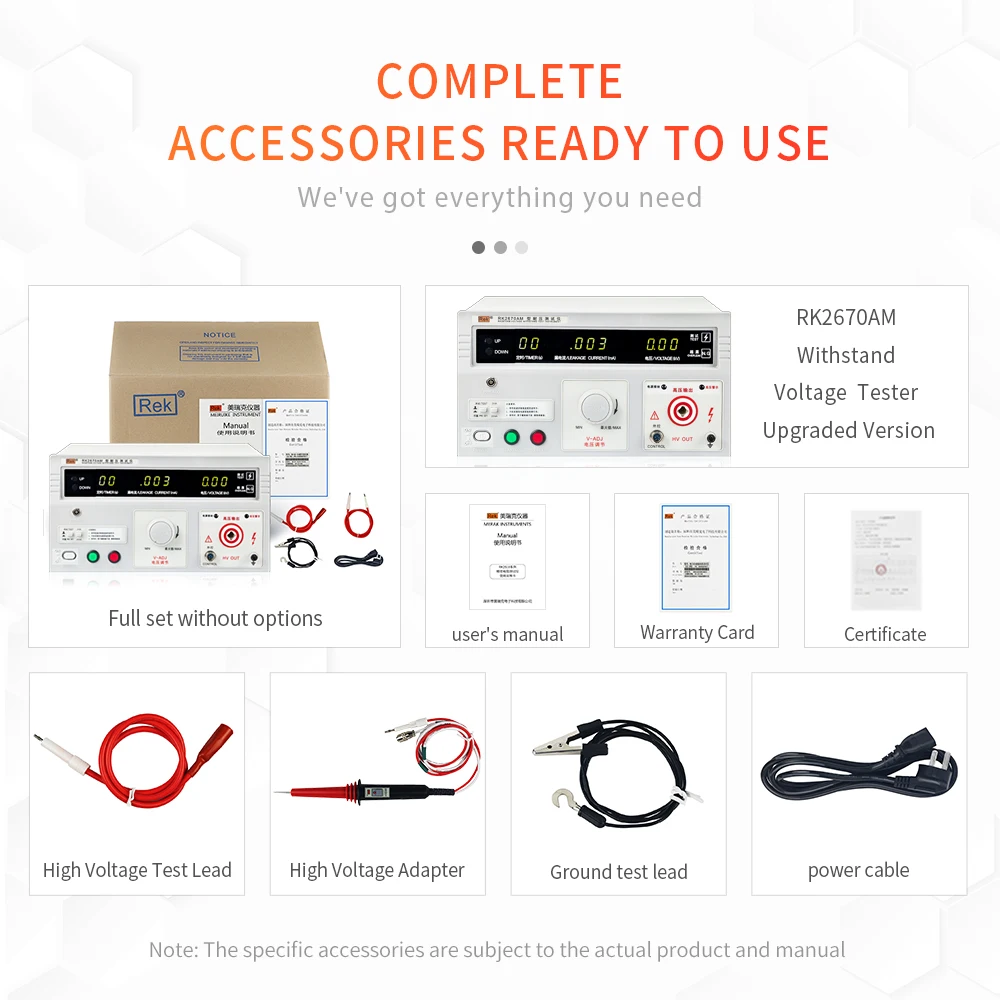

Accessories | Withstand voltage test bar, test line, ground wire, power cord |

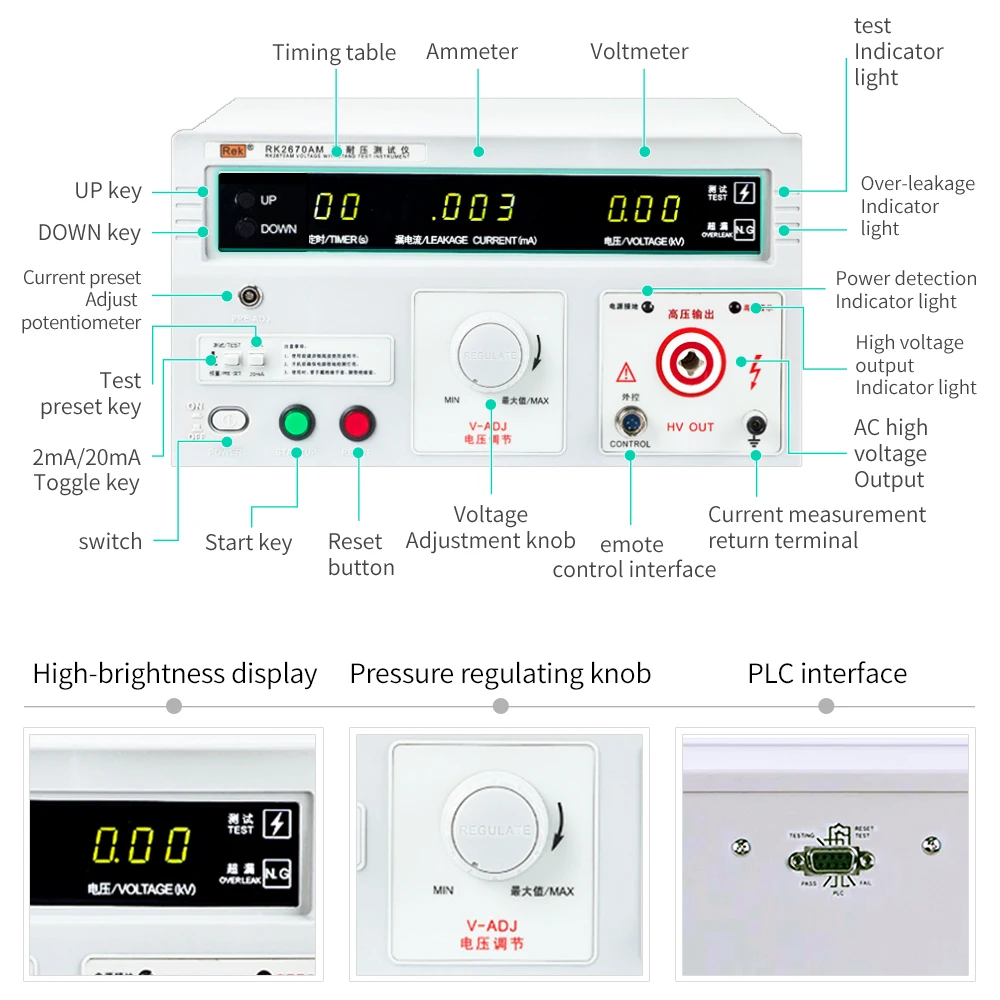

- Performance characteristics
1. Single AC 5KV universal pressure tester

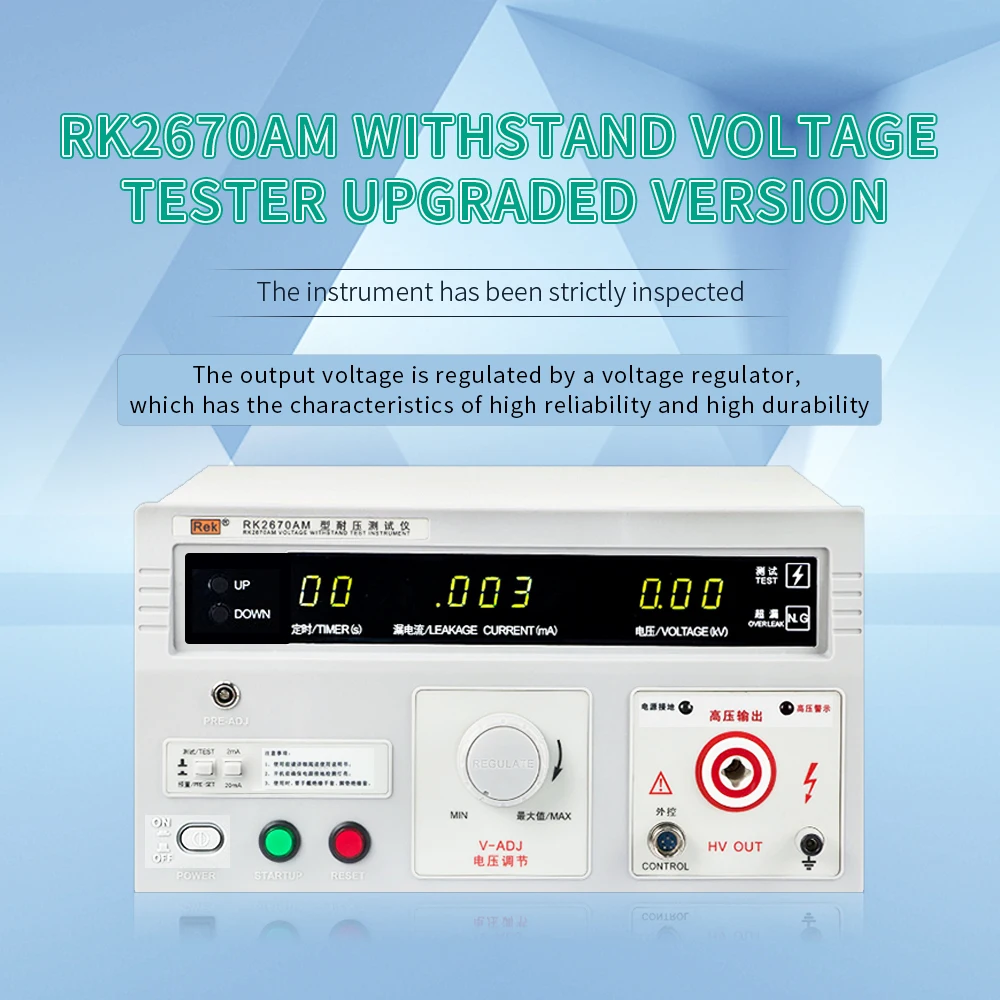

2. The output voltage is regulated by the voltage regulator, which has high reliability and high durability.
3, using high-brightness LED digital tube to display test time, voltage, current, real-time display of breakdown current value and voltage value
4, the alarm current value can be continuously preset
5, the test time is displayed by three digital tubes

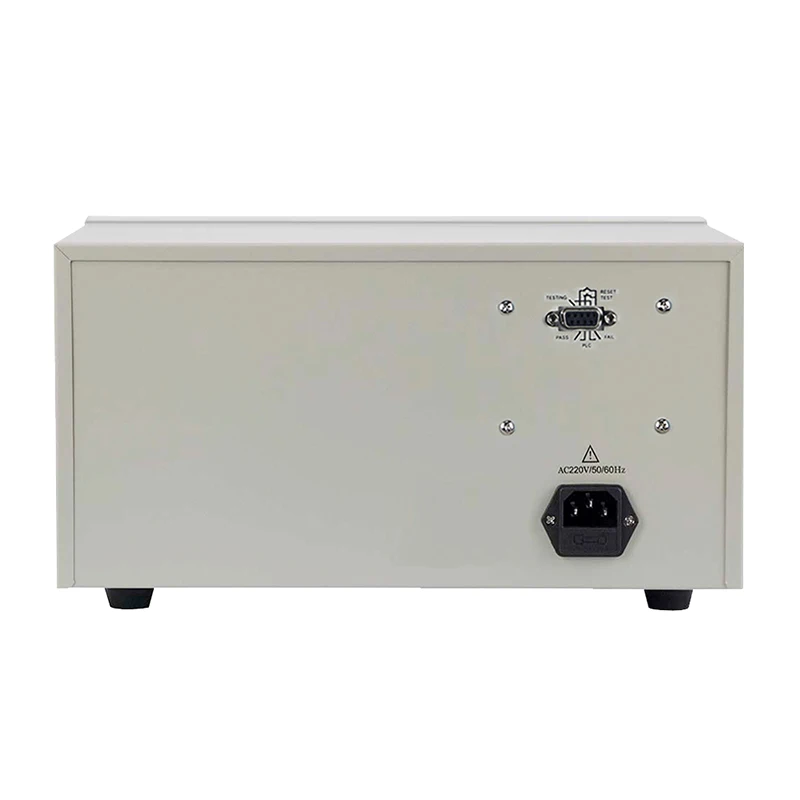

6, equipped with the signal input and output interface required by PLC, can easily form a comprehensive test system with PLC
Details Images
Standard remote control high voltage bar
Standard high voltage test line
Standard grounding test line
Product Usage
2, alarm current setting
3, timing setting
4, output voltage setting
2, household appliances
3, insulation material
4, instrumentation
5, lighting appliances
6, electric heating appliances
7, wire and cable
Company Introduction
Our factory is located in Shenzhen, China.
We have been deeply involved in this industry for 13 years.
We have a professional R&D team dedicated to producing more precise, high quality products.
We are committed to better serving more customers.
Welcome to visit our factory.
Our Services & Strength
Our high-tech factory has developed and produced safety regulations, medical safety regulations, ultra-high voltage withstand voltage meter, digital high voltage meter, DC low resistance tester, intelligent electricity meter (power meter), linear power supply, switching power supply, electronic load A series of electronic measuring instruments, dedicated to providing customers with quality products, can also be customized according to customer needs to customize special-purpose and specifications products, so that every customer is more satisfied.
