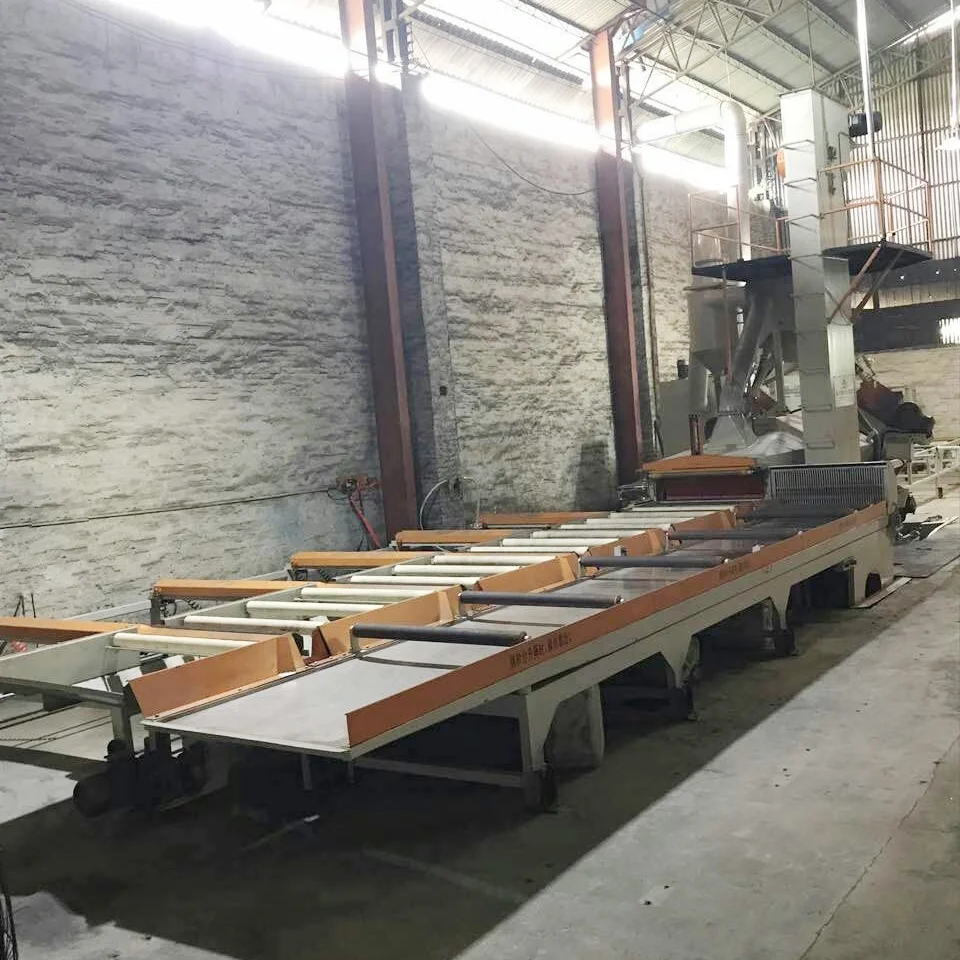

Aluminium Profile Shot Blasting Machine/Steel Bar Shot Blasting Machine

Product Overview

Description

Aluminum Profile Automatic Sand Blasting Machine



Aluminum profile shot blasting process effectively solces the problems of high aluminum consumption,high cost,serious pollution and high waste water handling cost  in alkaline etching and acid etching,

4pieces of blasting guns Sand blasting machine parameters:

Daily output	16~25tons	Profile feeding speed	0~8m/min
Total power	48kw	Shotting guns	4pcs
Compressed air	0.6~0.8Mpa	Machine size	L17.5m*W6m*H4.5m
Max.profile size	W750*H240mm	Alu.consumption	0.8~1.0kg/T(alu.)
Sand consumption	0.5~1.0kg/T(alu.)	Electricity consumption	45kw.h/T

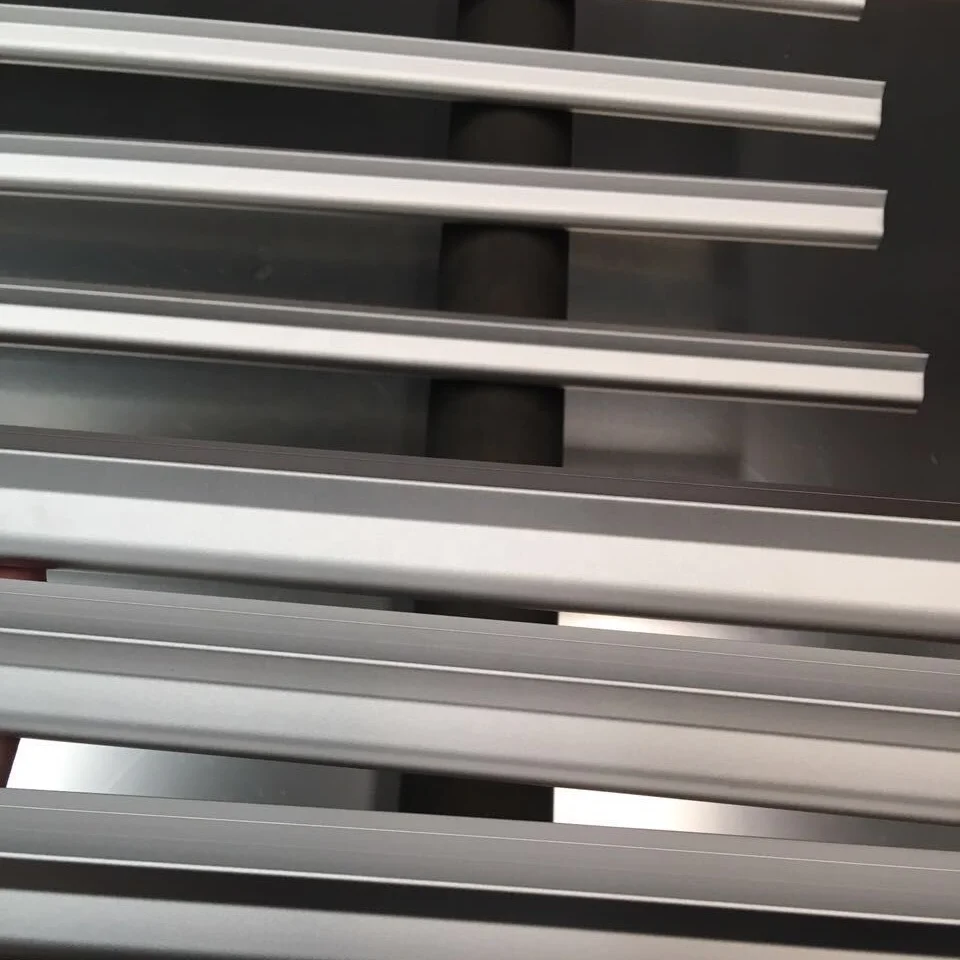

Aluminum profile after sand blasting can effectively remove mechanical lines,welding lines,coarse grains and such defects.

Also surface chemical treatment technology is adopted to create sand surface profiles of different brightness and colors.

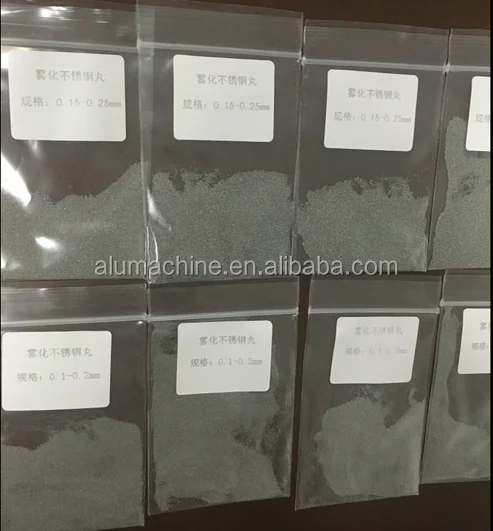

Stainless steel shots of different granularities can be chosen to achieve coarse or fine metal effects.



                                                                       Stainless sand: diameter 0.1~0.25mm
