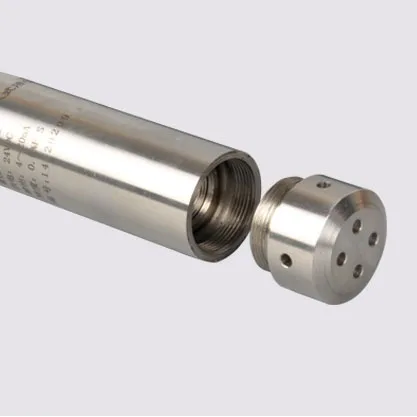

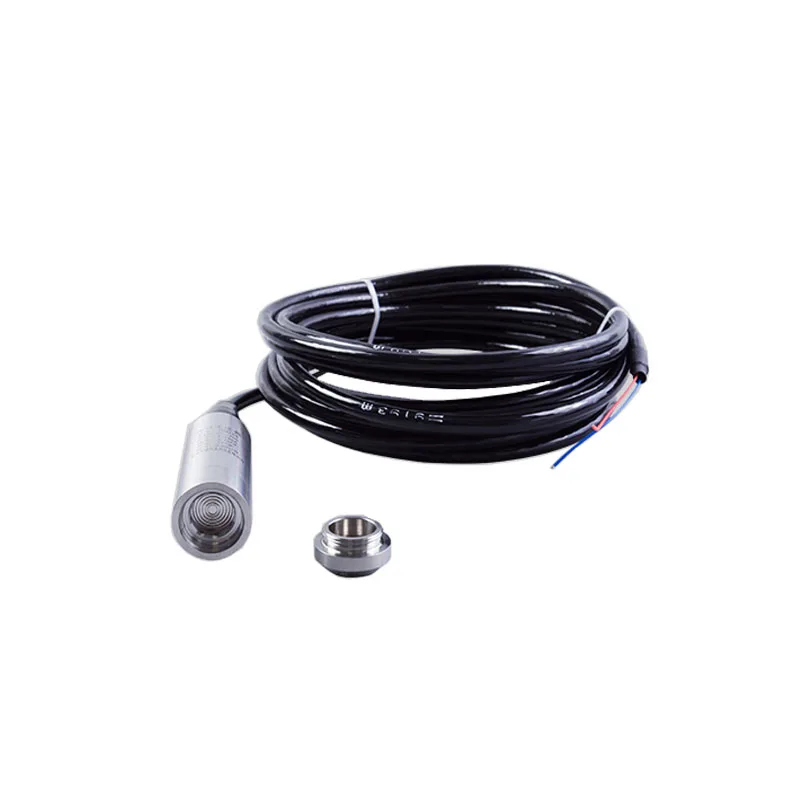

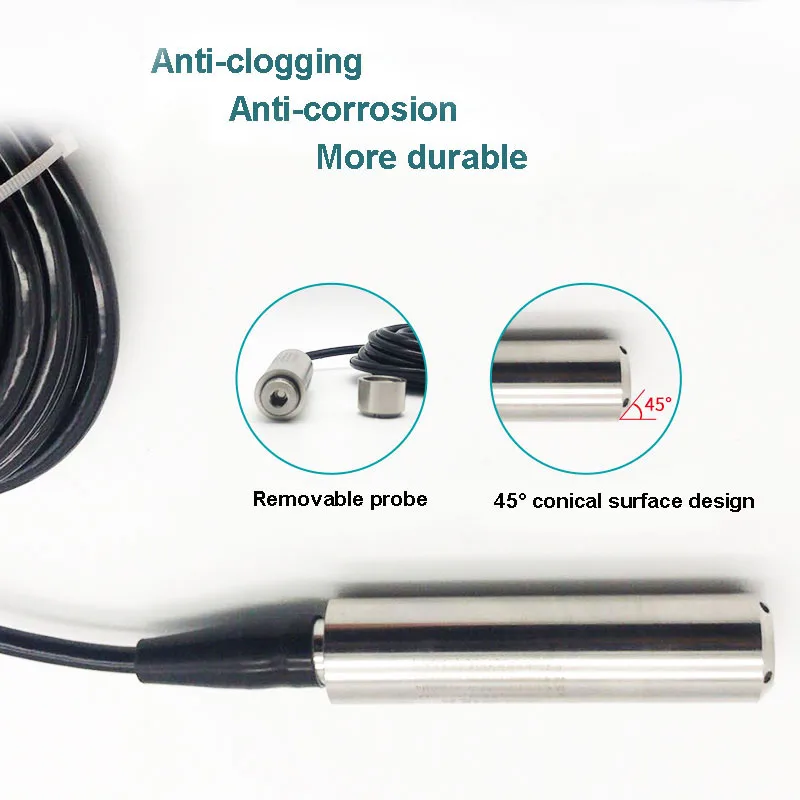

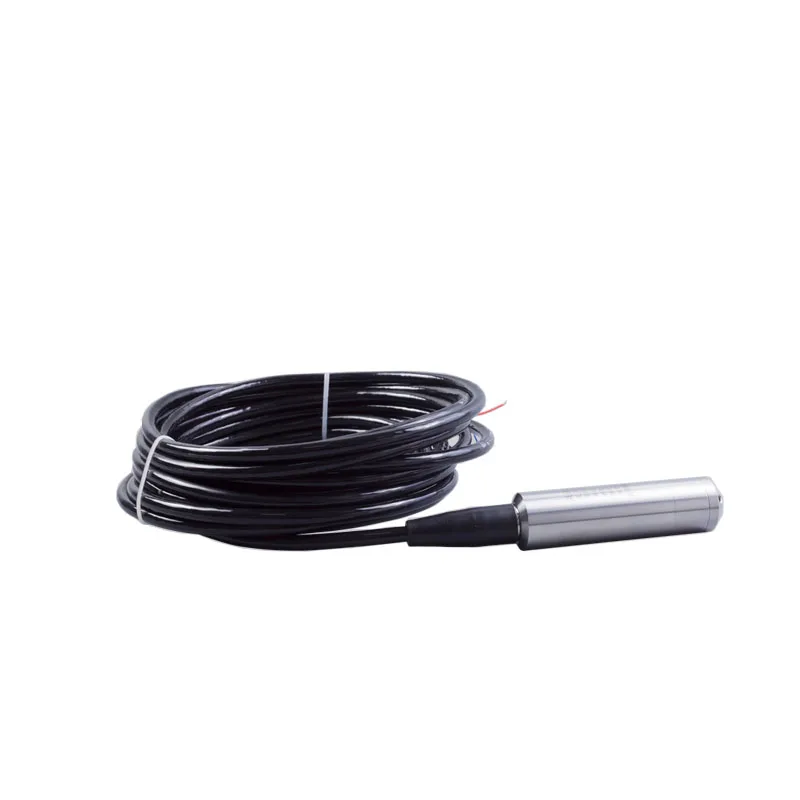

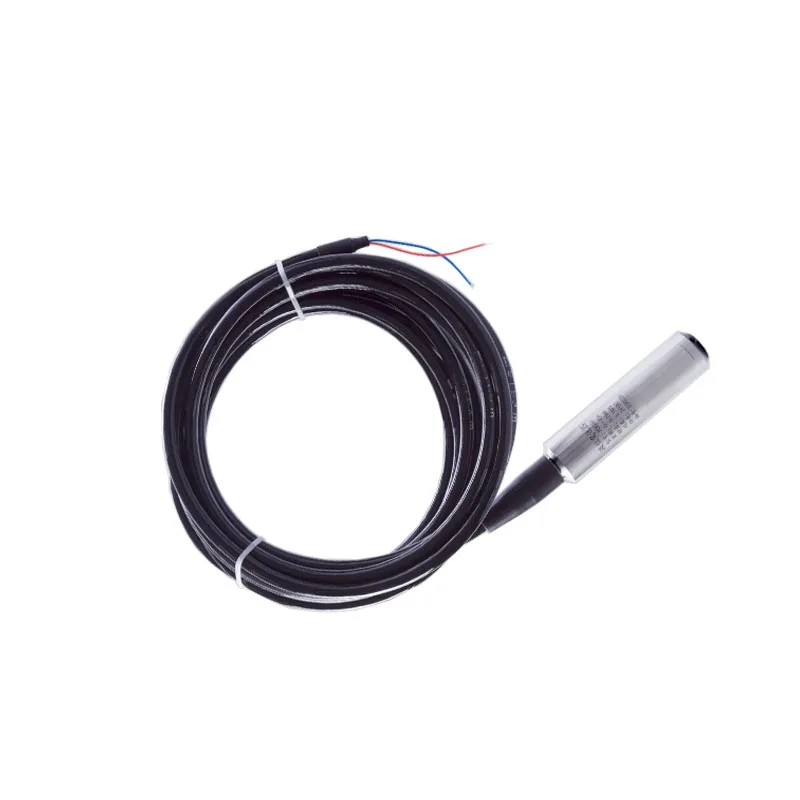

High quality wastewater level sensor water level sensor probe
- Category: >>>
- Supplier: Wuxi Winsun Automation Instrumentation Co. Ltd.
Share on (62280628999):
Product Overview
Description
Product Description
The product is easy to install, stable in performance, good in sealing, and can work continuously online for a long time.
Features
Piezoresistive silicon chip employed
MEMS technology
Excellent long term stability
Hart protocol selectable
CE certificate
Typical Application
Depth and level measurement in
Wells
Reservoirs
Lakes
Rivers
Sewage treatment plant
Water tank
Ground water monitoring
Surface water monitoring
Pressure range | |||
Pressure range | 1m, 2m, 5m, 10m, 20m, 50m, 100m, 200m H2O | ||
Output signal | |||
Output | 4 to 20mA | 1 to 5V | 0 to 5V | ||
Specification | |||
Accuracy (linearity, repeatability and hysteresis) | ±0.5%F.S. (Typical) | ||
Overpressure | 150%F.S. | ||
Excitation | 24VDC | 12VDC | ||
Operating temp. | -20ºC - 85ºC | ||
Medium temp. | -20ºC - 85ºC | ||
Storage temp. | -40ºC - 125ºC | ||
Zero temp. coefficient | ±1.5%F.S.(@0ºC - 85ºC) | ||
Span temp. coefficient | ±1.5%F.S.(@0ºC - 85ºC) | ||
Long term stability | ≤0.2%F.S.S/year | ||
Protection | IP68 | ||
