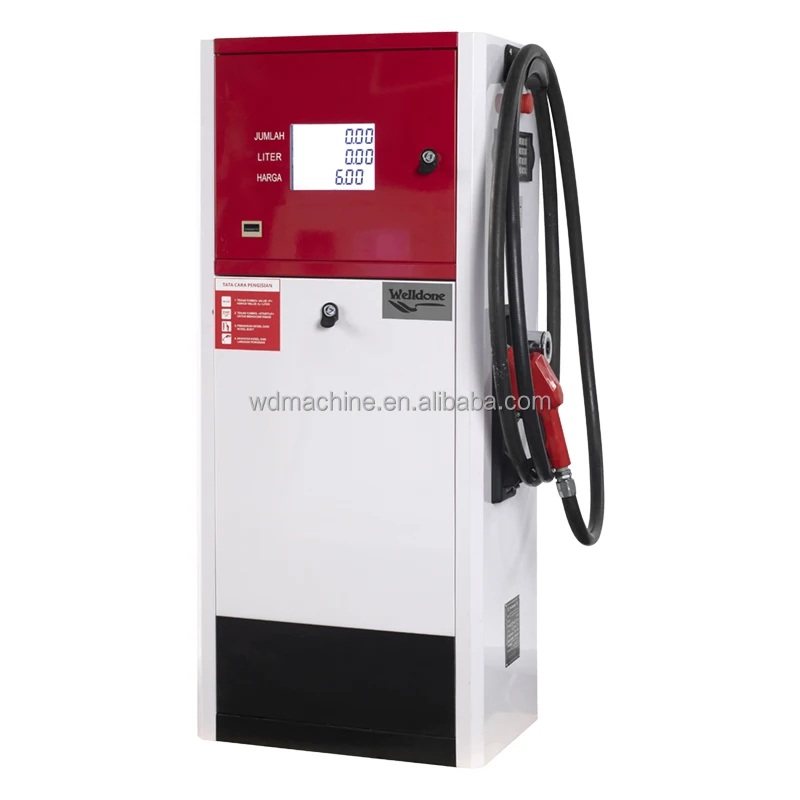

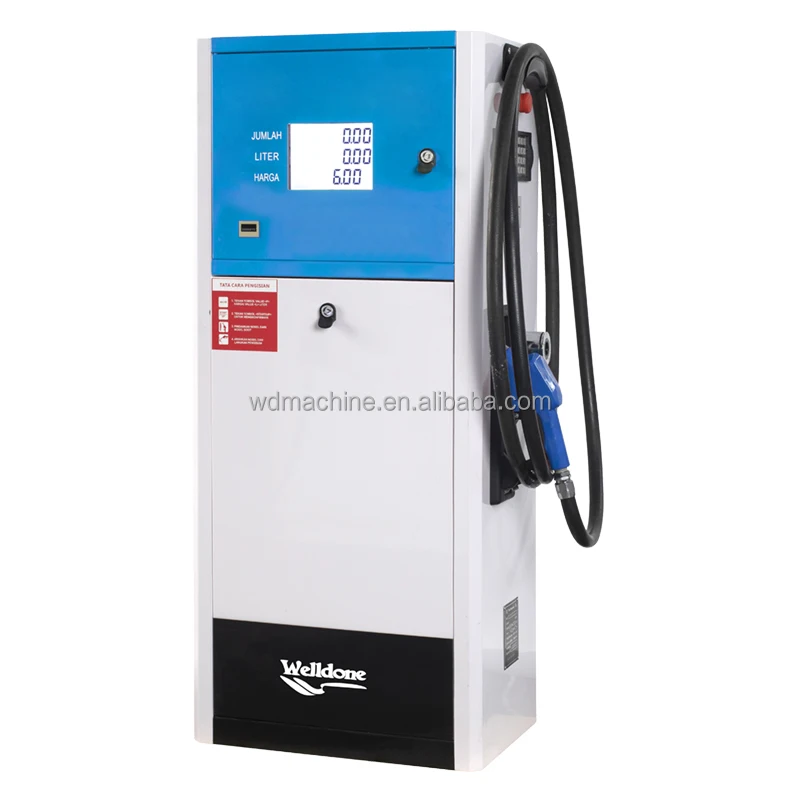

Petrol pump fuel dispenser,dispenser fuel,fuel dispenser pumps

Product Overview

Description



Feature:

1. Adopting combination pump, smaller shape and convenient maintenance.



2. Adopting painting-side for common type and stainless steel side for luxurious type .



3. Leading-static and Highly-hang oil pipe.



4. Features fueling as ration , resetting by computer and re-displaying when power cut



5. Big-size Aluminum nozzle holder.



6. Submersible pump to be optional.



7. Flow meter features high precision and strong reliability.



8. Excellent electromagnetic compatibility and strongly anti-jamming.



9. Be capable of connecting with central computer in gas station.



10.Conveniently combining and extending function.



11.To update IC card fuel dispenser is optional.



12.Electronic calibration.



13.Stop fueling by integer sale.



14.Leaves the communication ports, so it can communicate with the gas station management system.



15.Voice and printer(optional).



16.Can set decimal point for the display, so can be used in many countries with different currency rate.



Remark: Size, color and design of fuel dispenser can be produced according to customers’ requirement.



Technical specification:



Ambient temperature:  -40 °C to +55 °C



Max flow: 50L/min



Repeating error: ≤0.15%



Outlet pressure: ≤0.3MPa



Accuracy: ±0.3%



Noise: ≤70dB(A class)



Single volume range: 1-9999.99,1-999999.99



Humidity: 30% -90%



Inlet Pressure: ≥54KPa



Power: AC220V±20%,50Hz



Unit price range:0-9999 , 0-999999(changeable)



Accumulative volume range: 0-9999999999.99



The type of fuel dispenser:





Specification

1product,1flowmeter,1pump,1motor,1nozzle,2displays,1keyboard; 220V 50Hz (Bennett type)

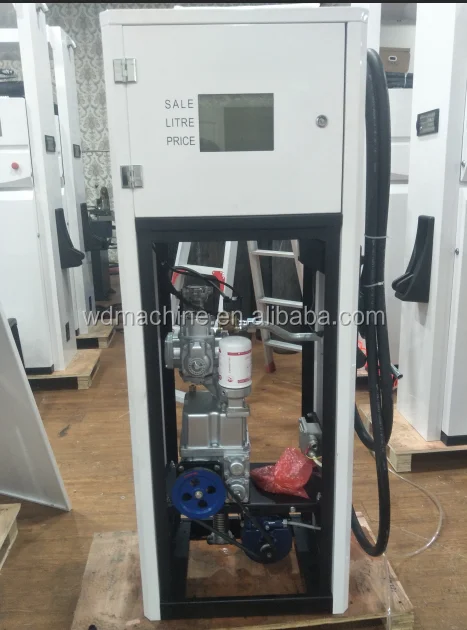

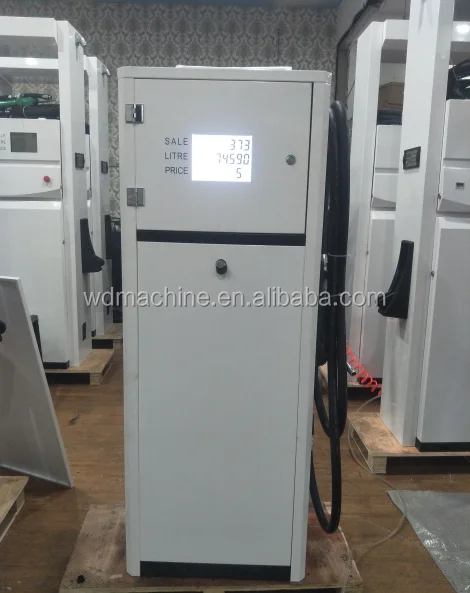

Fuel dispenser for reference as following:

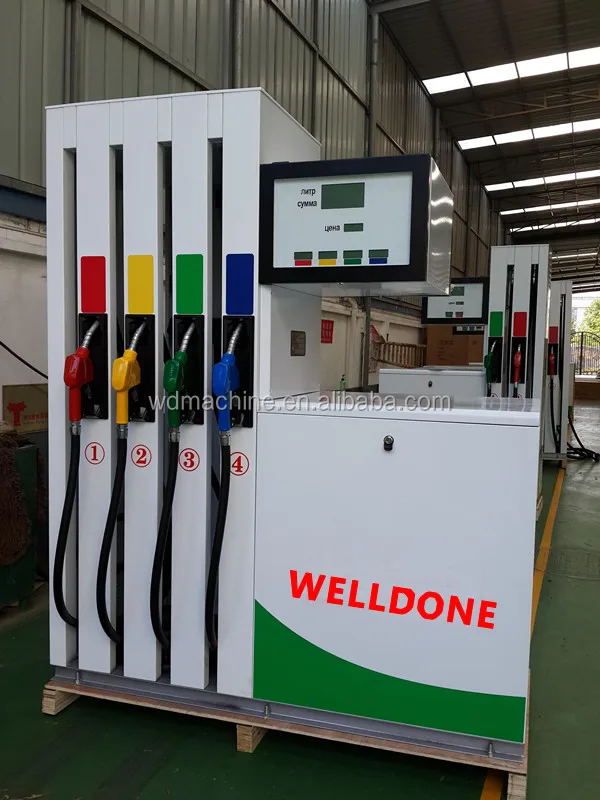

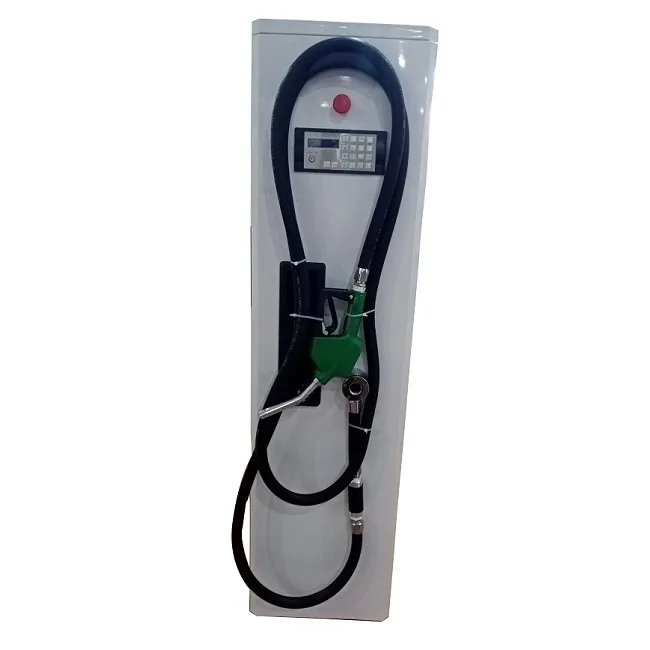

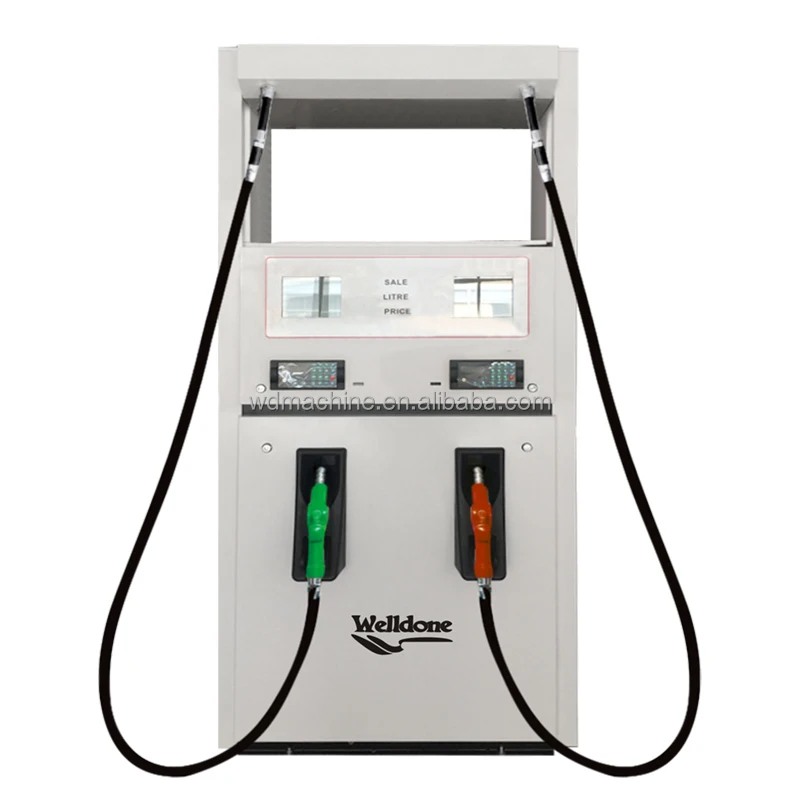

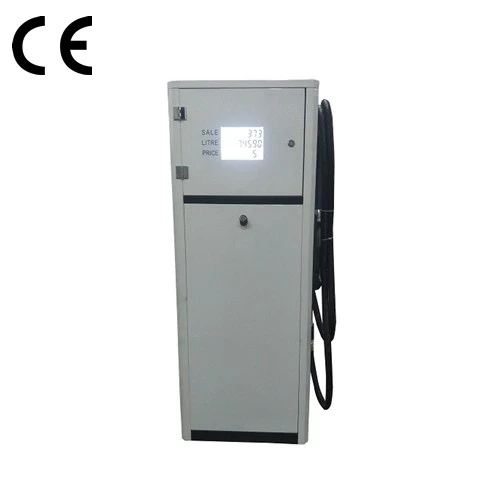

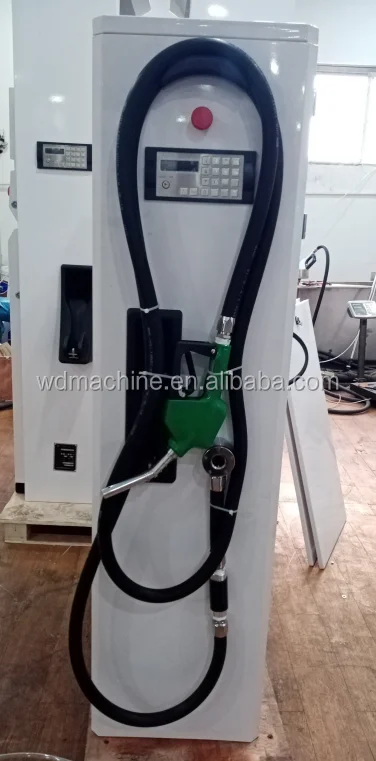

Photos of other types for your reference:
