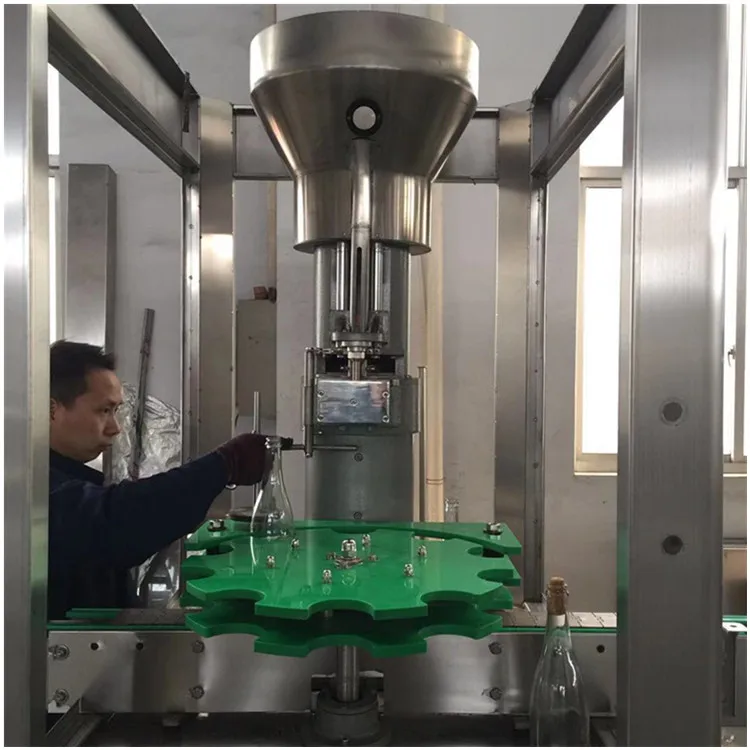

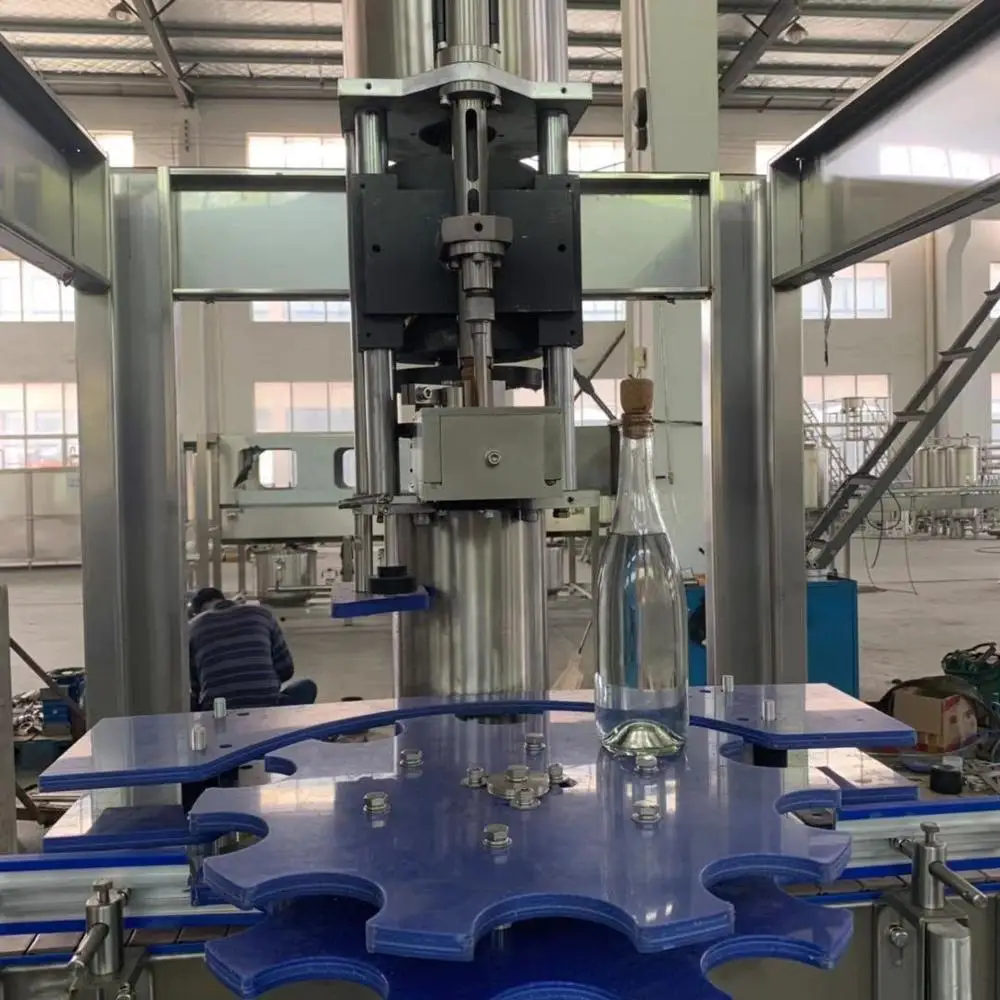

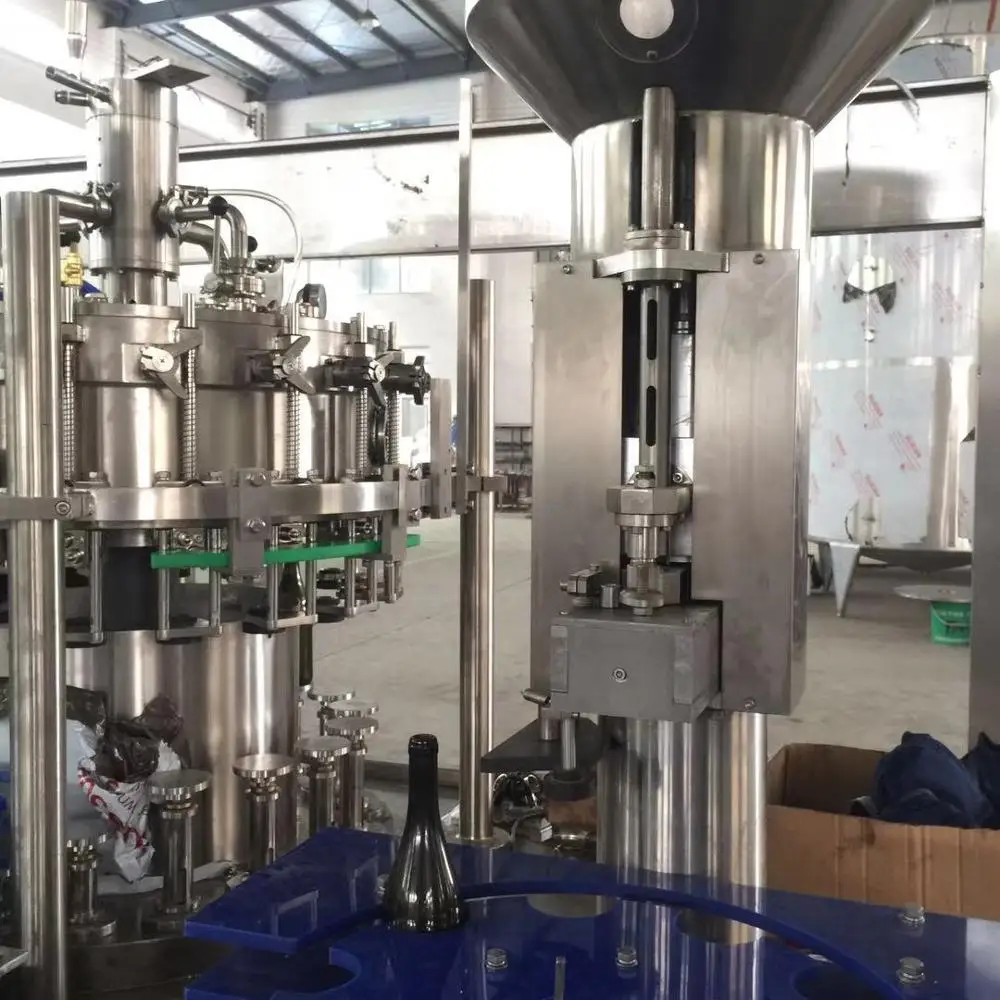

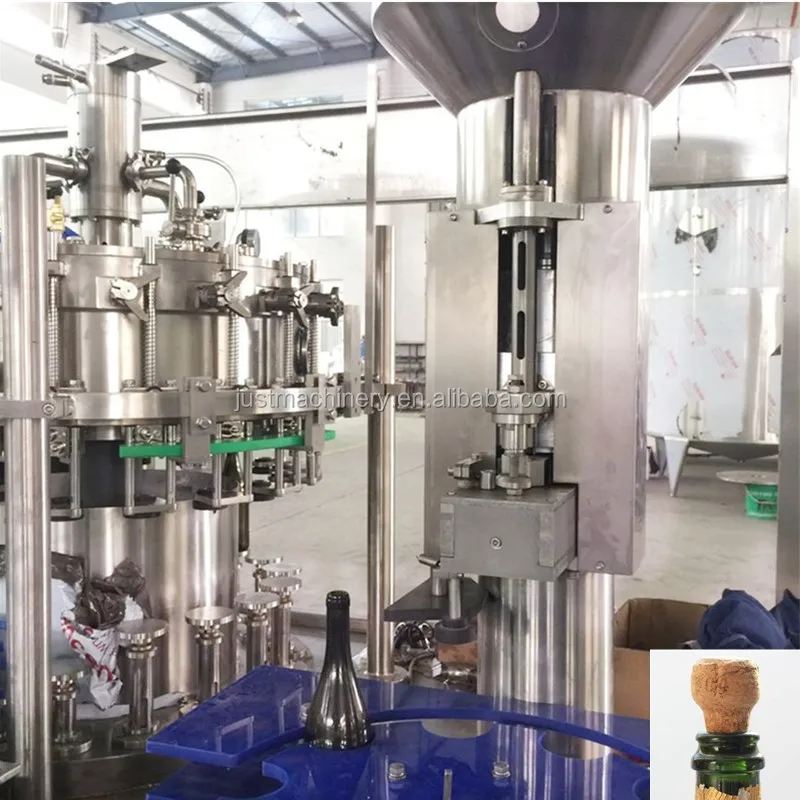

Automatic Champagne sparkling wine cork capping machine
- Category: >>>
- Supplier: Zhangjiagang Just Machinery Co. Ltd.
Share on (62280759120):
Product Overview
Description
Product Description
DS-1 DS-4 is suitable for all kinds of corks pressing into the bottle, such as wine.
1: A novel structure, convenient operation, long equipment life, reliable operation.
2: wide stepless frequency control for bottle
3: The bottle feeding, tamponade process with overload protection, safety of man and machine.
4: Using mechanical linkage, no the bottle no capping, saving corks.
Technical parameters
TYPE | DS-1 | DS-4 |
Stopper | 1 | 4 |
Production capacity(b/h) | 2000(can adjust) | 4000(can adjust) |
Suitable bottle size | A: diameterφ50~φ100mm | |
B:bottle height200~370mm(can adjust) | ||
Dimension(mm) | 1270×1060×2450 | 1270×1060×2450 |
Cork length(mm) | 30~45 | 30~45 |
Cork diameter(mm) | φ20.5~φ24 | φ20.5~φ24 |
Weight(kg) | 1200 | 2000 |
Electric voltage (V) | 220/380/415/480 3P custom | 220/380/415/480 |
The whole machine power (KW) | 2.2 KW | 4 KW |
Cap size(mm) | 15-70 | 15-70 |
Bottle body diameter(mm) | Φ35-Φ130 | Φ35-Φ130 |
Bottle body height(mm) | 150-370 | 150-370 |
Company Information
Our Services
Proposal design and make budget
We are capable of providing specialized proposal design and make a general budget for you.
Equipment production&commissioning
We will arrange the production for you as soon as the order confirmed, and make sure the quality of products, We have client cases in different countries , we can provide theirproduction working video for you .
Factory layout design
Machines and factory layout design is also available after the proposal confirmed.
Bottle shape design
We can also help to do the bottle shape design for you according to your needs.
Label Design
We can also help to design the label for you, and you can share with us your idea too.
Raw Material supply
We are capable of provide one-stop service, so the raw material supply is also available.
After-service
1, the guarantee of our machines is 2 years, life-long service, also we will supply spare parts along with the machines free of charge, the parts will be enough for at least 3 yearsfor the normal operation of machines.
2, we can train your engineers in our factory free of charge. IMeans you can send your engineers to our factory to study and training, we have rich experiences for the training, it is the good way to make sure that you can operate and maintain our machines successfully and for long time normal use.
3, we will supply you detail user manual for our machines, also we will make one Video CD to show you how to install and maintain the machines, it will help you to maintain the machines for the long time.
4, We will send our engineers to your factory to install the machines and train your staff how to operate the machines., We have been doing the install jobs for our overseas customers for many years.
5.We will help to arrange the shipping of goods for you and keep you posted about the steps.
