Mobile APP Support Smart Fertilizer Controller Injection System
- Category: >>>
- Supplier: Zhengzhou Monshan Machinery And Equipment Co. Ltd.
Share on (62281238477):
Product Overview
Description
Product Description

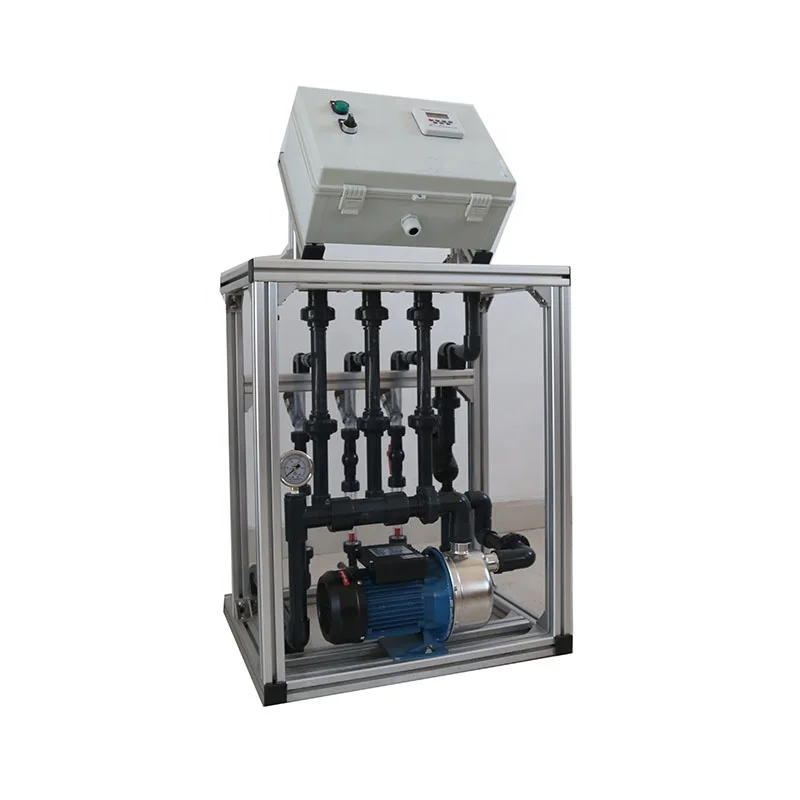

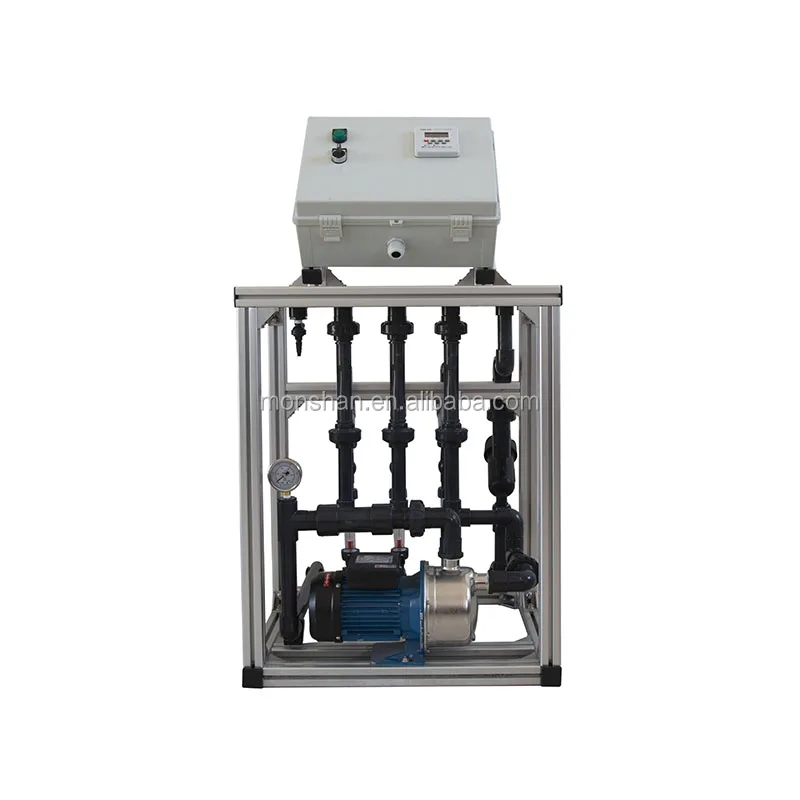

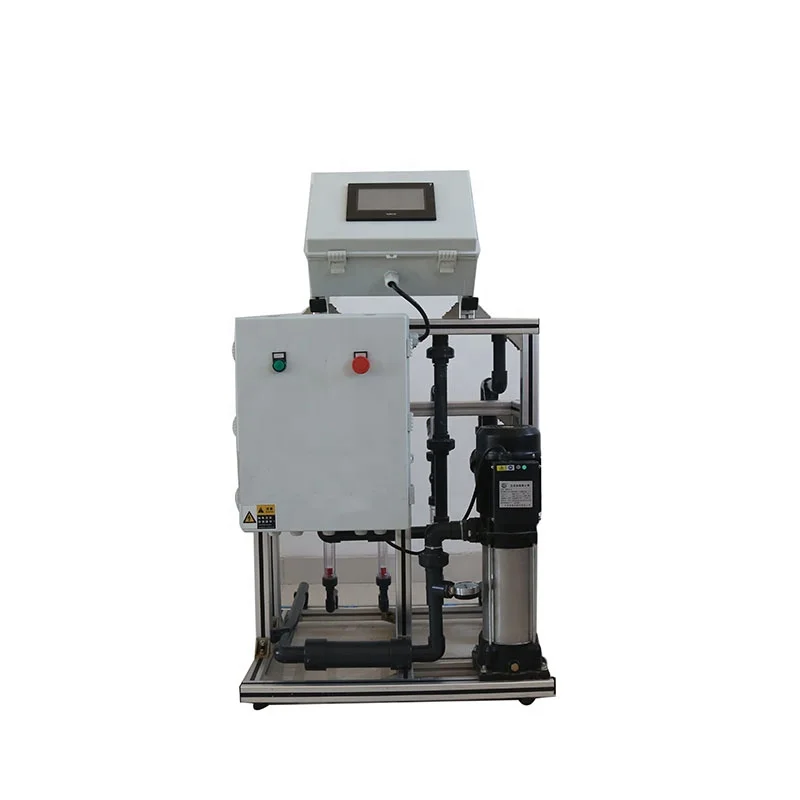

Mobile APP Support Smart Fertilizer Controller Injection System
Our automatic hydroponic fertigation system uses a water pressure system to supply soluble solids or liquid fertilizers according to the characteristics of soil nutrient content and fertilizer requirements of crop types. The fertilizer solution is fed together with irrigation water to supply water through a controlled pipeline system. After fertilizing, the water and fertilizer are merged, drip irrigation, uniformity, timing and quantification are formed through the pipe and the dripper, and the root growth and development area of the crop is impregnated, so that the main root soil always maintains a loose and suitable water content. And according to the needs of different vegetables， fertilization characteristics, soil environment and nutrient content, water requirement for different growth periods of vegetables, demand for fertilizers and different growth stages to design it. And then direct supply of crops in proportion through regular quantification of water nutrients.
Product Paramenters
Name | Hydroponic Fertigation System |
Dimension | 80*90*140cm |
Rated power | 1.7kw |
pump power | 1.5kw |
weight | 50kg |
Fertilizer absorption channel | 3 channel |
PH | Dual-channel pH sensor, measuring accuracy 0.05 pH |
WIFI | WIFI, 4G |
1. Industrial-grade PLC programmable computer controller, fully automated work.
2. EC/PH detection, precise dispensing of fertilizers based on data for automated configuration.
3. Irrigation capacity adjustable between 5 m³/h and 40 m³/h
4. With 4 suction fertilizer channels and 1 acid channel, the number of suction fertilizer channels is optional
5. Extensible interface board for external solenoid control,Up to 128 bits can be expanded, standard is 16 bits
4. With 4 suction fertilizer channels and 1 acid channel, the number of suction fertilizer channels is optional
5. Extensible interface board for external solenoid control,Up to 128 bits can be expanded, standard is 16 bits

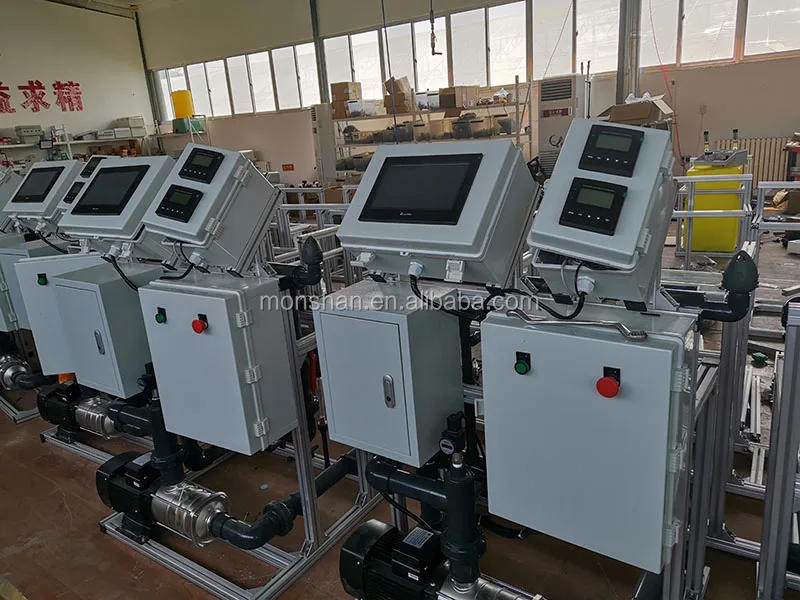

Details Images
1. Energy efficient stainless steel booster pump.
2. The controller adopts France Schneider and Japan Omron.
3. Reserved loT interface. Mobile APP. PC and wechat can control, detect, store and print sensor data.
4. Digital electronic pressure gauge.
5. Israel import fertilizer solenoid valve.
6. Two check valves and flow meter. Prevent pipe water from flowing back and check the flow rate of each pipe.
Product packaging
Our automatic hydroponic fertigation system use wooden box for packaging. It is not easily damaged.

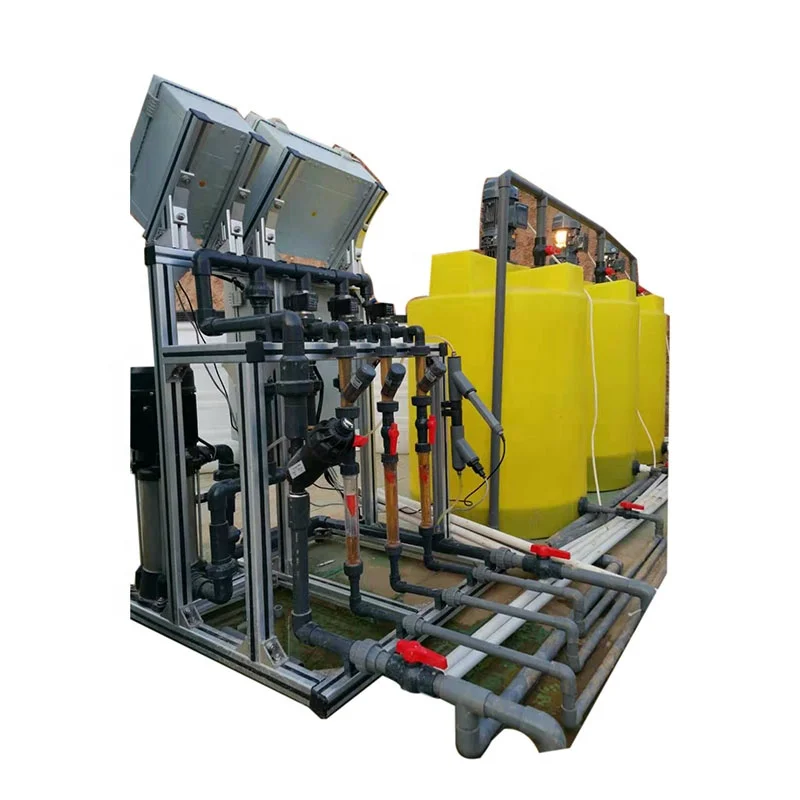

Customer Photos
Company Profile
Zhengzhou Monshan Machinery and Equipment Co., Ltd. (formerly known as Zhengzhou Livestock Fodder Machinery Factory) is located in Zhengzhou City, Henan Province, China, the birthplace of ancient oriental civilization.
After 20 years' growth, the company has been developed from the earliest four-person team to more than 50 people today. All this is inseparable from the love of the majority of customers.
The company's production range mainly involves hydroponic systems, fodder system, plant factory container, irrigation machines and related large production lines.
Products are mainly sold to Africa, the Middle East, Canada, the United States, Brazil, Australia, Malaysia, India and other more than 20 countries and regions.
The company adheres to the principle of honesty, professionalism and efficient production to create the best quality products for the world. All for customers' satisfaction is our service tenet.
We believe that our professional technology and serious attitude will solve all your problems.
