ARMS1036OTE wholesale Pro Enc enclosures Ligature Resistant Outdoor Waterproof information kiosk interactive kiosk advertising

Share on (62281644016):


Price:$100.00 - $150.00

Quantity:


Product Overview

Description



Product Description




Working life
800,000 Hours
Anti-theft Warranty
Theft loss compensation 5 years
Temperature control system
Fan cooler system
Simple Installation

one or two people finish in 30 minutes
Anti-Vandal
Carbon steel 1.2 to 5.0mm. Tough and heavy
Outdoor/Indoor
both available
Waterproof rating
IP65,antirust,antidust
Glass
6mm AR safe glass, anti-glare,anti UV
Materials
Steel, (Option)Stainless steel, Aluminum
Quality Warranty
5 years
Contact/Email/Phone/Skype:
info@ outdoortvcase.com
Fan cooling
4 fans in, 2 fans out, 4 fans front panel and recycling
TV size
12"~42",46",47",50",55",65",72",82"
Brand
Armstrong Outdoor TV Case(TM)
Mount
landscape,portrait,floor standing, Ceiling mount
Delivery
Small quantity on stock
Voltage
AC 100V~240V 50/60H
Working temperature
-20 to + 55 degree C

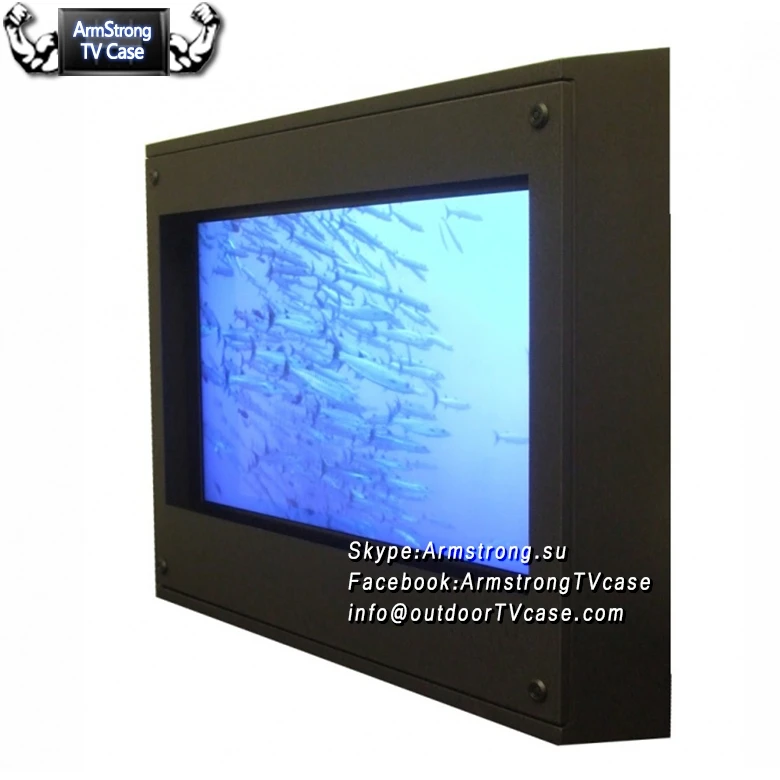

ARMS1036OTE wholesale ProEnc enclosures Ligature Resistant Outdoor Waterproof information kiosk interactive kiosk advertising monitor capsid

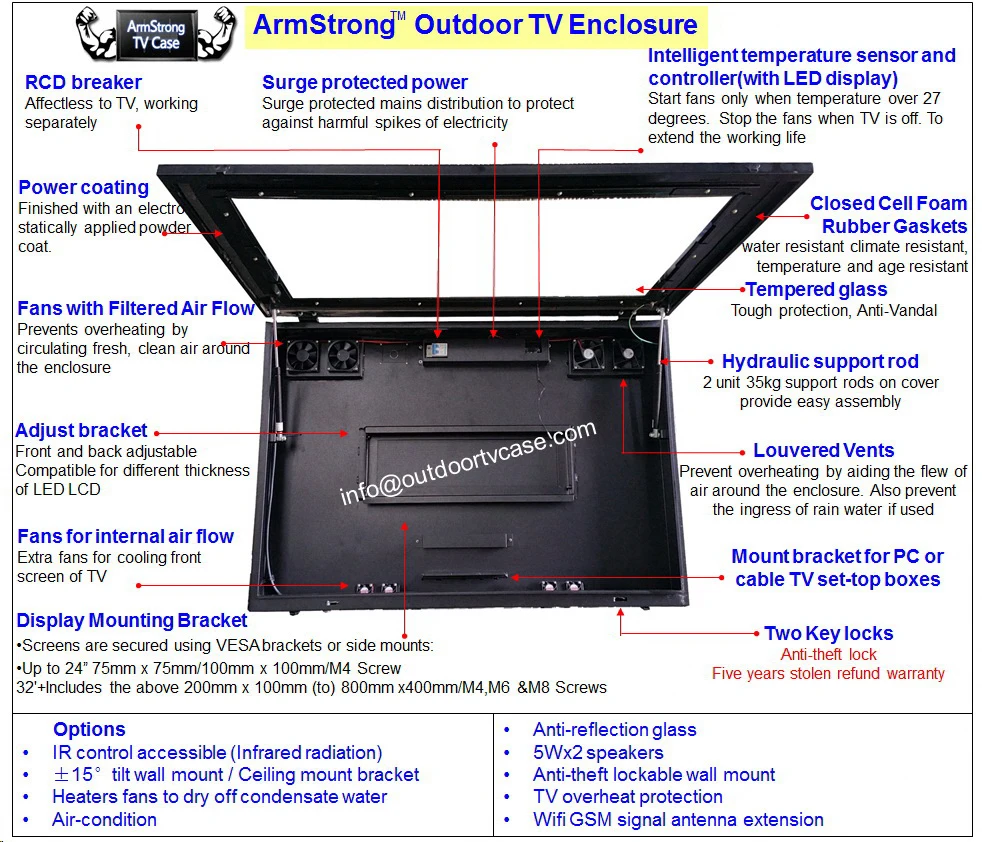

Feature

The ArmStrongTM Outdoor TV enclosure come in large size & Easily Opens for TV
Protecting Your TV from Theft &Impact.
Protecting Your TV from Rain, Sunshine, Saltwater Air,Dust, Moisture, Heat, Cold, Bugs


a)\tHigh security. provide impact/theft/vandalism resistance
b)\tFive years stolen refund warranty
c)\tIdeal for both outdoor TV protection and indoor digital signage defense
d)\tUniversal for any standard Plasma, LCD or LED flat screen television
e)\tIP65 rating, waterproof
f)\t10 fans cooling system, 4 extra fans for front screen of TV
g)\tDigital temperature control system. The fan-cooling system turns on only when 27C.
h)\tSurge protected power means no nasty shocks
i)\tTempered shatterproof glass panel 6.0mm thickness (no polycarbonate which is easily worn out after 6 months sunshine)
j)\tStandard VESA mounting bracket. Wall mounting and ceiling mounting available
k)\tMounting bracket for player and controller

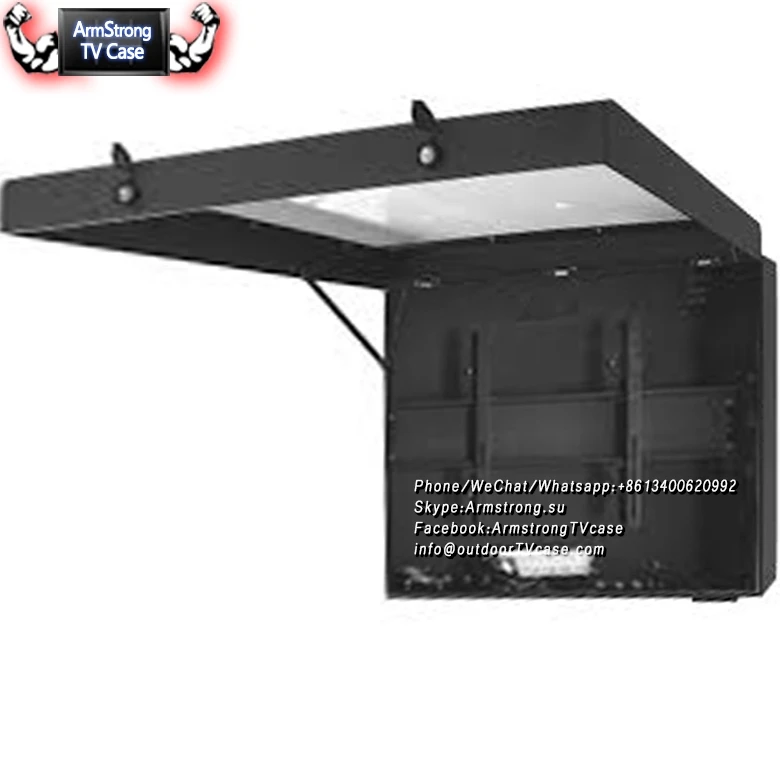

l)\t2 unit 35kg hydraulic support rods on cover provide easy assembly
m)\tPlug and Play installation makes set-up a breeze.
n)\tExtra compact and slim form factor - 125 mm max depth
o)\tAC Input 100-240v, 50-60Hz


Options

①\tIR control accessible (Infrared radiation)
②\t±15°tilt wall mount / Ceiling mount bracket
③\tHeaters fans to dry off condensate water
④\tAir-condition
⑤\tAnti-reflection glass
⑥\t5Wx2 speakers
⑦\tAnti-theft lockable wall mount
⑧\tTV overheat protection
⑨\tWifi GSM signal antenna extension


For more information, please contact:
Phone/WeChat/Whatsapp:+8613400620992

Facebook:ArmstrongTVcase
Skype:armstrong.su
Email:info@ outdoortvcase.com

ARMS1036OTE wholesale ProEnc enclosures Ligature Resistant Outdoor Waterproof information kiosk interactive kiosk advertising monitor capsid



ArmStrong advantage




Option for enclosure




Landscape&Portrait






Stainless steel




Floor Standing




Dimensions


Enclosure dimension

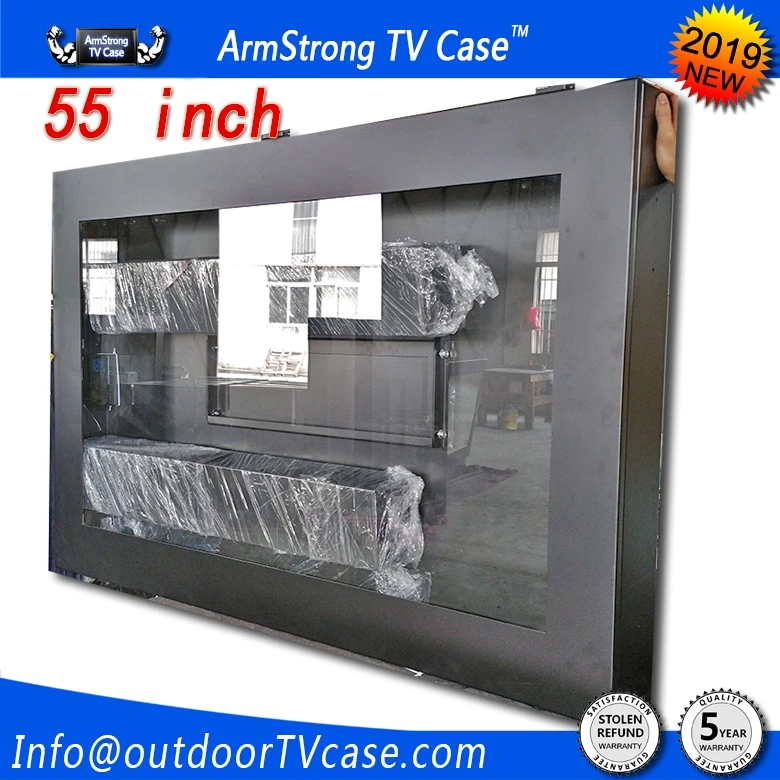

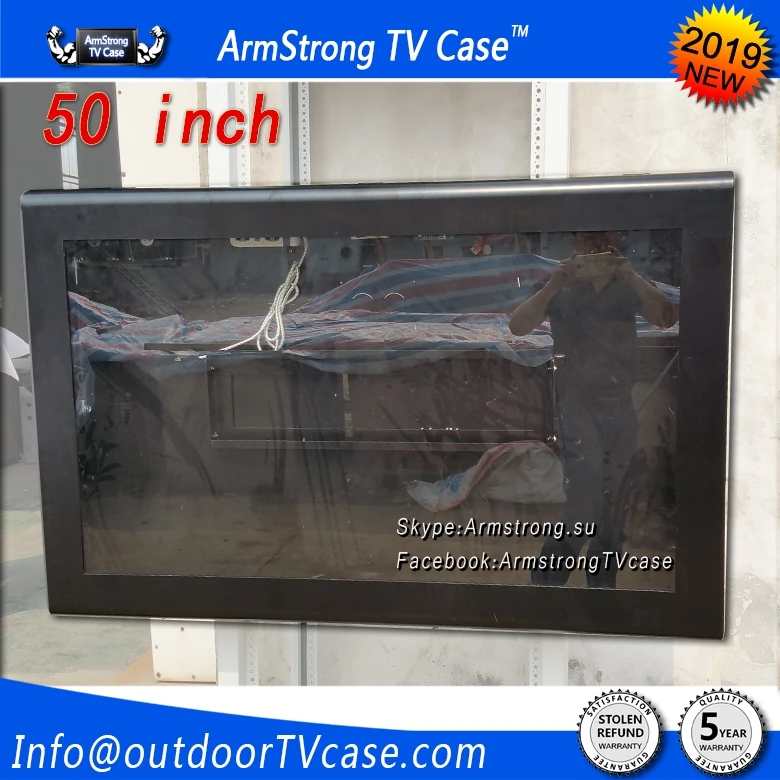

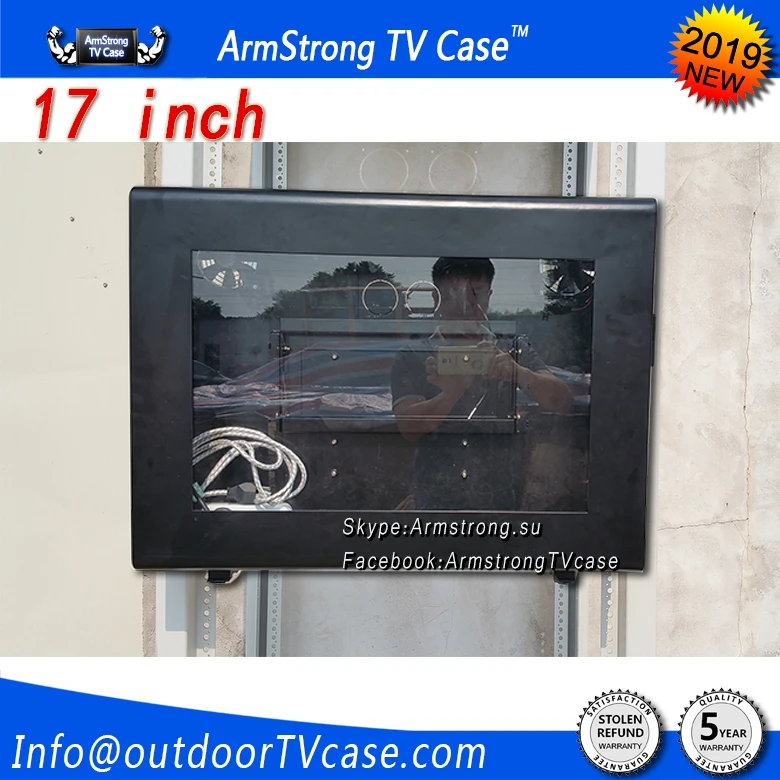

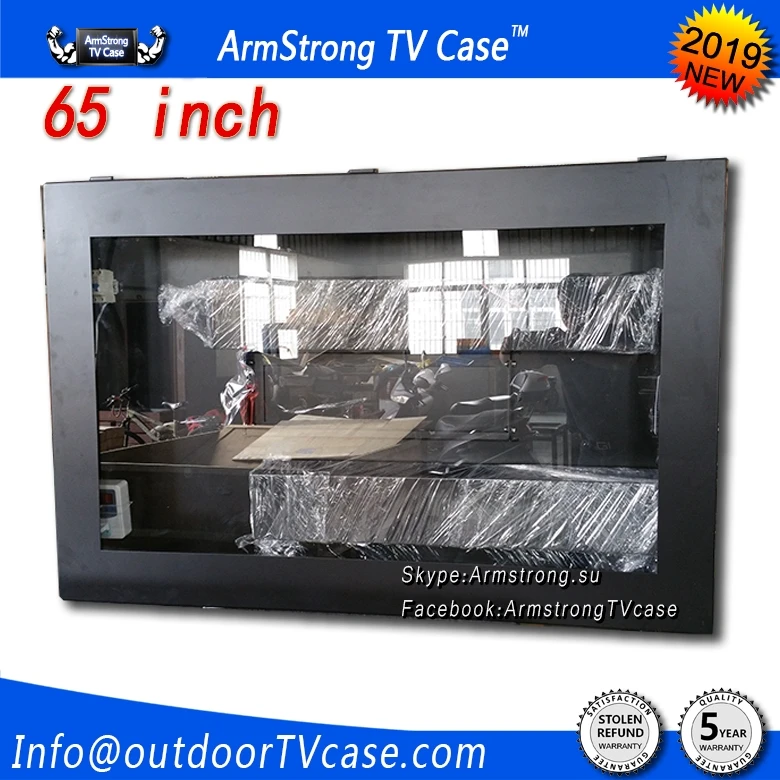

Available for LCD sizes: 17",24",32",43", 47",50",55",60",65",82",98", for custom made.

ARMS1036OTE wholesale ProEnc enclosures Ligature Resistant Outdoor Waterproof information kiosk interactive kiosk advertising monitor capsid



PN
Size
Width mm
Height mm
Depth mm
AOTV22
22
677
433
115
AOTV32
32
908
553
130
AOTV43
43
1150
745
135
AOTV50
50
1298
808
160
AOTV55
55
1428
878
160
AOTV65
65
1619
960
160
AOTV70
70
1730
1023
160
AOTV75
75
1840
1085
160
AOTV82
82
1940
1140
160
AOTV98
98
2200
1360
160


Ideal for Areas


Indoor and outdoor areas,

Train stations, bus stops, subway
Sports stadiums, race tracks
Restaurant patios, pub gardens,cafe
Schools and educational institutes
Industrial areas

For more information, please contact:
Phone/WeChat/Whatsapp:+8613400620992
Facebook:ArmstrongTVcase
Skype:armstrong.su
Email:info@ outdoortvcase.com
ARMS1036OTE wholesale ProEnc enclosures Ligature Resistant Outdoor Waterproof information kiosk interactive kiosk advertising monitor capsid









Install guide for Outdoor TV Enclosure (Industrial and commercial) by ArmStrongTV

ArmStrong Outdoor TV case https://www.outdoortvcase.com


Install guide
https://www.outdoortvcase.com

The ArmStrong TV protection enclosure supports the 99.9% popular TV brand and mode. Suitable for both outdoor and indoor.
There are a few tips we could present you from the very beginning that may help you with one of these as well as other common
problems as you are expecting your TV enclosure to reach.


Warning: connect the power cable to the Residual Current Device if the enclosure is exposed to the rain

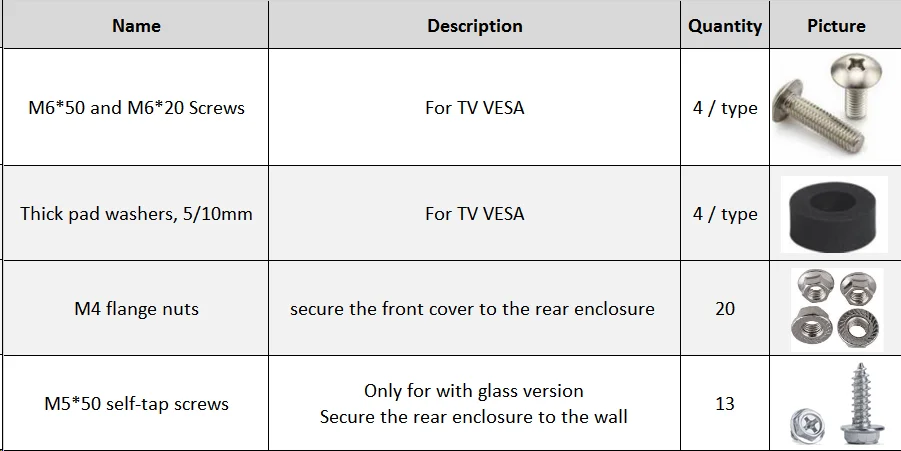

Prepare Tools
* Electric portable drill with Ø6 & Ø8 drill bit
* Phillips & Hexagon screwdriver
* Glass or acrylic (If you have not choose it)
https://www.outdoortvcase.com


1.Take out the glass from the base
The glass is secured on the base of the enclosure for the shipping safety.
Note: do not install the glass to the cover before marking the holes position on the wall, because the enclosure is light and easy
to lift up without the glass.
https://www.outdoortvcase.com

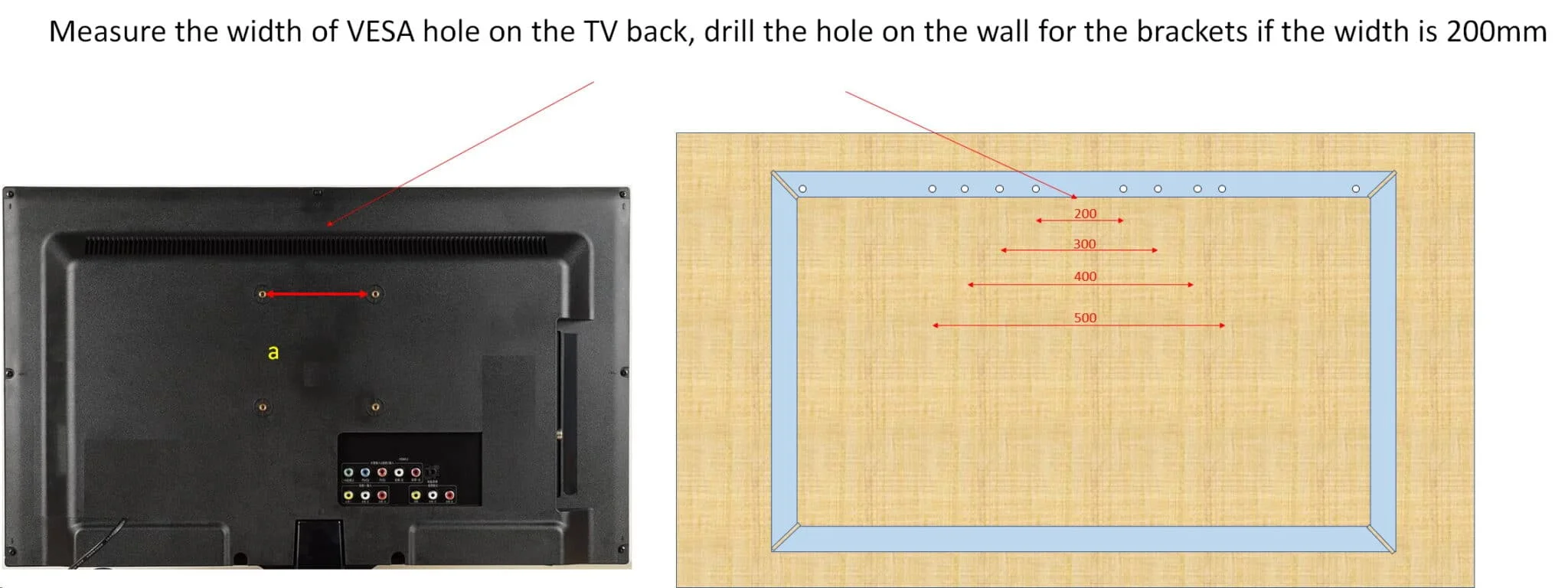

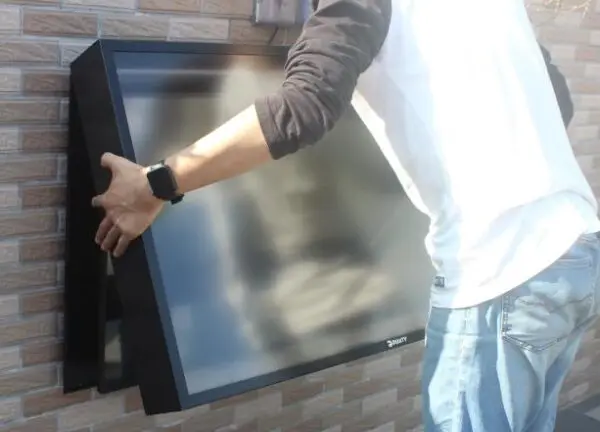

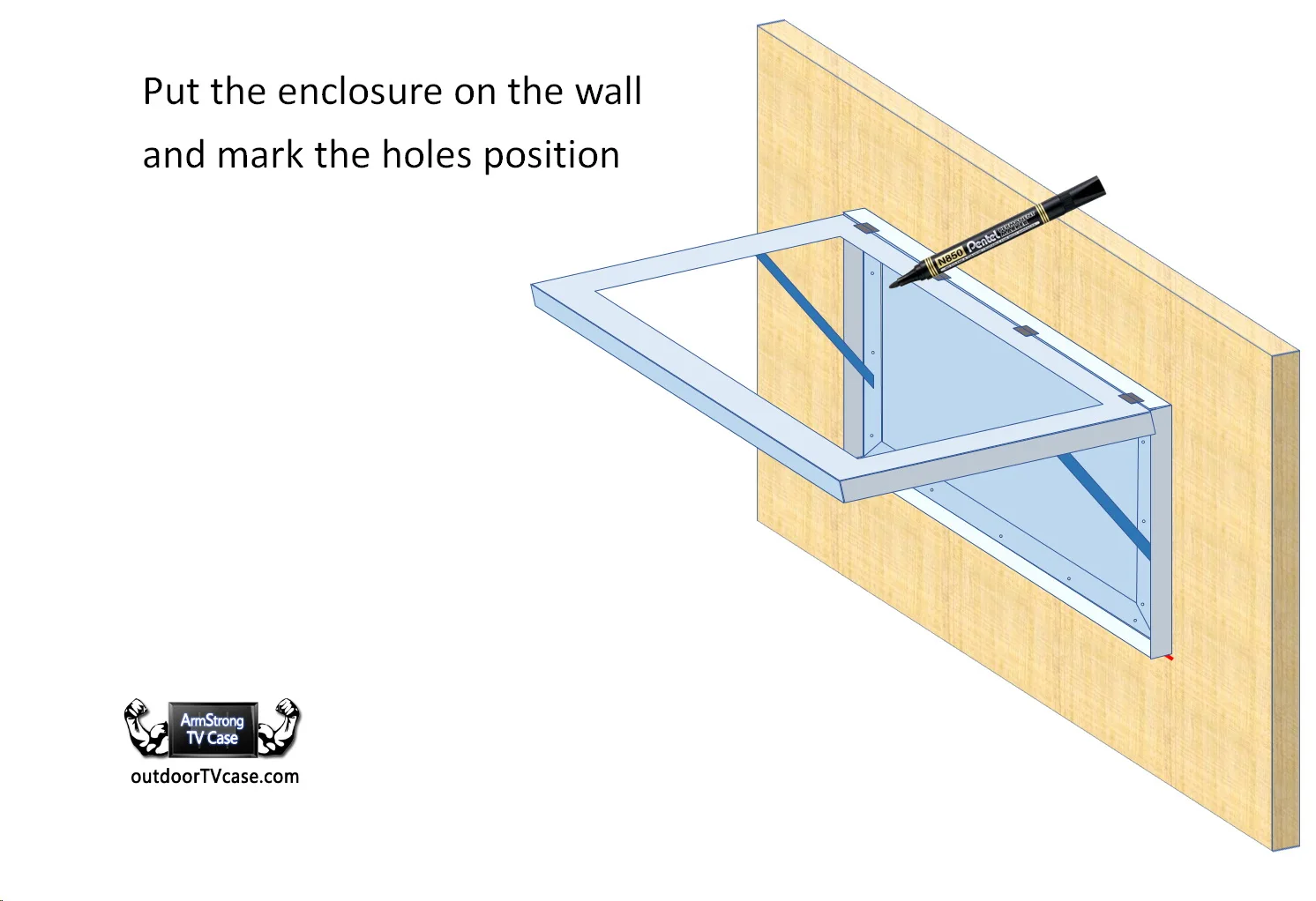

2.Put the front cover on the wall and mark the hole position.
1.1 note: contact us for holes dimension drawing


3. Install the glass to the cover

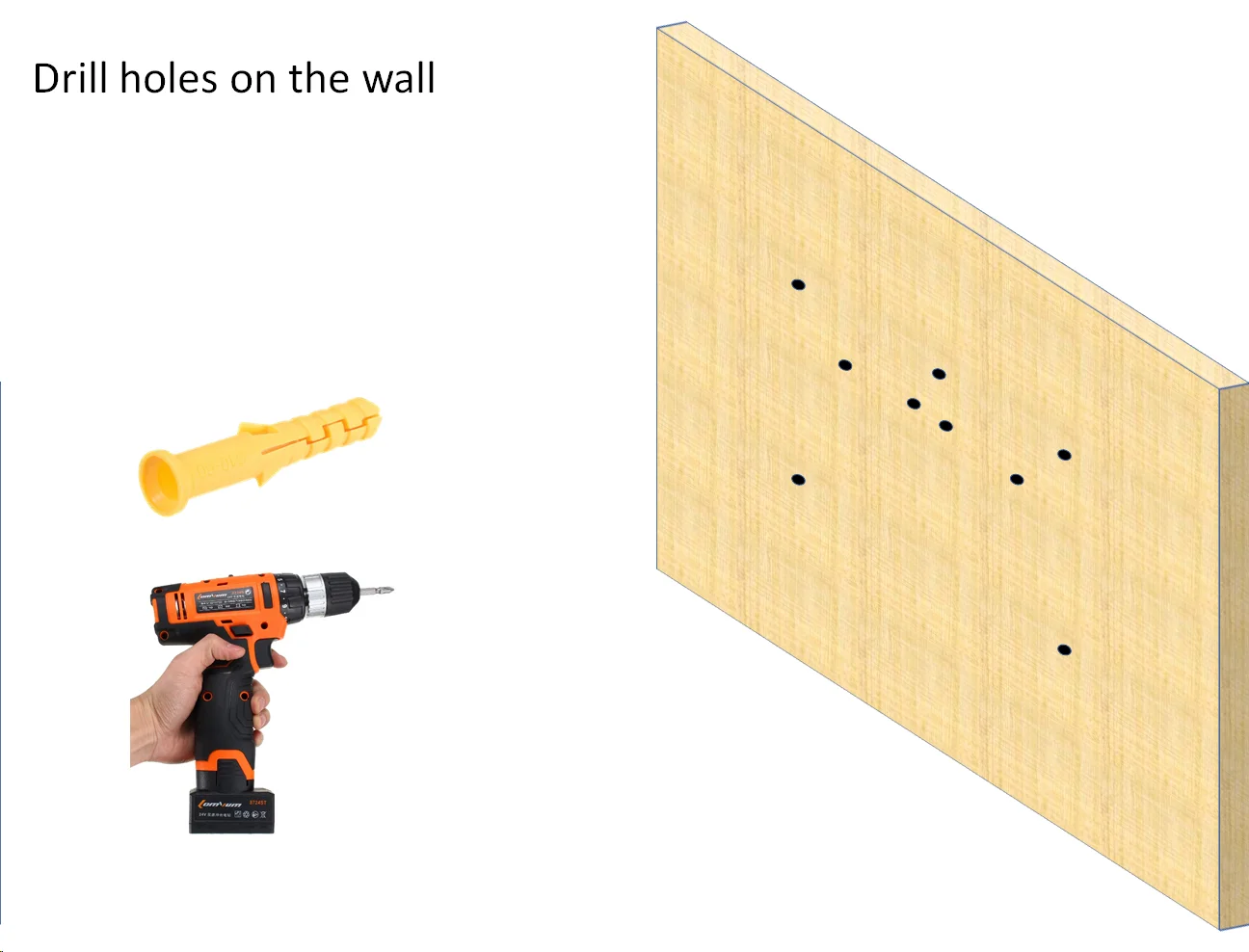

Drill holes on the wal
lhttps://www.outdoortvcase.com

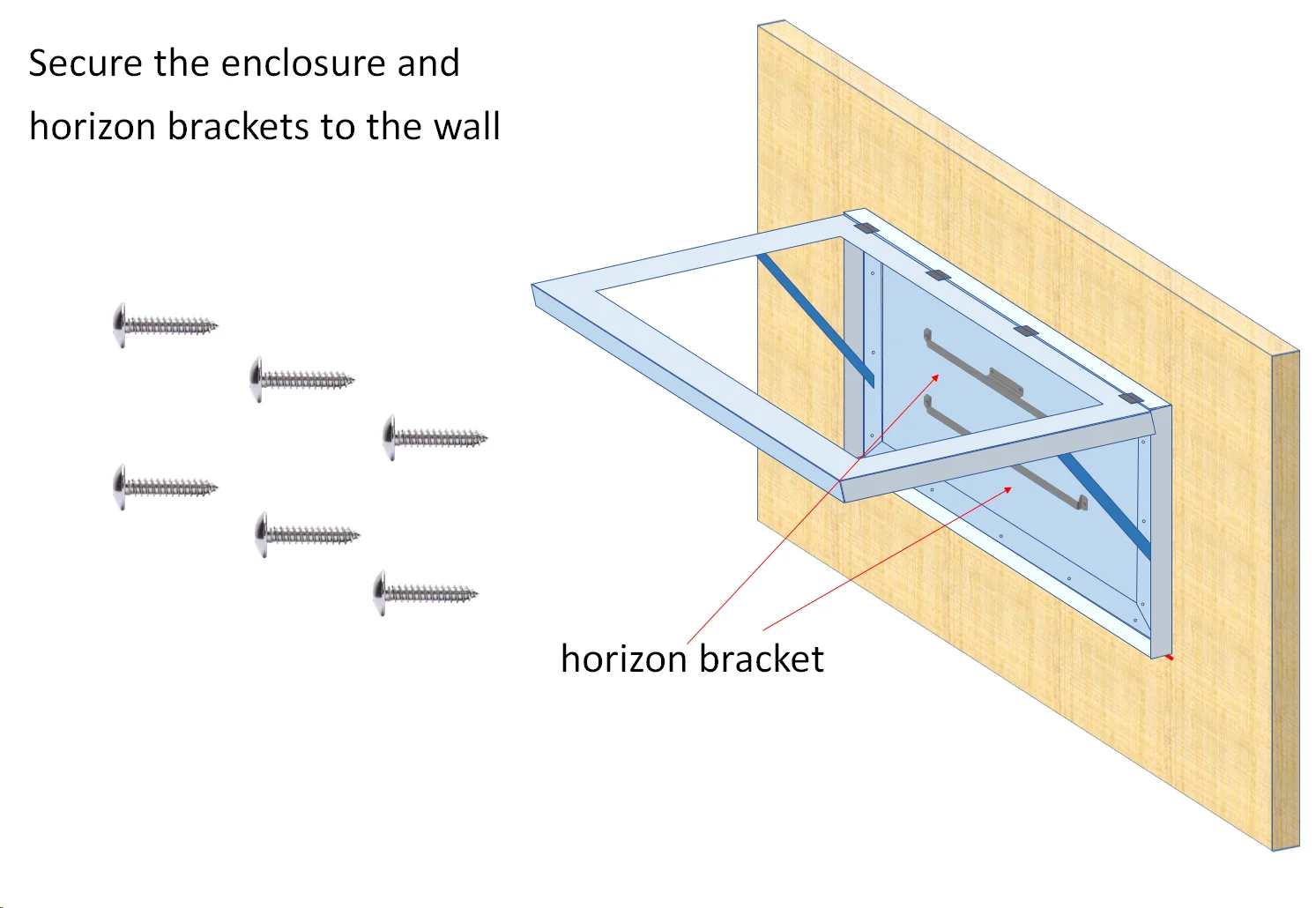

5. Secure the enclosure to the wall with the self-tap screw M5*50.

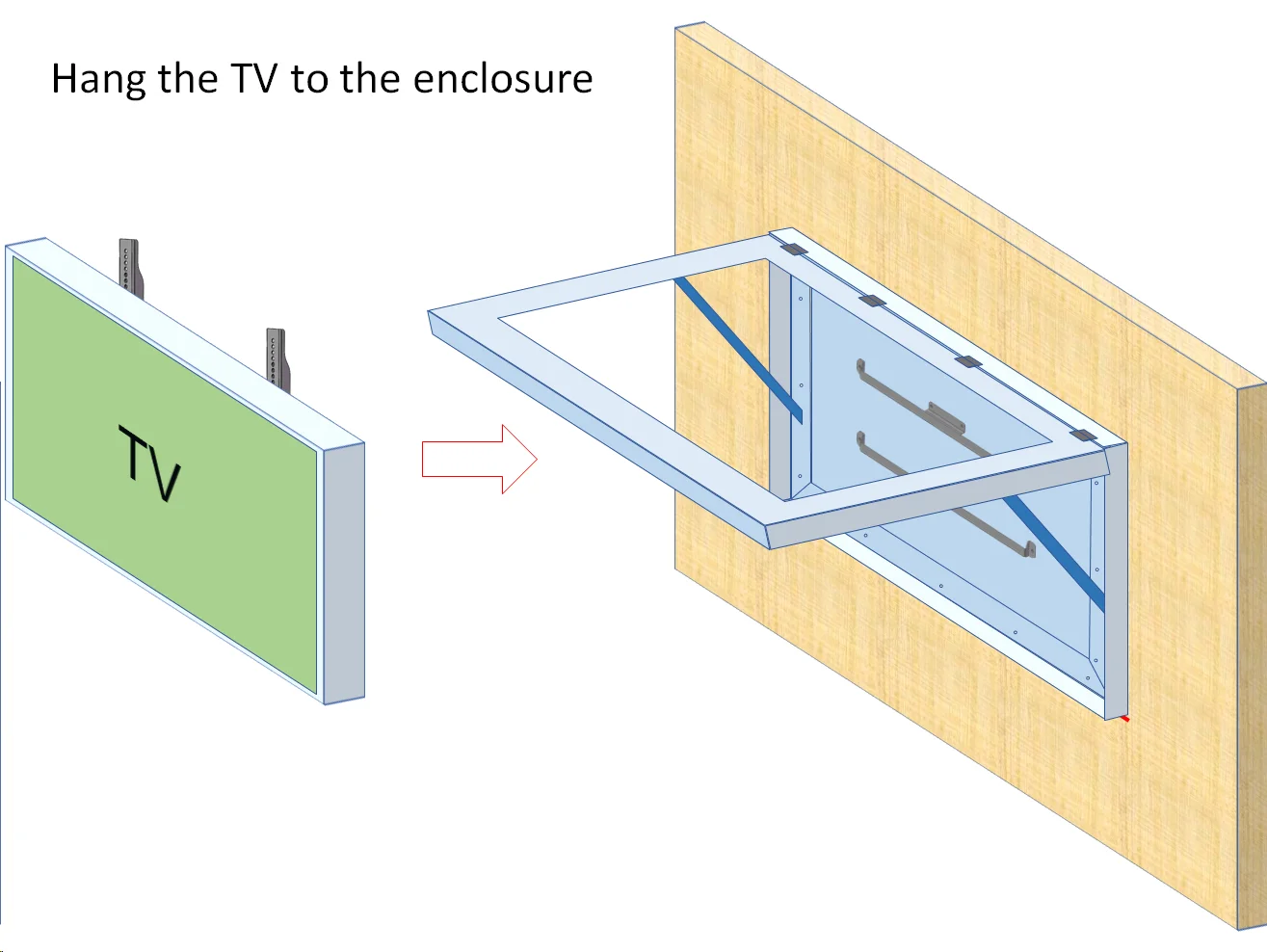

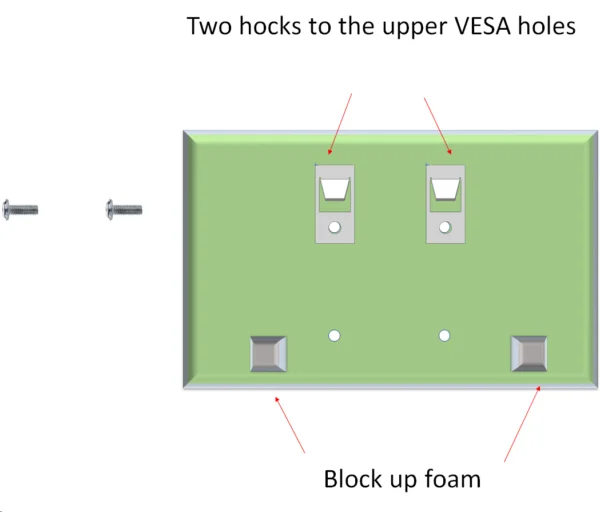

6. Hang the TV to the bracket









7. Mount the front enclosure to the rear enclosure
note: to make the RC receiver visible by adjusting the TV a little higher form the center.
note: pull out the TV power cable from the bottom or side frame of the cover
note: connect the USB entend cable to TV first, before putting on the cover

https://www.outdoortvcase.com

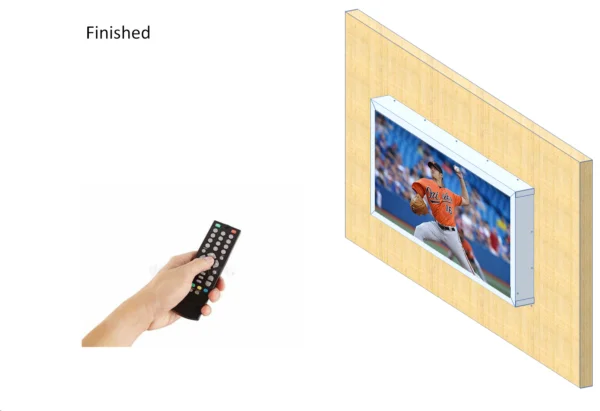

8. Finished, turn on the TV, enjoy your favorite TV programs.
Thank you very much for choosing ArmStrong TV products. Best wishes to you and your family.

https://www.outdoortvcase.com




9. Options

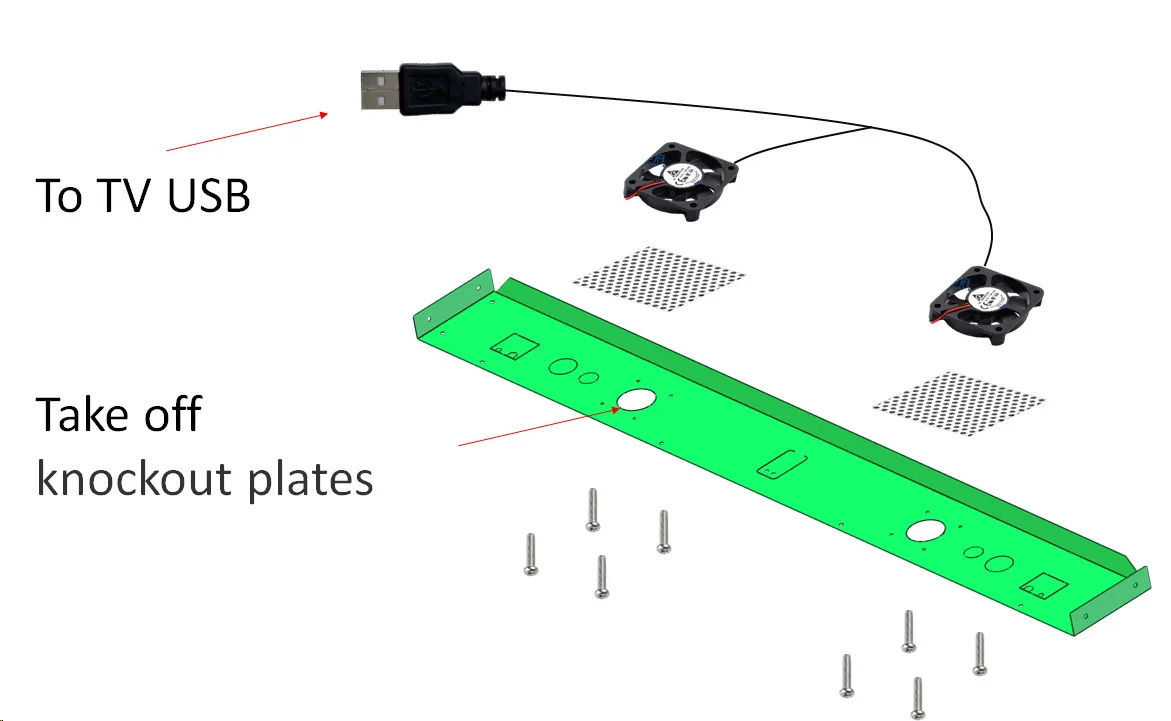

3.1 Install fans with M4*20. Connect the USB cooling fan cable to the TV USB port
note: take off the knockout plate with pliers by slightly moving the plate back and forth
note: put on the dust filter under the fan
