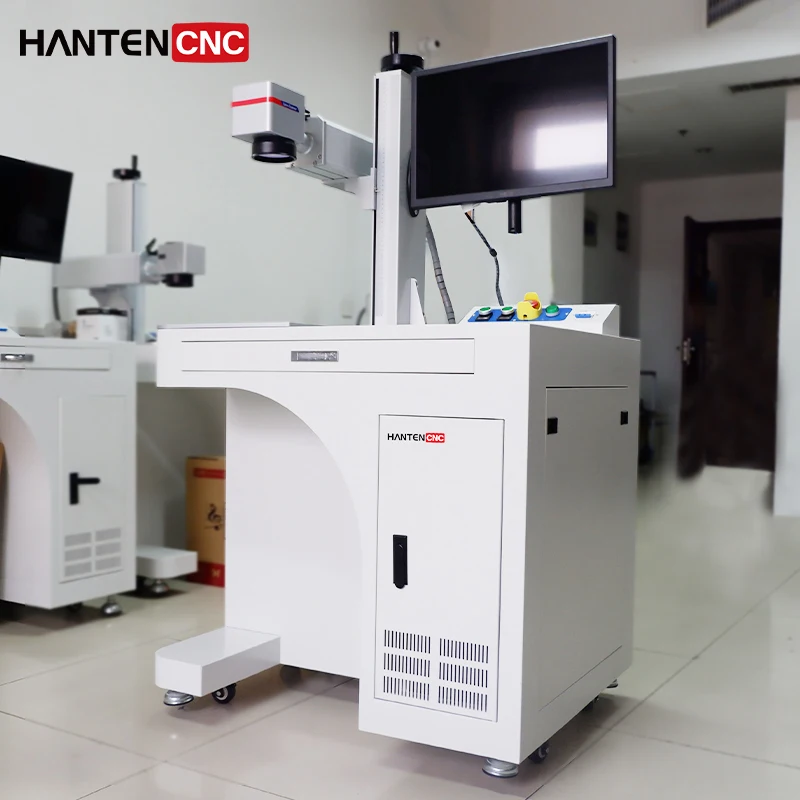

20w Jinan Hanser high speed with factory price laser metal marking machine
- Category: >>>
- Supplier: Jinan Hanteng Laser Technology Co. Ltd.
Share on (62282059617):
Product Overview
Description

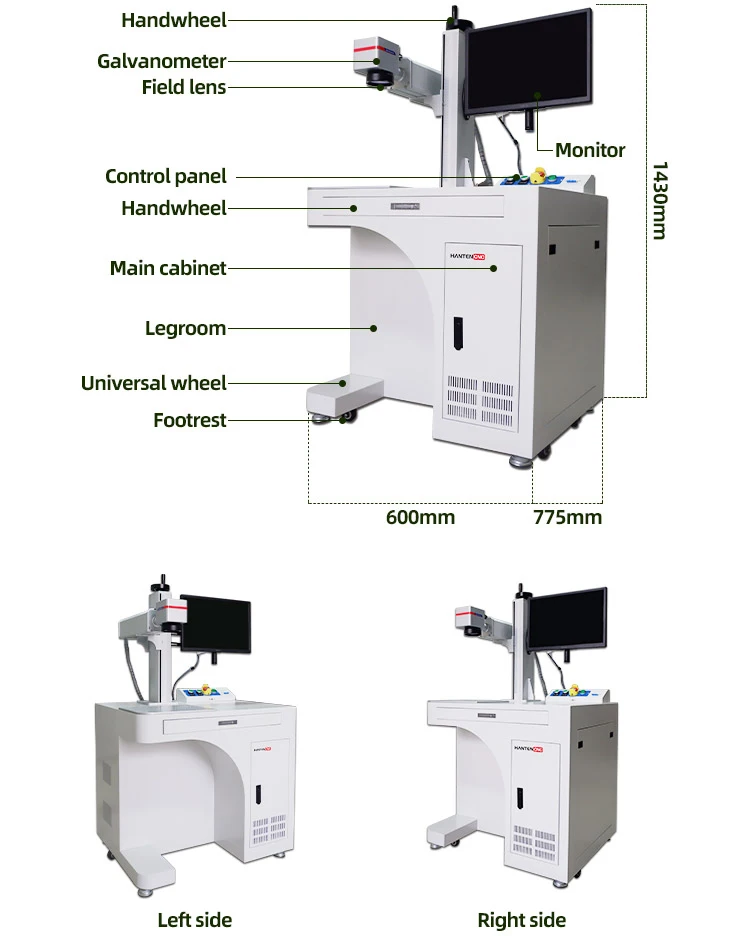

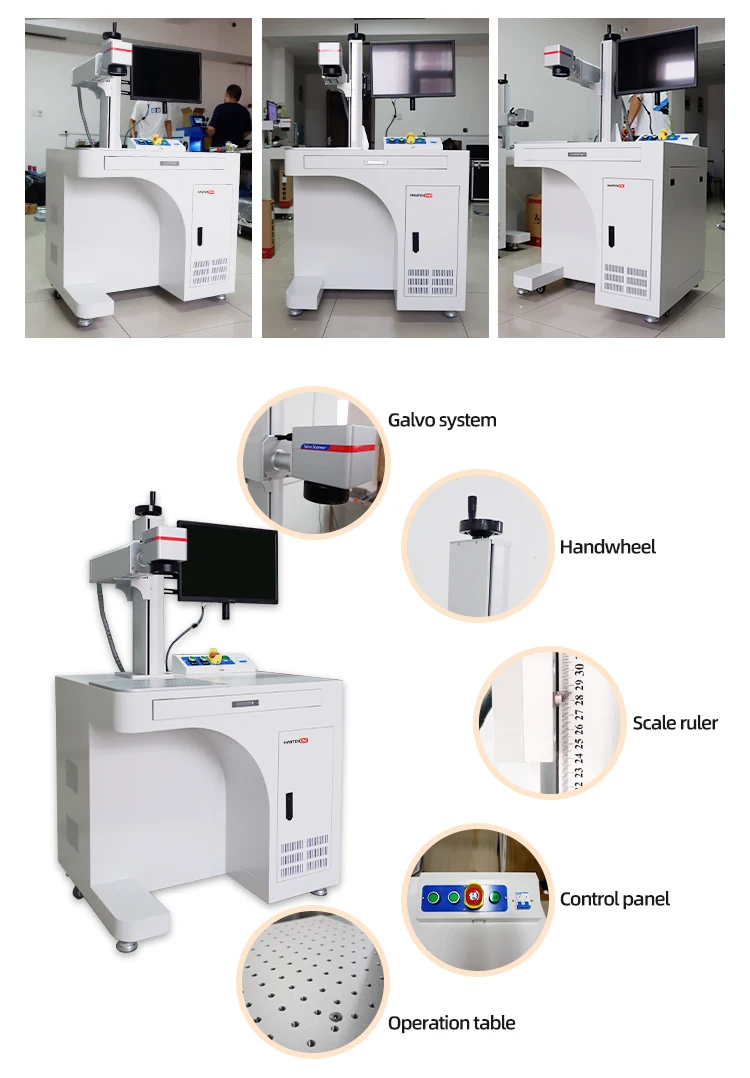

Desktop Fiber Laser Marker Display
Features:
The fiber laser marking machine has the advantages of no contact, no cutting force, and little thermal influence, which ensures the original accuracy of the workpiece. The laser marking machine uses a laser beam to make permanent marks on the surface of various materials. The effect of marking is to expose the deep material through the evaporation of the surface material, or to engrave traces through the chemical and physical changes of the surface material caused by light energy, or to burn off part of the material through light energy to reveal the pattern to be etched. Word. The laser marking machine uses a laser beam to make permanent marks on the surface of various materials.
Desktop Fiber Laser Marker Parameters
Model | HTF20 | HTF30 | HTF50 | HTF60 | HTF100 |
Supply Voltage | 110V/220V、50/60Hz | 110V/220V、50/60Hz | 110V/220V、50/60Hz | 110V/220V、50/60Hz | 110V/220V、50/60Hz |
Overall Power Consumption | 460W | 490W | 550W | 580W | 700W |
Cooling Method | Air-cooled | Air-cooled | Air-cooled | Air-cooled | Air-cooled |
Machine Dimensions | 600*775*1430mm | 600*775*1430mm | 600*775*1430mm | 600*775*1430mm | 600*775*1430mm |
Machine Weight | About 70Kg | About 70Kg | About 70Kg | About 70Kg | About 70Kg |
Output Power | 20W | 30W | 50W | 60W | 100W |
Galvo Head | RC 1001 | RC 1001 | RC 1001 | RC 1001 | RC 1001 |
Laser Source | JPT/MAX/RAYCUS | JPT/MAX/RAYCUS | JPT/MAX/RAYCUS | JPT/MAX/RAYCUS | JPT/MAX/RAYCUS |
Maximum Pulse Energy | 0.8mJ | 0.8mJ | 1.25mJ | 1.5mJ | 1.5mJ |
Frequency Adjustable Range | 1-600kHz | 1-600kHz | 1-600kHz | 1-4000kHz | 1-4000kHz |
Laser Wavelength | 1064nm | 1064nm | 1064nm | 1064nm | 1064nm |
Beam Diameter | 7±0.5mm | 7±0.5mm | 7±0.5mm | 7±0.5mm | 7±0.5mm |
Marking Area | 100*100mm-300*300mm | 100*100mm-300*300mm | 100*100mm-300*300mm | 100*100mm-300*300mm | 100*100mm-300*300mm |
Power Adjustment Range(%) | 0-100% | 0-100% | 0-100% | 0-100% | 0-100% |
Fiber Cable Length | 3m | 3m | 3m | 3m | 3m |
System Software | EZCAD2 | EZCAD2 | EZCAD2 | EZCAD2 | EZCAD2 |

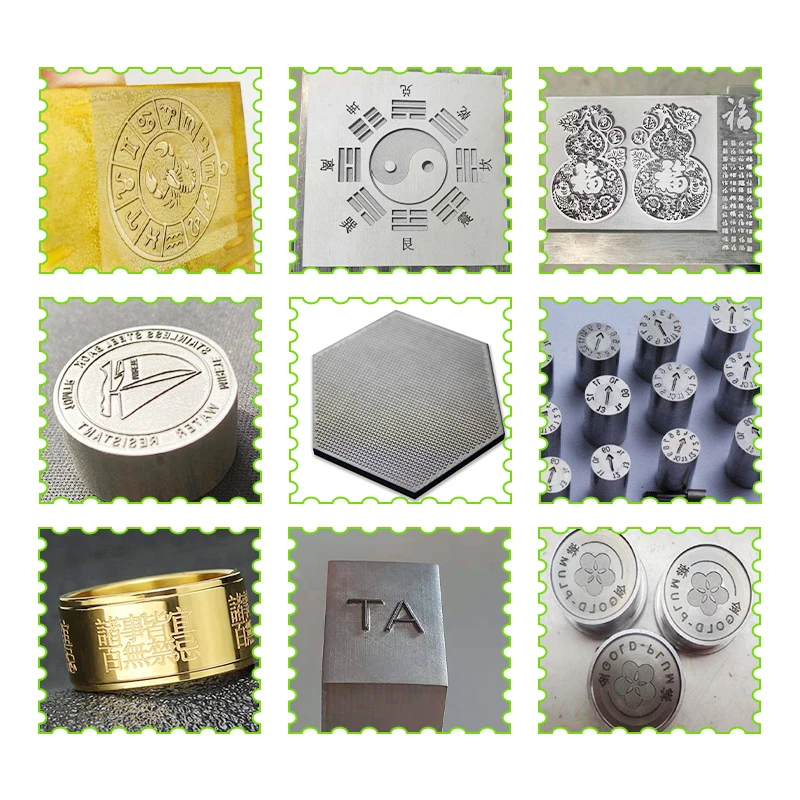

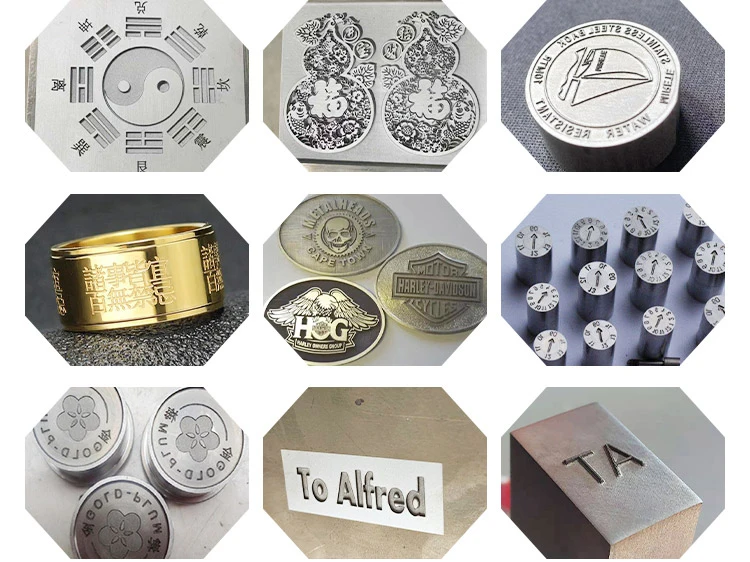

Desktop Fiber Laser Marker Sample Display
For metal deep engraving
Marking on copper, hard plastic, stainless steel

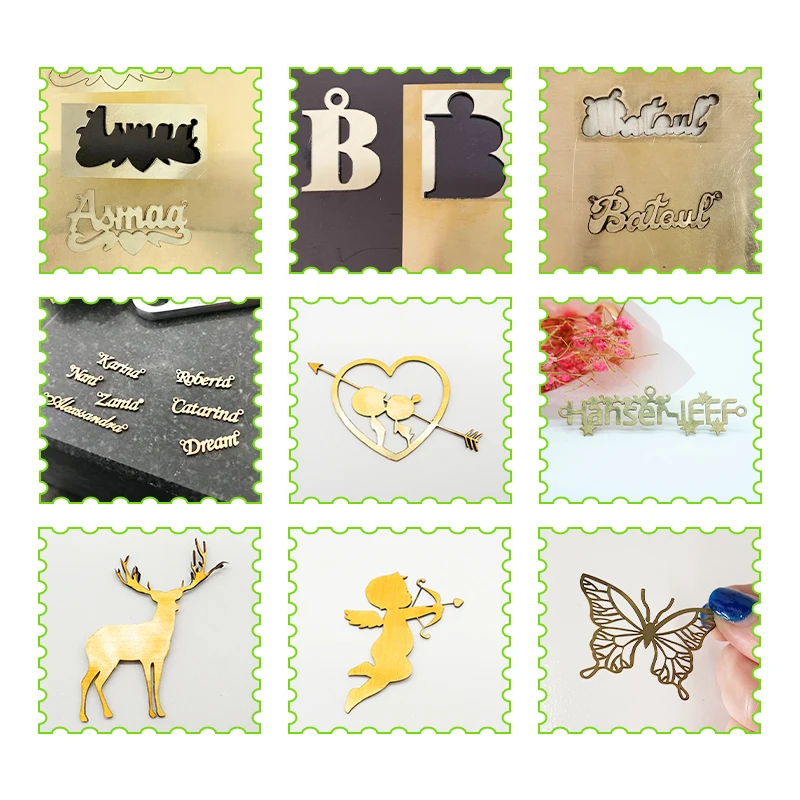

Cutting thin metal, such as necklaces, decorations, etc.
Applicable Material:
Metal: Such as gold, silver, copper, iron, zinc, aluminum, stainless steel and so on.
Hard Plastic: PE, PP, PVC, etc. also include general engineering plastics and special engineering plastics.
It also can mark on some wood
Applicable Industrial:
Electronic components, hardware tool products, electrical products, consumer goods, sensors, auto parts, 3C electronics, handicrafts, precision equipment, gift jewelry, medical equipment, high and low voltage electrical appliances, bathroom industry, battery industry, IT industry and other fields
Metal: Such as gold, silver, copper, iron, zinc, aluminum, stainless steel and so on.
Hard Plastic: PE, PP, PVC, etc. also include general engineering plastics and special engineering plastics.
It also can mark on some wood
Applicable Industrial:
Electronic components, hardware tool products, electrical products, consumer goods, sensors, auto parts, 3C electronics, handicrafts, precision equipment, gift jewelry, medical equipment, high and low voltage electrical appliances, bathroom industry, battery industry, IT industry and other fields
There is no gap without comparison, let Han Teng Laser tell you what is precision manufacturing
Configuration Comparison: HANTENCNC vs. Other Factories

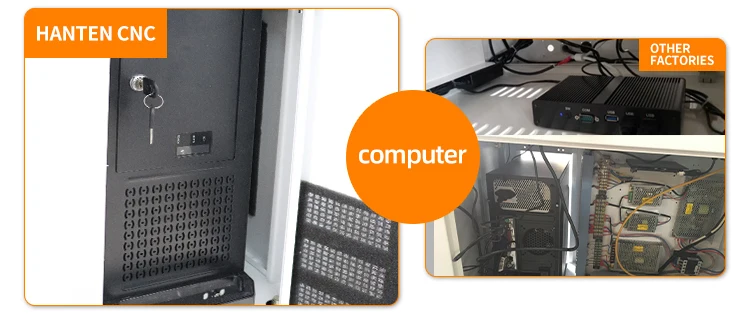

Industrial grade computer
Using industrial dedicated computer, stable
Using industrial dedicated computer, stable
performance,
Industrial computer case, good heat dissipation effect, dust proof Durable, suitable for harsh working environment
Industrial computer case, good heat dissipation effect, dust proof Durable, suitable for harsh working environment
Cheap computer
Use cheap computers
Easy to crash marking content at work
Can't do detailed filling, which will affect the
Use cheap computers
Easy to crash marking content at work
Can't do detailed filling, which will affect the
marking effect

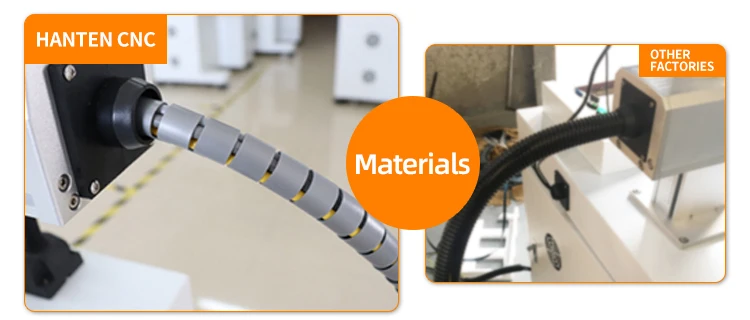

Professional winding tube
Using professional winding tube, better protection
Using professional winding tube, better protection
performance
Cheap bellows
The temperature is too low and easy to break,
The temperature is too low and easy to break,
unable to protect the optical fiber

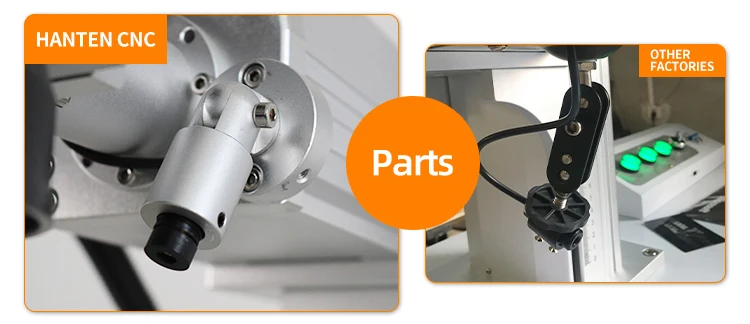

Pure aluminum external red light
Optional external red light and pure aluminum bracket, solid materials
Optional external red light and pure aluminum bracket, solid materials
Plastic external red light
Optional external red light and plastic
Optional external red light and plastic
material bracket, cheap and easy to damage

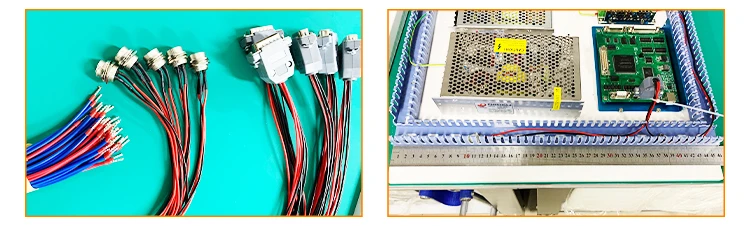

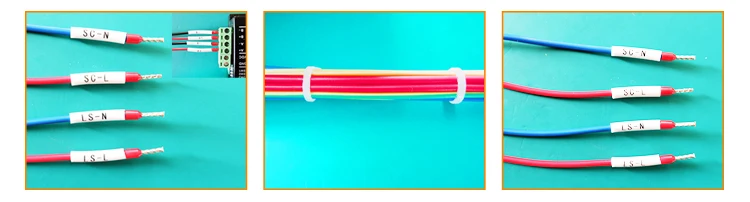

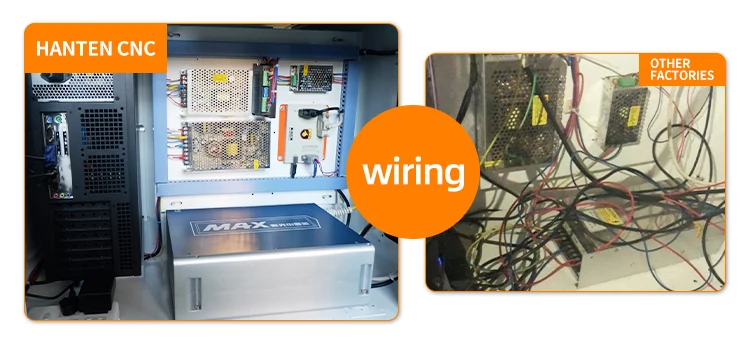

The line is neat and orderly
Each line is distinguished by color
Neat and uniform
Each line is distinguished by color
Neat and uniform
Irregular wiring
The machine cannot be used safely in harsh
The machine cannot be used safely in harsh
environments
Purely hand-made pins, all kinds of lines are distinguished by color, and the lines used have line number identification. When the machine fails, the fault can be accurately and quickly detected, which is safer to use and prolongs the service life of the machine.
All plugs use brand accessories to ensure safe and normal work even after multiple plugging and unplugging. The length and width dimensions of each section of the wire groove are standardized and unified.
All lines are routed neatly, and the online slot ensures that the machine can be used safely in harsh environments, escorting your use
All lines are routed neatly, and the online slot ensures that the machine can be used safely in harsh environments, escorting your use
More Choose

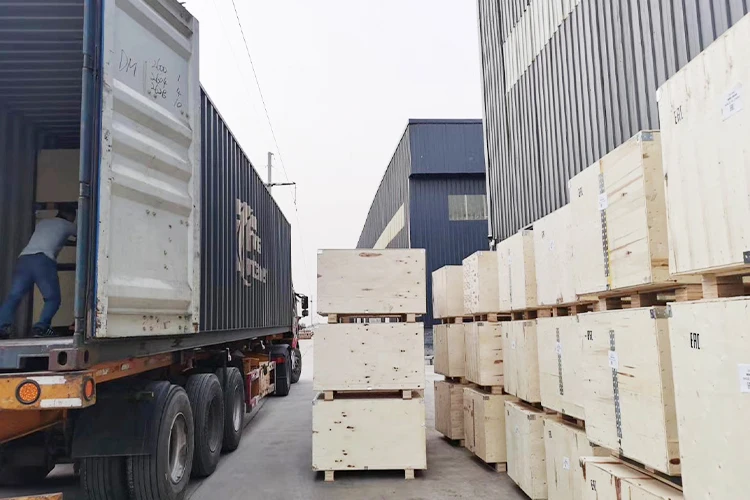

Packaging and Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Jinan Hanteng Laser Technology Co.,ltd
Jinan Hanteng Laser Technology Co.,ltd is a professional automatic laser marking engraving and cutting machine manufacturer in China. Our products include the fiber laser marking machine, laser marking machine, laser welding machine, laser engraving and cutting machine and so on, which have passed CE certification. Our machines are widely used for the arts and crafts, the machine parts, hardware tools, advertising sign, shipbuilding industry, auto parts, rubber molds, high-end machine tool, tire mold, Environmental protection industry and so on. We have many customers from different countries around the world.
--16 years of experience in the production and development of cnc laser coding equipment:
--Directly sales from factory to buyer;
--24 hours online after-sales.
--16 years of experience in the production and development of cnc laser coding equipment:
--Directly sales from factory to buyer;
--24 hours online after-sales.
Our Service
1.Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
2.After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
We provide one-year machine warranty. In case it exists machine problem, we will solve the problem through email, skype, phone or video. If the problem still exists, we will send our technician to customer's plan for machine repair. We will respond to customer's question as soon as possible.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
2.After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
We provide one-year machine warranty. In case it exists machine problem, we will solve the problem through email, skype, phone or video. If the problem still exists, we will send our technician to customer's plan for machine repair. We will respond to customer's question as soon as possible.
Customers visit
Many our customers visit our factory,to learn how to use the machine.Our after-sales service manager went to the customer's country to help debug the machine.Our machines are exported to Europe, America and many other countries,such as,United Kingdom Canada Brazil Mexico United States Netherlands and so on.
Certificates
The certificates accumulated by Hanteng Laser in more than ten years, which have witnessed the development history of Hanteng Laser, Quality comes from professionalism and integrity comes from service
FAQ
Q1: How to choose a machine for silver jewelry engraving？
We suggest you choose a 30 watts of power, you can contct us to get more detials and there are free gifts.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.
Q3: Is the machine safe to operate?
Yes, the laser is completely safe to operate. HANTEN CNC offer so many safe system,like leakage proof socket,emergency stop button ,water alarm, red dot focus.
Q4: How long is the working life of the machine？
Answer: The theoretical working life of the laser source is 20,000 hours, which depends on the environment in which it is used.
Q5:What's the guarantee, in case the machine breaks down?
The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
We suggest you choose a 30 watts of power, you can contct us to get more detials and there are free gifts.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.
Q3: Is the machine safe to operate?
Yes, the laser is completely safe to operate. HANTEN CNC offer so many safe system,like leakage proof socket,emergency stop button ,water alarm, red dot focus.
Q4: How long is the working life of the machine？
Answer: The theoretical working life of the laser source is 20,000 hours, which depends on the environment in which it is used.
Q5:What's the guarantee, in case the machine breaks down?
The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
