AOT302A Medical Equipment Ot Electric Surgical Operation Operating Theatre Table
- Category: Operating Table >>>
- Supplier: Wanrooe Machinery Co. Ltd. (Zhangjiagang)
Share on (62282069269):
Product Overview
Description
Product Description

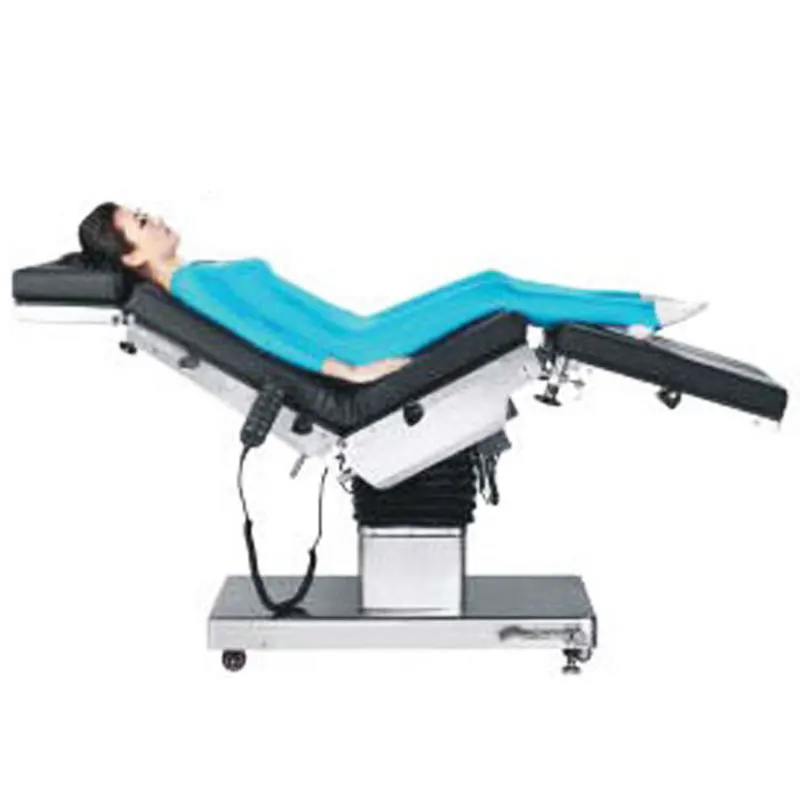

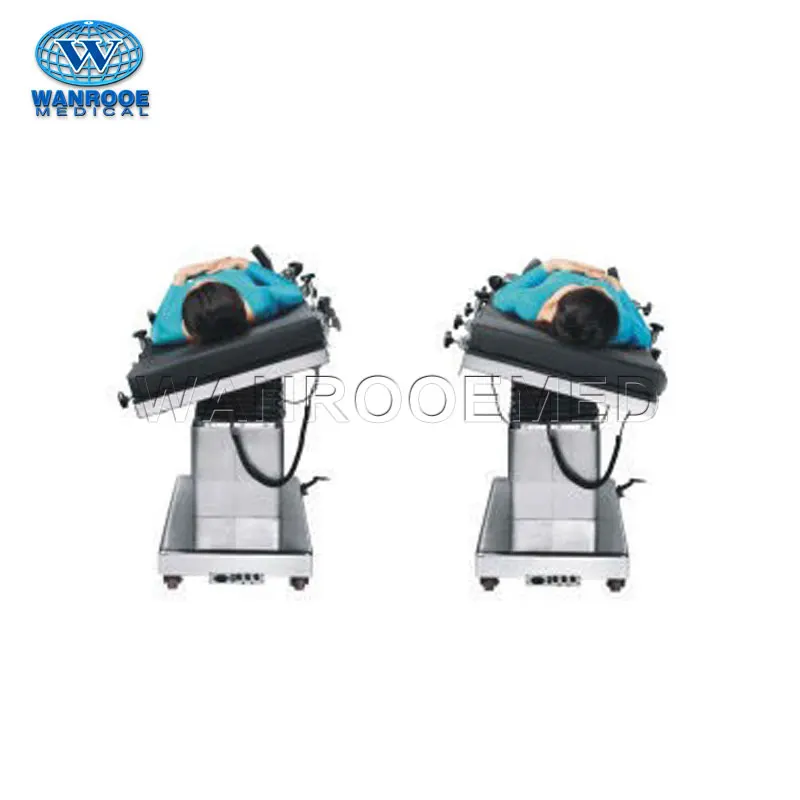

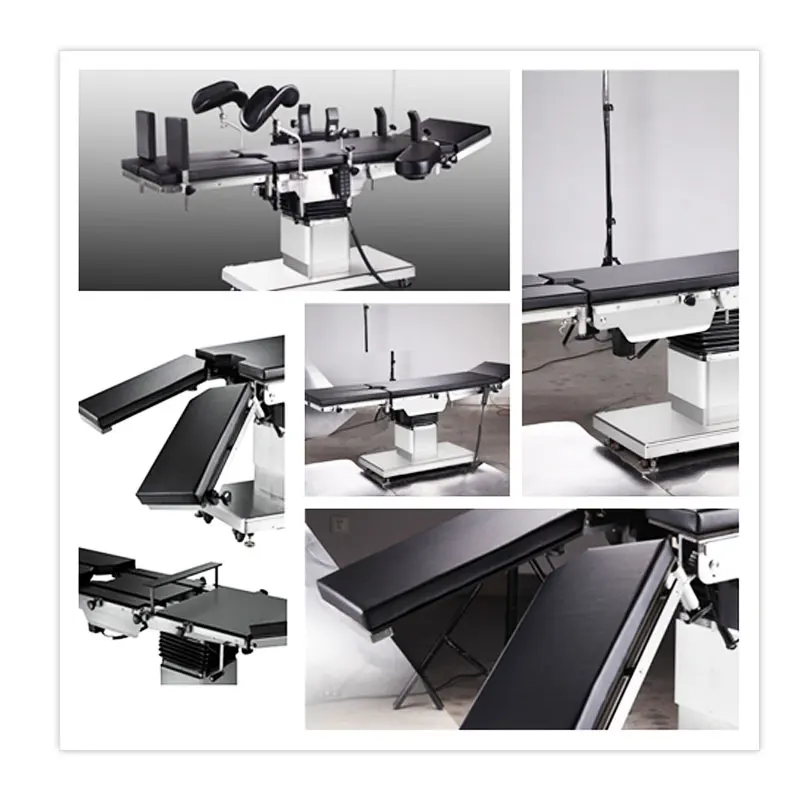

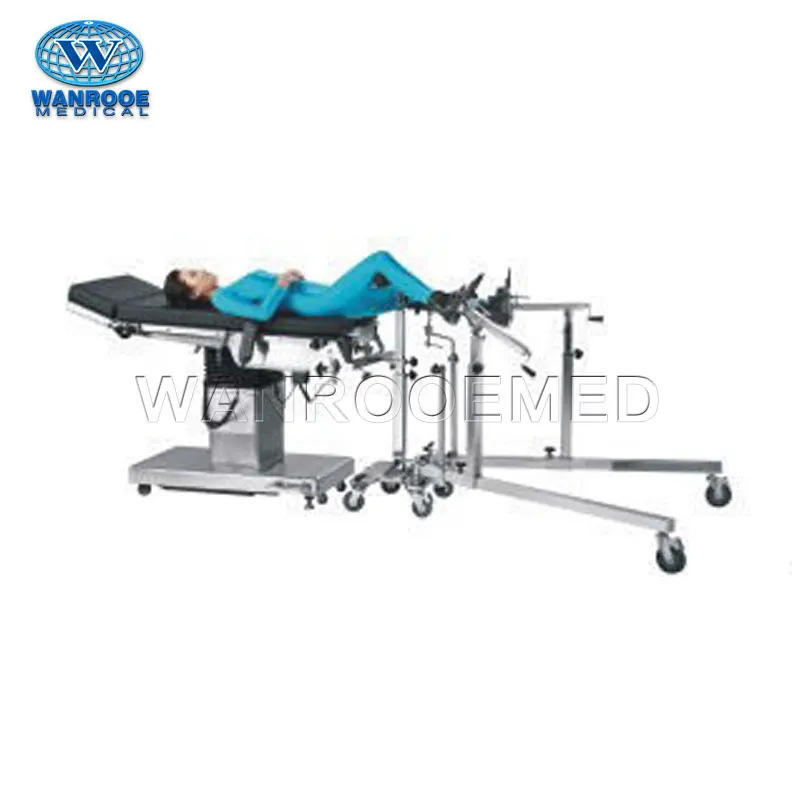

AOT302A Medical Equipment Ot Electric Surgical Operation Operating Theatre Table
Technical Specifications and accessories
Description | AOT302A advanced | AOT302A luxury | AOT302A Standard | |
Specifications | 1.C-arm exmination and X-ray examinatio | |||
| Features | Suitable for most operations, with long horizontal sliding, suitable for C-ram and X-ray All functions can reached by hand controller Elevation of the tabletop, back section, tilt, horizontal sliding by electric, other function manually With battery backup Mobile castor with brake, manually. | |||
Tabletop length and width | 2070*500mm | 2070*500mm | 2070*500mm | |
Elevation(up/down) | 700-1000mm | 700-1000mm | 700-1000mm | |
Trendelenburg/reverse trendelenburg | 25°/25° | 25°/25° | 25°/25° | |
Lateral tilt(left/right) | 15°/15° | 15°/15° | 15°/15° | |
Head rest(up/down) | 45°/90° | 45°/90° | 45°/90° | |
Foot plate up/down | 15°/90° | 15°/90° | 15°/90° | |
Foot plate open | 90° | 90° | 90° | |
Back plate up/down | 70°/20° | 70°/20° | 70°/20° | |
Longitudinal sliding | 300mm | ----- | ------- | |
Kidney elevation | 110mm | 110mm | ------- | |
220V, 50HZ, 1000W standard |
|
|
| |
battery | yes | yes | yes | |
Mattress | Memory sponge | Memory sponge | Ordinary sponge | |
Accessories material | PU | PU
| Ordinary accessories | |
Bed body material | 304 stainless steel | |||
Loading | 200kg | |||
Accessories | Anesthesia Frame: 1 pc Cushion: 1 set Leg holder: 1 pair Shoulder Rest: 1pair Arm Support: 1 pair Body Support: 1pair Foot plate: 1 pai Manual controller: 1 pc Hydraulic oil: 1 bottle Kidney bridge handle: 1 pc Power cord: 1 pc | |||

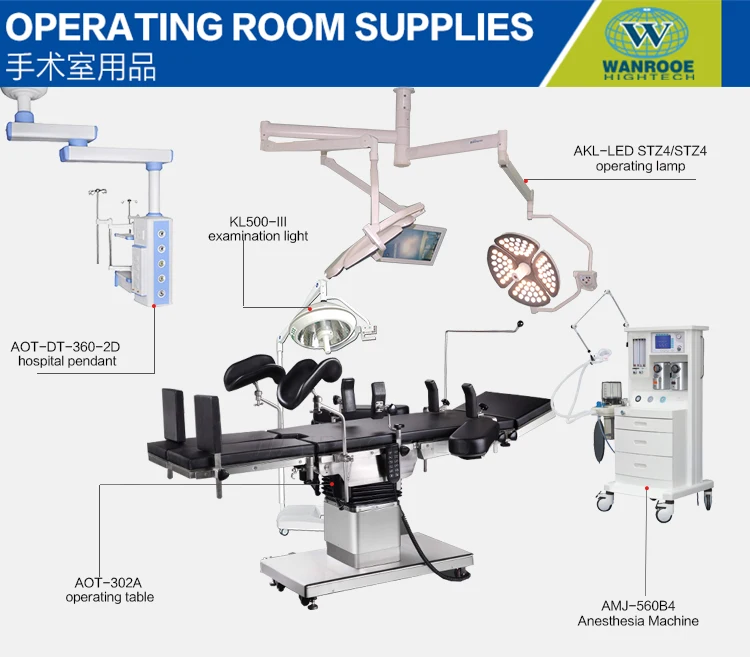

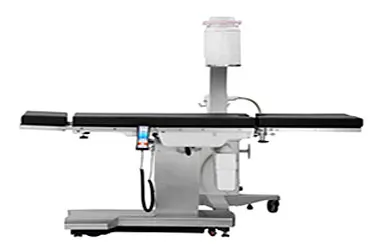

Btw suggest AOT700 Operating Table,AOT500 Operation Table,AOT302A Operation Room Table,AOTA302 Head Skull,AMJ-560B3 Anesthesia Machine,AV-2000B1 Ventilator Machine for reference, which are one of the top sales products in the past 2018.
And we have hospital and clinic project solution package, support you complete purchasing job. If any interest, welcome consult details
Related Products
| Related Products | |
 | Electric-hydraulic Neurosurgery Operating Table 1. Silent Electric-hydraulic system, 304 stainless steel base and cover, all accessories made of quality 304 stainless steel, the main body made of cast aluminum 2. C-Arm compatible table top 3. 225 KG (500 LB) lift capacity. |

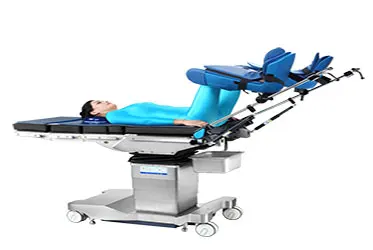

| Orthopedic Electro-Hydraulic Surgical Table Engineered for increasingly complex surgical scenes, AOT800 comes with extreme loads in any position. The modular structure enables it to be adapted to match the size of the patient and in no time at all it can be equipped for any surgical discipline. |  |
