petroleum equipment Y341 packer in oil well water injection packer for oil field

Y241 Packer

1. Basic Introduction

Protective casing, high-pressure acidification of the production layer, sand fracturing, pressure test and other operations.

The packer uses a hydraulically sealed upper tubular string to unseal the working mode. The hydraulic piston is pushed up to open the limit mechanism and compress the rubber cylinder to realize the setting, and the locking mechanism enters the locking state; the lifting pipe column, the central pipe of the packer and the outer layer are misaligned and unlocked. To achieve unblocking.

2. Technical Features

1) l can withstand a pressure difference of 10,000 psi (70 MPa);

2) Internal locking ring ensures stable seating force;

3) l anchoring and sealing integration;

4) lMultiple rubber cylinders ensure sealing stability after setting;

l Water, natural gas, oil and other standard environments.

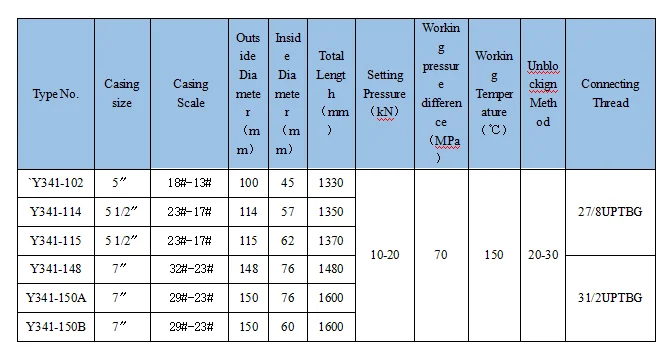

4.  Technical Parameters

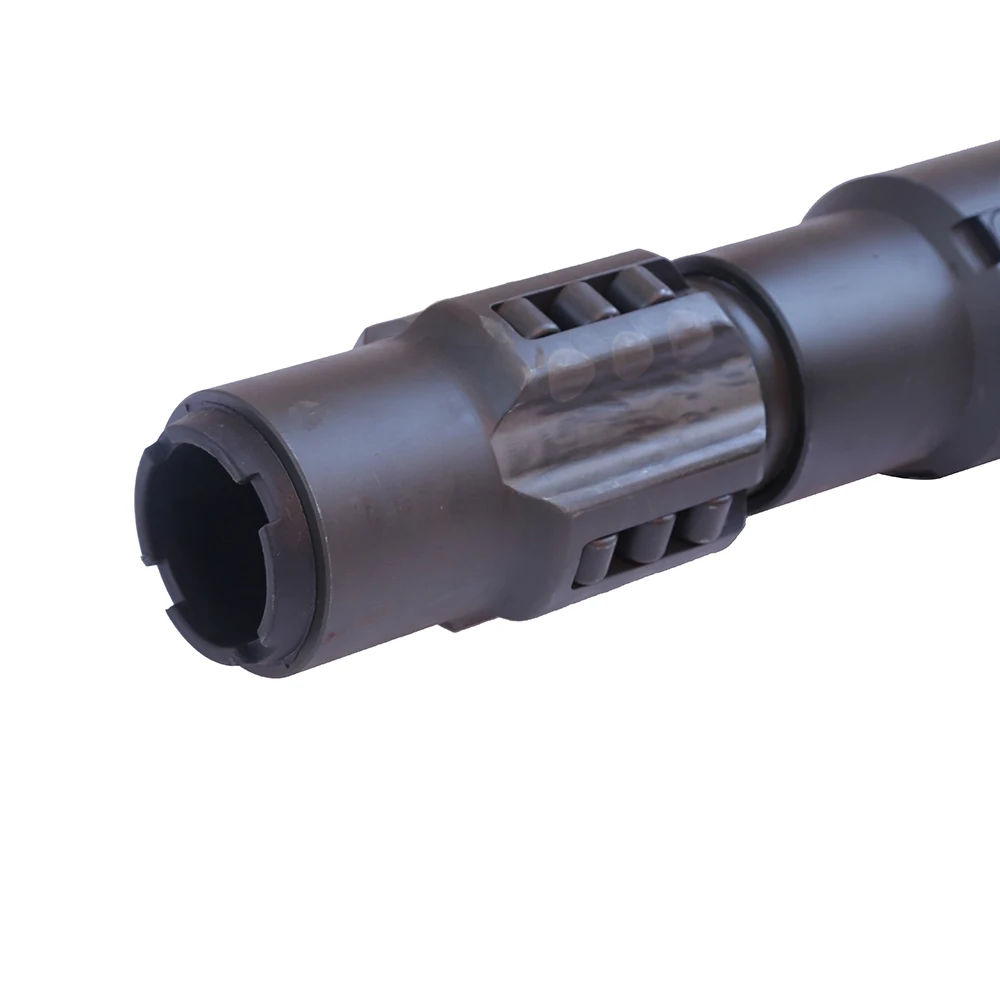

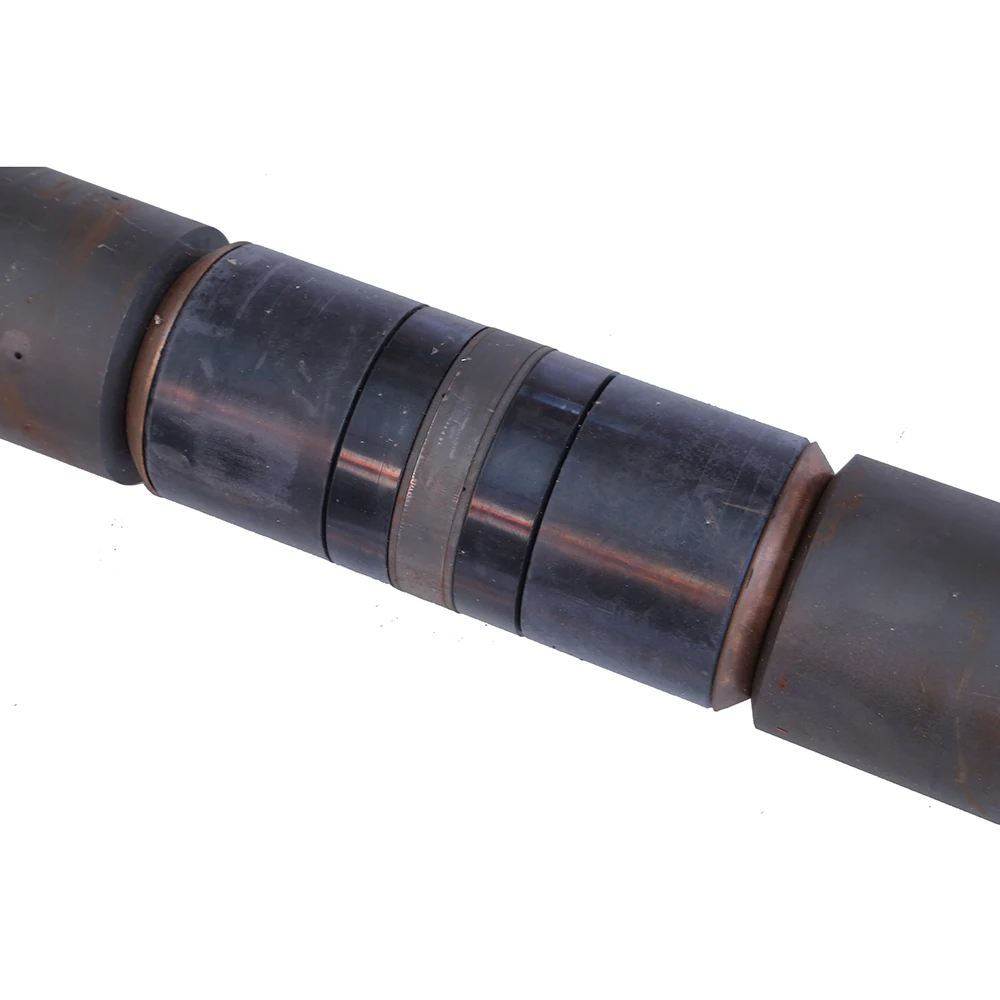

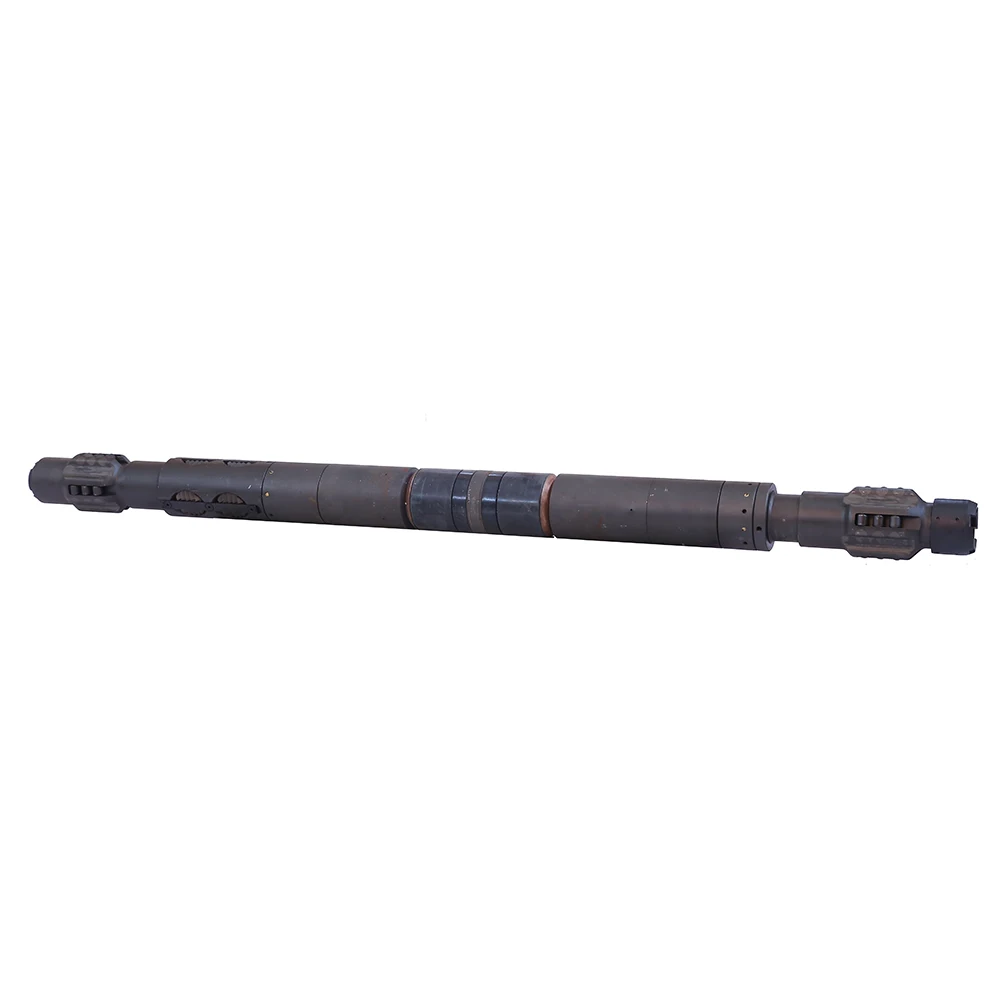

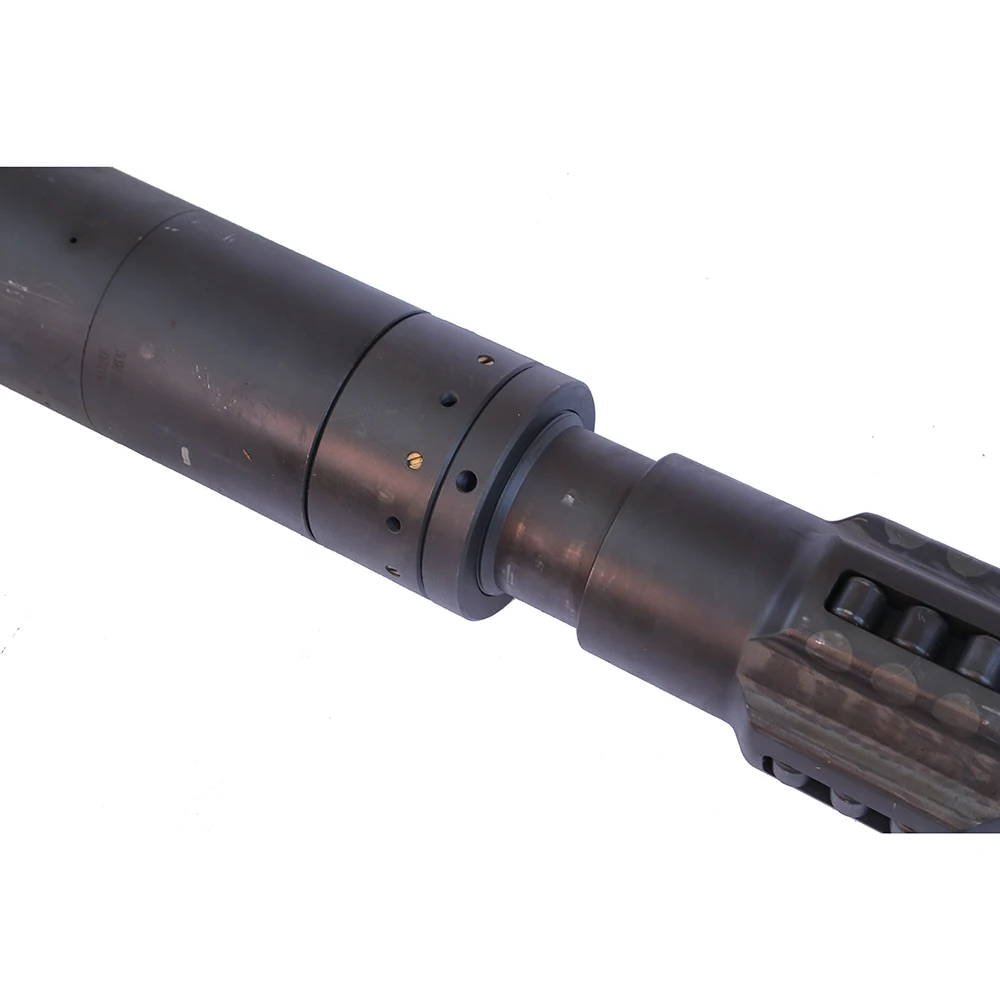

5.  Product rendering

Besides, we also provide other specification packer for your selection, please feel free to contact us directly or send a inquiry ;-)
