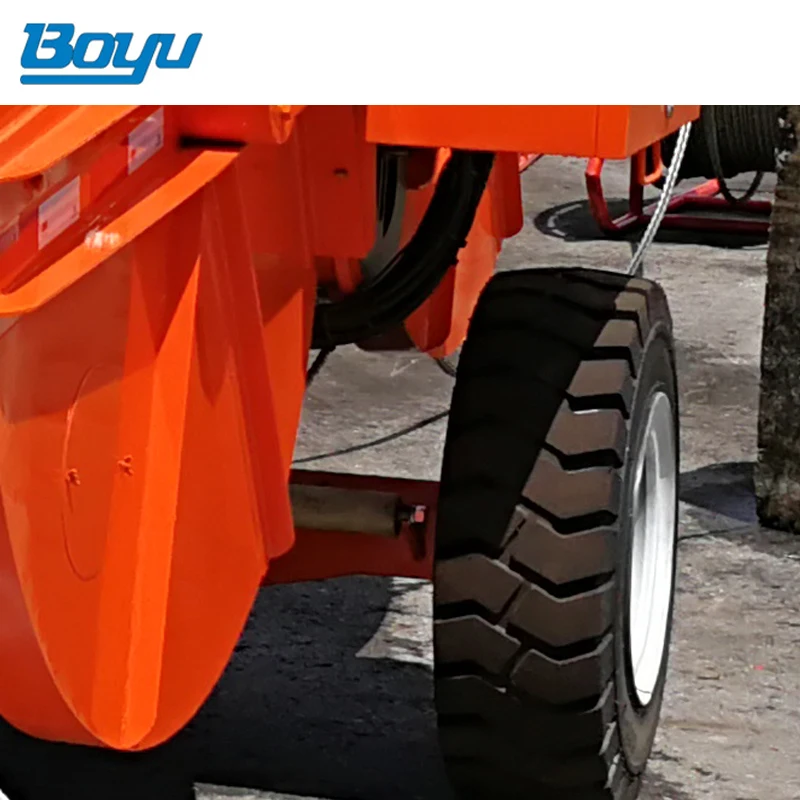

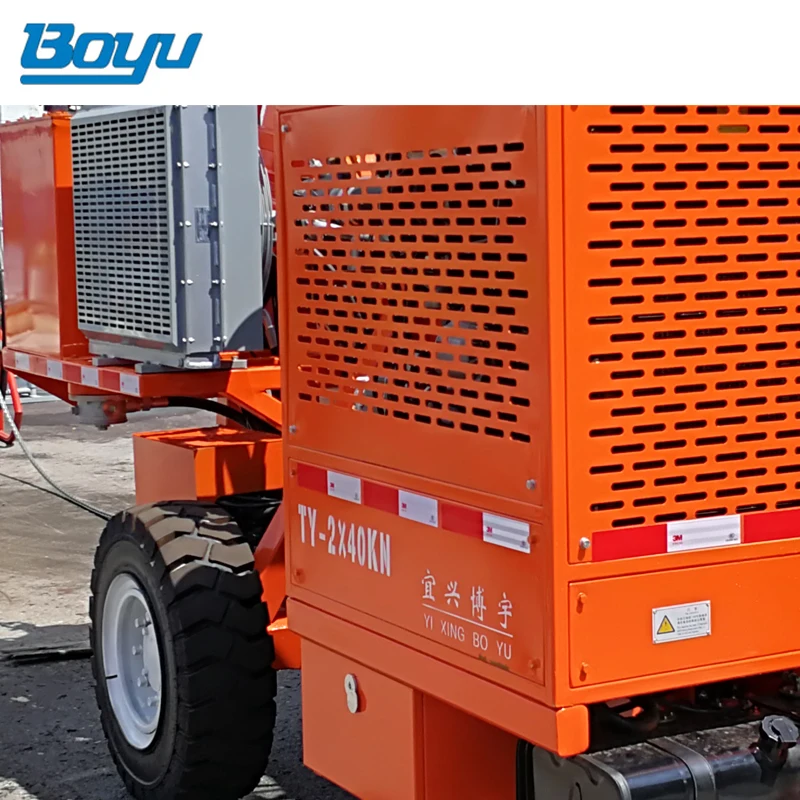

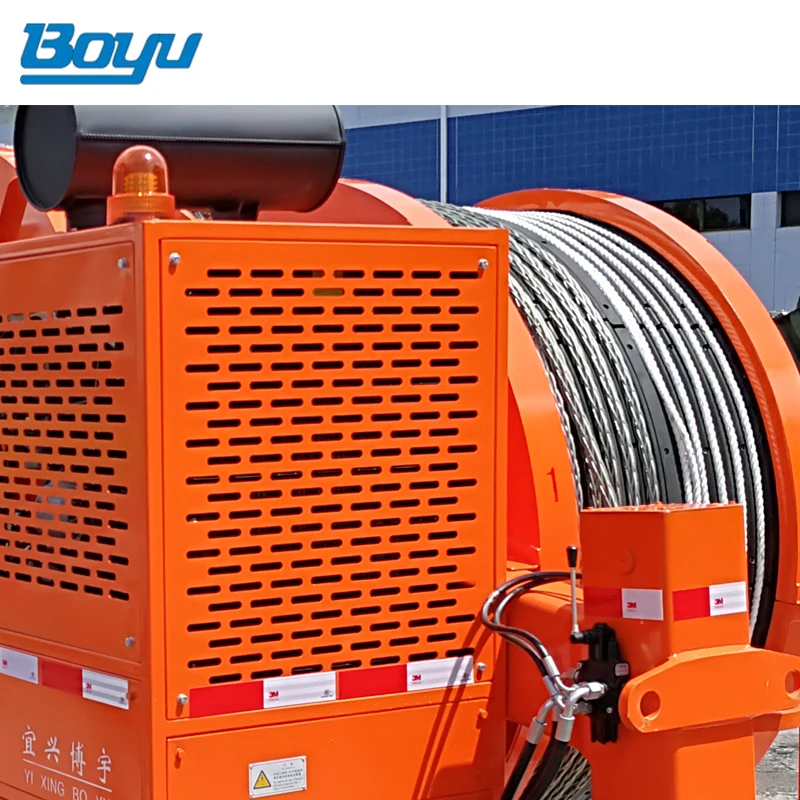

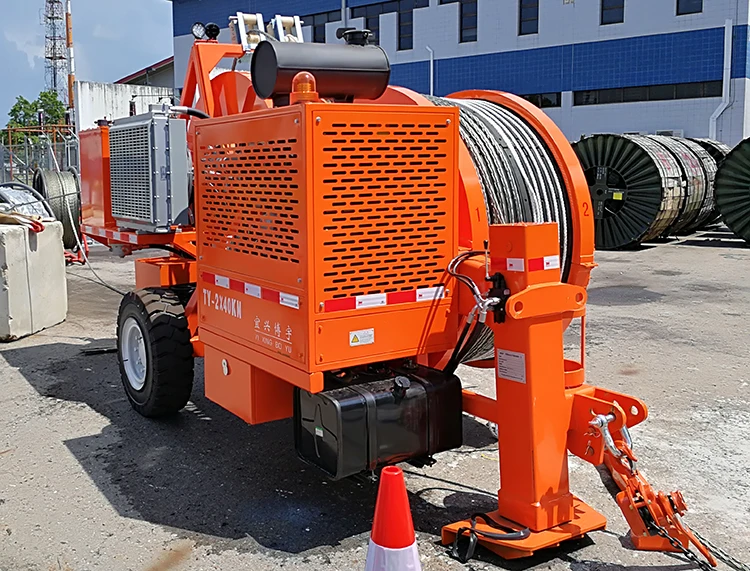

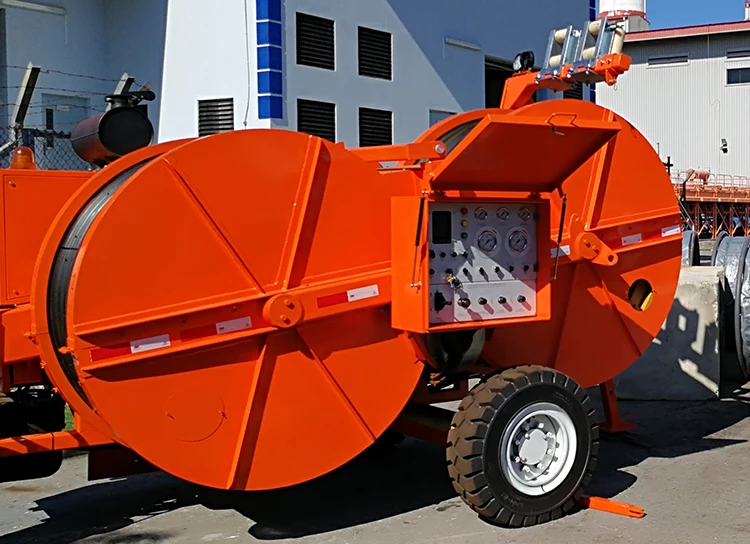

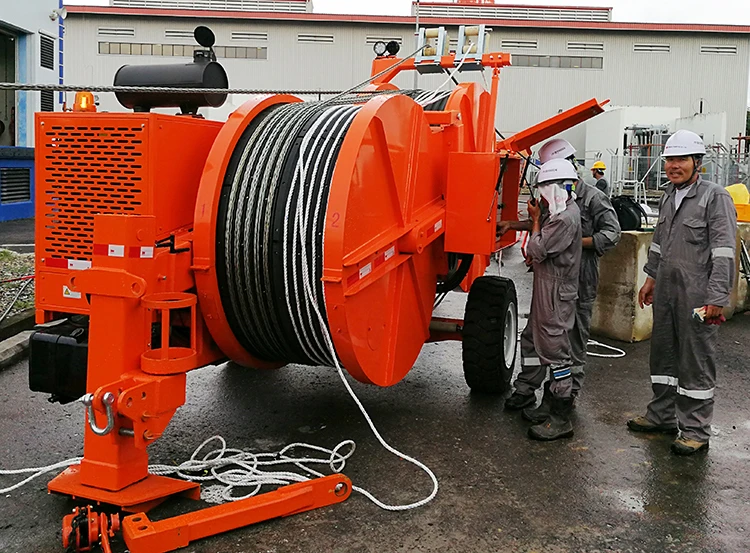

Transmission Line Equipment 2x40kN Hydraulic Tensioner Two Bundle Conductors Stringing Equipment

Product Overview

Description

TY2x40 Stringing Equipment 2 Bundled Conductor Hydraulic Tensioner

 The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains



Characteristics

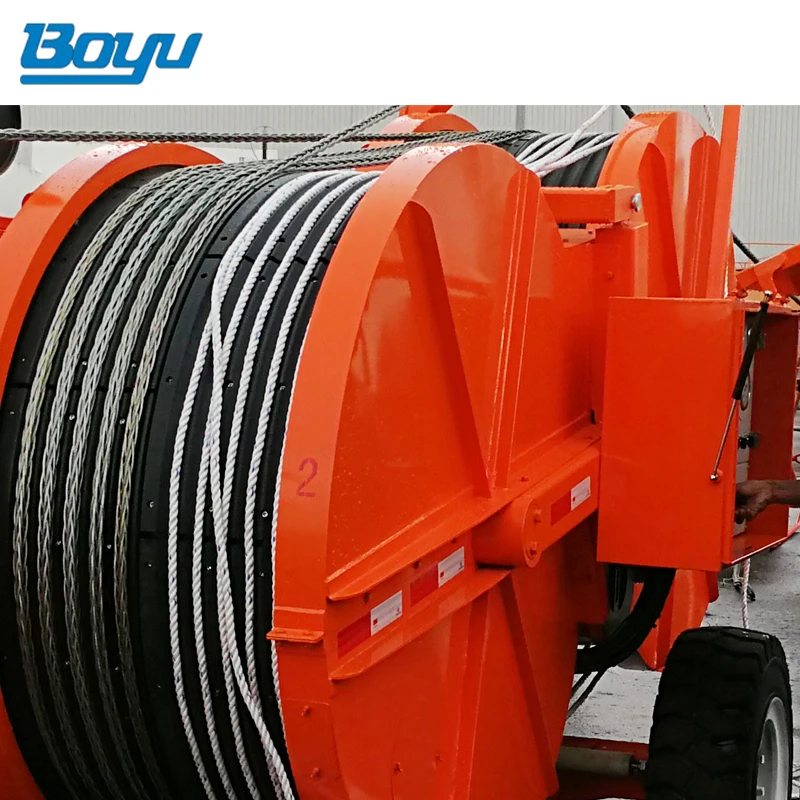

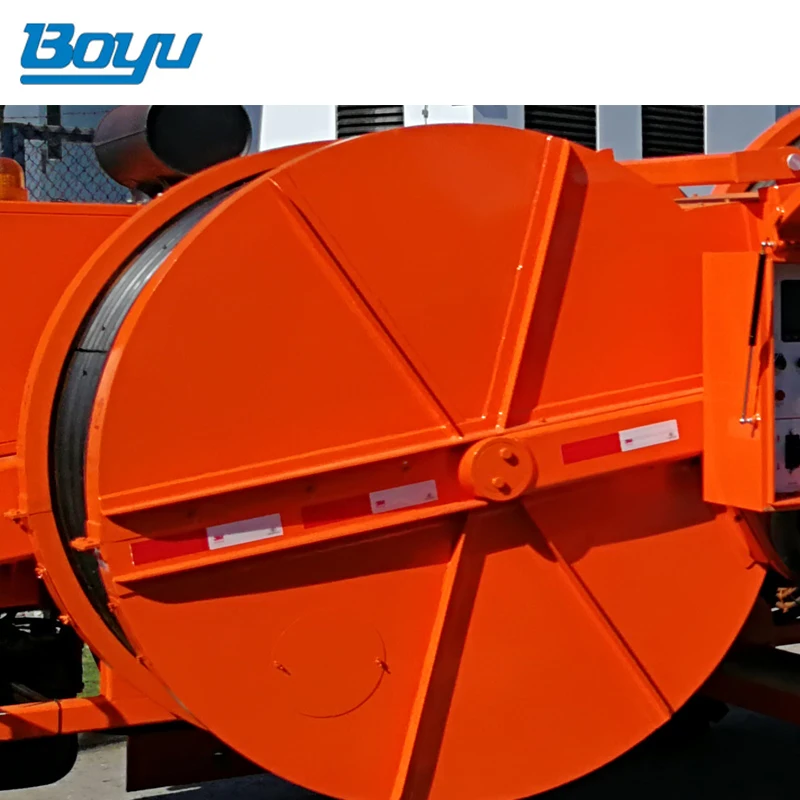

• Bull-wheel diameter: 1300/1500mm


• Max conductor diameter: 40mm


• Groove number: 2x5


• Total weight: 5800kg


• Overall dimension (length*width*height): 4300×2250×2700mm

Performance

• Max intermittent pull: 2x45kN


• Max continuous pull: 2x40kN


• Speed at max pull: 2.5km/h


• Max speed: 5km/h


• Pull at max speed: 2x20kN


• Max reverse pulling force: 2x35kN


• Max reverse pulling speed: 5km/h

Engine

• Diesel: 77kw(103hp)


• Cooling system: water


• Electrical system: 24V

Main Configuration

• Engine: Cummins


• Hydraulic pump: GermanRexroth/Dnish Danfoss


• Main motor: German Rexroth/French Leduc


• Speed reducer: German Rexrothn


• Hydraulic meter: German WIKA


• Operating handle: German Rexroth

Configuration

• Hydraulic dynamometers


• Hydraulic oil cooling system


• Digital speed and meter counter


• Hydraulic front stabilizer


• Grounding connection point


• Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

Hydraulic Transmission

• The machine can realize step less speed.


• The machine is provided with tension presetting system

Additional Devices

• Lighting system for the trailer


• 2 hydraulic rope/conductor clamp (extra charge)


• Swivel guide rope roller


• Trailer for towing at max speed of 30 km/h


• Digital speed and meter counter





Model	Max  intermittent tension	Max continuous tension	Speed at max tension	Max speed	Tension at max speed	Max reverse pulling force	Max reverse pulling speed	Diesel	Cooling system	Electrical system
	kN	kN	km/h	km/h	kN	kN	km/h	kw(hp)		V
TY1X7.5		7.5		2.4
TY1X20		20		5
TY1X20II		20		4
TY1X20III		20	2.5	5	10	15		10kw (3600rpm)	Air
TY1X30		30	2.5	5	15	20		12(16)		12
TY1X40	45	40	2.5	5	20	35		77(103)	Water	24
TY1X50	50	40	2.5	5	25	45	2.4	77(103)	Water	24
TY140IV	1x140	1x120	2.5	5	35	1x120	1.2	77(103)	Water	24
TY2X35	2x40/ 1x80	2x35/ 1x70	2.5	5	2x20/ 1x40	2x30/ 1x60	5	77(103)	Water	24
TY2X40	2x45/ 1x90	2x40/ 1x80	2.5	5	2x20/ 1x40	2x35/ 1x70	5	77(103)	Water	24
TY2X50	2x55/ 1x110	2x50/ 1x100	2.5	5	2x25/ 1x50	2x45/ 1x90	5	77(103)	Water	24
TY2X70	2x70/ 1x140	2x65/ 1x130	2.5	5	2x25/ 1x50	2x60/ 1x120	5	77(103)	Water	24
TY2x70IV	2x70/ 1x140	2x65/ 1x130	2.5	5	2x25/ 1x50	2x60/ 1x120	5	77(103)	Water	24
TY2X90	2x100/ 1x200	2x90/ 1x180	2.5	5	2x40/ 1x80	2x80/ 1x160	2	130kw (2500r/min)	Water	24
TY4x50	4x50/ 2x200	4x40/ 2x80	2.5	5	4x20/ 2x40	4x40/ 2x80	1.25	77(103)	Water	24



Model	Bull-wheel diameter	Max conductor diameter	Max optical fiber cable diameter	Groove width	Groove number	Total weight	Overall damension
	mm	mm	mm	mm		kg	mm
TY1X7.5	1100	24	21	220	1	850	2300*1250*1620
TY1X20	1300	40	21	55	5	1920	4080*1930*2300
TY1X20II	800	23		45	5	950	2400*1500*1650
TY1X20III	800	22.5		55	5	1150	2500*1500*1700
TY1X30	1300	40	21	60	5	2064	3700*1950*2150
TY1X40	1300	40	21	55	5	3430	4000*2000*2300
TY1X50	1300/1500	55	21	68	6	2400	4000*1900*2300
TY140IV	1500	40			16	10000	5500*2280*2700
TY2X35	1300	40			2x5	4500	4300*2250*2700
TY2X40	1300/1500	40			2x5	6230	4300*2250*2700
TY2X50	1300/1500	40			2x5	6000	4700*2300*2700
TY2X70	1700	40			2x6	7500	4700*2300*2700
TY2x70IV	1500	40			2x8	10000	5500*2280*2700
TY2X90	1900	50			2x6	7500	5400*2300*2700
TY4x50	1500	40			4x5	13000	5900*2300*2700
