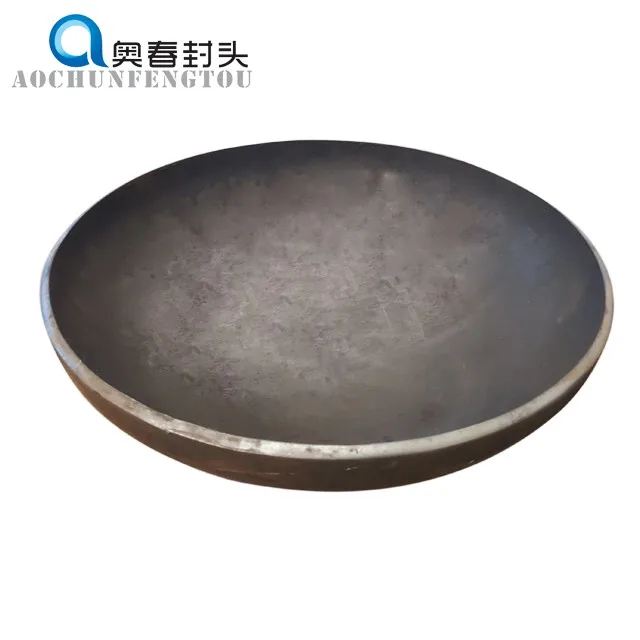

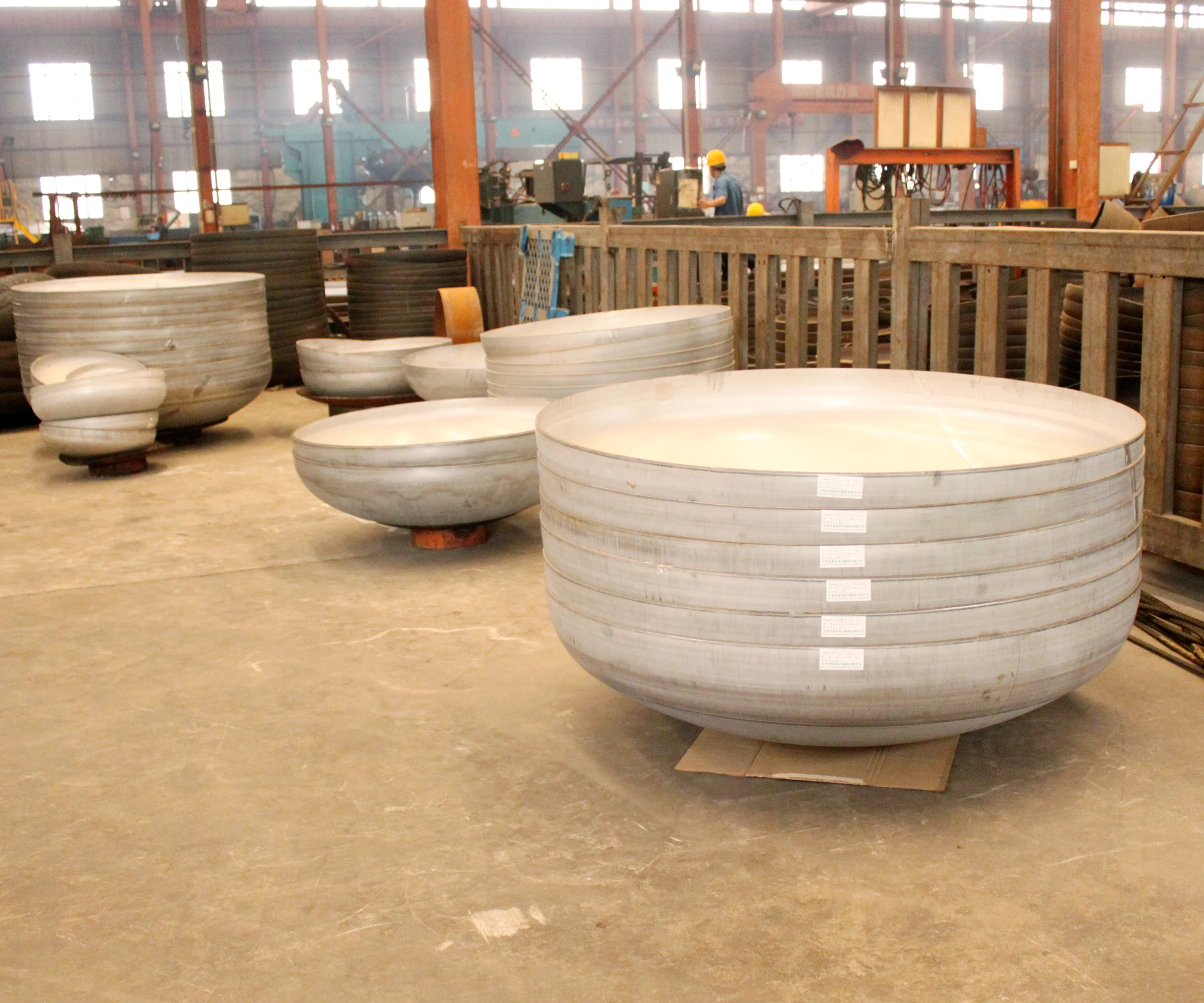

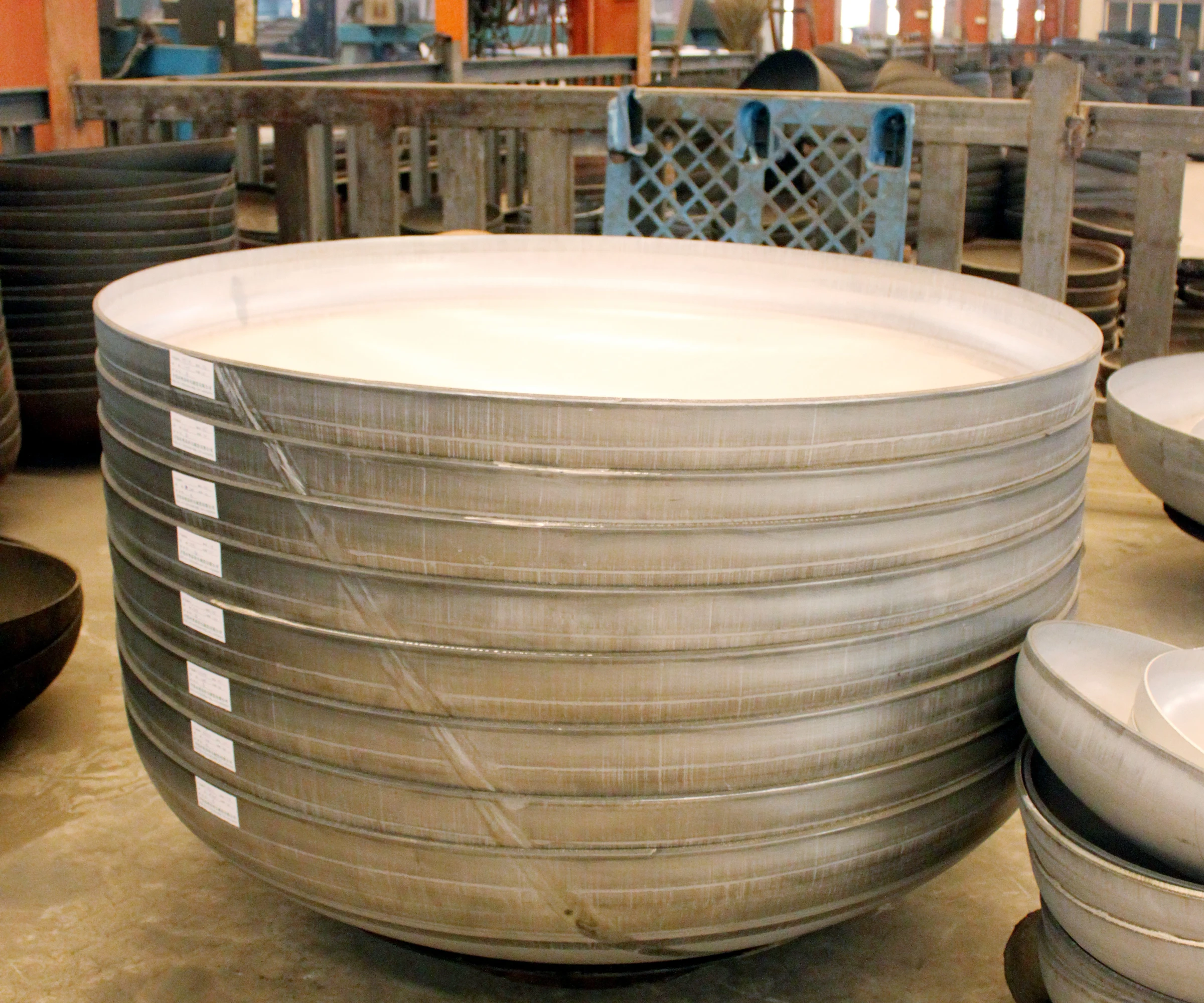

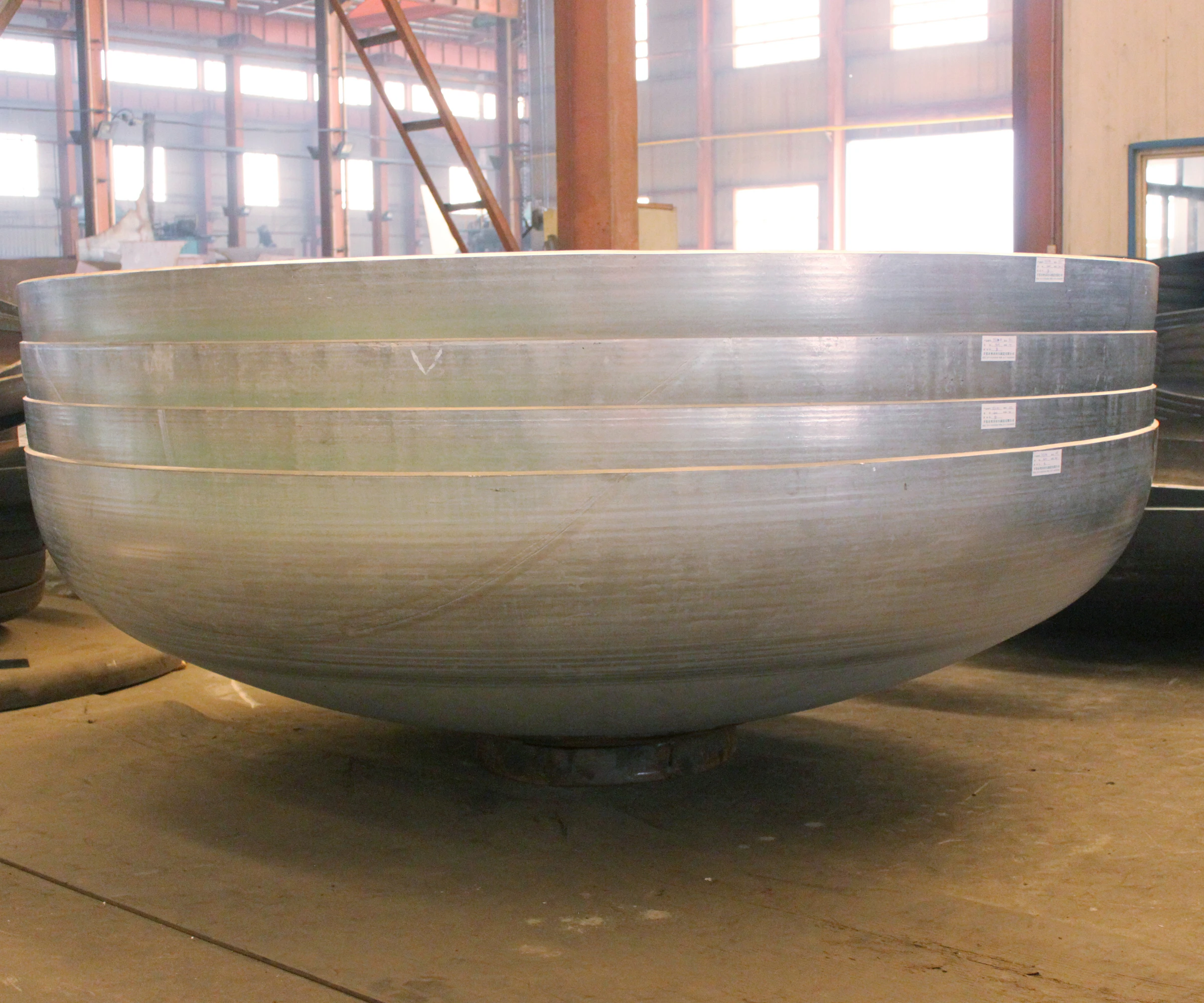

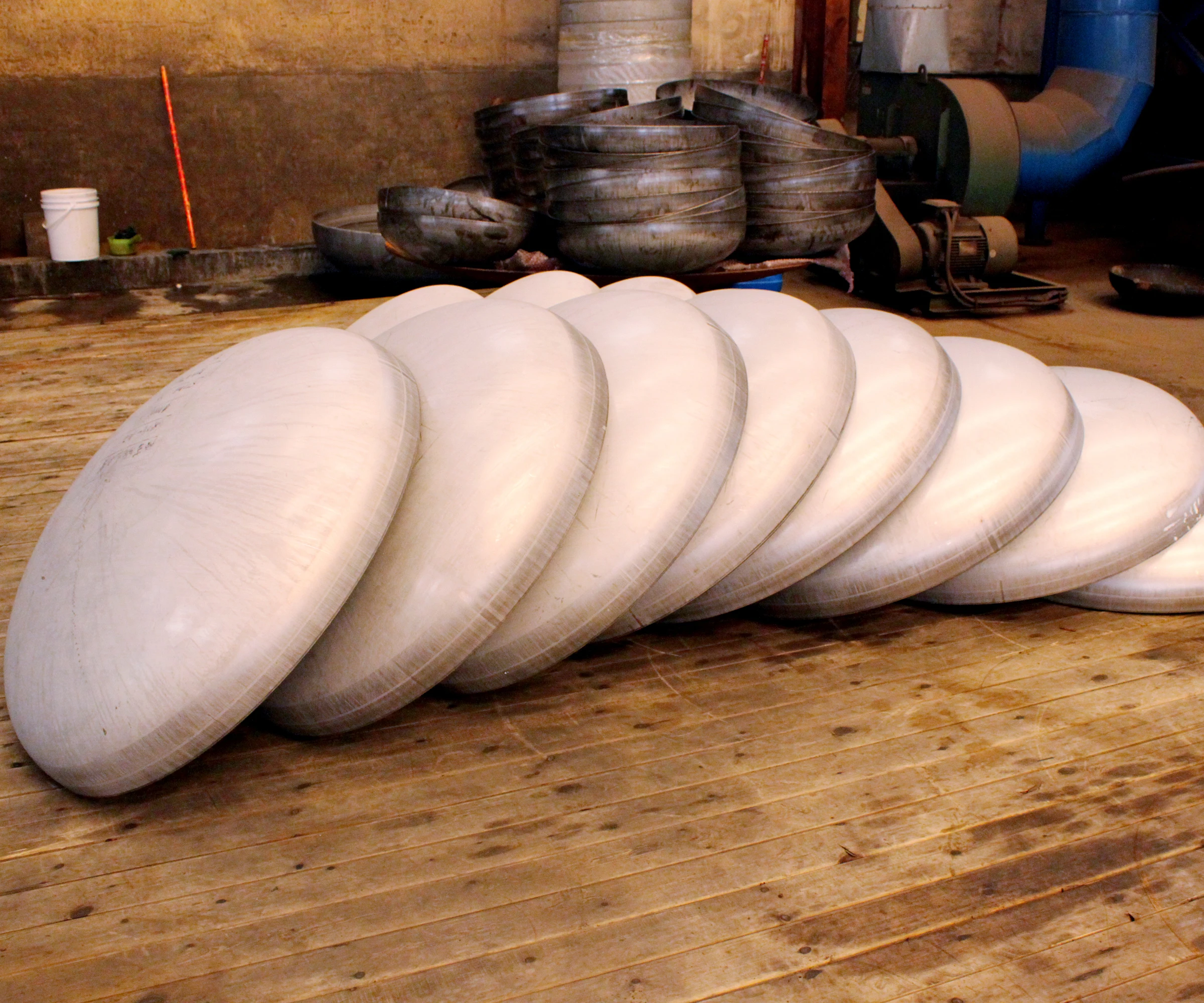

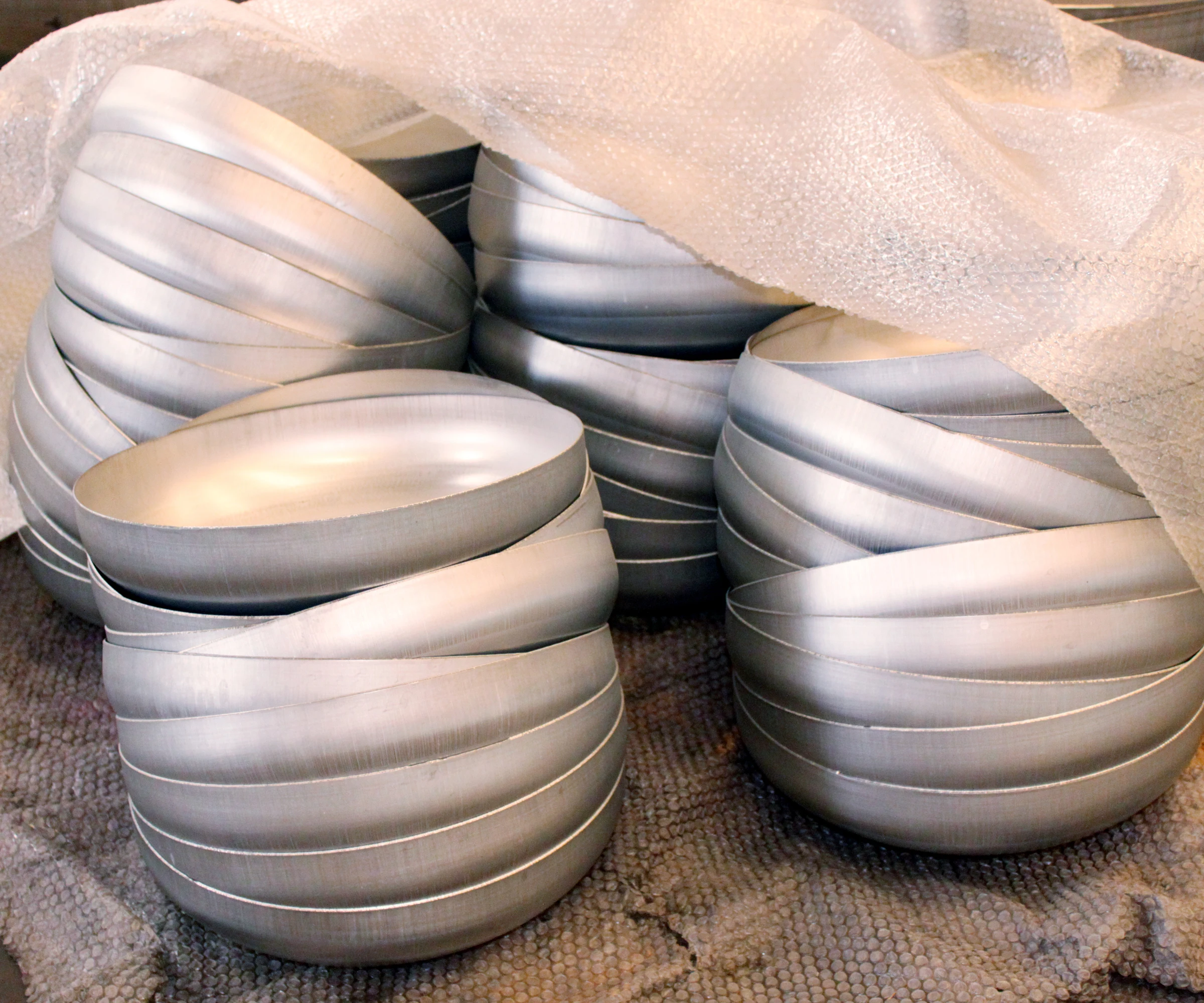

Pressure Vessel Tank Head Boiler Part Dished Head Forged Steel Dished End

Share on (62282481798):


Price:$40.00 - $50.00

Quantity:


Product Overview

Description



Products Description

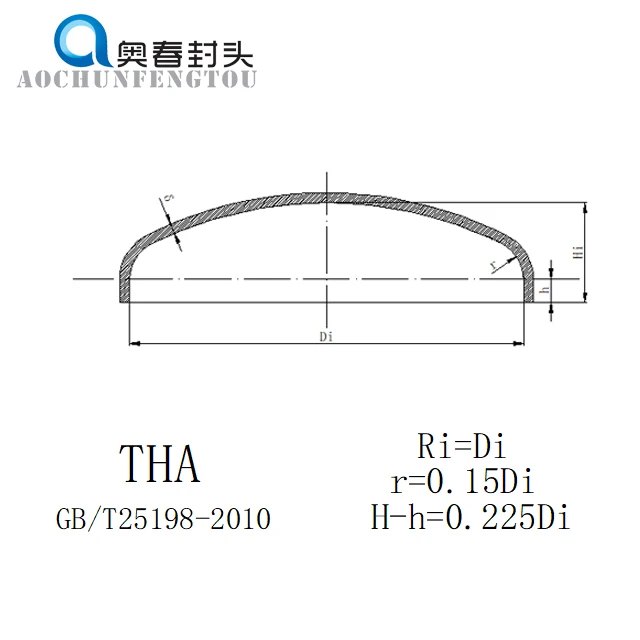

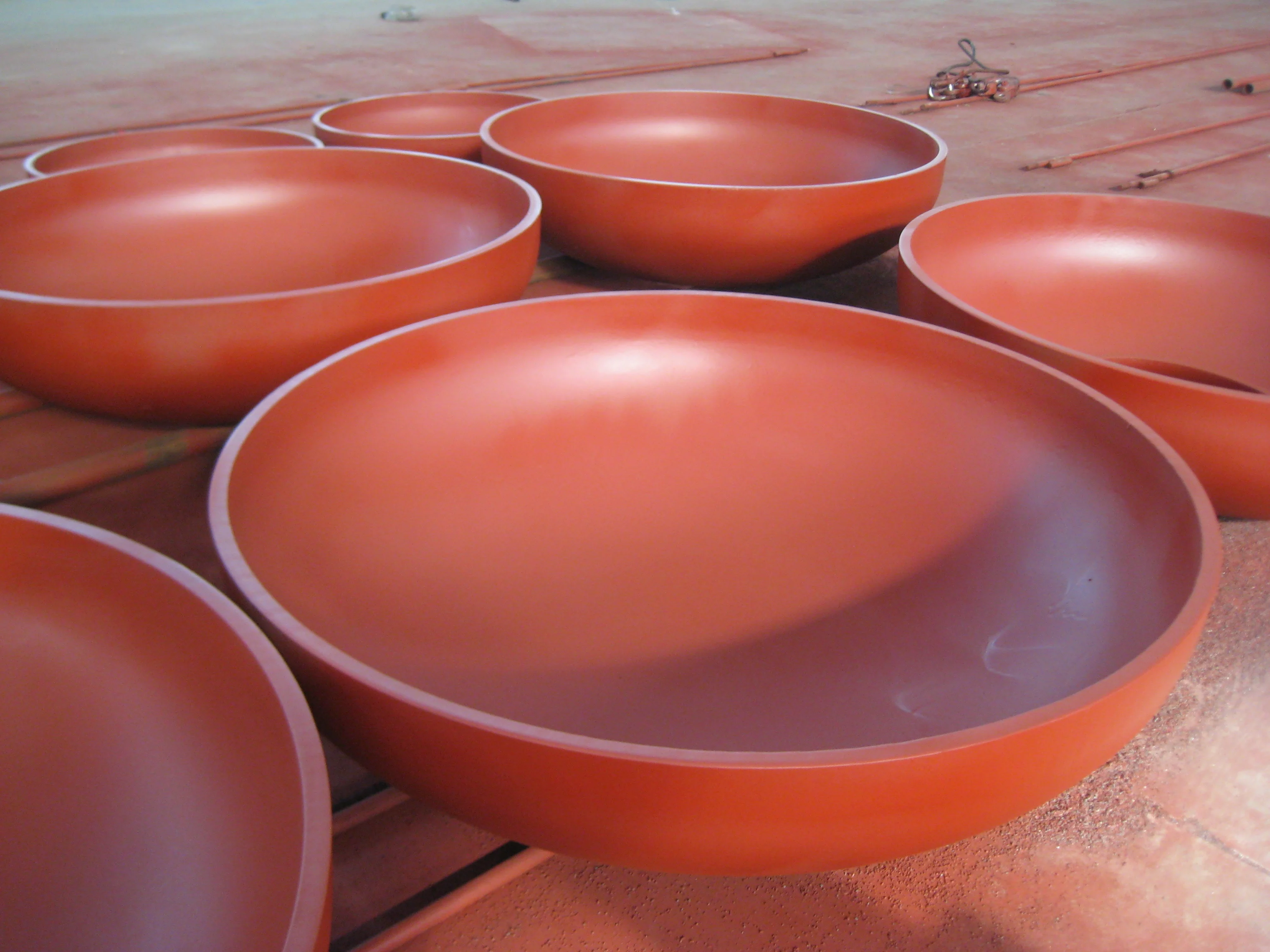

Dish-shaped head is also known as a hem-shaped spherical head, it consists of a spherical surface, a straight side of a cylinder of a certain height, and a transition portion connecting the above two portions with a radius of curvature smaller than the radius of the spherical surface. The dish-shaped head is a continuous curved surface. At the three-part joint, the curvature radius of the warp is abrupt, and there is a bending stress due to the curvature change. The result of the superposition of bending stress and tensile stress causes the stress of this part to protrude from other parts.








production process




related products


Type
Dish Head/Eliptical Head /Hemispherical Head/Conical Head /Flat Bottom Head/Special Shape Head
Material
(Stainless Steel):304,321,30403,316,31603 (Carbon steel): Q245R,Q235B,Q345B,Q345R (Copper)(Aluminum)(Alloy Steel) (Customer's Request)
Technics
cold pressing/Hot pressing
Surface treatment
plicking, polishing, sandblast, paint spraying
Applications
boiler, machinery, metallurgy, sanitary construction, etc
Product features
Rustproof, good corrosion resistance, anti-wearing, good-appearance, excellent mechanical properties,Price discount




Manufacturing Technique




Company information

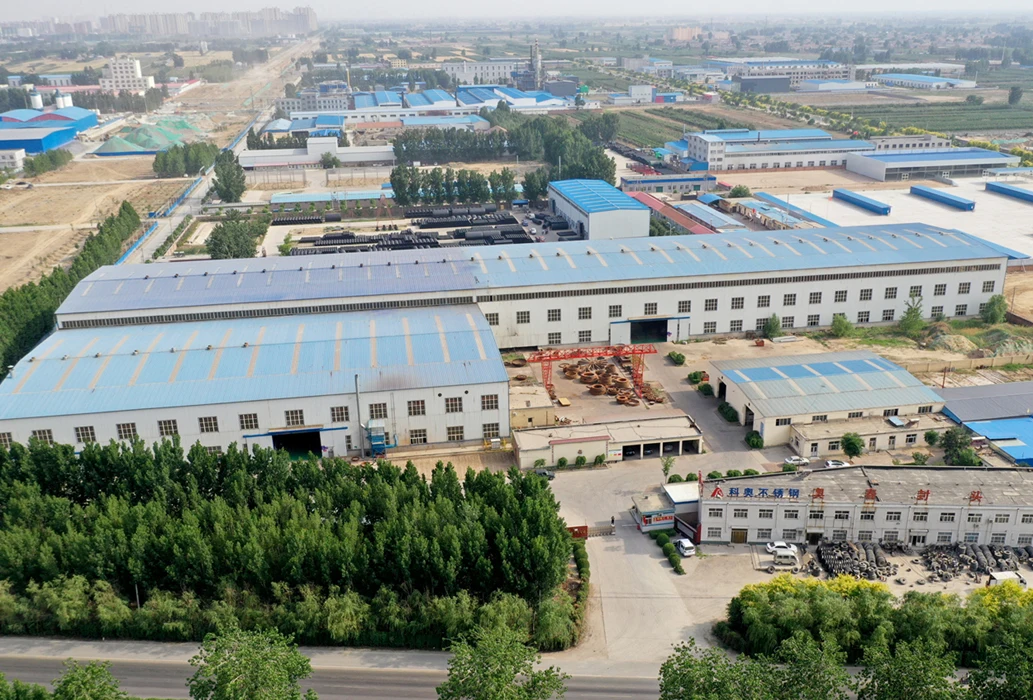

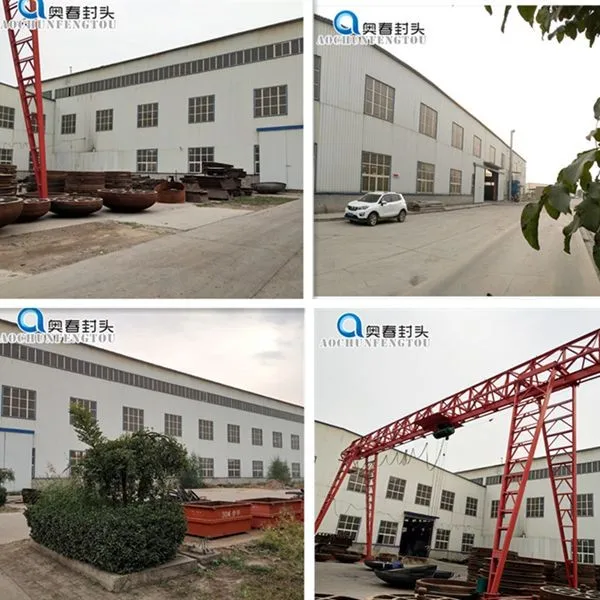

Xinji Aochun Head Manufacturing Co., Ltd was established in 1998. Which Is a factory specializing in the manufacture of boilers and pressure vessels heads. The factory is located in Xinleitou industrial zone,Xinji City, Hebei Province beside the 307 National Road .Covering an area of 50 acres, the existing assets of 150 million.

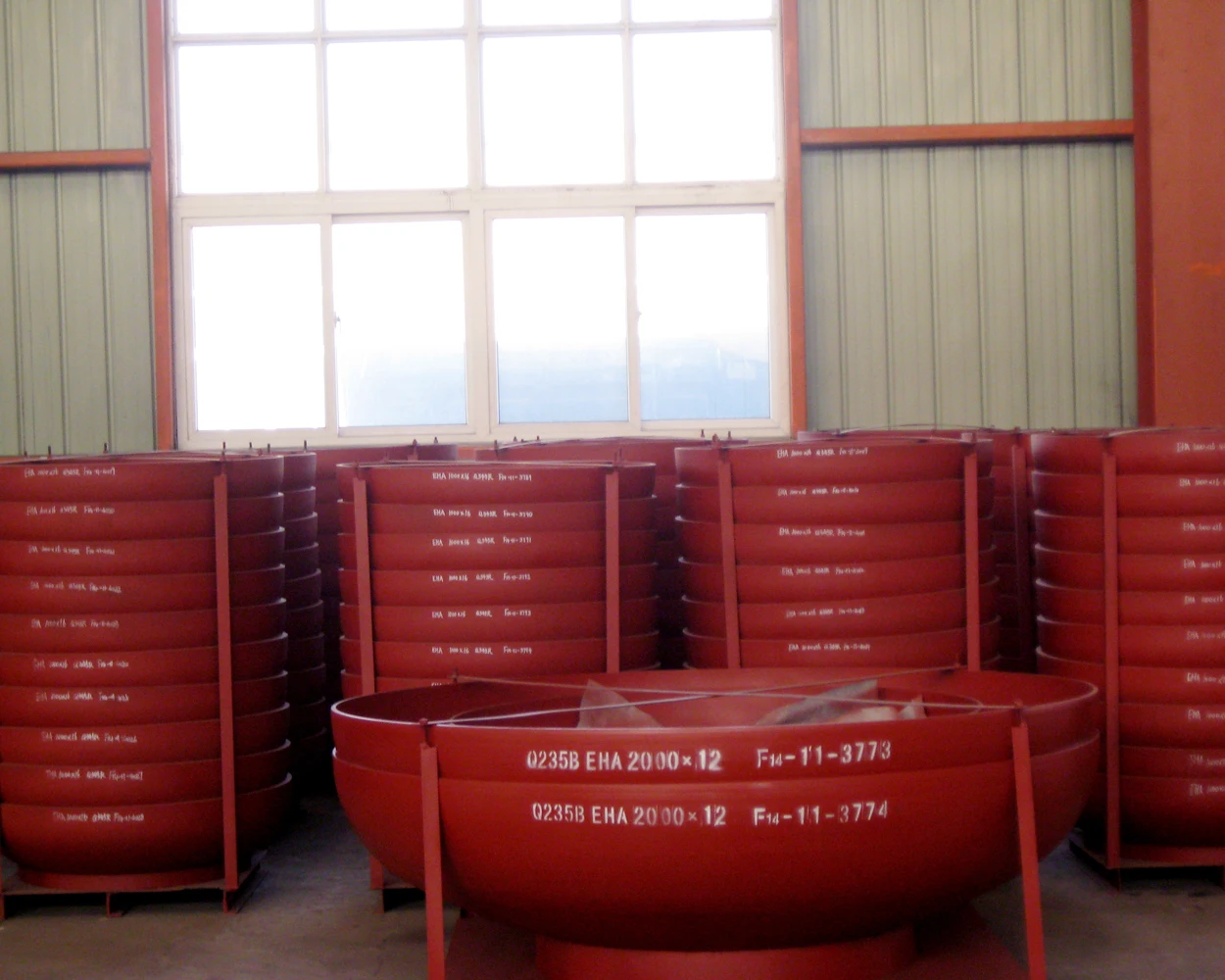

The company mainly produces and processes various elliptical heads, spherical heads, dished heads, flat bottom heads, spherical crown heads, conical heads and boiler punched heads with 500T,1200T,2000T three hot pressing production lines and 1200T,2000T,6000T cool pressing production lines. At the same time, it has 9000mm×50mm,4600mm×26mm,2500mm×18mm cold spinning overall forming equipment and Plasma welding machine and CNC cutting equipment.

In 2006, the company obtained the A3 head manufacturing license issued by the state.In the past 20 years, Xinji Aochun Head Manufacturing Co., Ltd has established a long-term cooperative relationship with more than 100 pressure vessel and boiler manufacturers with its solid funds, sound quality assurance system and stable product performance.
We believe that "survive by quality, benefit by management, and develop by innovation" is the cornerstone of the company's continuous success. All staff of
Xinji Aochun Head Manufacturing Co., Ltd warmly welcome new and old friends at home and abroad to visit and inspect, and work together to create a better future.
