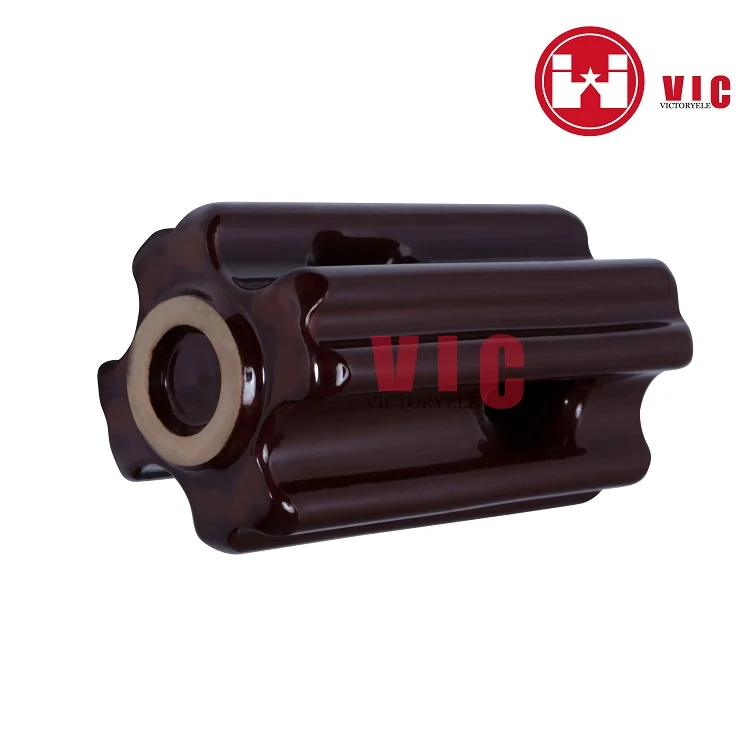

porcelain stay insulator with brown glazed

Product Overview

Description



    Victory Electric (VIC) Stays/strain insulator are to be insulated from ground at a height for low voltage lines. The insulator used in the stay wire is called as the stay insulator and is usually of porcelain and is so designed that in case of breakage of the insulator the guy-wire will not fall to the ground.



54-1 54-2 54-3 54-4 Stay dead end guy Insulator For Lines

Cat. No.				QS11355	QS11356	QS11357	QS11358
Fig				1	1	1	2
Class ANSI				54-1	54-2	54-3	54-4
Main Dimensions(mm)		H		88	108	140	171
		h		44	57	79	69
		h1		64	76	103	114
		D		64	73	86	89
		d		44	54	60	60
		d1		16	22	25	25
Mechanical Failing Load(KN)				44	53	89	89
Creepage Distance (mm)				41	47	57	76
Minimum Flashover Voltage	Power-frequency		Dry (KV)	30	25	35	40
			Wet (KV)	15	12	18	23
Weight (KG)				0.43	0.63	1.2	2
