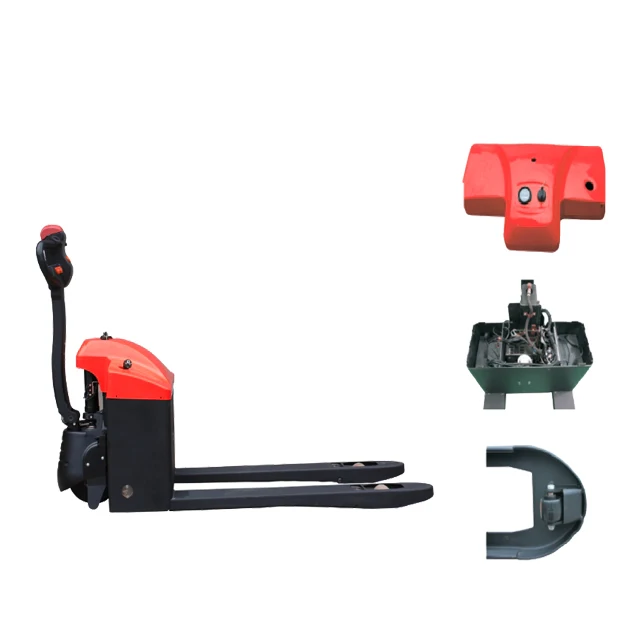

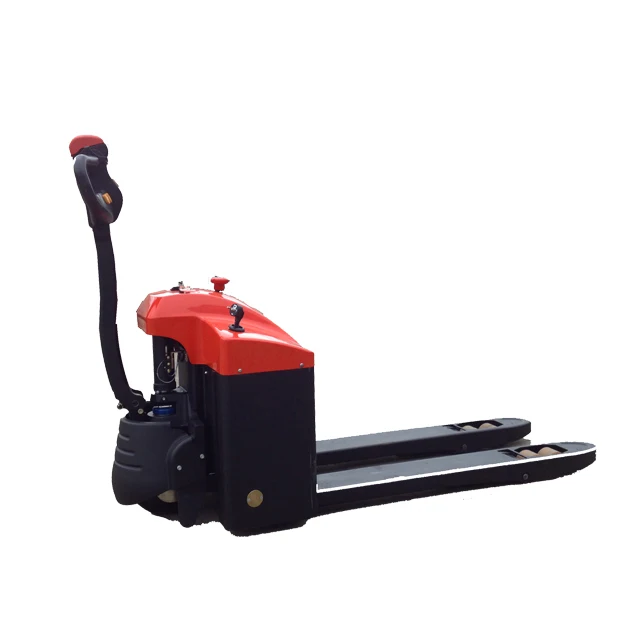

3300lbs 1500kg Full Electric Pallet Truck Walkie Electric Hand Forklifts Hand Pallet Truck
- Category: >>>
- Supplier: Jinhua Ryder Electrical Technology Co. Ltd.
Share on (62282558627):
Product Overview
Description
| Item/Model | EPT15 |
|---|---|
| Load capacity | 1500kg/3300lbs |
| Drive Type | Battery |
| Operator Type | Walkie |
| Load Center | 600mm |
| Wheelbase | 1303mm |
| wheel type | PU wheel |
| Driving wheel size | 210x70mm |
| Balance Wheel size | 80x17mm |
| Bearing wheel size | 84x70mm |
| Min. Lowered Fork Height | 85mm |
| Max. Fork Lifting Height | 205mm |
| Max. lifting height | 120mm |
| Outside Width Between Forks | 550/680mm |
| Inside Width Between Forks | 230/365mm |
| Fork Length | 1150/1200mm |
| Fork Width | 160mm |
| Fork Thickness | 75mm |
| Overall Length | 1826mm |
| Overall Width | 698mm |
| Overall Height(With or without Handle) | 1294mm/648mm |
| Min. Turning Radius | 1593mm |
| Min. Aisle width,1000x1200 pallet crossways | 1939mm |
| Min. Aisle width,800x1200 pallet lengthways | 1972mm |
| Travel Speed(Load/Unload) | 3.5/4 km/h |
| Lifting Speed(Load/Unload) | 35/40 mm/s |
| Lowering Speed(Load/Unload) | 75/60 mm/s |
| Gradeability(Load/Unload) | 5/7 % |
| Drive Motor/Lift Motor | DC0.65/DC0.8 KW |
| Battery capacity/voltage | 85Ah/24V |
| Brake | Electromagnetic |
| controller | Curtis |

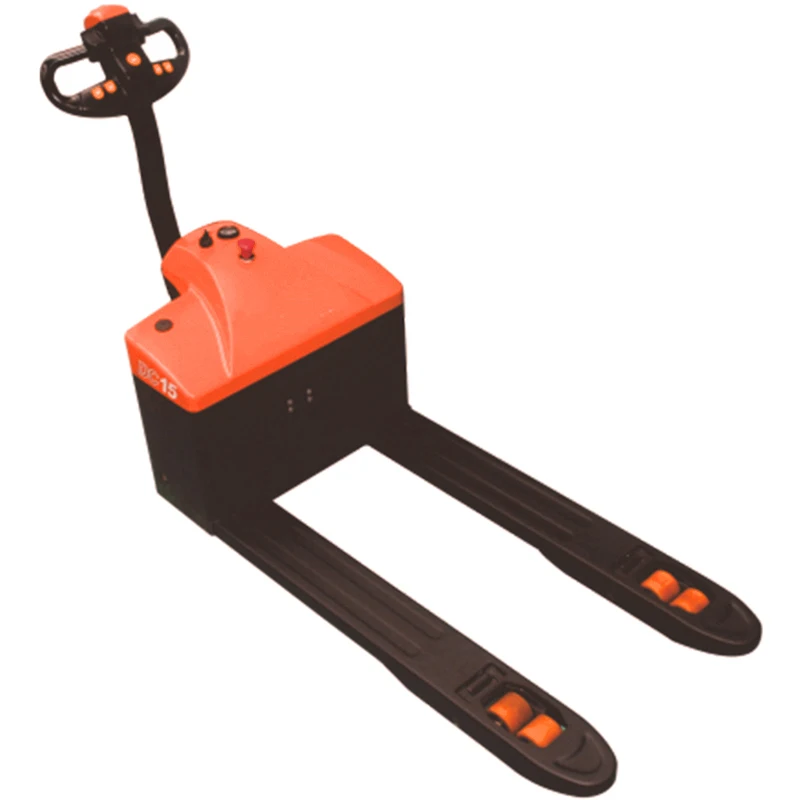

Cheap Mini Walkie Electric Pallet Truck Pallet Jack
|
Features:
- Capacity:1500kg, DC power, light-duty conditions - Curtis Controller, 2pcs of balance wheel - Low noise, low power consumption, everday only 2kwh - Low voltage protection, truck will stop if voltage is lower, make truck/battery with long using life - each 20ft can ship 28 units
|
