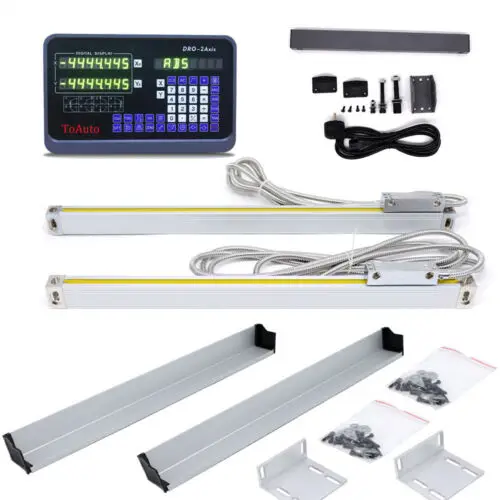

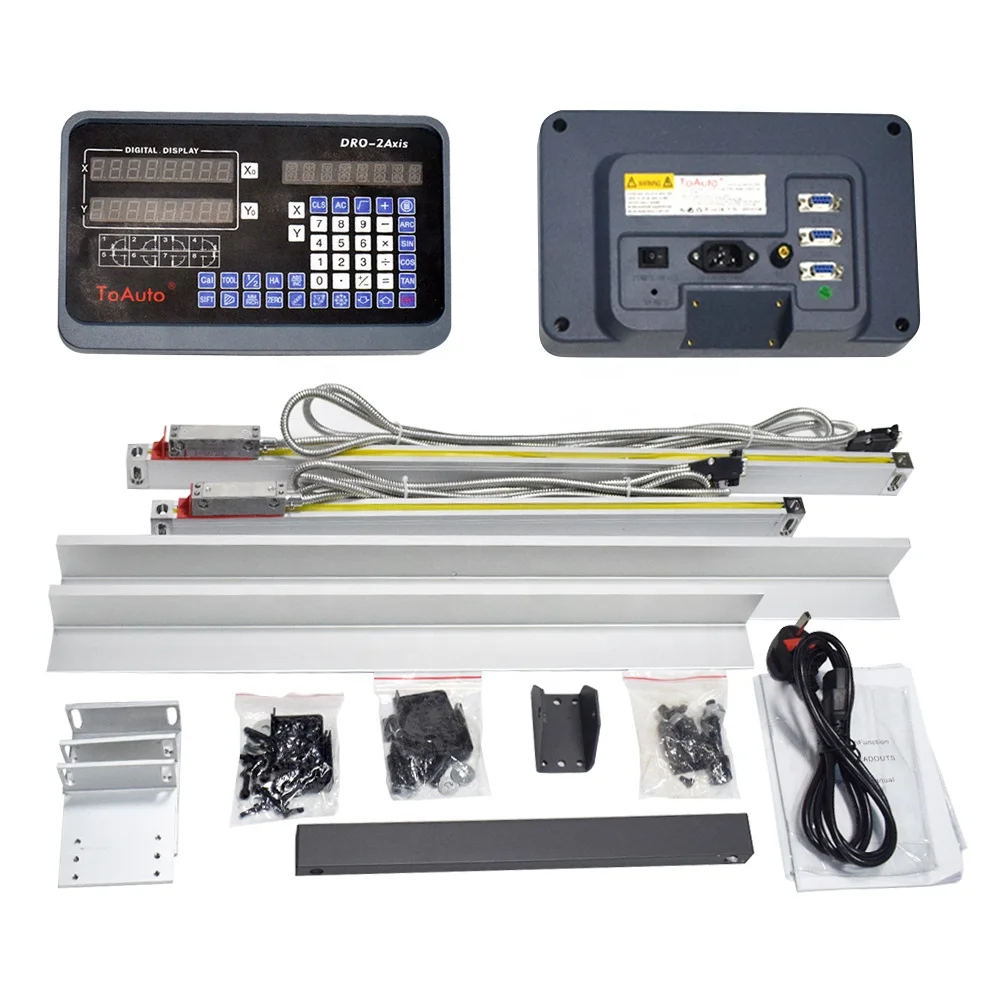

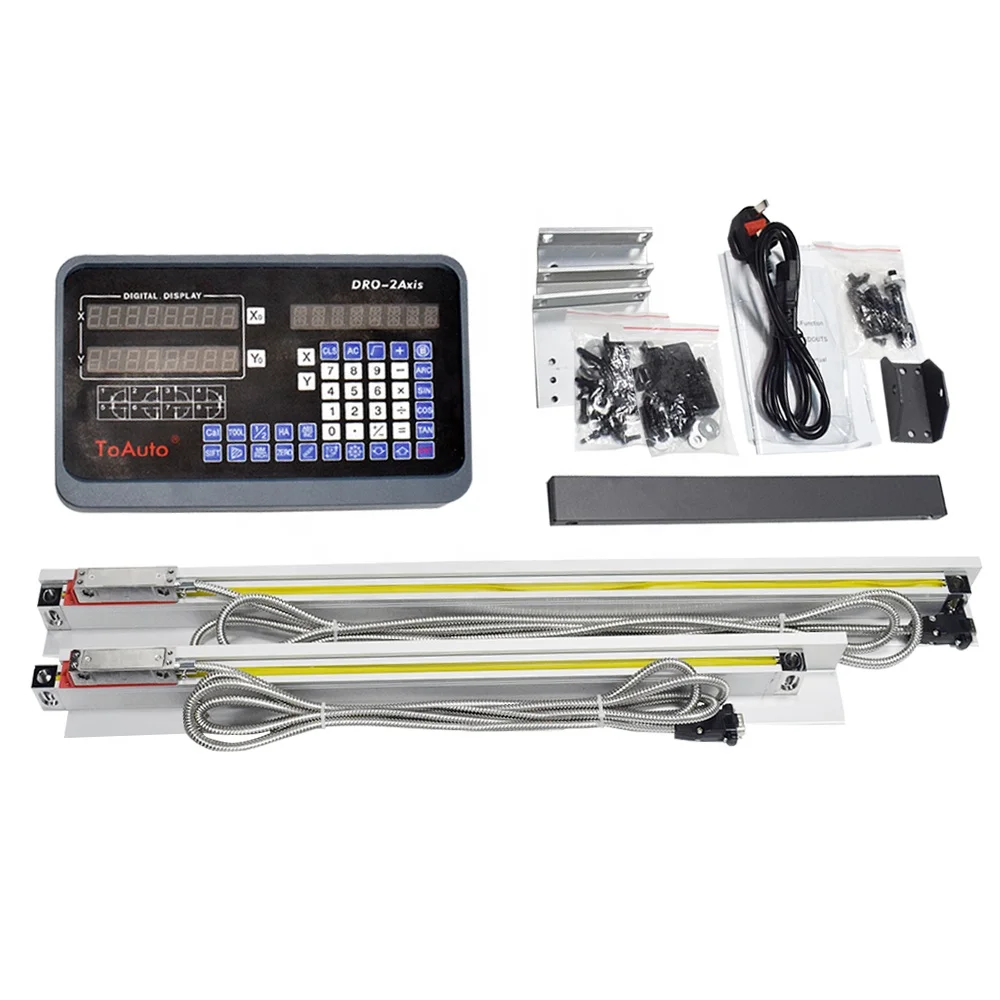

2 axis Digital Readout DRO Linear Scales 50~1000mm for Milling Lathe machine

Advantages:

(1)Digital display to eliminate backlash and improve precision
(2)Advanced trigonometric calculation so to accomplish a perfect project
(3)11.6”wide display to offer excellent long-distance viewing

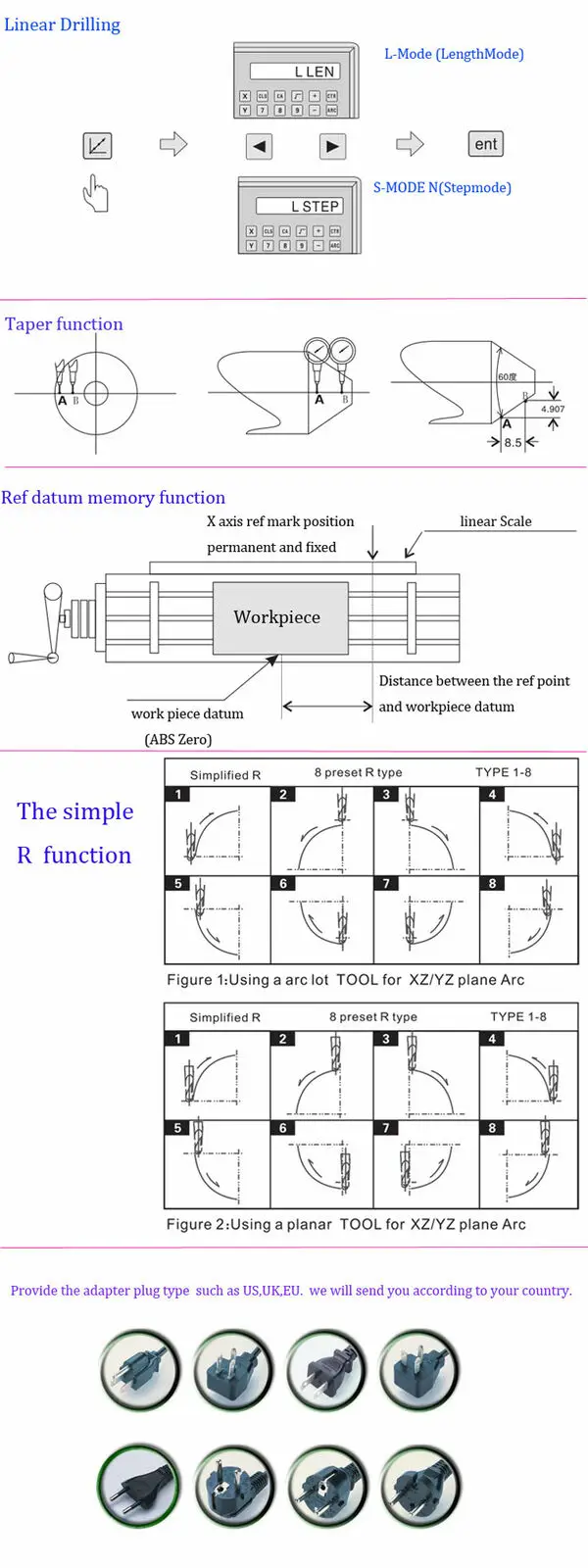

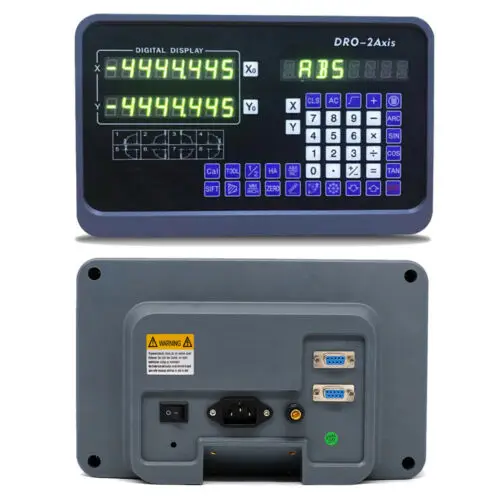

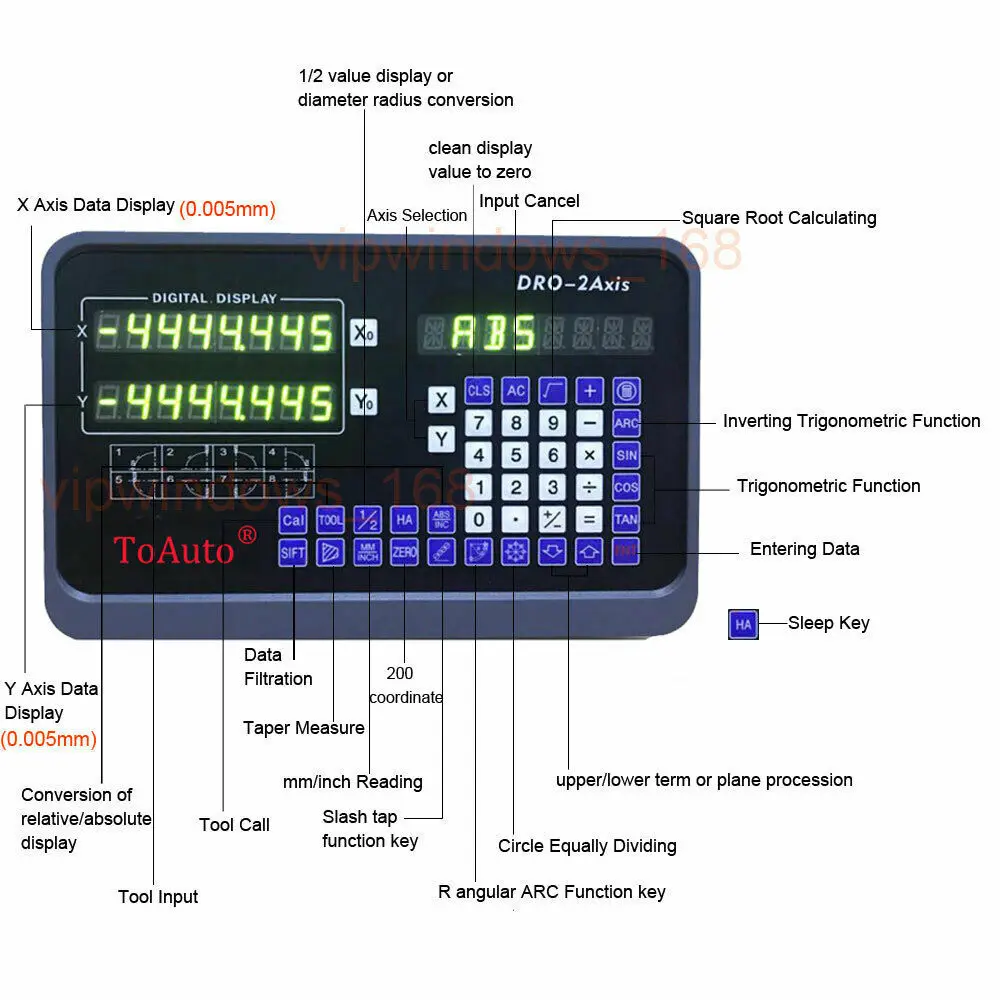

(4)DRO providing a two axis display with pitch circle calculator, diameter/radius conversion, absolute and incremental toggle, and inch metric toggle
(5)Digital readout kit can avoid wasting weeks to check machine precision
(6)Lifetime free technical support, 2Years warranty, 30-day return

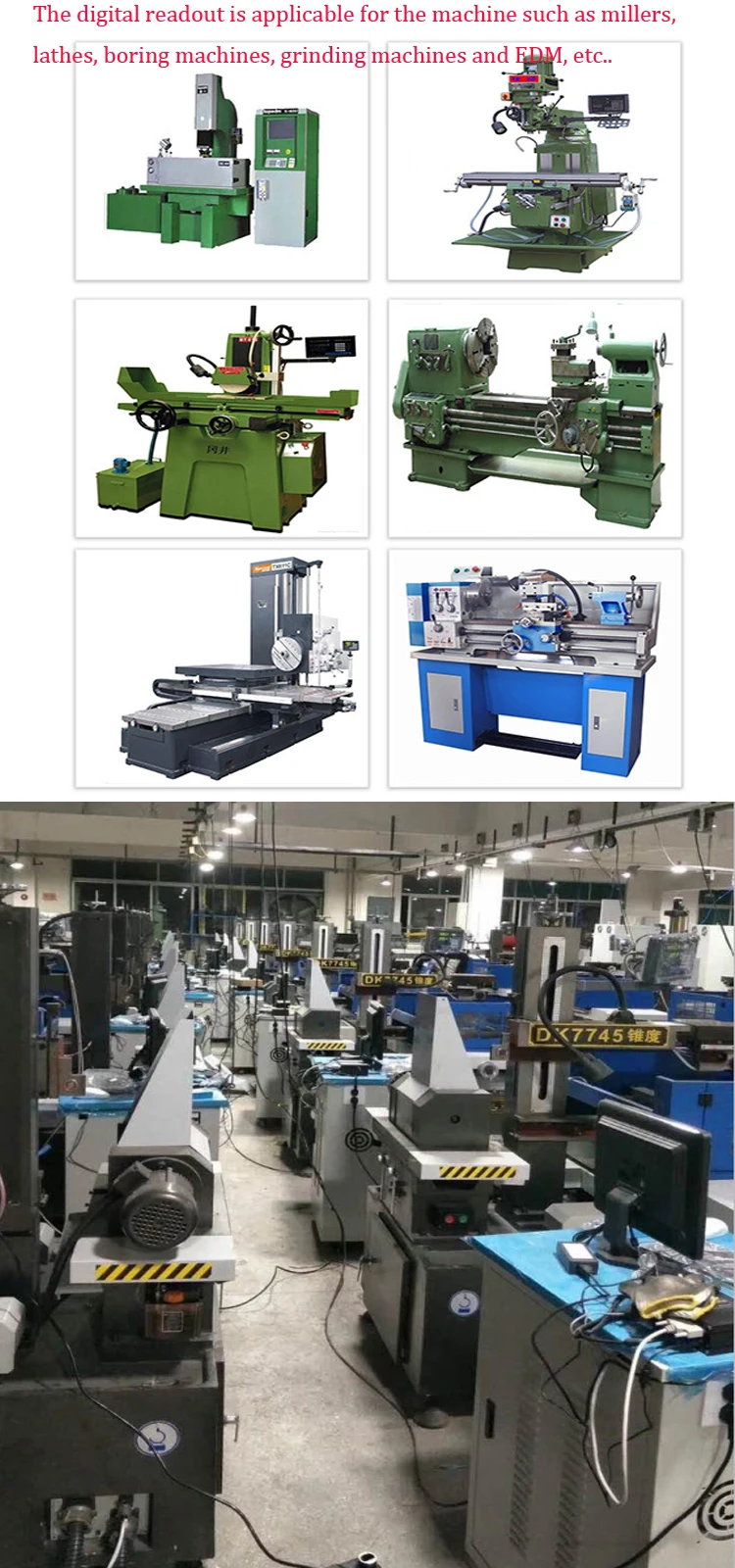

Application : This DRO kit is commonly fitted to machines , especially for metal working — lathes, cylindrical grinders, milling machines, surface grinders, boring mills and other machine tools — to allow the operator to work faster and with greater accuracy. Use of DROs is not limited to manually operated machines. CNC machines can usually be switched to manual operation, and in this case a form of DRO is simulated on its control panel.

Features :

Supply Voltage range: AC 80V~220V; 50~60Hz

Power consumption: 15VA

Operating temperatur: 0~45 degree centigrade

Storage temperatur: -30~70 degree centigrade

Relative humidit: Less than 90%

Readout allowable input signal: TTL square wave

Allowable input signal frequency: Less than 5M Hz

Max resolution of digital display length : 5µm (0.005mm/0.0002")

Min resolution of digital display angle : 0.0001/pulse

Cable length: 3-meter

Dimensions: 283*178*70mm (11.2"*7"*2.8")

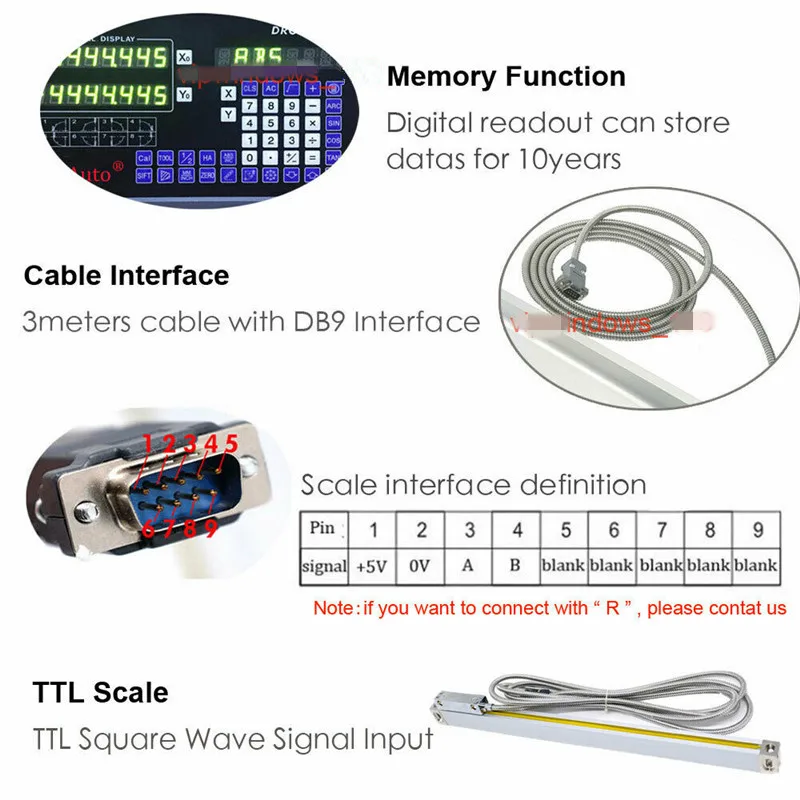

Linear Scale communicate: DB9(RS232)

Display language: English

Backup data for power fail: power off Memory by E2PROM for ten years

Lifetime: five million times
