Full Automatic Plastic Shopping Bag T-shirt Bag Making Machine
US $33000-$53000
Full Auto biodegradable plastic garbage carry bag making machine
- Category: Packaging Material Making Machine >>>
- Supplier: Ruian Jinshi Machine Co. Ltd.
Share on (62282817882):
Product Overview
Description
Product Description
Full Auto biodegradable plastic garbage carry bag making machine
1)This machine can make both flat bags& vest bags and rolling flat bags in two lines.
2) It is equipped with computer to set the bag length & width, pieces and batches of bags you want to make, speed, and temperature etc.,with a photo-eye to track the printed films to make printed bags. It has such functions like auto-alarming, auto-stop, and auto counting etc.
Model | GFQ-700 | GFQ-900 | GFQ-1000 |
Max Width | 600mm | 800mm | 900mm |
Max Length | 1000mm | 1000mm | 1200mm |
Sealing and Cutting Thickness | 0.006-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
Speed per Minute | 40-120pcs/min | 40-120pcs/min | 40-120pcs/min |
Error in Length | 1.1mm | 1.1mm | 1.1mm |
Power of Main Motor | 1.5kw | 1.5kw | 2.2kw |
Heating Power | 1.5kw | 2kw | 2.5kw |
Total Power | 3.2kw | 4.3kw | 5.8kw |
Weight of Machine | 820kg | 900kg | 1100kg |
Overall Dimensions(mm) | 2650X1400X1550 | 2800X1500X1550 | 2800X1700X1550 |
Accessories
Main Components of 4 lines of Heat Sealing and Cold Cutting Bag Machine | |||
Item | Name | Piece | Original Place |
1 | XC2005B Computer Control | 1 pc | Made-in Wuxi |
2 | Mixture step motor 350A | 1pc |
|
3 | HB-BBC Driver | 1 pc |
|
4 | Inverter |
| Euro |
5 | Switch |
| CHNT |
6 | Main motor | 1 pc | 1.5kw |
7 | Rear unwinding motor | 4 pcs | 300kw |
8 | Rear unwinding photo-eye | 4 pcs | Made-in-Yu'yao |
9 | Tracking Photo-eye | 1 pc | Made-in China |
10 | Diligent Bronze Controller |
| From Yu'yao |
11 | White steel cutting blade |
| from Ma'anshan |
12 | Sealing blade | 2 pcs | 62bronze |
13 | DC motor 300kw | 4pcs | Made in Anhui |
14 | Rubber Roller | 10 pcs | Resistence materials |
15 | Speed controller | 4 pcs | Made in our factory |
16 | Electrics |
| Chnt brand |
17 | thermal element | 4 pcs,, | stainless steel |
18 | machine structure | steel and Cast Iron | |

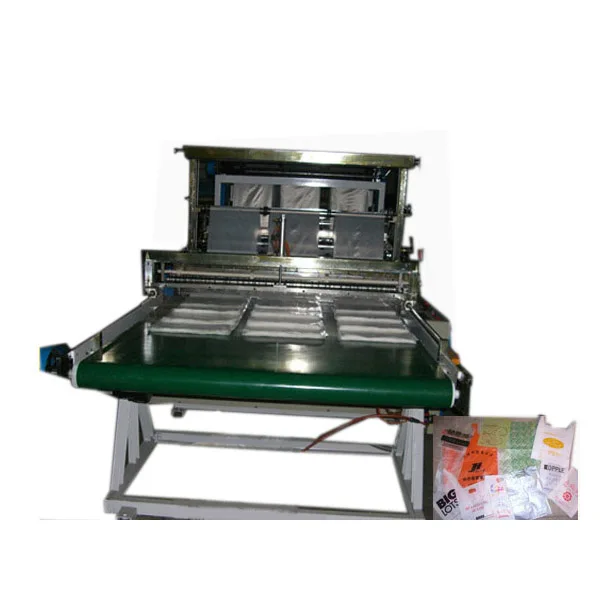

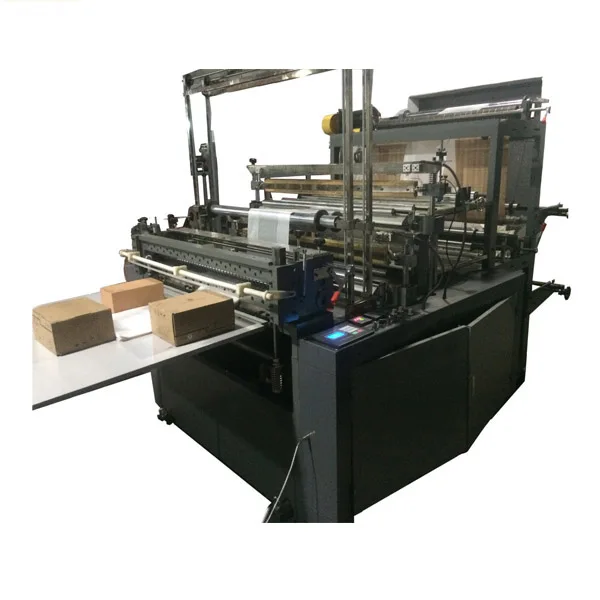

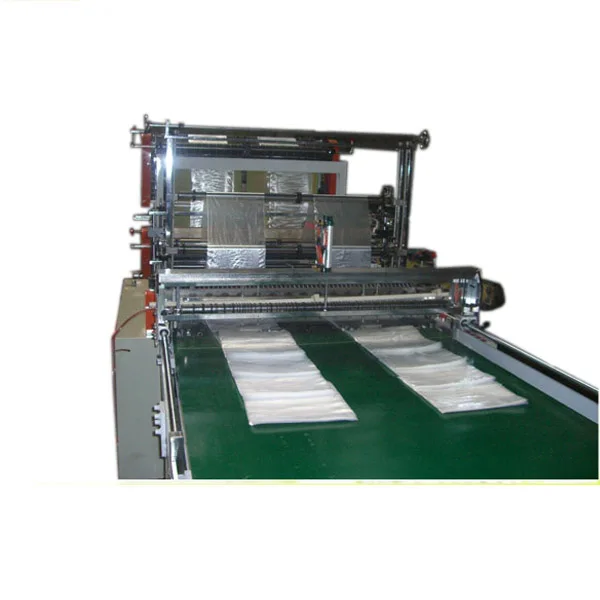

Detailed Images
Finished Products

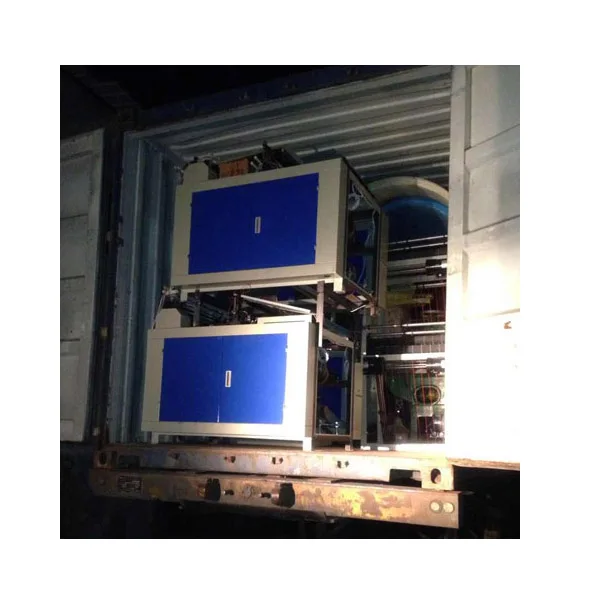

Packaging

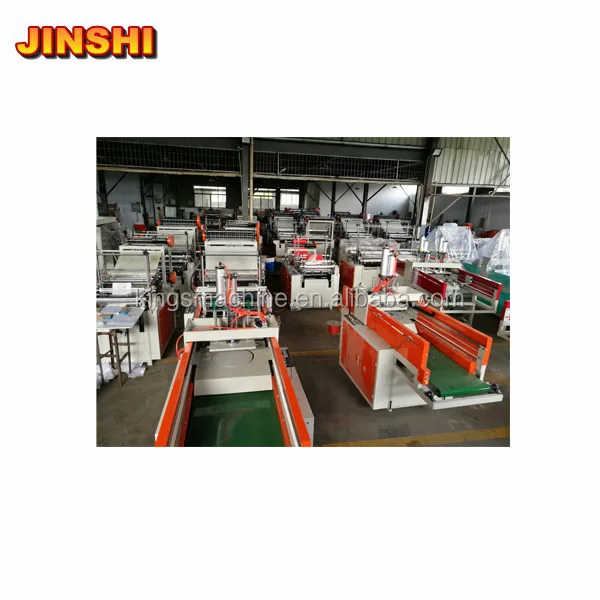

Company Information
W are specializing in producing kinds of plastic packaging machines for more than 10 years. We owes excelllent technician,sales and service team. Our achines have been popular with customers from all of the world. Both old and new customers are warmly welcome to visit us! Let's work together! Let's share the same sunshine!
Our Services
We provide 24 hours service by phone or email. Our engineer is available at any time if you need any
helps.
