WTL 49SMD 28 МГц кварцевый кристалл 49SMD 28,000 МГц кварцевый кристалл 49SMD рация 28 МГц кварцевый кристалл
- Category: Crystals >>>
- Supplier: WTL International Limited
Share on (62282956845):
Product Overview
Description
WTL
Product Description
Resistance Welded HC-49/S Surface Mount Package | ||
Item | Specifications | |
Frequency Range | 28.000MHz | |
Load Capacitance(CL) | Series,16pF,18pF,20pF,30pF, or specify | |
Frequency Tolerance (at 25°C) | ± 30ppm at 25±2°C(standard) or specify | |
Frequency Stability Over Operating Temperature Range | ± 30ppm(Typical), or specify | |
Operating Temperature Range | -10°C--+60°C, -20°C--+70°C,-40°C--85°C, or specify | |
Storage Temperature Range | -40°C--+85 °C | |
Shunt Capacitance (C0) | 7pF Max | |
Driver Level(Typical) | 100µW Typical | |
Aging(at 25°C) | ± 5ppm/year maximum | |
Resistance Welded HC-49SMD
12.7×4.8×3.8 mm
Feature\u2029
●Surface mount type crystal units.
●Agreat number of standard frequencies.
\u2029●Higher frequencyavailable andlower equivalent series resistance.
●Lower cost and highly mass production capability.
● RoHS Compliant / Pb Free
Product Series
Related Products

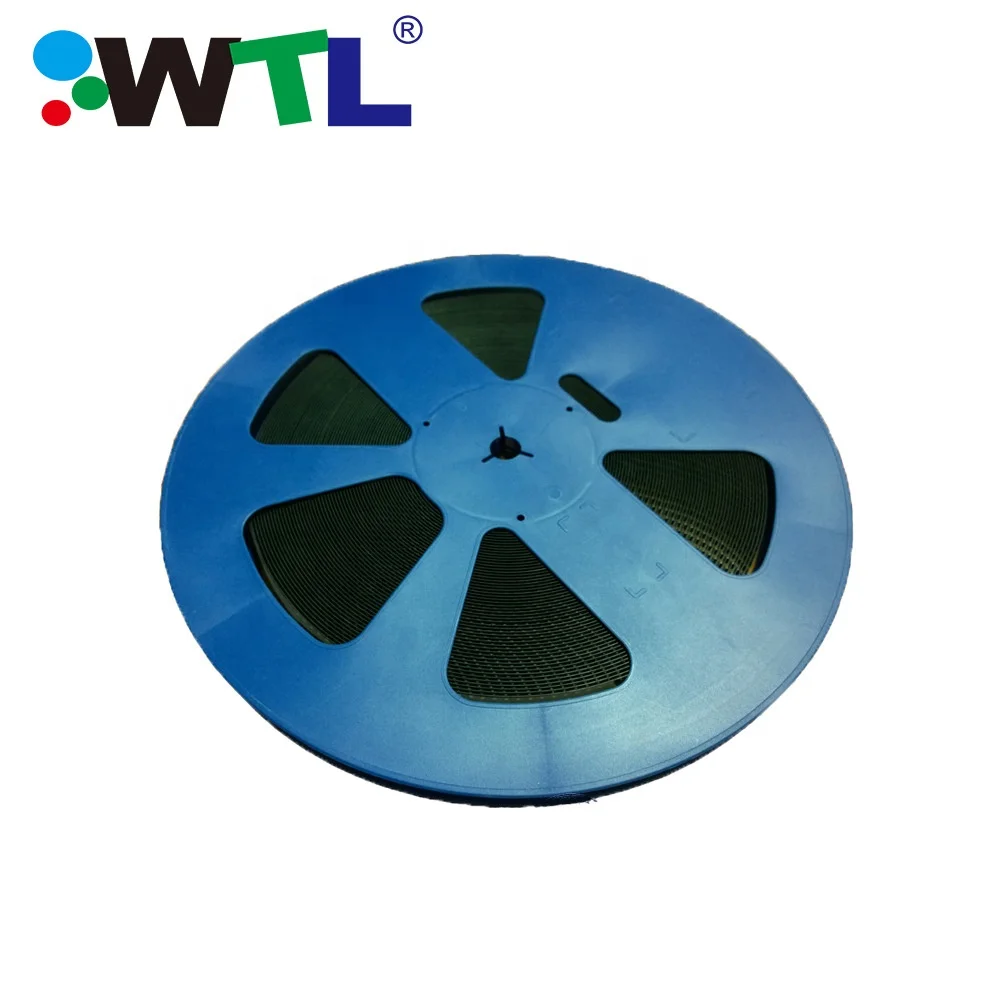

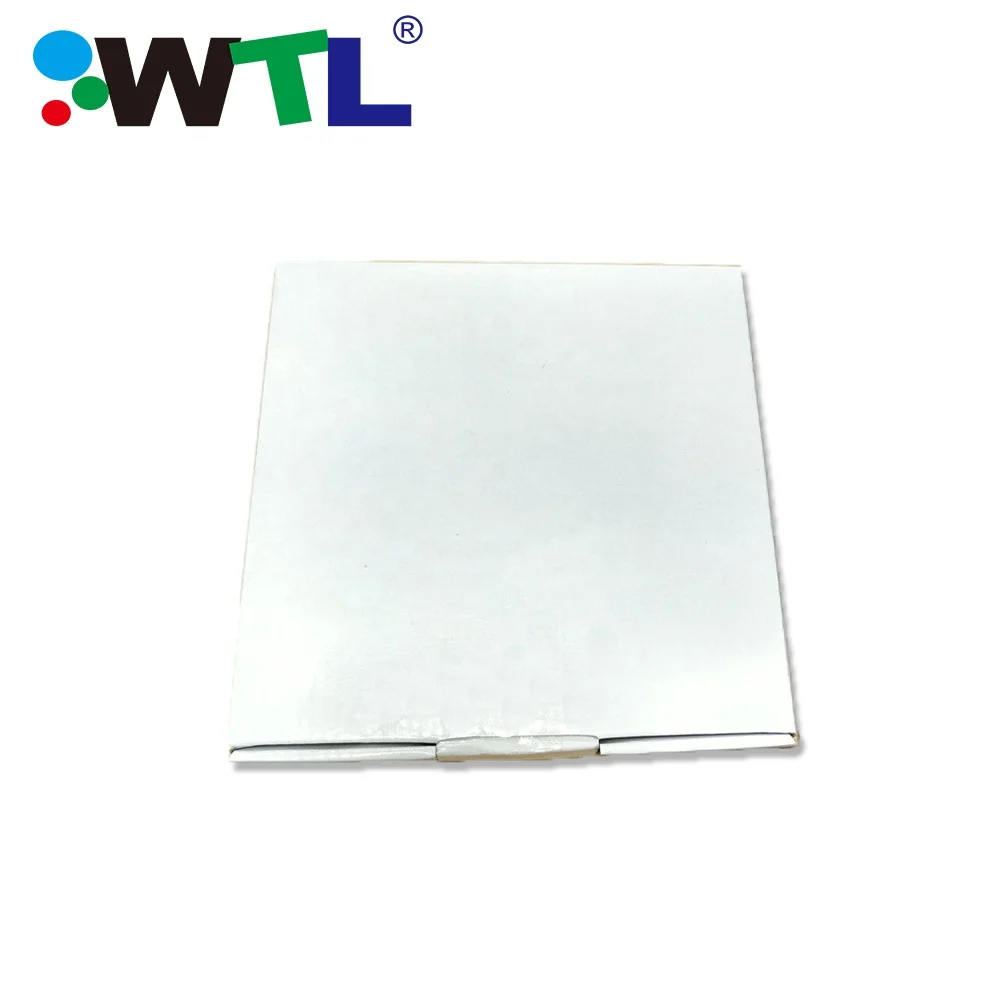

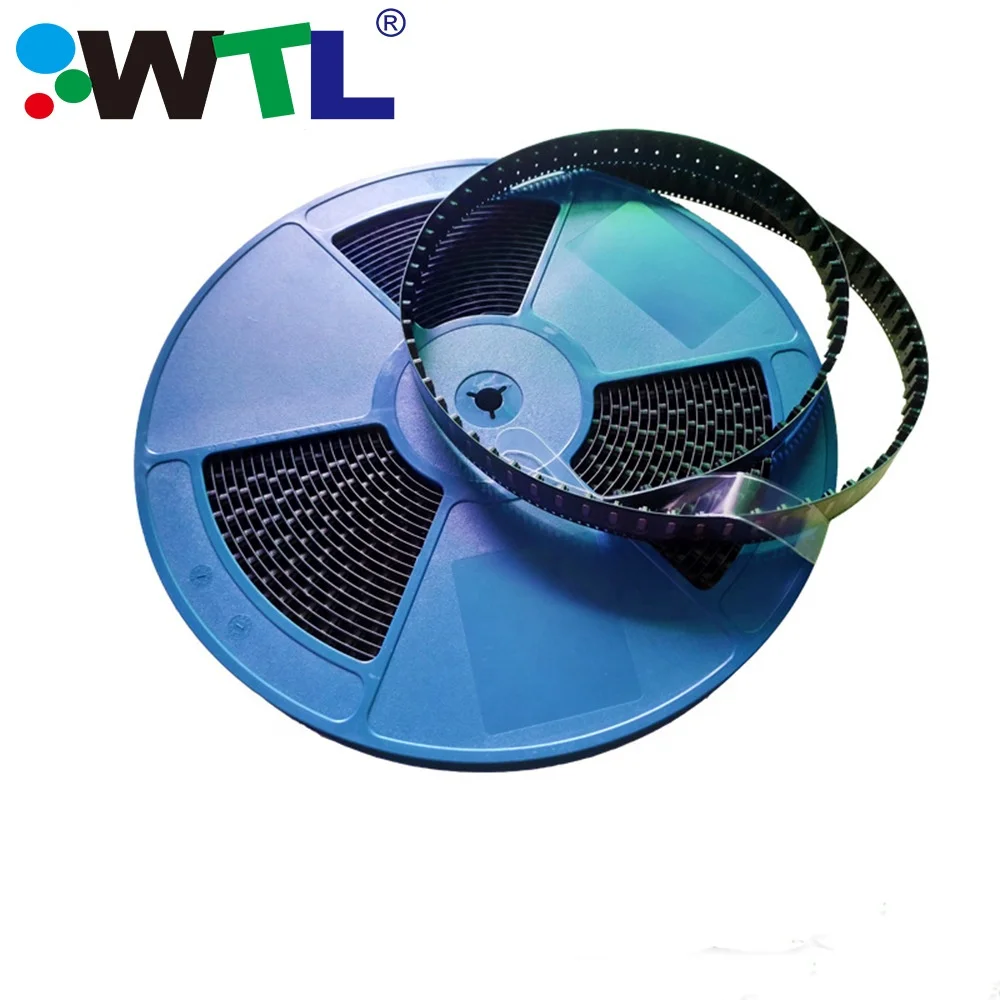

Packing&Shipping

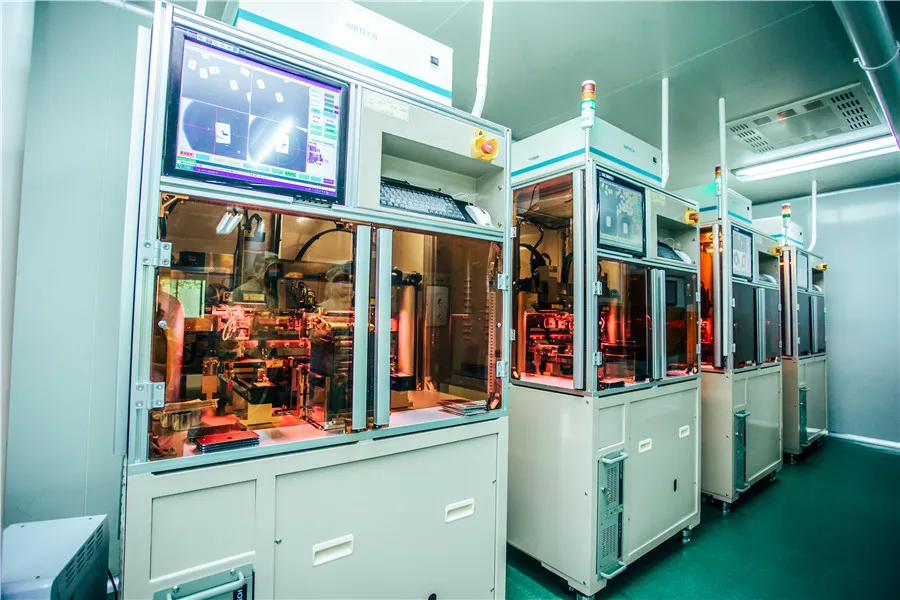

Company Introduction
WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001.
Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.
Whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.
