Product Overview

Description

ZLP/630/ZLP 800 Mast climbing work platform hanging platform wire rope suspended platform

Hoist suspended platform gondola lift

1.Product description:

Name		Technical parameter of  gondola for window cleaning machine
Model		ZLP500	ZLP630	ZLP800	ZLP1000
Rated load		500KG	630KG	800KG	1000KG
Lifting speed		8-10m/min	8-10m/min	8-10m/min	8-10m/min
Platform Dimension L×W×H(mm)		5000(2+3m)×720 ×1300	6000(1+2+3m)×720 ×1300	7500(2.5m*3)×720 ×1300	7500(3*2.5)×720 ×1300
Lifting Height		100M	100M	100M	100M
Cable		100M	100M	100M	100M
Steel rope		Dia:8.3mm	Dia:8.3mm	Dia:9.1mm	Dia:8.6mm
Hoist	Power	1.5KW*2	1.5KW*2	1.8KW*2	2.2KW*2
	Voltage	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Safety lock	Permission force of	30KN	30KN	30KN	30KN
	impact	3°~8°	3°~8°	3°~8°	3°~8°
Suspension mechanism Galvanized	Front beam overhang	1.3~.1.5m	1.3~.1.5m	1.3~.1.5m	1.3~.1.5m
	Support adjustable height	1.44~2.14m	1.44~2.14m	1.44~2.14m	1.44~2.14m
Counterweight		800KG	1000KG	1000KG	1200KG
20'ft container load qty		10 sets	10 sets	8 sets	8 sets
Type		A-alloy platform, Hot Dipping Platform, Steel  platform



China ZLP series 630KG suspended scaffolding

A.The Scope of application in gondola for hanging gondola :
1. High-rise building: Decoration, construction for external wall, installation of curtain wall and external components,repairing, checking, maintenance and cleaning for external wall.
2. Large-scale project: construction,repairing and maintenance for large tank, chimney, dams, bridges,derrick.
3. Large ships: welding, cleaning and painting.
4. billboard: installation billboard for high-rise building.
5. facade cleaning gondola  / Building/ External Wall Suspended Platform/ Cradle/ Gondola/ Swing Stage/ Sky Climber/ Scaffold/ swing stage scaffolding,swing stage scaffolding
6.Decorating and constructing the external walls of highrise buildings.
7.Repairing, checking, maintenance and cleaning for the external walls of the highrise buildings.
8.Construction, repairing and maintenance for large scale projects such as
large tanks, chimneys, dams & bridges.
9.Welding, cleaning and painting for large ships.
10.Installing billboard for the high- rise buildings

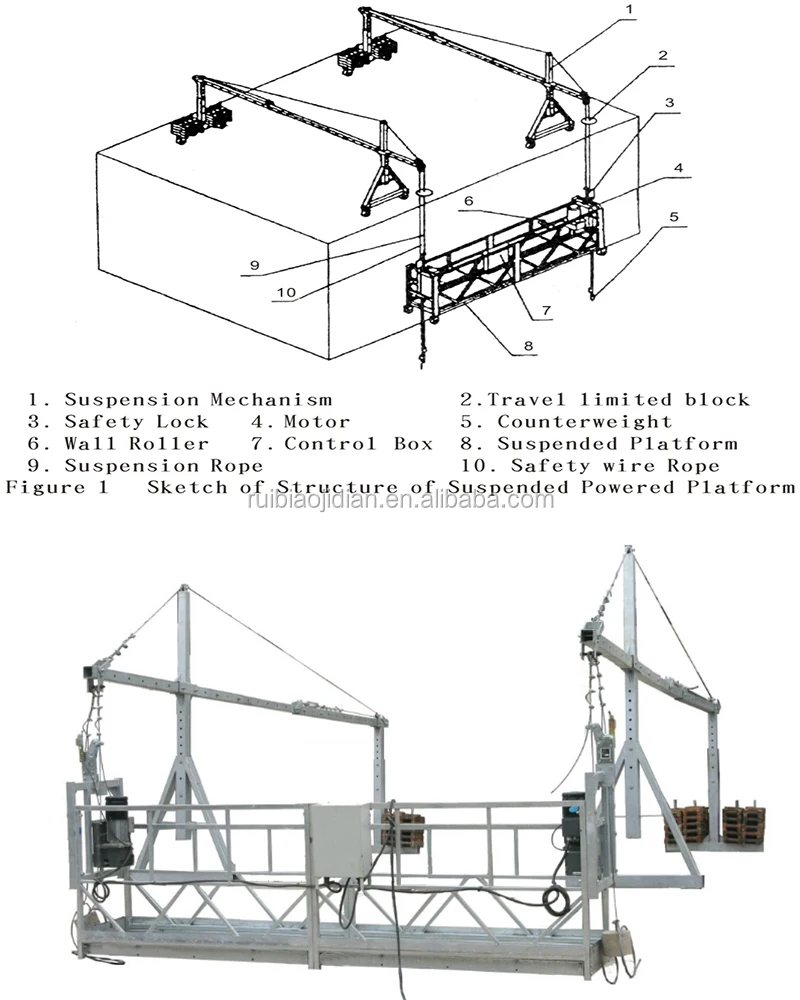

B.Parts of platform of gondola for hanging gondola  :

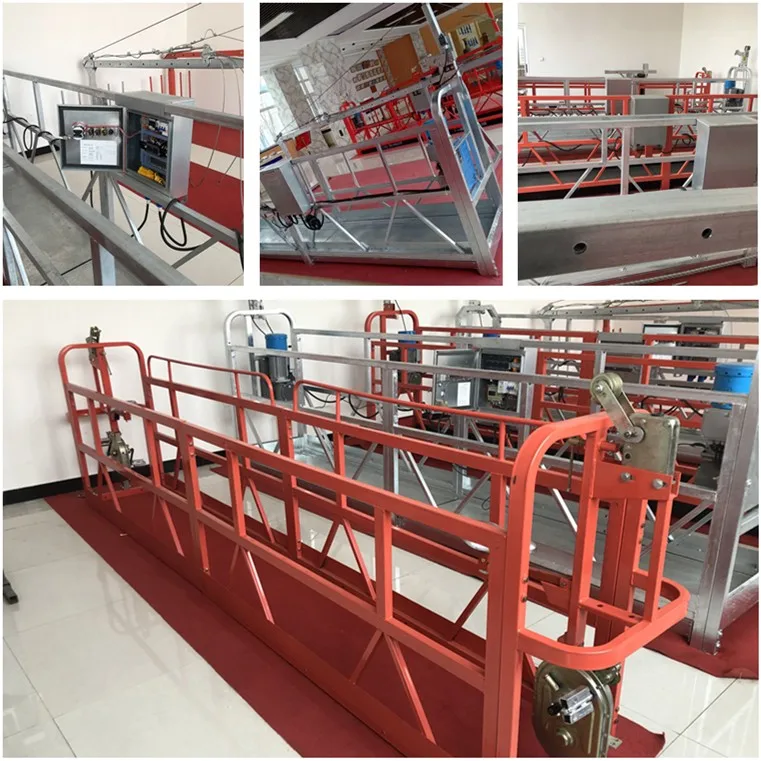

1. Platform(basket): Steel or Aluminum Alloy (painted or hot galvanized)

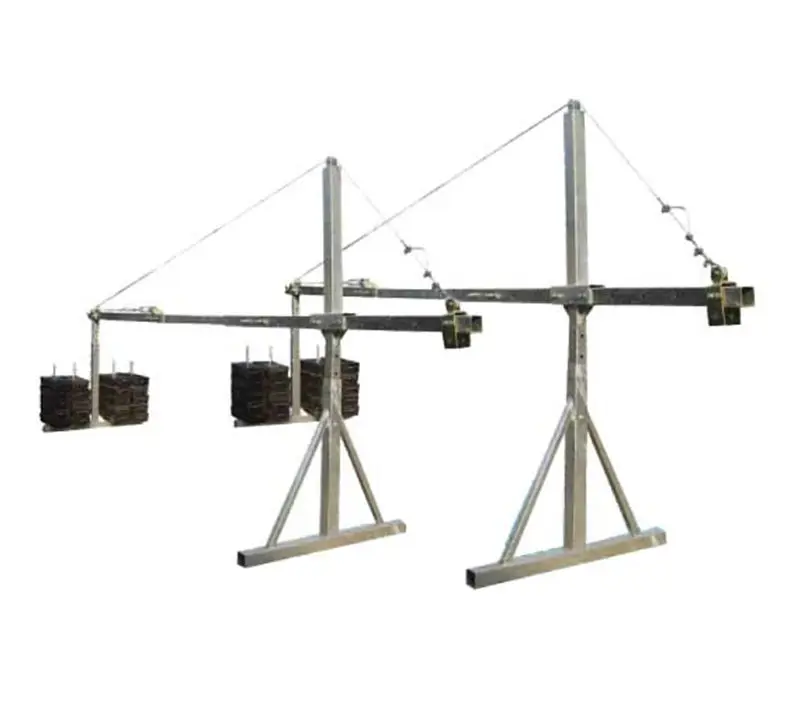

2. Suspension Mechanism: Steel (painted or hot galvanized)

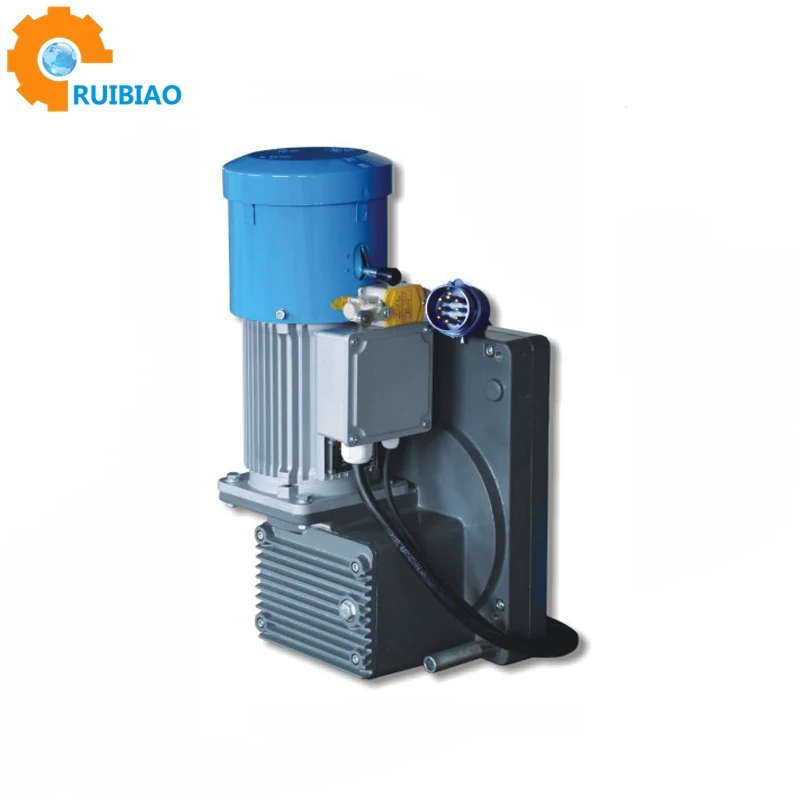

3. Electric hoists:1T/1.5T/2T....
4. Safety Lock: RB30

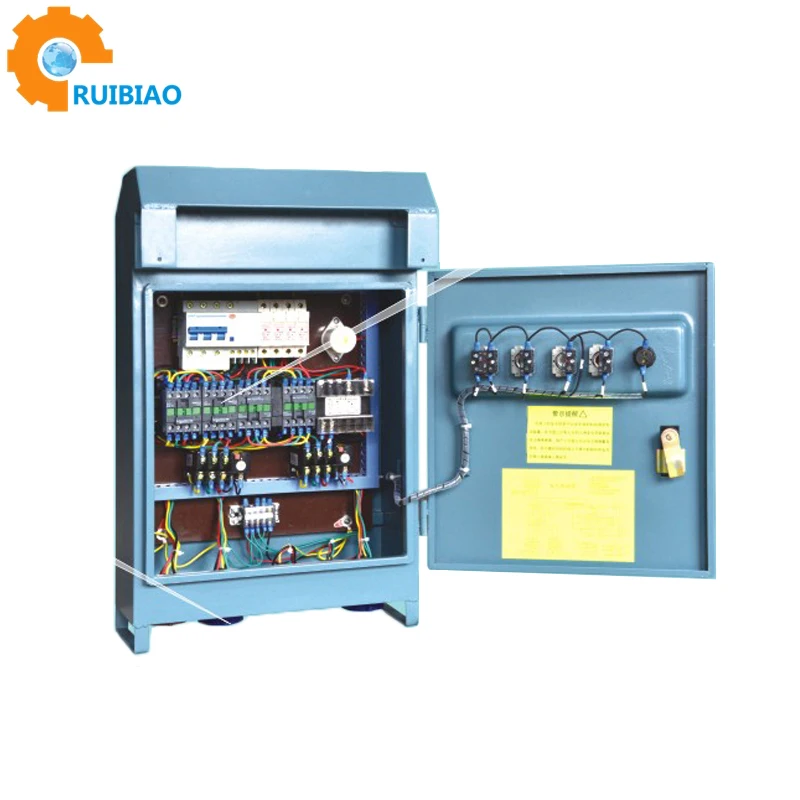

5. Electric control box: Along with hoists
6. Steel wire rope: 8.3mm ,8.6mm or 9.1mm
7. Safety rope: 18mm,20mm
8. Counterweights: Cement , cement with steel cover & Iron counterweight.
9. hanging gondola, hanging gondola.

C.Advantage of gondola for hanging gondola:
1)The max lifting height can be up to 300m;
2)We can supply customized platform to meet different requirements from customers;
3)Professional quality, competitive price,fast delivery and considerate service etc;
4)Certification:ISO,CE;
5)Features:it is easy to be disassembly and move; the size of platform can be adjusted freely,Safety,high quality components,24 hours on line.
6)Three platform's materials(Surface Treatment): 1) Aluminum alloy; 2) steel; 3) Hot-Dip Galvanized.
7) hanging gondola, hanging gondola.
