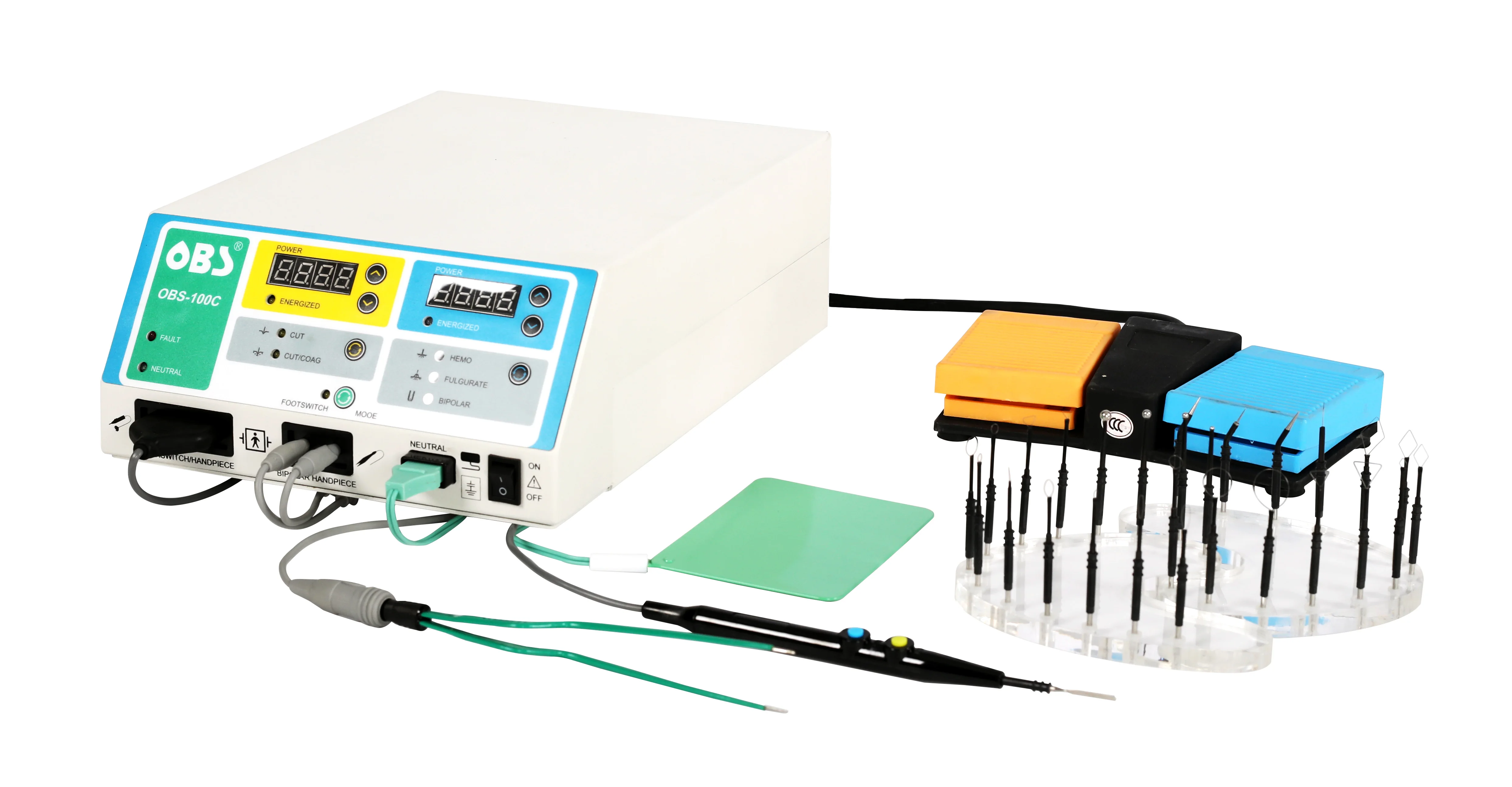

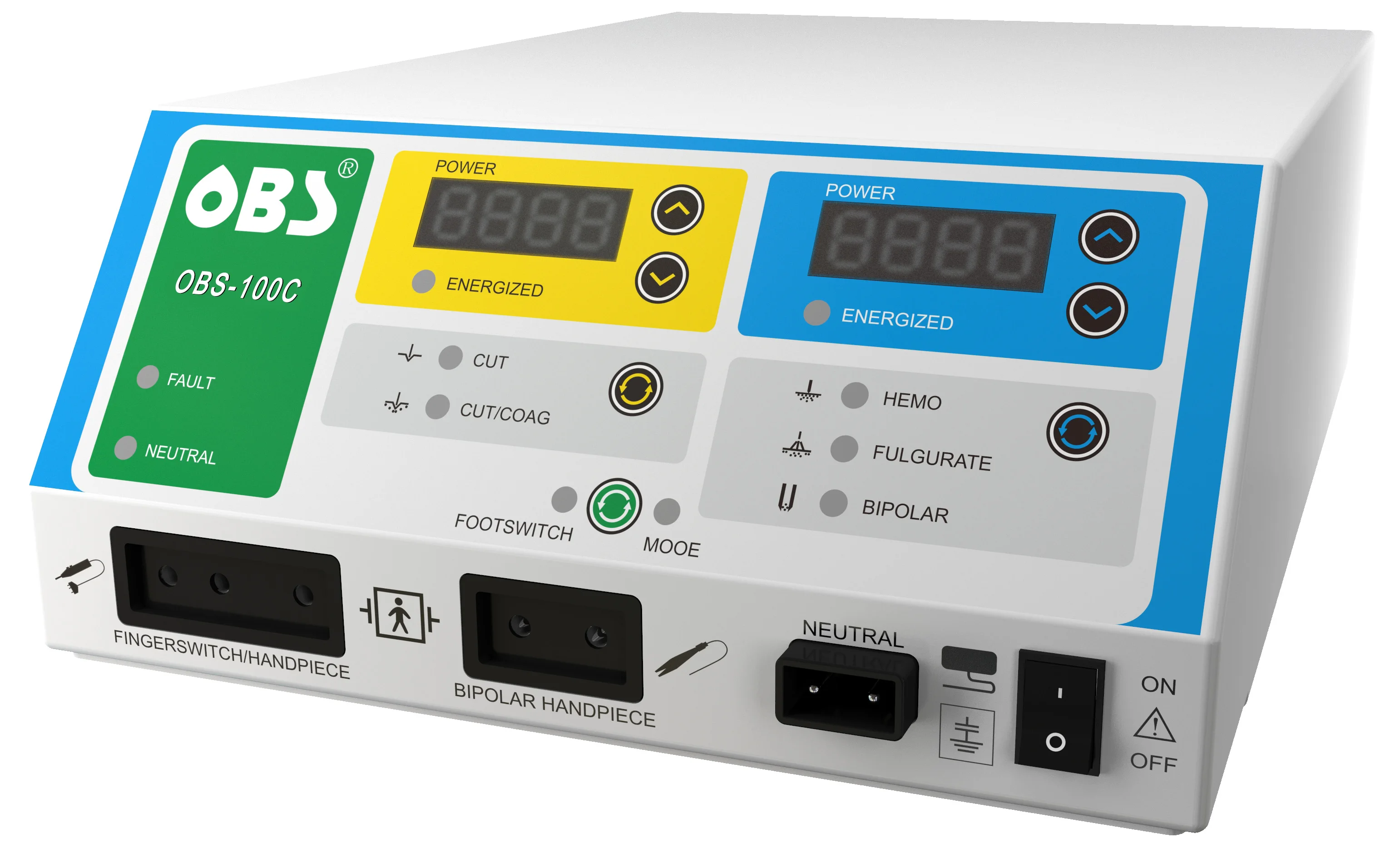

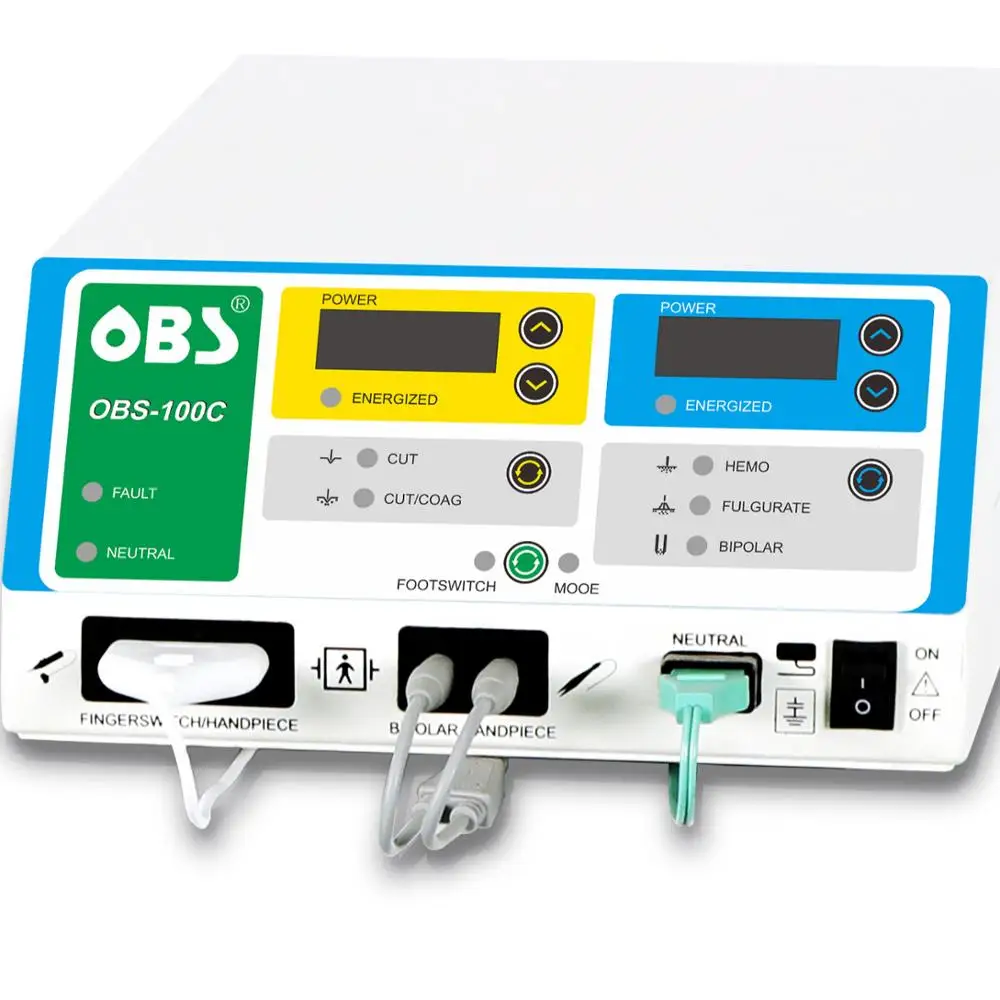

Electrosurgical Generator OBS 100C Radio High Frequency machine ese unit
- Category: >>>
- Supplier: Baisheng Medical Co. Ltd.
Share on (62283108040):
Product Overview
Description
CE Certified OBS DUAL COLD RF Electrosurgical Unit-100C
Max power：120 W
Suitable for Plastic surgery, Dermatology，ENT，ophthalmology，stomatology，nerurosurgery，spine surgery，gynecology，orthopedics，sports medicine,etc.
Product Description
Product Features:
1、Unique dual radio frequency design. Combine 4MHz and 1.7MHz into one generator. Realize the best operation result effectively.Suitable for plastic, Dermatology, ENT, Ophthalmology;
2、Clinic result proves that higher frequency can get less tissue resistance. 4Mhz frequency can reduces heat injury and caronizing to tissue at maximum. It realizes low temperature cutting;
3、Antenna pad is unnecessary for skin touch, no current goes through body and no possibility of burning;
4、No pressure cutting and the pencil is operated easily and it's full of felxibility;
5、No carbonation, less bleeding and no adhesions;
6、Less pain, scarring and fast-healing after operation.
2、Clinic result proves that higher frequency can get less tissue resistance. 4Mhz frequency can reduces heat injury and caronizing to tissue at maximum. It realizes low temperature cutting;
3、Antenna pad is unnecessary for skin touch, no current goes through body and no possibility of burning;
4、No pressure cutting and the pencil is operated easily and it's full of felxibility;
5、No carbonation, less bleeding and no adhesions;
6、Less pain, scarring and fast-healing after operation.
Mode /Character | Output Waveform | Nominal Output Power |
Monopolar Cut | 4.0 MHz sinusoid | 120W@500Ω |
Monopolar Blend | 4.0 MHz with fully rectified envelope | 80W@500Ω |
Monopolar Hemo | 4.0 MHz with fully rectified envelope | 60W@500Ω |
Monopolar Fulgurate | 4.0 MHz with modulation | 40W@500Ω |
Bipolar | 1.7 MHz | 120W@500Ω |
Environmental temperature range: | 5°C~ 40°C | |
Relative moisture range: | ≤80% | |
Atmosphere pressure range: | 86.0 ~ 106.0 Kpa | |
Voltage: | 220V/110V,50Hz/60Hz | |
Working frequency: | 330-460KHz | |
Leakage currents to ground: | Less than 0.5mA | |
Leakage currents to patient: | Less than 0.01mA |
Intended use:
uvulopalatoplasty(RAUP)，myringotomy with effective hemorrhage control,epistaxis treatment,turbinate shrinkage,skinincisions,biopsy,cysts,abscesses,tumors,cosmeticrepairs,
development of skin flaps,skin tags and blepharoplasty.
development of skin flaps,skin tags and blepharoplasty.
Blended(cutting and coagulation):snoring,submucosal palatal shrinkage,traditional uvulopalatoplasty(RAUP),myringotomy with effective hemorrhage control,epistaxis
treatment,turbinate shrinkage,skin tags,papilloma keloids,keratosis,verrucae,basal cell carcinoma,nevi,fistulas,epithelioma,cosmetic repairs,cysts,abscesses and development of skin flaps.
Hemostasis:control of bleeding,epilation,telangiectasia.
Fulguration:basal cell carcinoma,papilloma,cyst destruction,tumors,verrucae, hemostasis.
Bipolar:pinpoint precise coagulation,pinpoint hemostasis in any field(wet or dry), snoring,submucosal palatal shrinkage,traditional uvulopalatoplasty(RAUP), myringotomy with effective hemorrhage control,epistaxis treatment and turbinate shrinkage.
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | OBS |
Model Number | 100C |
Power Source | Electricity |
Warranty | 1 Year |
After-sale Service | Return and Replacement |
Material | metal, Plastic, Steel |
Shelf Life | 3 years |
Quality Certification | ce |
Instrument classification | Class I |
Safety standard | IEC60601-2-2 |
Properties | Ears, Eyes, Nose and Throat Surgical Instruments |
Certificate | CE ISO |
Color | White |
OEM | YES |
Type | Electrosurgical Generator |
Packing & Delivery
1 pc /ctn
Packing box size : 57*35*32.5CM
Gross weight : 12.1 KG
