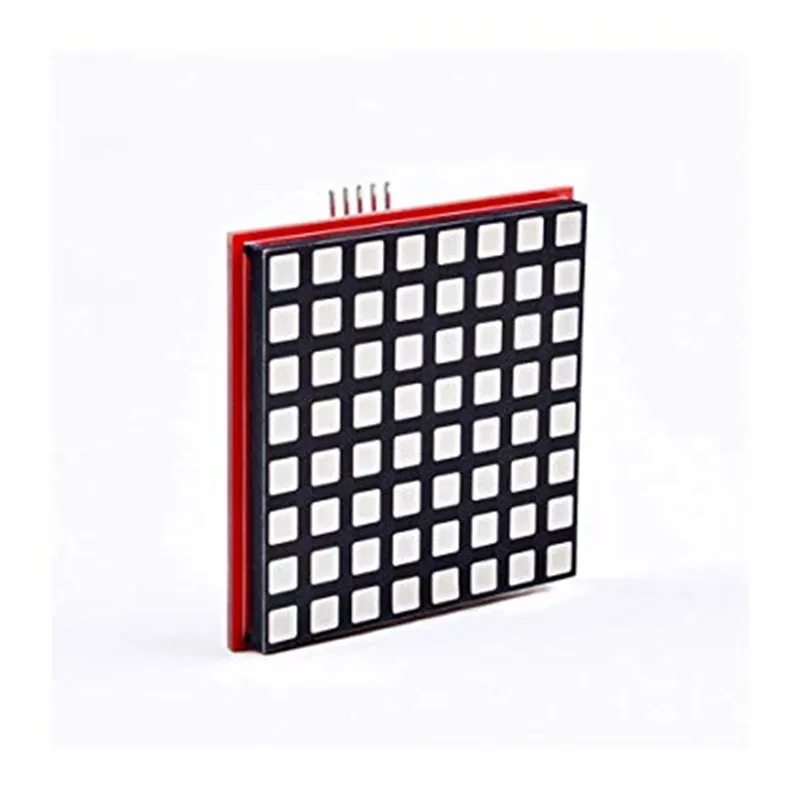

LED Full Color Dot Matrix RGB LED Display Screen Board 88 Dot Matrix Module for Raspberry Pi
- Category: Other Circuit Protection >>>
- Supplier: Shenzhen PENPOS Technology Co. Limited
Share on (62283149459):
Product Overview
Description

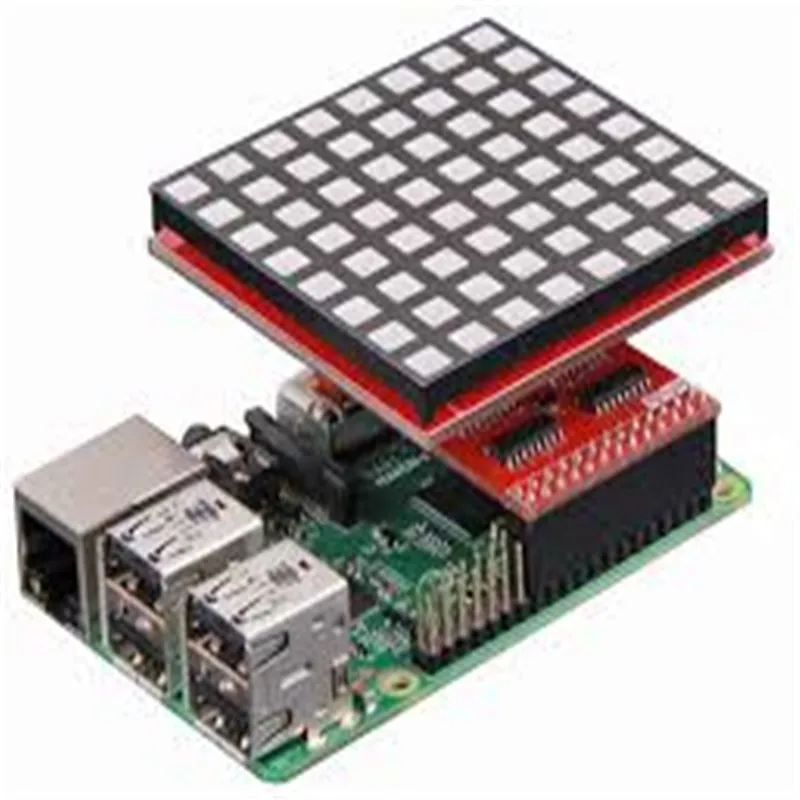

LED Full Color Dot Matrix RGB LED Display Screen Board 88 Dot Matrix Module for Raspberry Pi
Description:
1) Customized digit display (others also available on request) |
2) Various emitting colors: blue, red, orange, green, yellow, amberes |
3) Size: according to requirements, (various dimensions available) |
4) Compatible with scanning circuits |
5) Applications: factory displays, kitchen equipment displays, like microwave oven |

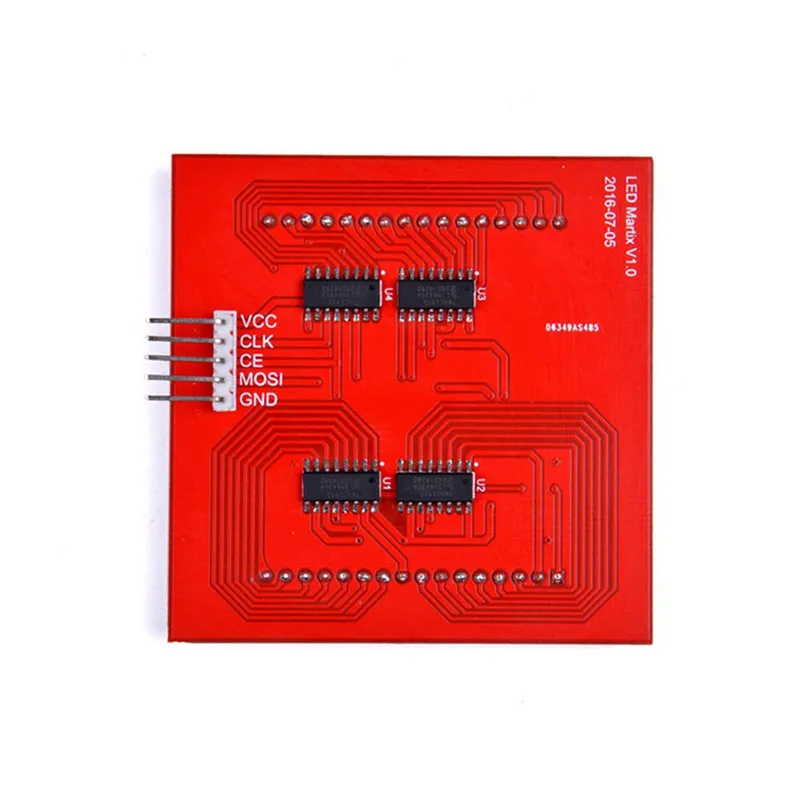

- RPI-RGB-LED-Matrix is base on 74HC595 chip and it s an 8*8 dot matrix module that can be drivered by Arduino board, Raspberry Pi and even STM32 or STC89C serials development board.
- It communicates with your development board or your chip by SPI protocol, it s very easy to setup and use.
- You can use it to do a lot of interesting things, such as musical backdrop, music spectrum analyzer, and even in your bicycle taillights.
Operating Temperature:-30~85 celsius
is_customized:Yes
Type:Logic ICs
Condition:New
Application:8*8 Dot Matrix
52Pi RGB 8x8 Dot Matrix
Instruction
Features:
Based on 74HC595 chip support
Support SPI protocol
Low power consumption
RGB three-color combination can be a lot of bright colors
Package Includes:

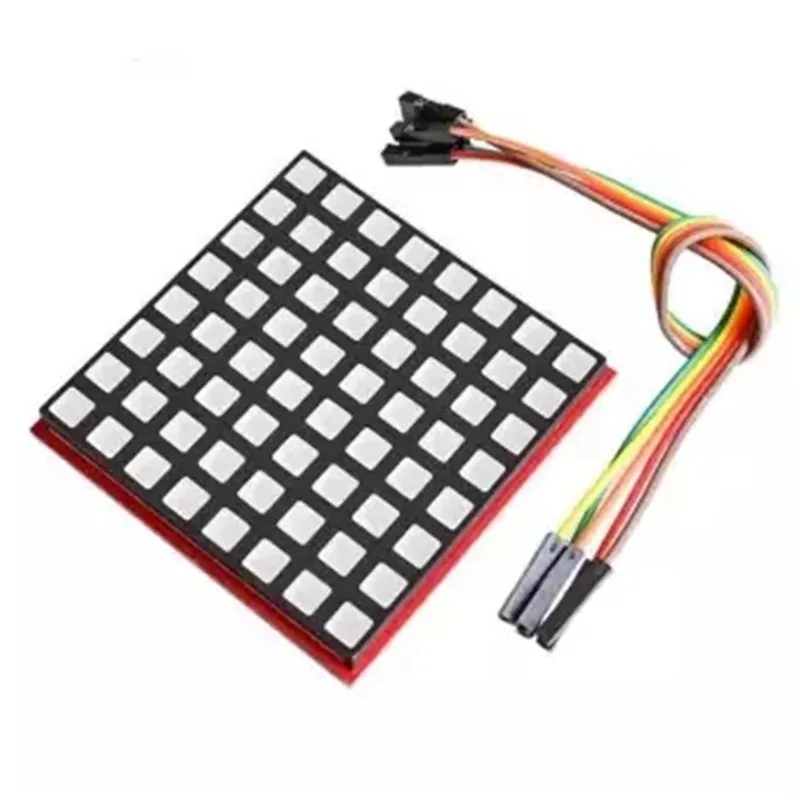

1 x RPI-RGB-LED-Matrix

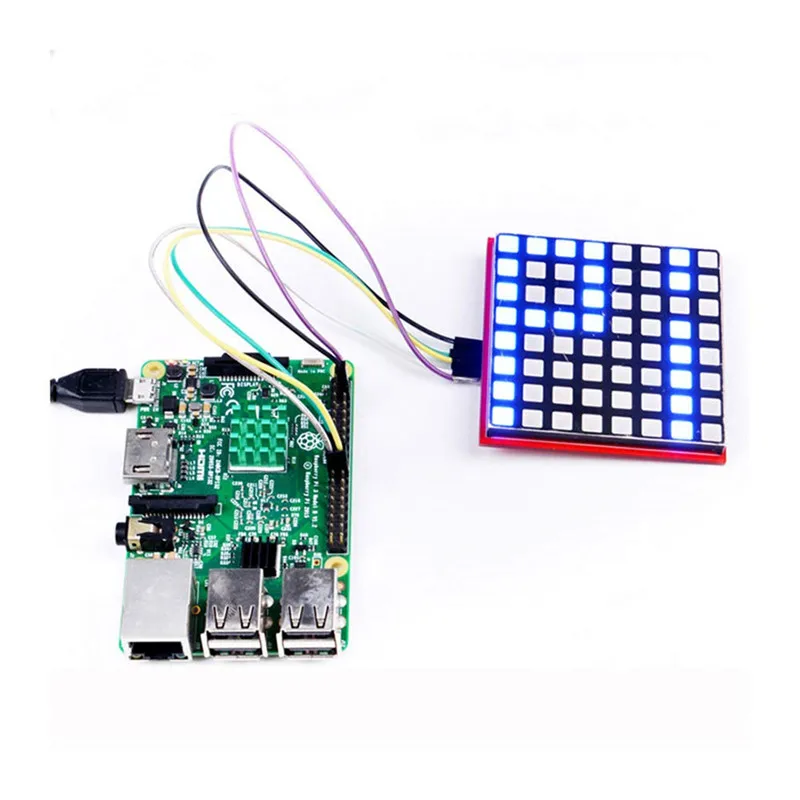

How to wire it up:
You can just follow this following chart to set it up with your Raspberry Pi.
wires Chart:
Raspberry Pi
RPI-RGB-LED-Matrix
5V
VCC
GND
GND
GPIO11(BCM)
CLK
GPIO8(BCM)
CE
GPIO10(BCM)
MOSI
