Professional direct Inflatable Packer API 11D1 Casing packer
US $2000-$3500

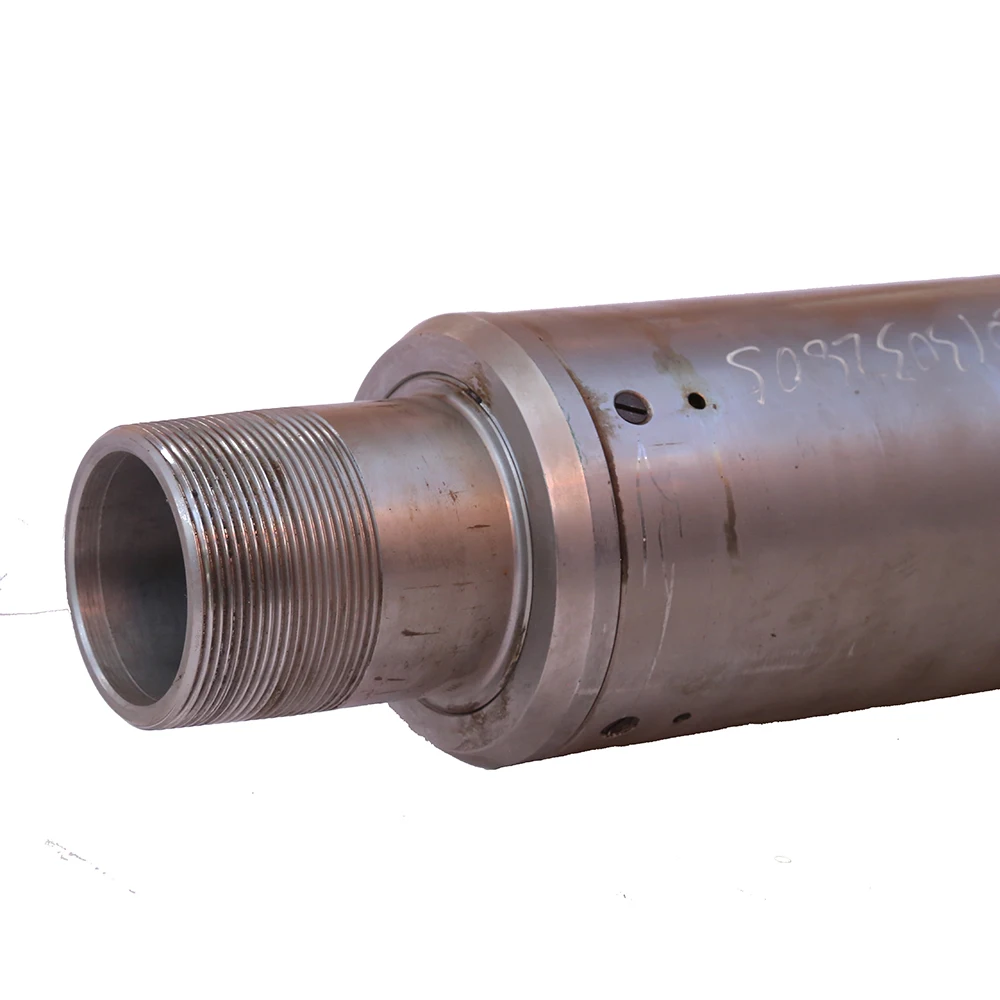

petroleum equipment Y344 packer in oil well oilfield packer
- Category: >>>
- Supplier: Sichuan Weiwodun Petroleum Technology Co. Ltd.
Share on (62283379892):
Product Overview
Description
Product Description

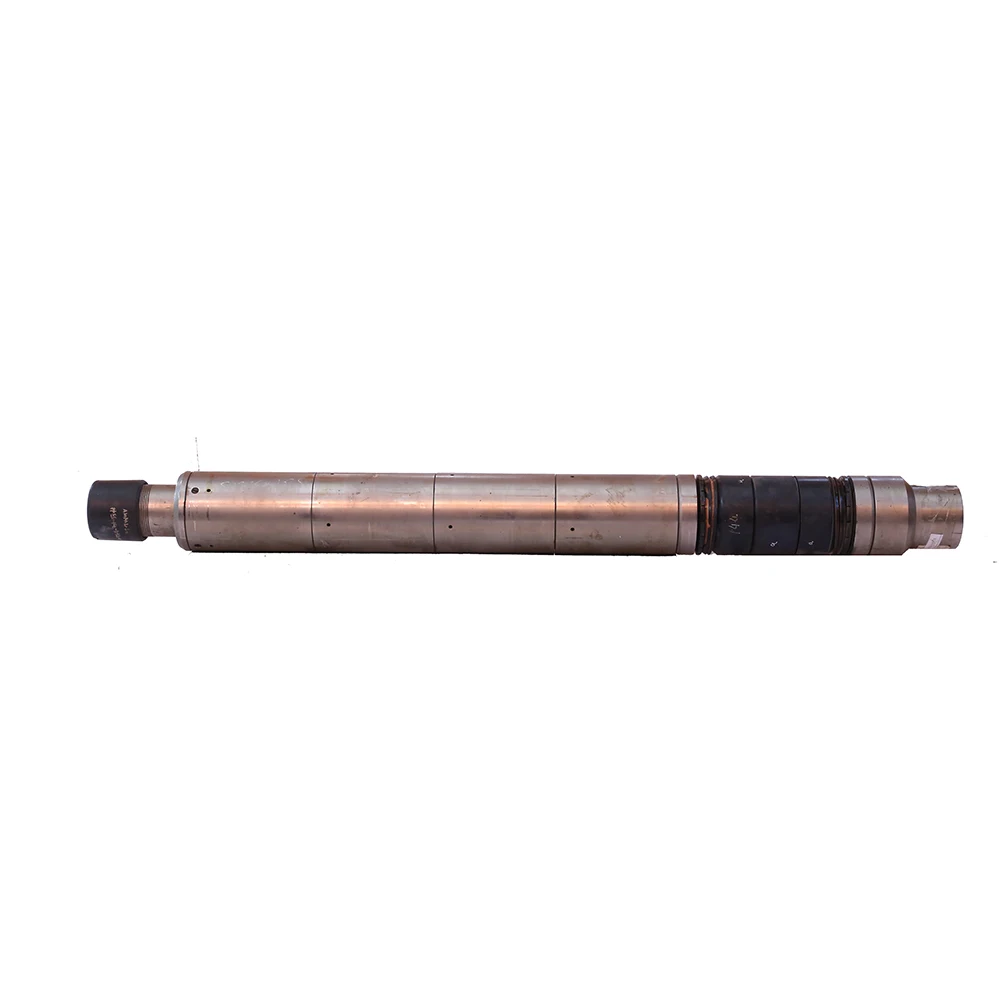

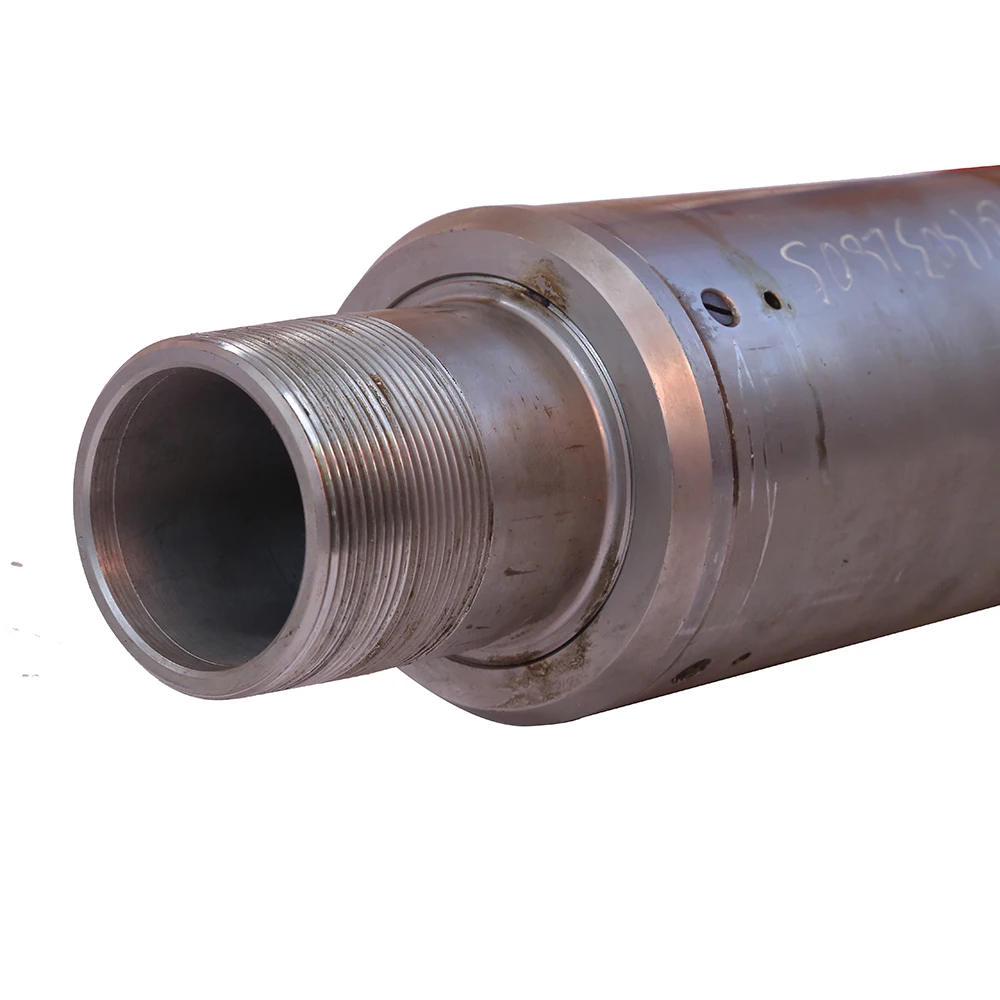

Y344 PACKER
1. Basic Introduction
The protective casing is subjected to various operations such as high-pressure acidification, sand fracturing, and pressure test on the production layer.
The packer uses a hydraulic seal to relieve pressure and seal the working mode. Under the action of hydraulic pressure, the setting piston opens the limit mechanism upwards, pushes the power part of the setting up and compresses the rubber cylinder to realize the setting; the pressure of the oil pipe is released to realize the unsealing.
The packer uses a hydraulic seal to relieve pressure and seal the working mode. Under the action of hydraulic pressure, the setting piston opens the limit mechanism upwards, pushes the power part of the setting up and compresses the rubber cylinder to realize the setting; the pressure of the oil pipe is released to realize the unsealing.
2. Features
1) It can be pressed in both directions;

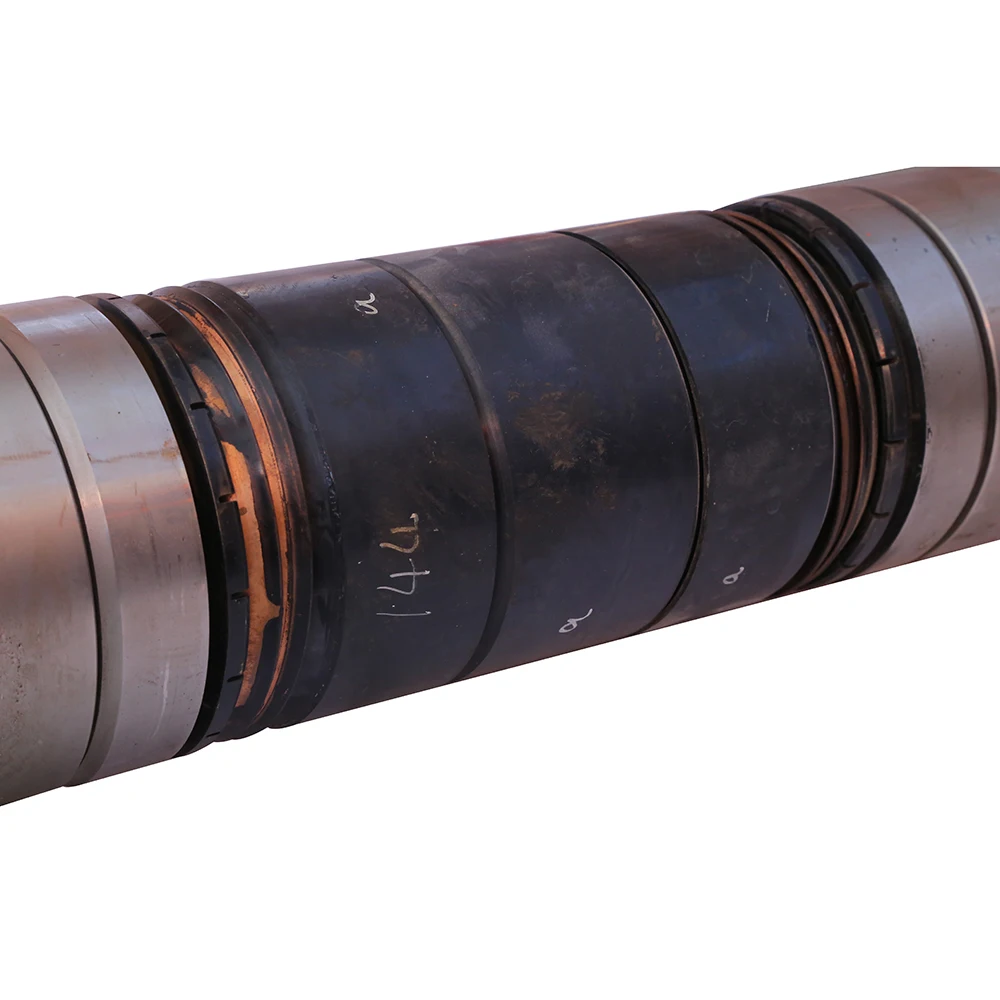

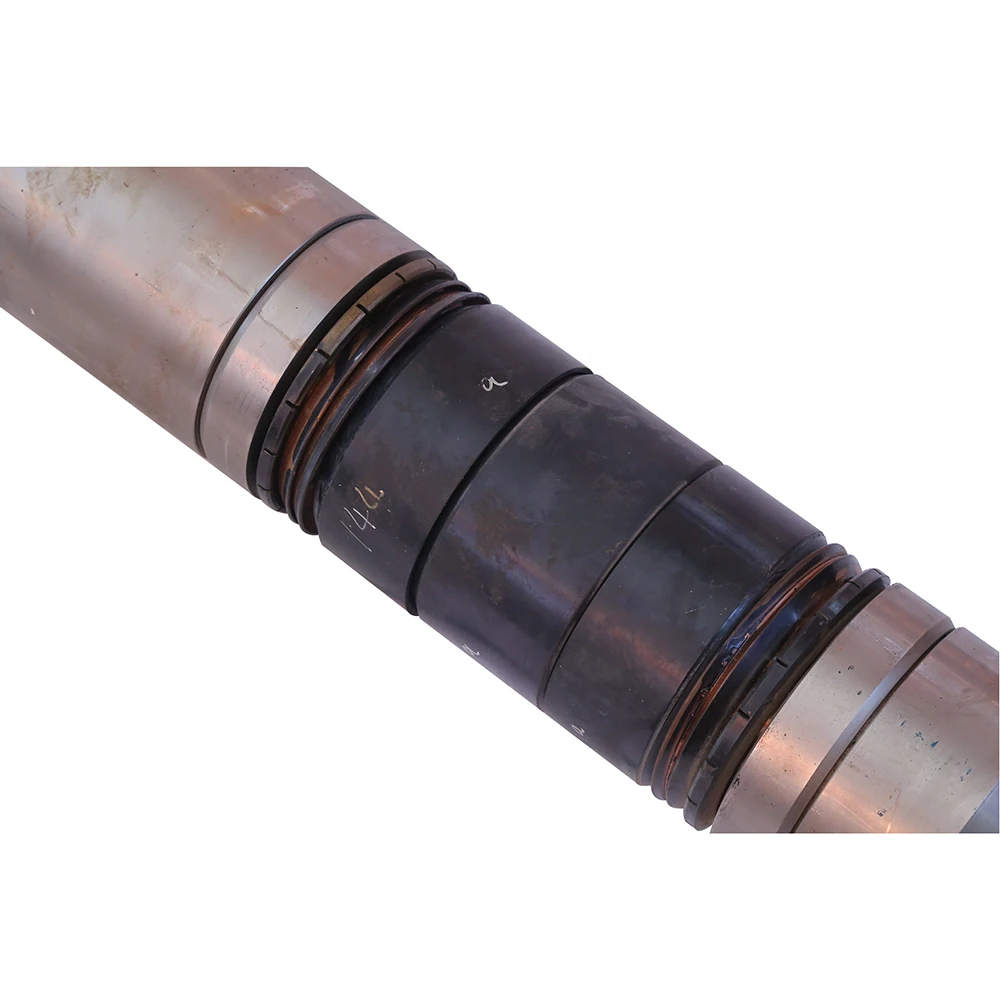

2) Multiple rubber cylinders ensure sealing stability after setting;
3) Water, natural gas and oil and other standard environment
2) Multiple rubber cylinders ensure sealing stability after setting;
3) Water, natural gas and oil and other standard environment
4. Technical data
See data sheet as below
Casing | WT | OD/mm | ID/mm | Overall Length/mm | Pressure difference | Temperature |
5'' | 18#-13# | 102 | 45 | 1310 | 70 mPa | 150 ℃ |
5 1/2'' | 23#-17# | 115 | 54 | 1780 | ||
7'' | 32#-23# | 146 | 62 | 1410 | ||
7'' | 32#-23# | 148 | 80 | 1410 | ||
7'' | 32#-23# | 148 | 90 | 2100 |
