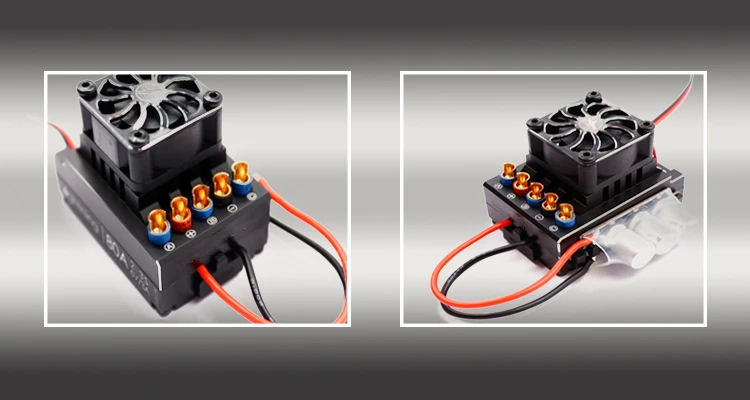

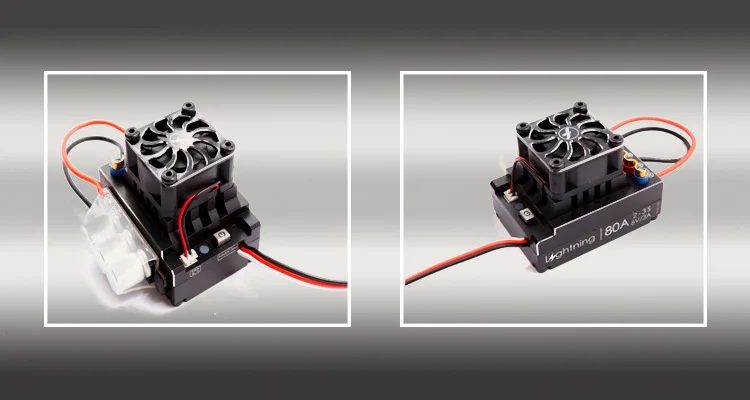

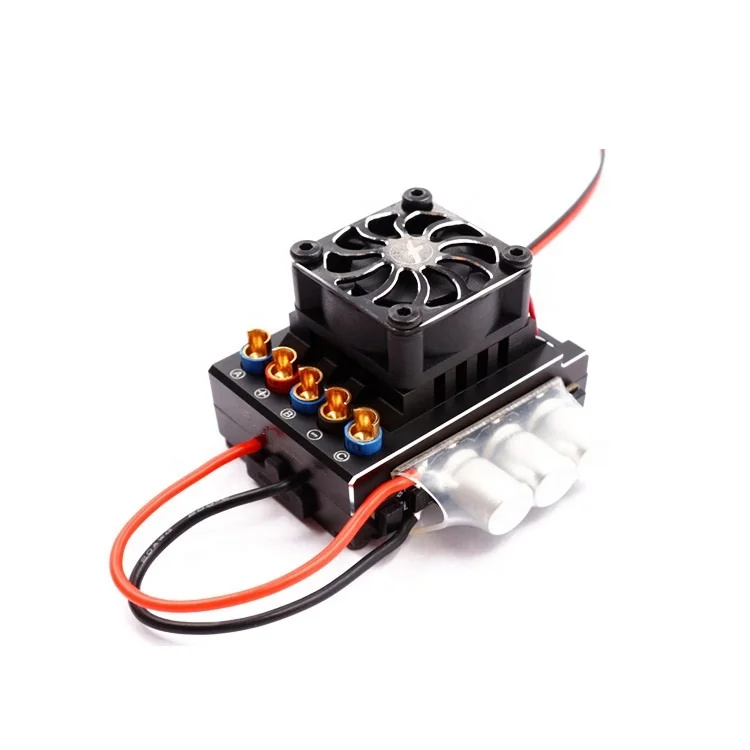

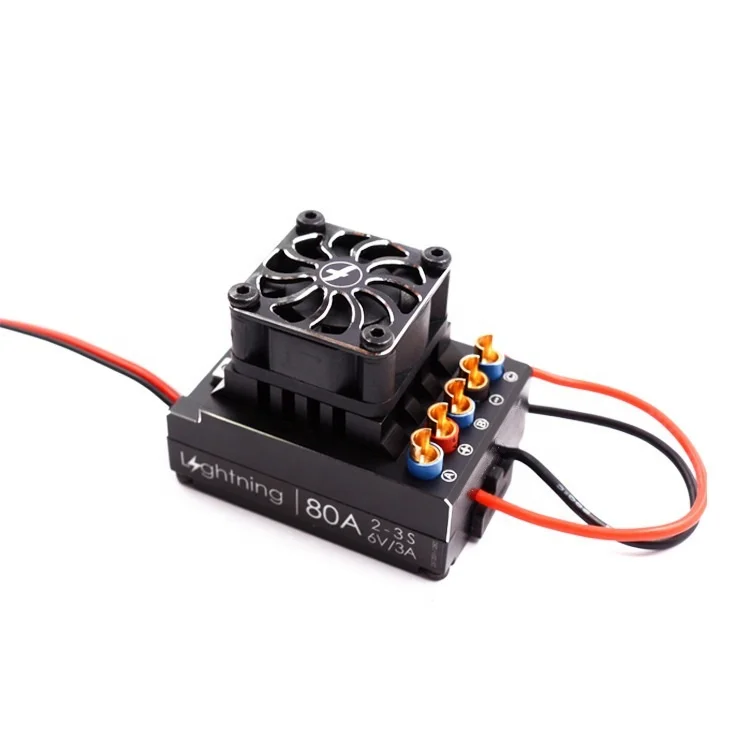

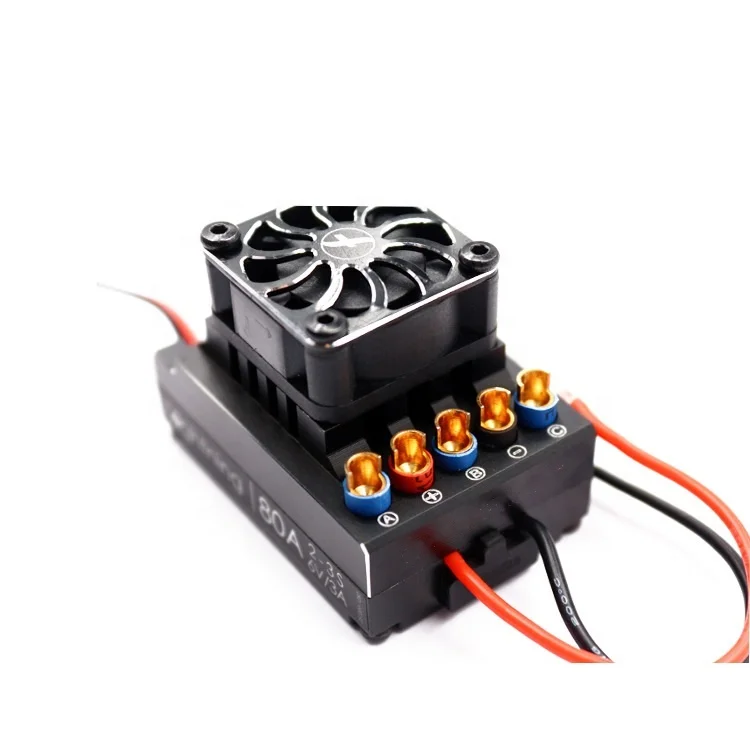

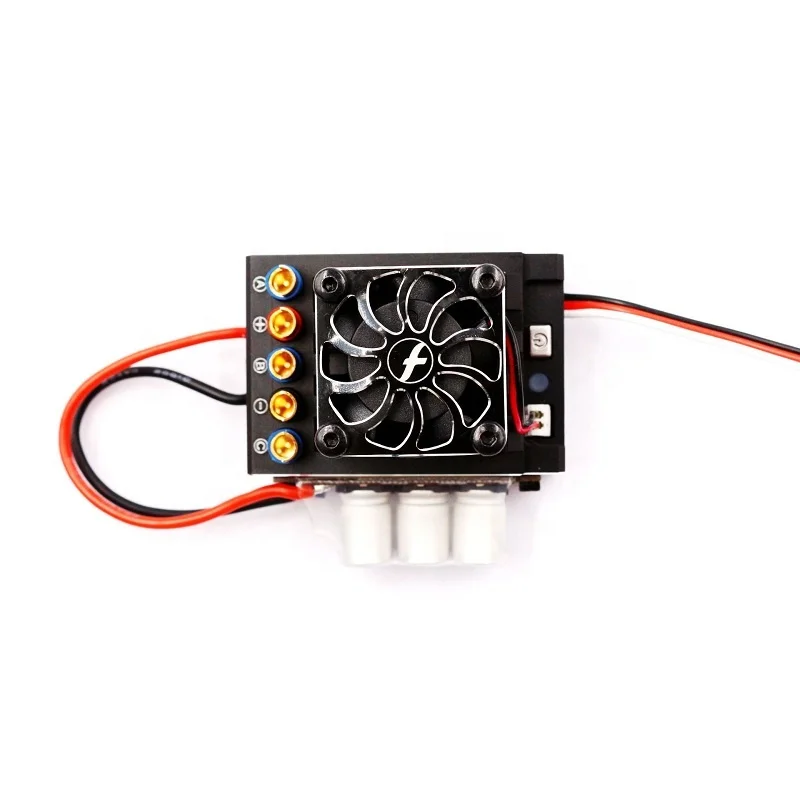

New arrival mini rc car model spare parts 2 3S 80a bldc esc de 80 a

Product Overview

Description

New arrival mini rc car model spare parts 2-3S 80a bldc esc de 80 a

1. Carefully designed driving firmware for car models, with smooth, delicate speed control feel, first-class speed regulation linearity.
2. Support non-inductive brushless motor and sensored brushless motor, compatible with most brushless motors.
3. 9 kinds of running acceleration options. Suitable for a variety of different models, tires and venues.
4. 8 kinds of advance angles are optional, which can make the motor work at the best efficiency point.
5. Proportional brake: 6-stage maximum braking force adjustment, 8-stage braking force adjustment.

6. Perfect protection function: battery low voltage protection, over temperature protection, throttle signal loss, motor stalling, etc.

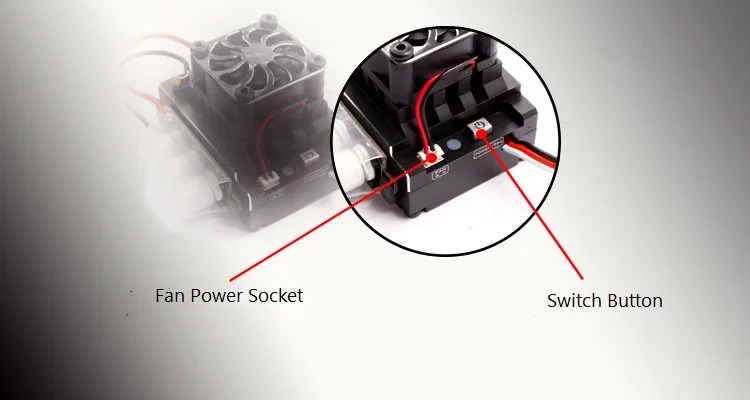

7. Equipped with safe electronic switches, to avoid the traditional mechanical switches in harsh conditions of jamming, contact corrosion, etc.

8. It can be programmed by pressing the button (Power/PRG button), and the factory default setting can be restored by pressing the button.

9. Support the parameter setting of electric power input through programming box (optional accessories), which is convenient for Outfield use.





Technical Parameters:

Model	Continuous Current	Burst Current	Lipo Cells	Size	BEC	Weight	Typical Application
Lightning 18A	18A	50A	2-3S	34*29*19mm	6V/2A or 6V/1A	40g	1:18/ 1:16
Lightning 25A	25A	90A	2-3S	34*29*19mm	6V/2A or 6V1A	42g	1:18/ 1:16
Lightning 35A	35A	190A	2-3S	34*29*19mm	6V/2A or 6V1A	46g	1:18/ 1:16
Lightning 45A	45A	260A	2-3S	34*29*31mm	6V/2A or 6V1A	54g	1:10

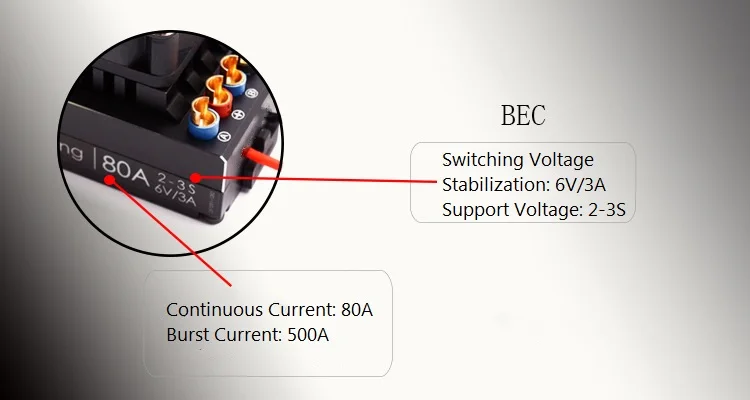

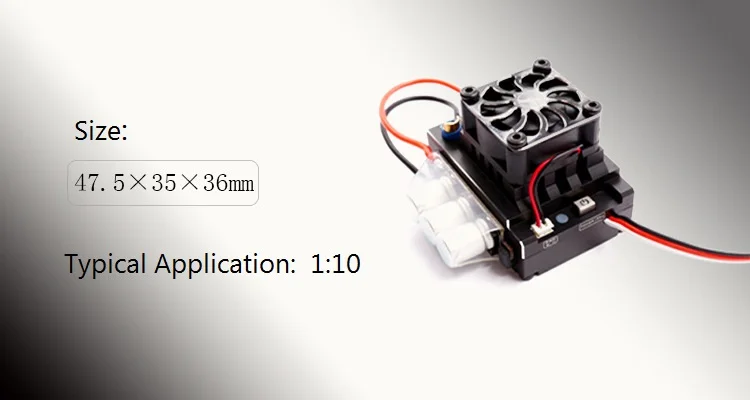

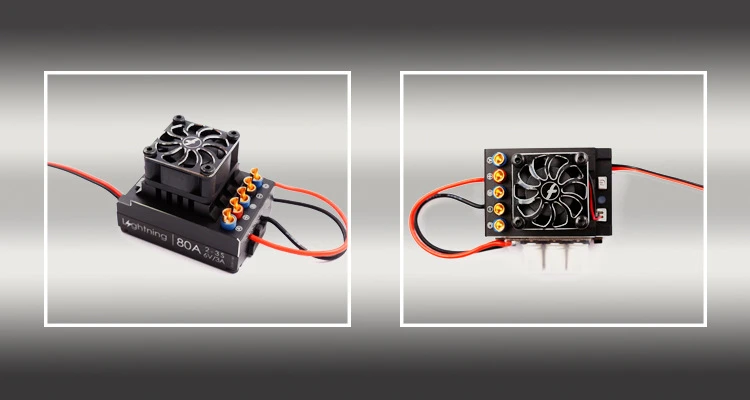

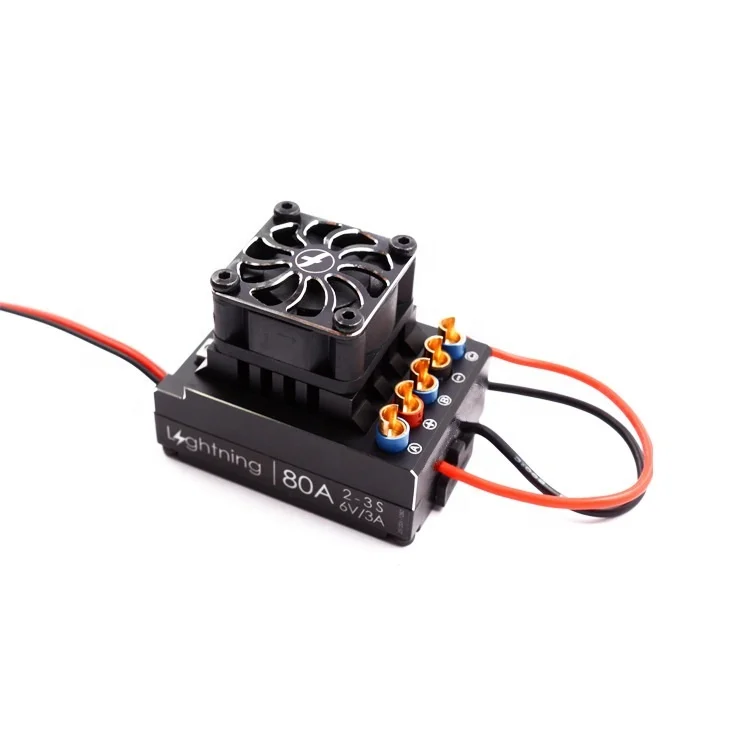

Lightning 80A	80A	500A	2-3S	47.5*35*36mm	Switch voltage stabilization, 6V3A	60g	1:10
Lightning 120A	120A	750A	2-3S	47.5*35*36mm	Switch voltage stabilization, 6V3A	60g	1:8
Lightning 160A	150A	1000A	2-3S	47.5*35*36mm	Switch voltage stabilization, 6V3A	60g	1:6

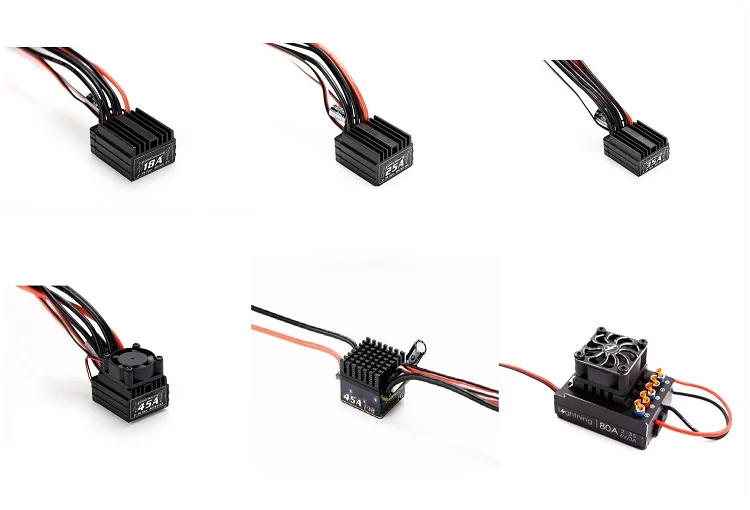

If you need the other current, pls click the following picture. Then you can choose the other type of Lightning series.
