BG-400D High efficiency pharmaceutical tablet coating machine factory
Product Description
Features
The product is an ideal film coating machine in current pharmaceutical industry at home. It can be applied in many fields like pharmacy, food, biological products, etc.. The machine is particularly applied to coat tablets, pills, and candies with all kinds of organic or water-soluble film. As a film coating machine, it is widely applied in pharmacy and food industry.
Compared with its similar products, this machine acquires distinct advantages: 1.PLC and temperature module controlling system with the touch screen produced by Siemens Germany are applied to provide picture displaying, convenient operation, energy-efficiency, cleanliness and safety, and convenient cleaning, which meets the standard of GMP. 2.Components, which drugs are exposed to, such as high efficiency film coating mainframe, high efficiency hot air filter, dust removal fan and spray device, are all made of imported stainless steel of good quality. 3.The procedures are all controlled by PLC touch screen, automatically or manually. 4.Coating is processed in totally closed environment to prevent dust and slurry from spilling. The surface of box is polished and its light pollution is eliminated. 5.The driver system applies explosion-proof decelerating motor and chain-wheel transmission device, which can make frequency conversion continuously variable. 6.High efficiency hot air filter can directly capture air from outside, heat the air after primary, intermediated and high efficiency filter, and then provide the air for the mainframe. The air can meet the standard of 100,000 class cleanliness. Dust removal fan can exhaust air to the outside to avoid the influence on central air-conditioning and to save energy. 7.Spray gun is the WA-101 spray gun imported from Japan of good atomization, non-clogging nozzle, adjustable spray volume and angle, and simple structure which is convenient to clean. Currently, the machine has relatively large market and good prospect at home. It has been applied by lots of factories for many times and passed the inspection of GMP successfully.
Technical Parameters
Model
BG-400D high efficiency film coating machine
Motor
Maximum medicine loading capacity
400Kg
Roller rotating speed
2-13r/min
Roller diameter
1600mm
Mainframe power
3KW
Damper valve body motor power
90W
Compressed air
1.5m³/m
Pressure ≥0.5MPa
Mainframe dimensions
2060*1680*2590mm
Imported spray gun with adjustable spraying shape, flow, distance and angle.
The machine can be operated through HMI and controlled through PLC.
High efficiency filtering shock-proof hot air blower
Filtering hot air blower power
3KW
Air intake
2664/5268m³/h
Filtering accuracy is 5μm
Primary, intermediate, high efficiency filtering
100,000 class clean air
The external surface of hot air blower is made from matt stainless steel
Hot temperature
Adjustable within the room temperature (>0°C) to 80°C
Total steam consumption
130Kg/h
Pressure: ≥0.4MPa
Dimensions
910*2500*1100mm
Dust removal, shock-proof and silencing ventilator
Dust removal ventilator motor power
7.5KW
Dust removal vibrating motor power
0.25KW
Air outtake
10000m³/h
The external surface of ventilator is made from matt stainless steel
Dimensions
1050*1050*2300
Insulation mixer
Model
TB-130
Including pneumatic motor, air distributor, air filtering pressure reducing valve
Riot electrical heating
4KW
Volume of mixing drum
130L
Appropriate medium
When medium concentration is less than 4%, viscosity is less than 200cst.
When medium concentration is less than or equal to 14%, viscosity is less than 10cst.
One of each for material inlet and out let equipments, discharger, material outlet hopper and material inlet hopper
Air tube diameter
310mm
Material
SUS#304
Total power supply
Steam heating
20KW
Electrical heating
60KW

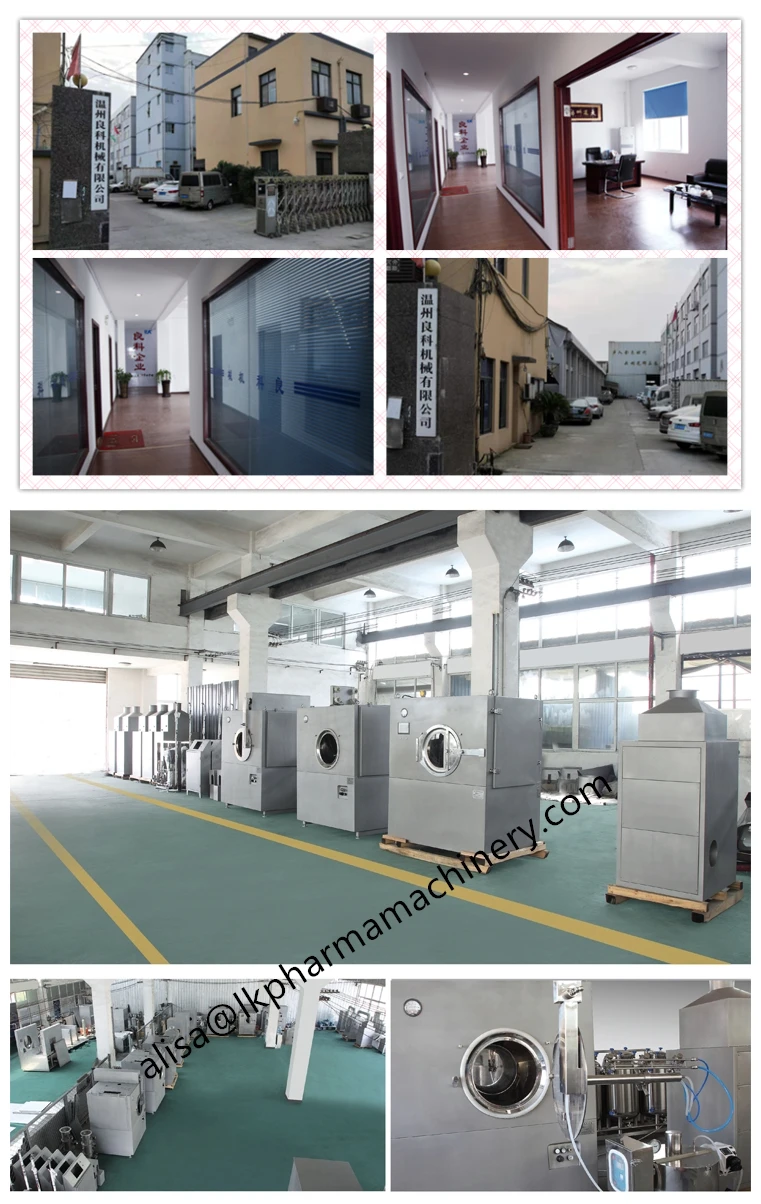

Company Information
Wenzhou Liangke Machinery has specialized in production of solid preparation process machine for more than 20 years, including wet granulator, roll compactor, fluid bed dryer, mixer, tablet press, coating machine, capsule filling machine etc. Also engaged in pharmaceutical trade,chemical trade as well as food trade with qualified team and mature technology.
Certifications

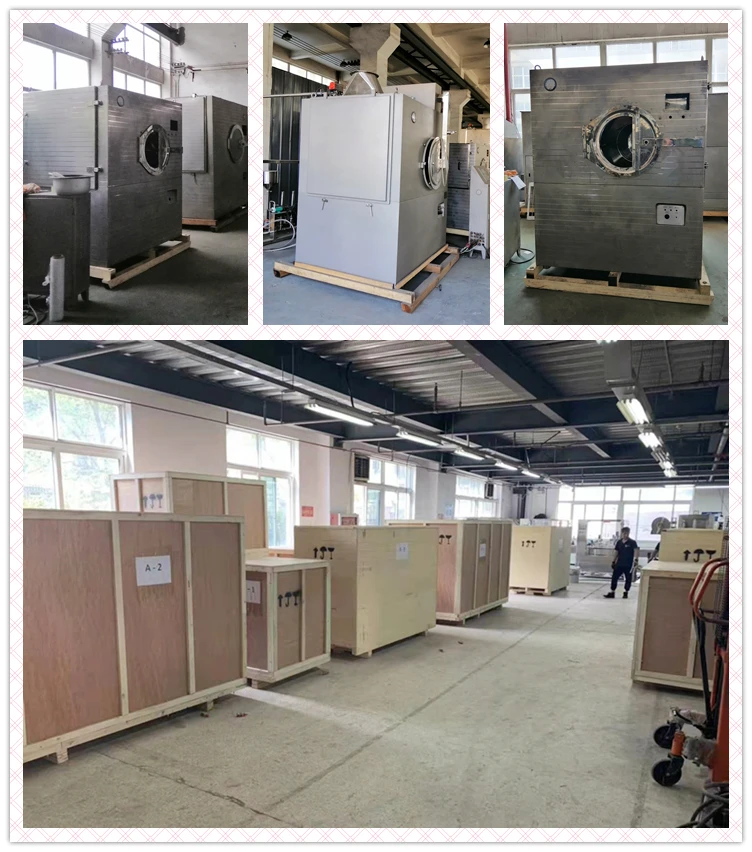

Packaging & Shipping
Our Services
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to instal the machine, training how to * Sample testing support. use the machine. * View our Factory. * Engineers available to service machinery overseas.
