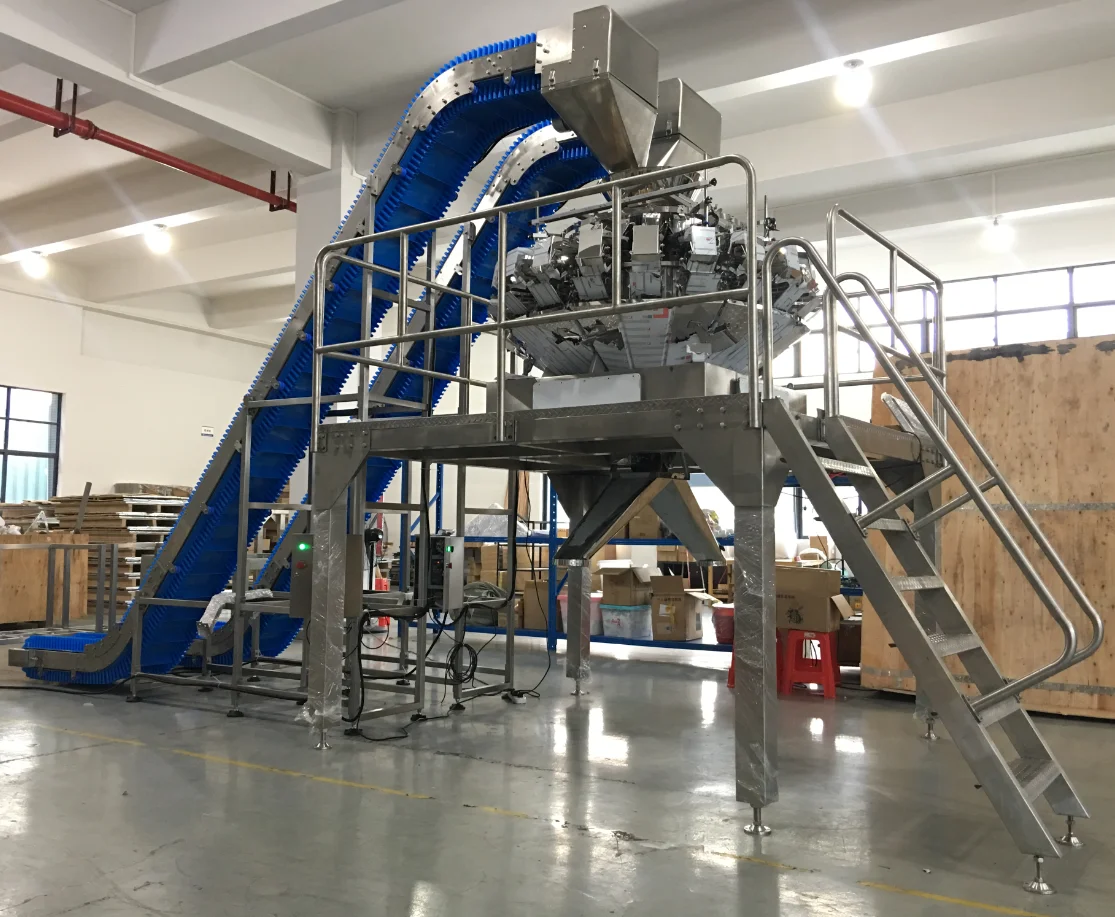

32 Head mixing multihead weigher automatic filling machine nuts sugar packing machine
- Category: >>>
- Supplier: Zhongshan Combiweigh Automatic Machinery Co. Ltd.
Share on (62284166764):
Product Overview
Description
Products Description

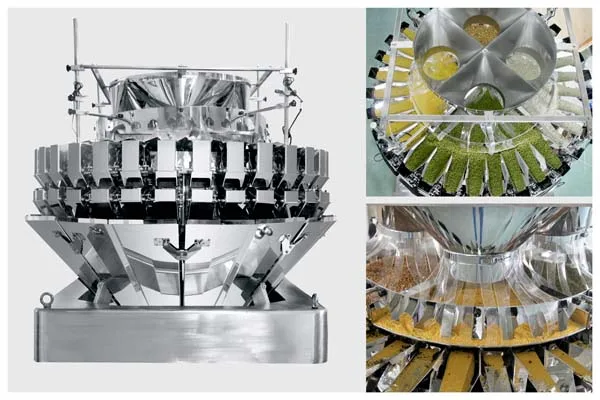

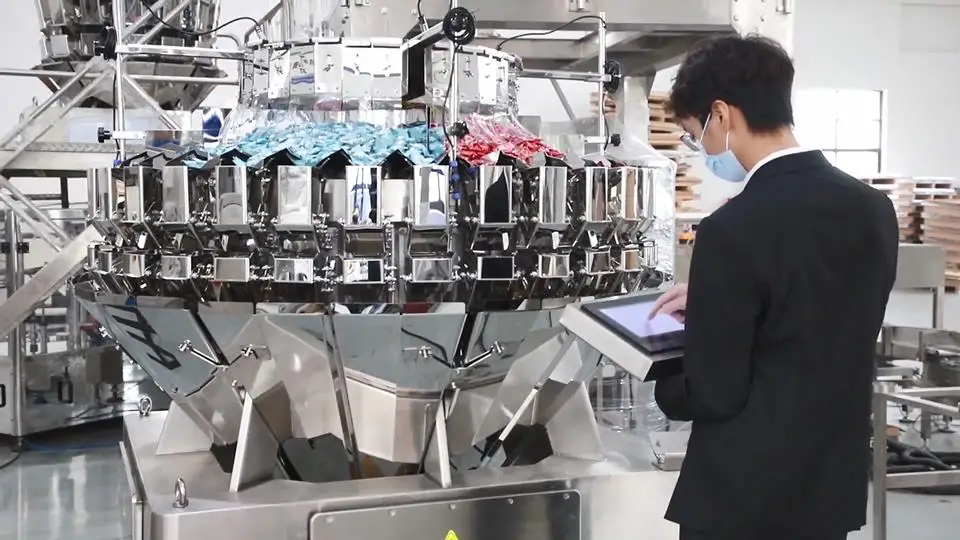

32 head mixing weigher
Usually candy, snacks, nuts and legumes, seeds, grains, rice, sesame seeds, seeds, herbs,cereals,seasonings, fertilizers, feeds, herbs, 4 or 6 product mixes are weighed and packaged.
Model | CBW-1A32(05) | CBW-1A32(16) | CBW-1A32(25) | ||
Single Weighing range | 5-240g | 10-400g | 10-500g | ||
Avg. Accuracy | 0.5~2g | 0.5~2g | 0.5~2g | ||
Max.speed | 45 bags/min (when 4 products are mixed) | ||||
Control panel | 9.7 inch color touch screen | ||||
Hoppers Volume | 0.5L | 1.6L | 2.5L | ||

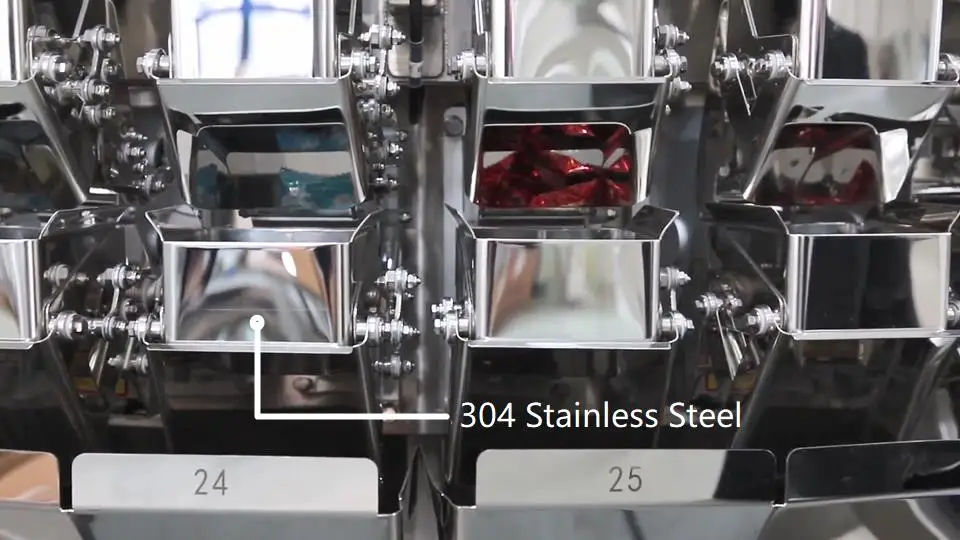

Construction material | 304 Stainless Steel | ||||
Driving system | Step Motor | ||||
Control system | Modular control system | ||||
Power requirement | AC 220V/110V ±10% 50Hz(60Hz) 12A 2KW | AC 220V/110V ±10% 50Hz(60Hz) 15A 2.5KW | AC 220V/110V ±10% 50Hz(60Hz) 20A 3KW | ||
Options | Dimple plate/timing hopper/printer/rotary top cone/multi-mouth top cone/reject device | Dimple plate/timing hopper/printer/rotary top cone/multi-mouth top cone/reject device | |||

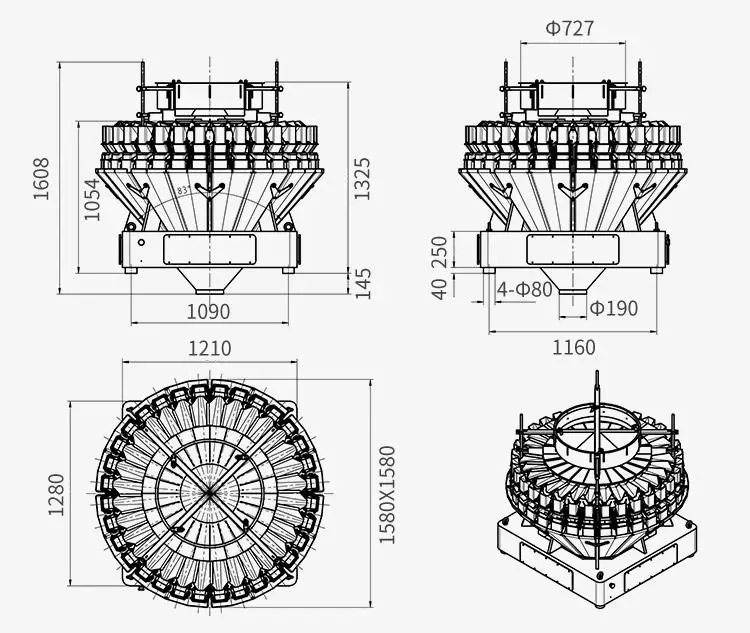

Packaging dimension (mm) | L1950 *W1410 *H1255 | L2080 *W2080 *H1485 | L2040 *W2080 *H1485 | ||
Gross weight | 650kg | 850kg | 1000kg | ||
Other | If you want to know more information about High quality Automatic Machinery. Please send Inquiry to us ! | If you want to know more information about High quality Automatic Machinery. Please send Inquiry to us ! Click "Send" NOW ! | |||
Machine advantages
1.High precision digital load cell.
2.Linear amplitude can be adjusted independently.
3.No products auto pause function can improve weighing stability and accuracy.
4.Modular control system, AD cards no need Number, can be interchangeable.
5.New actuator design reduces the mechanical vibration and improves the accuracy of load cell.

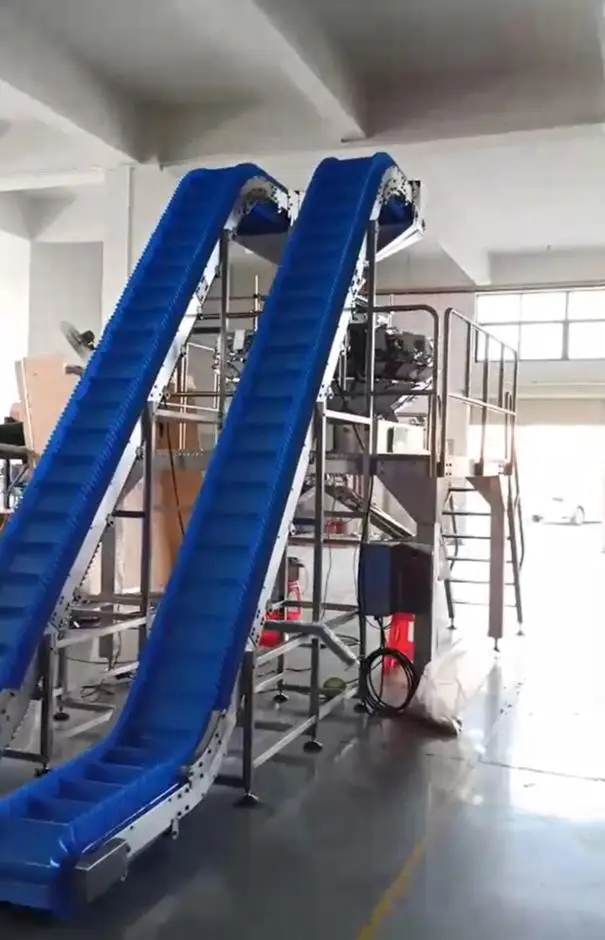

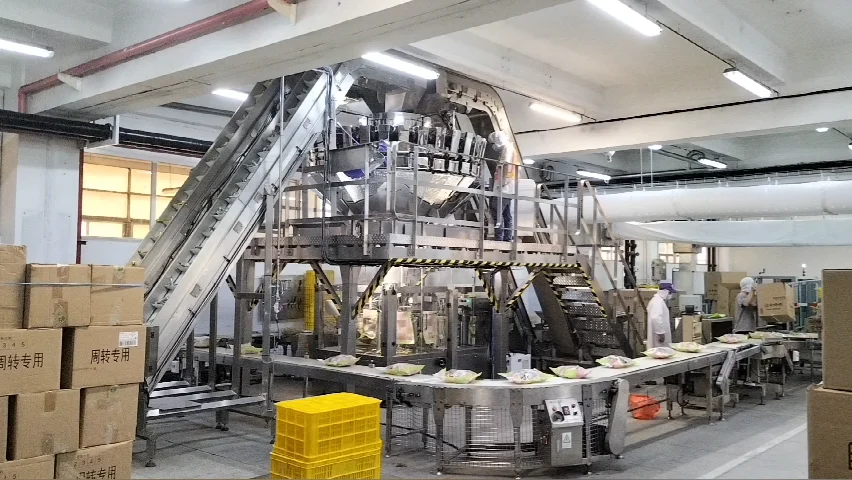

Turnkey project

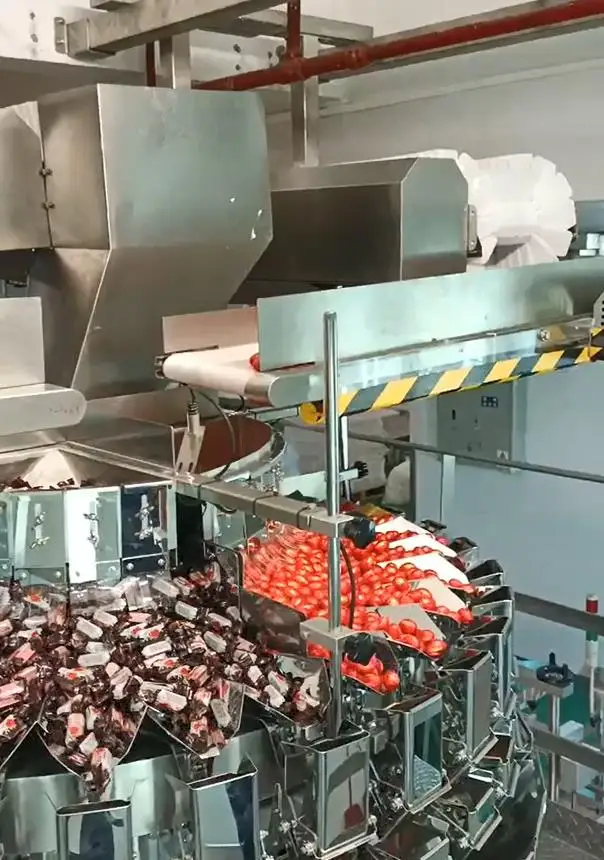

Mixing candies
Mixing nuts or chocolates

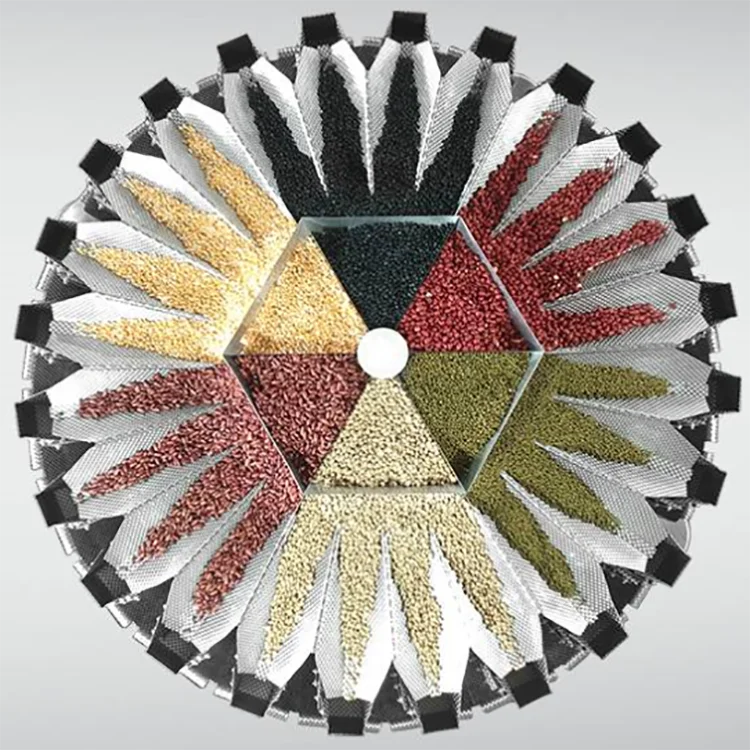

Mixing beans
Mixing mint candy
Mixing roasted peanuts
Application&Packing
Application

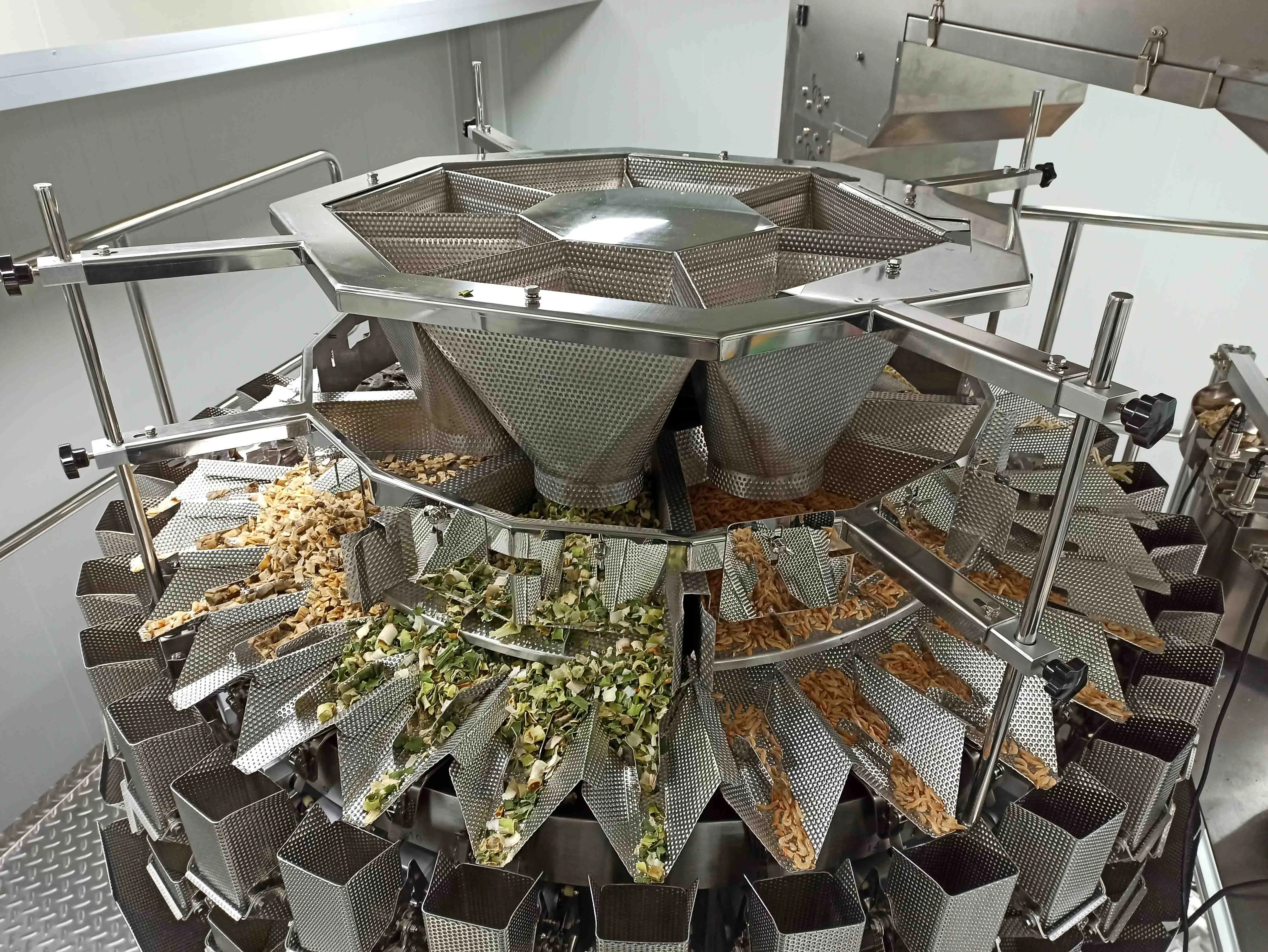

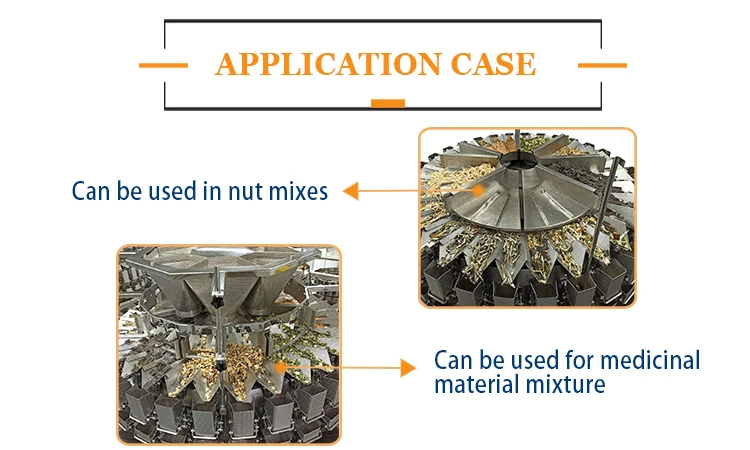

Our mixing weighers can scale several different products, which can be used in a wide range of applications, such as, nuts, snacks, biscuits, meat, candy, fruits and vegetables, small particles, hardware and other food weighing and packaging.
Packing ways
The mixed products can be packed in pillow bags, vacuum bags, zipper bags, prong bags, jars, trays, etc.
About Us
CBW>> is dedicated in modular multihead weighing solution and supplies the related packaging machines for complete packing line, including modular multihead weigher, modular linear weigher, material conveyor, check weigher, metal detector and so on. which automatically complete all the process from feeding, weighing, packaging, date printing, weight checking and metal detecting.
Exhibition
Customer case customization
FAQ
Q: ls Zhongshan Combiweigh ( called CBW ) a manufacturer?
A: Auto or Semi-auto weighing and packaging solution for food and non food industry.
A: Pet food, beans, powder, confectionary, plastic, hardware, or frozen food, etc.
Q: How to ensure CBW machines' Quanlity?
A: Yes, we are the real manufacturer. We mainly specialized in researching, designing, manu- facturing, marketing and service of multihead weighers, linear weighers, etc. and providing customized weighing solution.
Q: What project can CBW do?
A: Auto or Semi-auto weighing and packaging solution for food and non food industry.
Q: What material can CBW handle and pack?
A: From fine or sticky powder, grain and irregular grains and frozen food or vegetables, etc.
Q: What industry CBW can apply for?
A: Pet food, beans, powder, confectionary, plastic, hardware, or frozen food, etc.
Q: How many kinds of hoppers CBW can supply?
A: For multihead weigher, CBW has 0.5L, 1L, 1.6L, 2.5L 5L hoppers.For linear weigher, CBWhas 3L, 5L, 7.5L, 24L hoppers. There are single-layer feeder pan and double-layer feeder pan for choice.
Q: How to ensure CBW machines' Quanlity?
A: We carry out a hard control procedure on our machines before shipment, including work- ing, aging, testing, and so on. In a word, we try our best to make sure our machine is with long-term stable performance.
Q: What is the warranty for CBW machines?
A: CBW guarantees the whole machine for 12 months, except the fragile parts, starting from the day which the machine is dispatched plus one month.
Q: Are your staff available for oversea installation and service?
A: Yes, we can arrange our staff to make overseas service as per request. In CBW, we have a professional technical supporting and after-sale service team.
