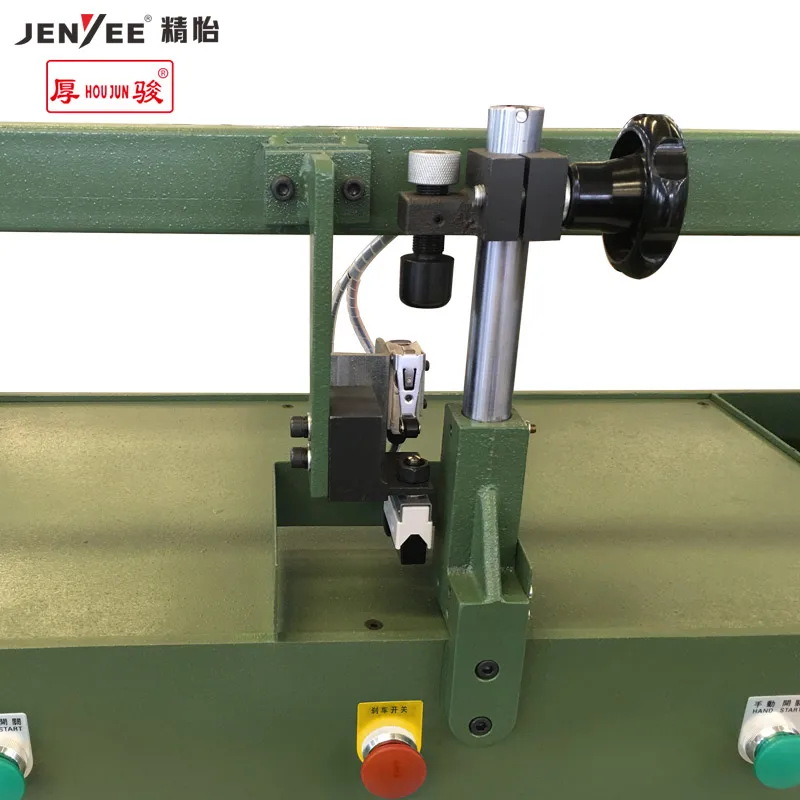

1. Fine-tuning device can easily get the best cutting stroke and prolong the service life of cutter and cutting rubber plate. 2. The spindle is specially designed and adopts automatic circulation lubrication system. There is no worry that the machine is damaged without manual negligence. 3. When cutting down the contact die, it will slow down automatically and make the top and bottom of the material almost dimensional error. 4, the SY-520 motor is only 1.5KW, and it saves power very much. Main features of SY-525C / SY-530C The two models are specially designed for the complex pinhole die of the large and medium sized complex. The machine steel plate is thickened, the spindle is specially designed and thickened, and the vibration is reduced, so that the performance is more stable and the service life is longer.
Main parameters:
Model
Maximum cutting power
Trip
Motor power
Workbench
Mechanical size
Wooden box size
Net weight
Gross weight
Hydraulic oil
SY-520
20T
50-150mm
2HP/1.5KW
500*1250mm
1550*600*1550mm
1600*690*1700mm
1300kg
1400kg
50kg
SY-525C
25T
50-150mm
3HP/2.2KW
400*1250mm
500*1250mm
1550*600*1600mm
1600*690*1700mm
1350kg
1450kg
80kg
SY-530C
30T
50-150mm
3HP/2.2KW
400*1250mm
500*1250mm
1550*600*1600mm
1600*690*1700mm
1350k
1450kg
80kg
