Pet Preform Machine Plastic Blow Molding Machines
- Category: >>>
- Supplier: Taizhou Huangyan Zhengge Plastic Machinery Co. Ltd.
Share on (62284257975):
Product Overview
Description

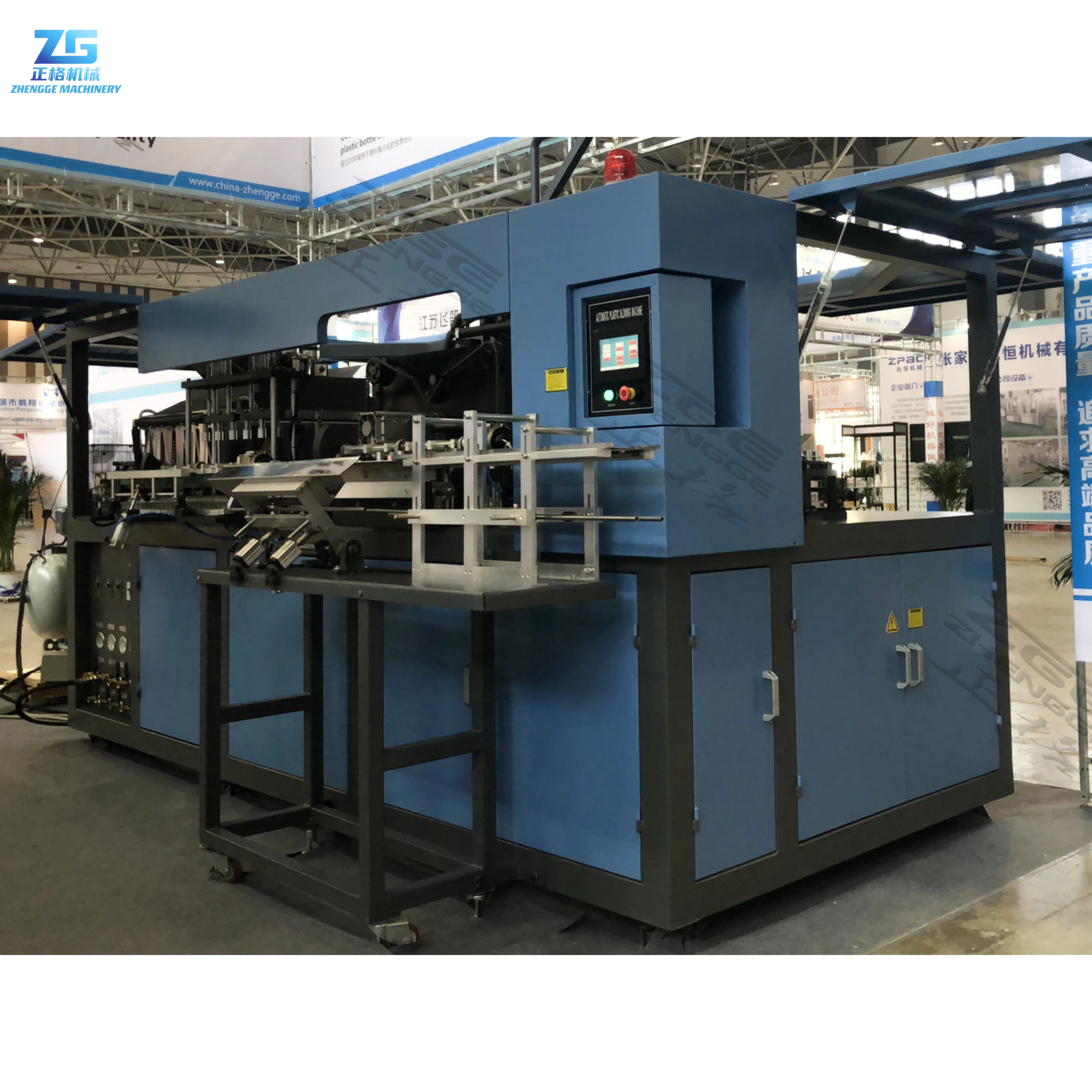

Pet Preform Machine Plastic Blow Molding Machines / Automatic Blow Molding Machine / Smc Blow Molding Machine
Great Overall Performance
Simple and generous appearance designed by our senior engineers .Also can add logo and other design
by customized.
Smart System
With the efforts of our engineers, now we can start our machine easily Which means you will have no trouble to operated when you get it.
Easy to Maintain
Don't worry about machine maintain, we have optimize its structure, so now it is easy to maintain! Professional after sales service will be offered.
Model | ZG-4000 | ||
Theoretical output | 2000 pcs/hr | ||
Max. bottle volume | 2L | ||
Max. neck diameter | 48mm | ||
Max. bottle diameter | 110mm | ||
Max. bottle height | 365mm | ||
Mold specifications | Cavity | 1 cavity | |
Mold thickness | 90mm-270mm | ||
Open stroke | 210mm | ||
Electrical system | Power voltage | 380v/3Phase/50HZ | |
Installation power | 20kw | ||
Actual power consumption | 15kw | ||
Air source | High pressure air compressor | 2.4m³/min 30Kg | |
Low pressure air compressor | 1.6m³/min 10Kg | ||
Cooling water | Recommend water chiller | 5HP | |
Blowing machine size | Length*width*height/weight | 2660*1995*2030mm/2800kg | |
Preform loader size | Length*width*height/weight | 2000*1350*25500 mm/550kg | |
Flow Chart
We supply not only Bottle Blow Molding Machine,but also the Whole Line!
other auxiliary matched for you are all enjoy highly reputation around the word!!!
Control System
A. Advanced PLC control system with a use-friendly control panel.
B. Built-in memory of the PLC saves all the sets of numbers required to produce different size bottles.

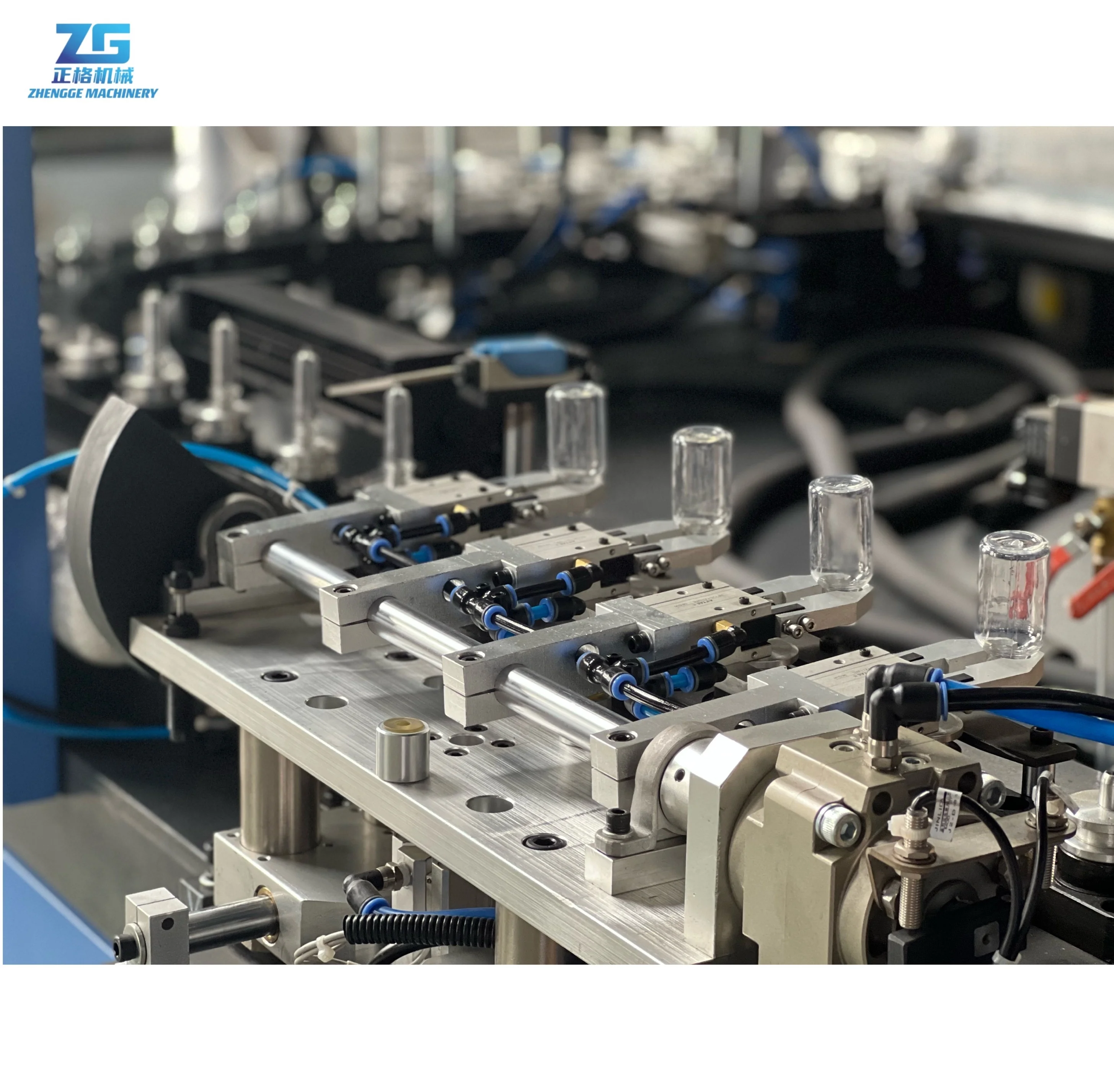

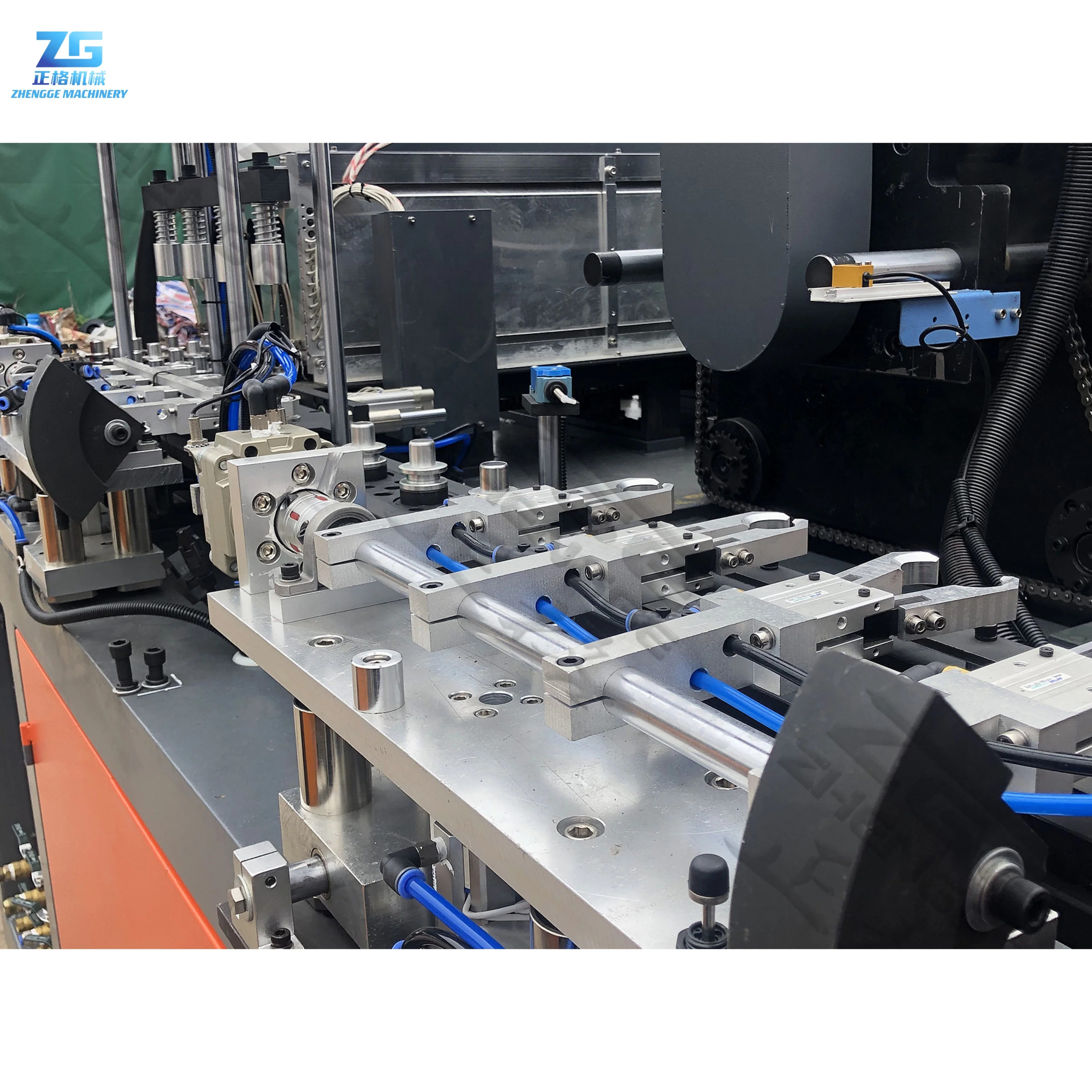

Robot Finger
Manipulator controlled by PLC can take the finished bottle from the conveyor belt accuracy.
Cooperate closely,High accuracy.
Save labour.

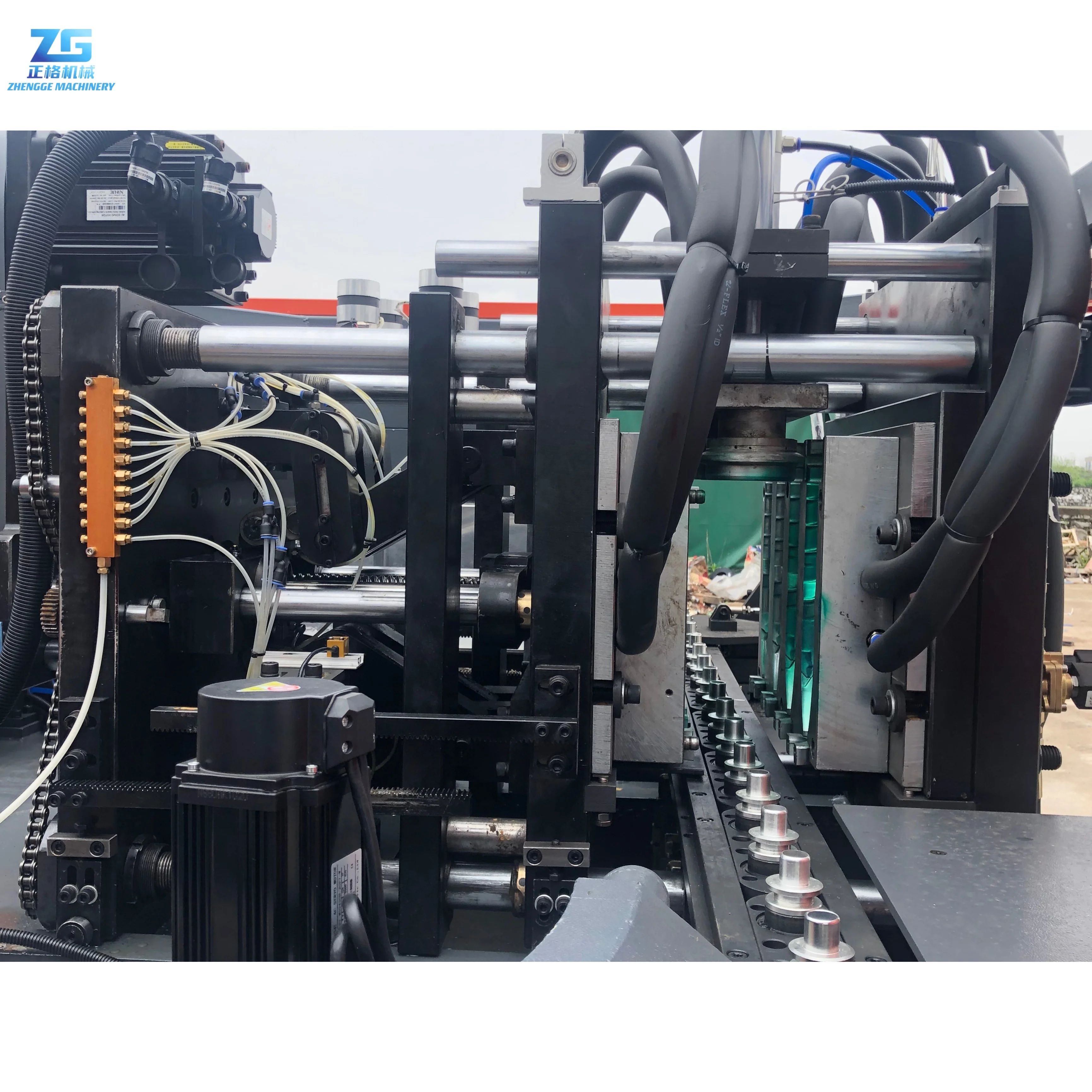

Mold Making
Automatic PET Bottle Blowing Machine. 7075 aircraft aluminum mold material.
Locating Rod
After get the preform from auto-loader, positioning the preform into the heating zone.
The automatic preform loading system
Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.
The heating system
We adopt infrared Ruby lamp to heat the preform. C. Oven design in reasonable, adopt water
A. 8 layer heating tunnel. Total 32 pieces heating cooling and air cooling. Suitable for hotlamp. environment to work, make sure the preform
B. Each layer of lamp controlled independently, neck not distortion.
B. Each layer of lamp controlled independently, neck not distortion.
suitable for different kinds of preform. D. Total 33 pieces holder.
C. Power of each lamp: 1.0Kw
Bottle Making--We are Professional !
All bottle shape and bottle size we can do! We have a professional
you optimized bottle design and supply the best solution for you!
Pre-Sales Service
* Welcome to visiting our Factory.
*24 hours on line answer your question.
*According customers' demands,recommending the most suitable machine.
* Take video to show real scenes as client's request.
After-sale Service
*If you have any questions when use machine,please contact us, we will help you handle in time.
* Engineers available to service machinery overseas.
* We provide useful documents with machine.
* All spare parts are always available and free for your request in first year.
Delivery&Package
Delivery time: 40 days as usual after confirm the bottle design.
Package way:The normal package is wooden box. If export to Europe countries,the wooden box will be fumigated.If container is too tight,we will use pe film for packing or pack it according to customers special request.
factory
Introduction
TAIZHOU HUANGYAN ZHENGGE PLASTIC MACHINERY CO,.LTD is specialized in manufacturing bottle blowing machine and mold.we have strong technical force, excellent production equipment,advanced testing instruments and perfect management system. The product will make your enterprise have a good progress day by day. TAIZHOU HUANGYAN ZHENGGE PLASTIC MACHINERY CO,.LTD. enjoys good reputation from regular and new customers through our excellent quality,competitive price production equipment, which attracts many customers to purchase.
Certificates
We are worth to reliable!
With Customers
Above Price Is Not Accurate,Only For Your Reference.
If You Need Latest Quotation,Please Contact Us!
