Hdmi to dvb t converter HDMI to RF / COAX Modulator for DVB T Support Full HD 1080P/60Hz

Product Overview

Description

Hdmi to dvb-t converter HDMI to RF / COAX Modulator for DVB-T Support Full HD 1080P/60Hz

The HDMI TO DVB-T Modulator can convert HDMI signal to HD digital TV signal based on DVB-T CATV transmission mode. The product applies RF modulation technology characteristic to realize the
HD signal to HD digital TV signal conversion and transmit via coaxial cable over long distance up to 500 meters. By a CATV network mixer,the Modulator over Coaxial cable supports pair to pair and
multiple to multiple video matrix.



Feature



1. Supports a HDMI input and a F type/BNC RF output.
2. Support HDMI resolution up to 1080P/60Hz.
3. Output signal accord with the relevant DVB-T standards, and it can be compatible with any DVB-T TV or receiver.
4. Transmission distance up to 500 meters by SYV-75-5 coaxial cable and no need amplification.
5. Support 80 channels for option; frequency ranges 139MHz~950MHz.
6. Products using the broadcast signal transmission mode, only one line can transmit 48 channels of high-definition video signal at the same time.

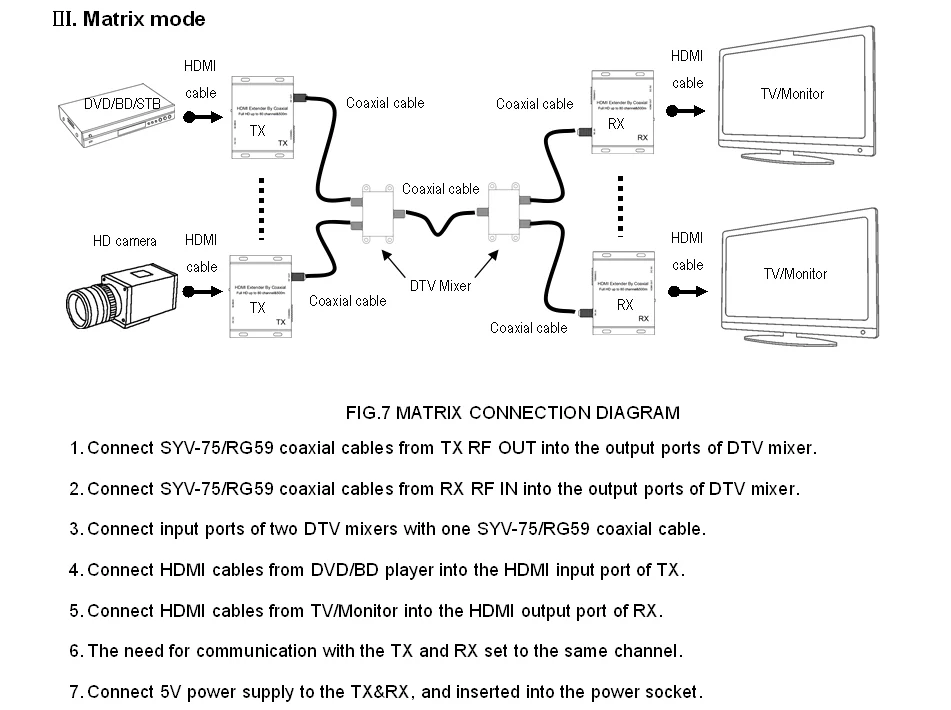

7. By a CATV network mixer,the Modulator over Coaxial cable supports pair to pair and multiple to multiple video matrix.
8. The use of digital TV communication protocol, anti interference and error correction capability is very strong.
9. Installs in minutes. The use of the existing CATV transmission network, no need wiring.









Product name	HDMI to RF modulator
Model No.	HDEX0011M1
Standard	DVB-T COFDM
Audio	LPCM Audio
RF frequency	139~950 MHz
The number of Channel	80 channel
RF Connector type	The imperial F type/BNC
Coaxial cable types	SYV-75/RG59 etc.
RF transmission distance	≤500m SYV-75-5 coaxial standard cable
Power	5V 2A
