plastic Terminal block

Product Overview

Description

barrier strip terminal block

1)14.2mm center spacing
2)Accepts wire sizes from 22 through 10AWG Cu
3)#8-32 philslot,zinc-plated steel terminal screws
(Recommended torque:16in.-lb)
4)Molded of materials maximum temperature rating
TG:thermoplastic(UL Rated 94V-0) 130C
TU:Phenolic 150C

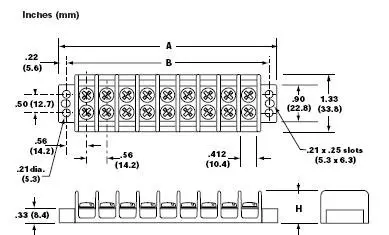

Poles	A	B	Cat No.
02	2.13	1.69	TU/TG302
03	2.69	2.25	TU303
04	3.25	2.81	TU/TG304
05	3.81	3.37	TU305
06	4.37	3.94	TU/TG306
07	4.94	4.5	TU307
08	5.5	5.06	TU/TG308
09	6.06	5.62	TU209
10	6.62	6.19	TU/TG310
11	7.18	6.75	TU311
12	7.75	7.31	TU/TG312
13	8.31	7.87	TU313
14	8.87	8.44	TU/TG314
15	9.43	9	TU315
16	9.99	9.56	TU/TG316
17	10.56	10.12	TU317
18	11.12	10.68	TU/TG318
19	11.68	11.25	TU319
20	12.24	11.81	TU/TG320
21	12.8	12.37	TU321
22	13.37	12.93	TU/TG322
*Dimensions in inches.To convert to millimeters,multiply by 25.4
*For TU-2XX:H=0.69inch(17.5mm)
For TG-2XX:H=0.81 inch(20.5mm)
