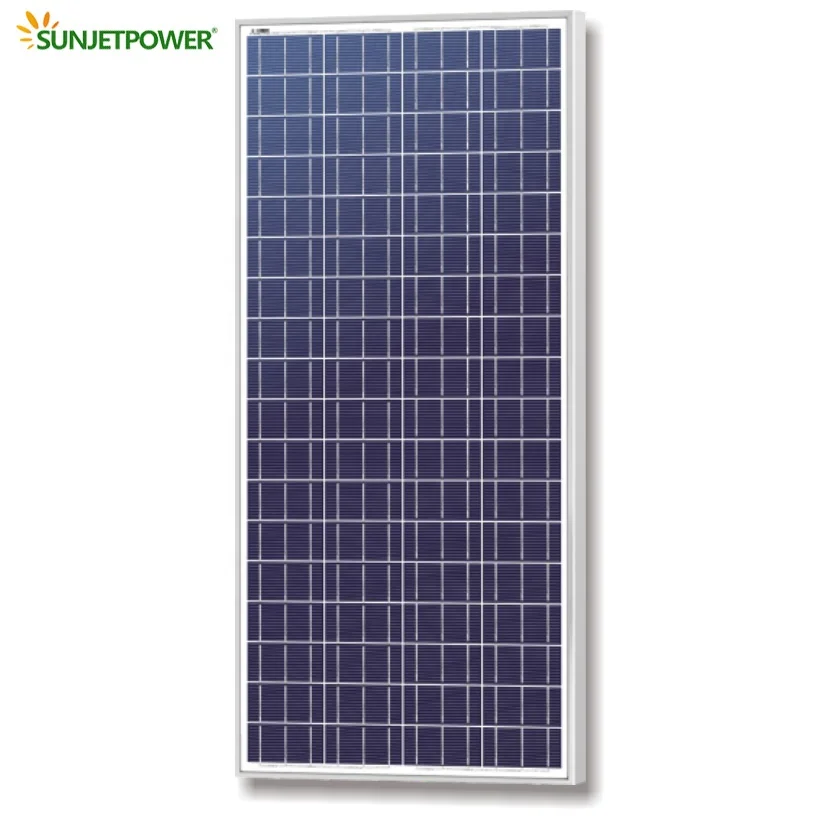

150W Poly Solar Panels Factory Direct Export To Nigeria Afghanistan Philippines Etc
Item |
|
Maximum power (Pmax) | 150W |
Voltage at Pmax (Vmp) | 36.8V |
Current at Pmax (Imp) | 4.08A |
Open-circuit voltage (Voc) | 44.0V |
Short-circuit current (Isc) | 4.33A |

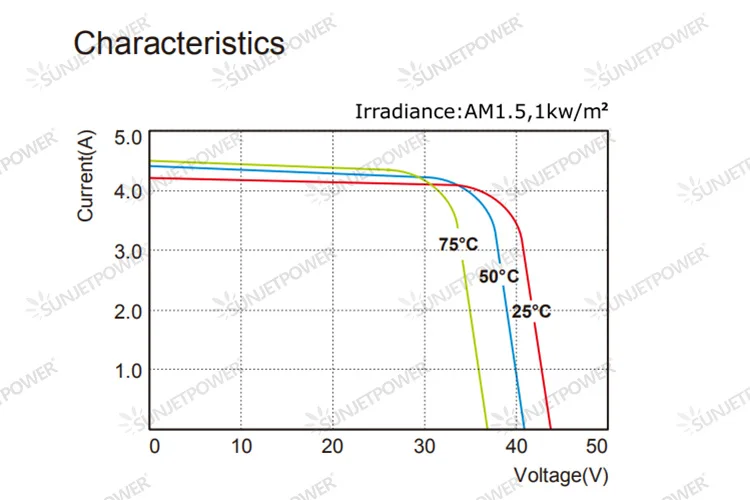

Temperature coefficient of Voc | -(80±10)mV/°C |
Temperature coefficient of Isc | (0.065±0.015)%/ °C |
Temperature coefficient of power | -(0.5±0.05)%/ °C |
NOCT (Air 20°C; Sun 0.8kW/m² wind 1m/s) | 47±2°C |
Operating temperature | -40°C to 85°C |
Maximum system voltage | 1000V DC |
Power tolerance | ± 5% |
*STC: Irradiance 1000W/m², AM1.5 spectrum, module temperature 25°C
*NOCT:Nominal operating cell temperature (the data is only for reference)
Specifications | SP150-24 |
Cells | Polycrystalline silicon solar cell |
No. Of cells and connects | 72(4×18) |

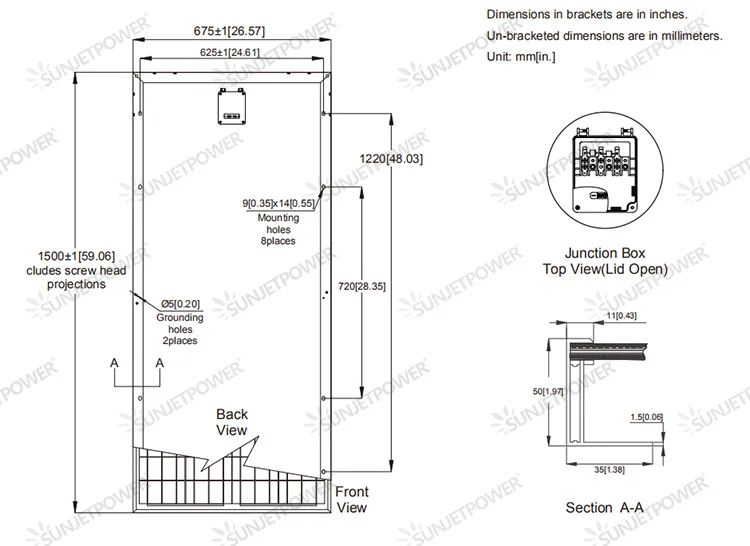

Module dimension | 1500mm×675mm×35mm |
Weight | 12.0kg(26.46lbs) |
Packing information(Carton) | 1540mm×715mm×115mm /(2pcs/ctn) |
*Limited warranty: 5-year limited warranty of materials and workmanship; 10-year limited warranty of 90% power output. For detail, please contact us.
*Specifications are subject to change without notice at any time.
More related products . click here!

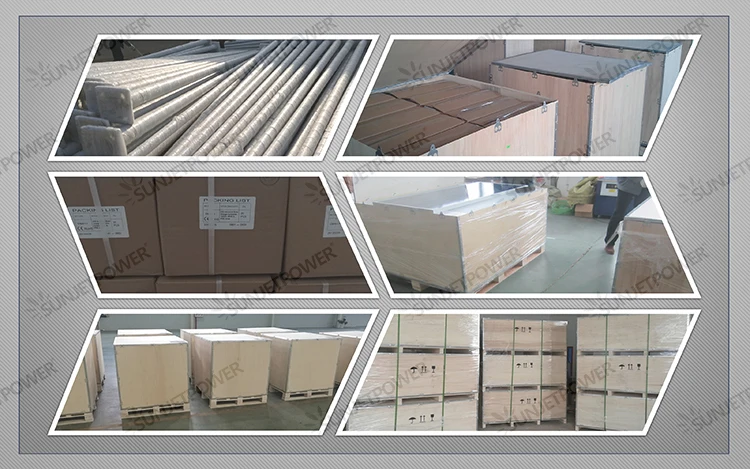

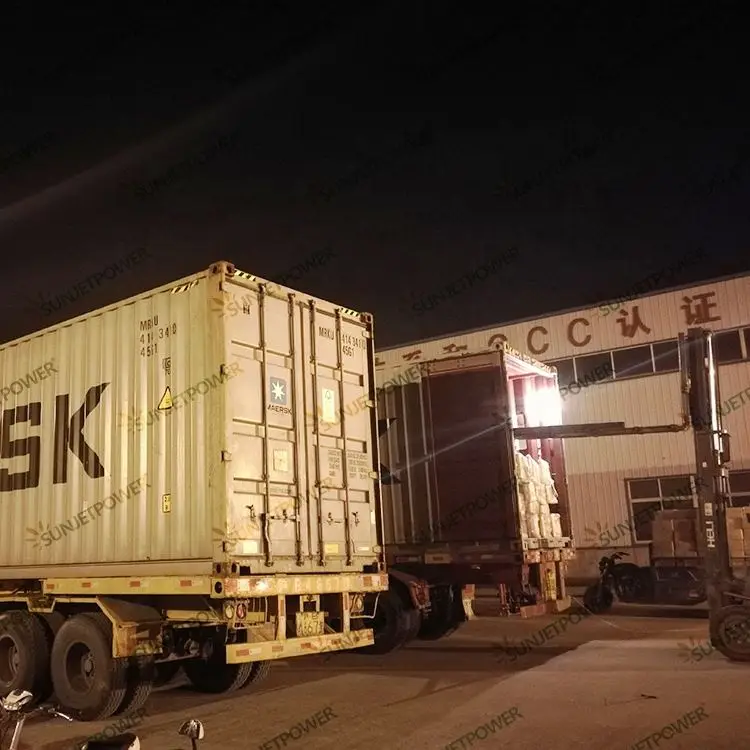

Packaging & Shipping

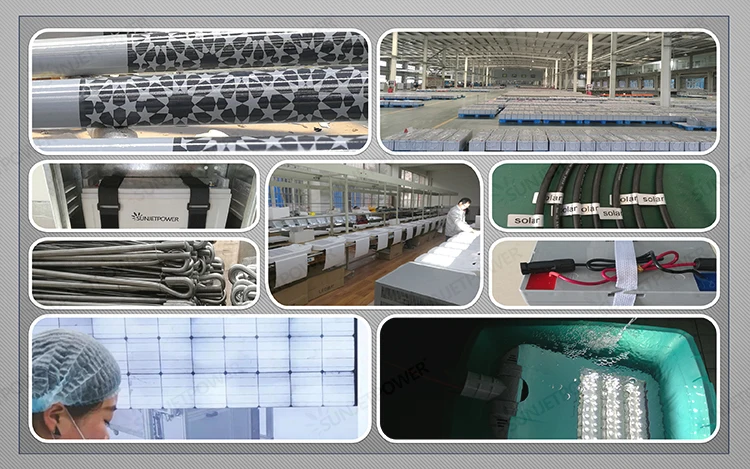

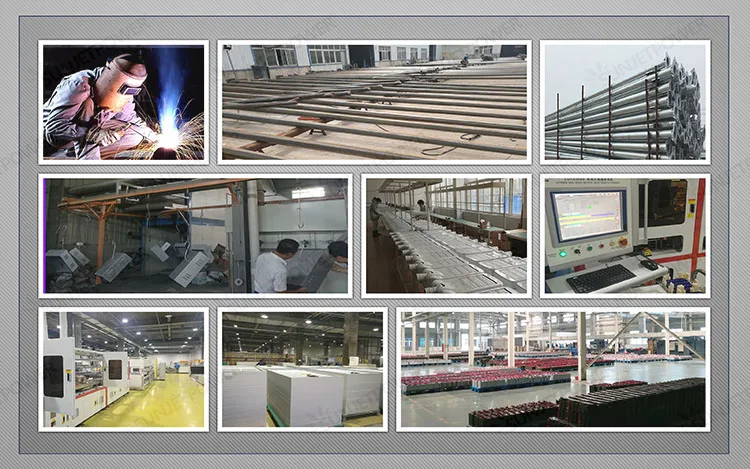

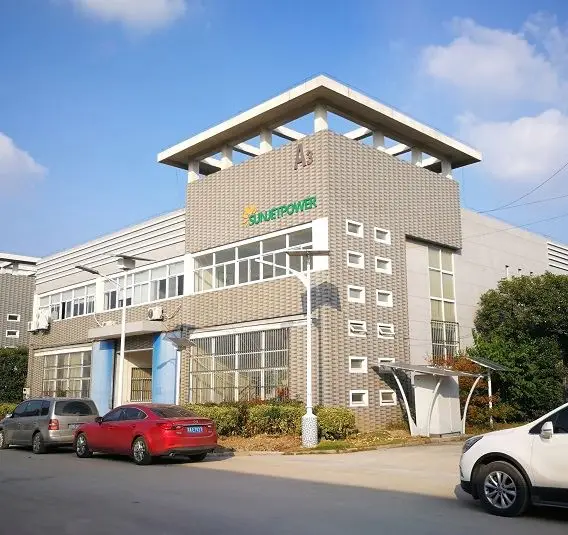

Company Information
FAQ
1. Are you a factory or a trading company?
A: We are a manufacturer with a 3KW plasma cutting machine, 3000W and 2000W laser cutting machines, 350T and 1000T stretcher machines to make sure our producing capability.Welcome OEM and ODM for you.
2. Can we have a sample order?
A: Of course! Any sample order is welcome for testing and checking.
3.What is the warranty for the products?
A: Battery:3 years. Controller/LED:5 years. Pole/solar panels:15-20 years.
4.How to ship the goods?
A: By sea usually. If urgent requirement, air-shipping is available(except:Batteries).
5. How to deal with the fault?
A: If the problem caused by manufacturing quality, we will change and replace it in free.
