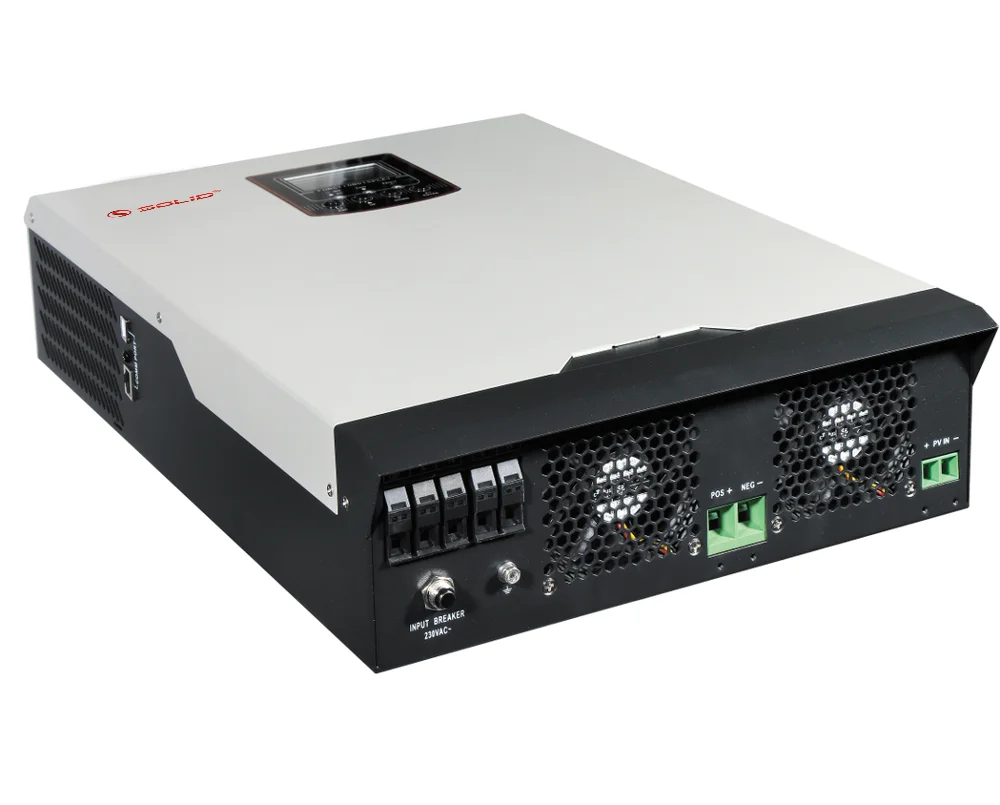

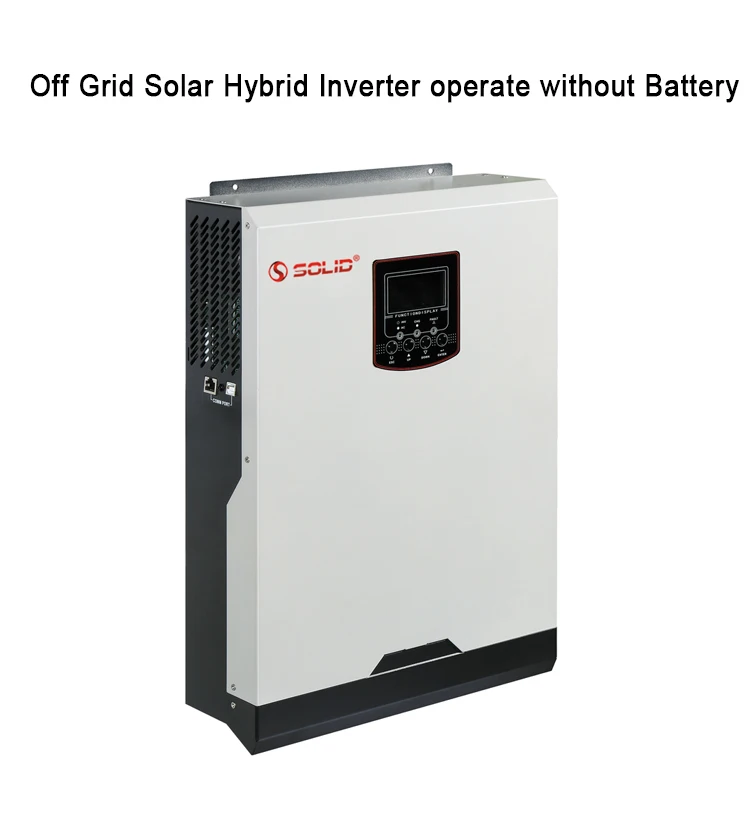

80A MPPT 5000w Hybrid Solar Power Inverter 48V DC 220vac 230vac 4KW 5KVA Home Solar Power System Inverter
- Category: >>>
- Supplier: Zhejiang Solid Electric Co. Ltd.
Share on (62284663564):
Product Overview
Description
80A MPPT 5000w Hybrid Solar Power Inverter 48V DC 220vac 230vac 4KW 5KVA Home Solar Power System Inverter
Product Description
| Model | HY3222VMII | HY5032VM II |
| RATED POWER | 3200VA / 3200W | 5000VA / 5000W |
| INPUT | ||
| Voltage | 230 VAC | |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% | |
| Surge Power | 6000VA | 10000VA |
| Efficiency (Peak) | 90%~93% | |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | |
| Waveform | Pure sine wave | |
| BATTERY | ||
| Battery Voltage | 24 VDC | 48 VDC |
| Floating Charge Voltage | 27 VDC | 54 VDC |
| Overcharge Protection | 32 VDC | 63 VDC |
| SOLAR CHARGER & AC CHARGER | ||
| Max. PV Array Open Circuit Voltage | 500VDC | 500VDC |
| Max. PV Array Power | 4000 W | 4000 W |
| MPP Range @operating Voltage | 120~450VDC | 120~450VDC |
| Max. Solar Charge Current | 80 A | 80 A |
| Max. AC Charge Current | 60 A | 60 A |
| Max. Charge Current | 80 A | 80 A |
| PHYSICAL | ||
| Dimension, D x W x H (mm) | 100 x 300x 440 | |
| Net Weight (kgs) | 9 | 10 |
| Communication Interface | USB/RS232 | |
| ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Operating Temperature | -10° C to 50° C | |
| Storage Temperature | -15° C to 60° C | |
FAQ:
Q1:As a manufacturer,what kind of products do you produce?
A1:We mainly produce DC To AC Power Inverter,Solar Hybrid Inverter,Solar Charge Controller,Single Phase&3 Phase Voltage Regulator(Voltage Stabilizer),AC To DC Battery Charger,Inverter With Charger(stand-by UPS) etc.
Q2:How many years of warranty do you provide for your product?
A2:Usually we provide 2 years of warranty for all our products,during this period,when there is something wrong with the product,we replace or fix the product for free based on actual situation ,and we provide lifetime maintenance guidance.
Q3:Talking about power inverter,about the modified sine wave and pure sine wave,the resistive load and inductive load,what’s the difference and relation between them?
A3: Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully.
As to inductive load,it refers to the application of electromagnetic induction's principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products'power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them.
Q4:What do you think your advantage is?
A4:Same quality level,we offer a better price;Same price level,we provide more reliable quality.Try a sample to test,then you will know we are not just saying it.
Q5:What about your OEM&ODM customization service?
A5:We can put your logo on the product based on a MOQ;You can give us your idea about your own product’s designing-including products’ appearance,function and packaging,our engineer and designing team will do for you.
