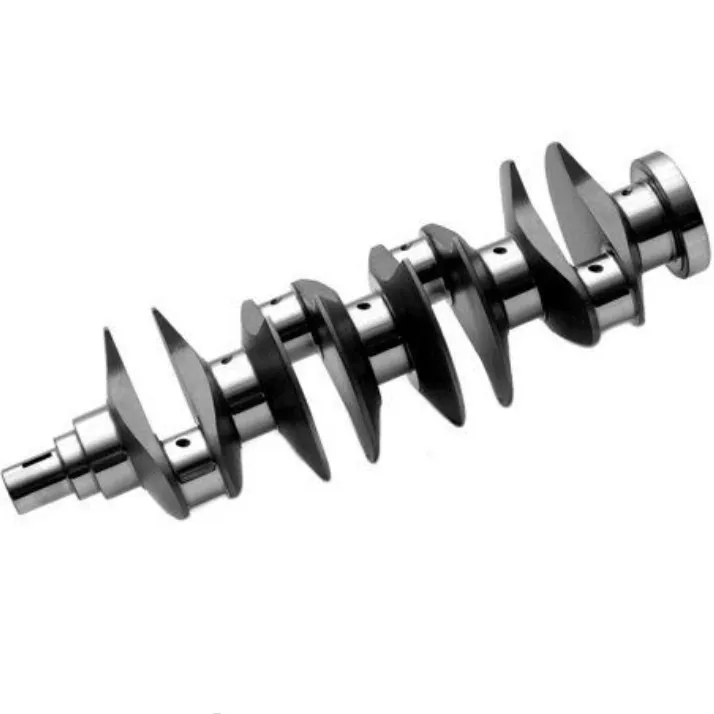

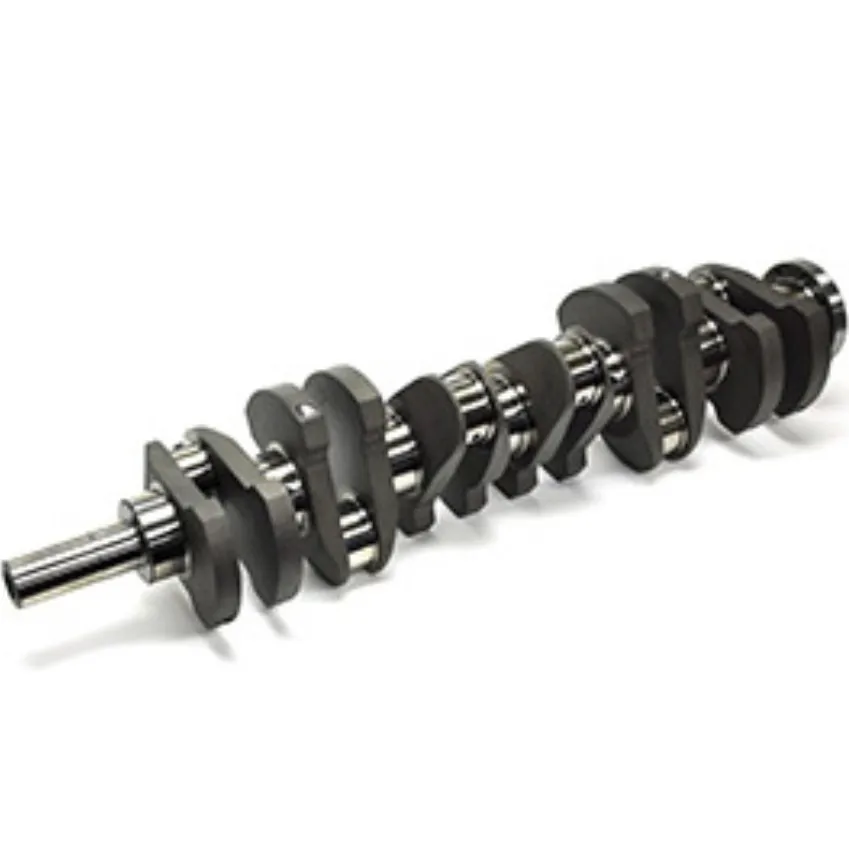

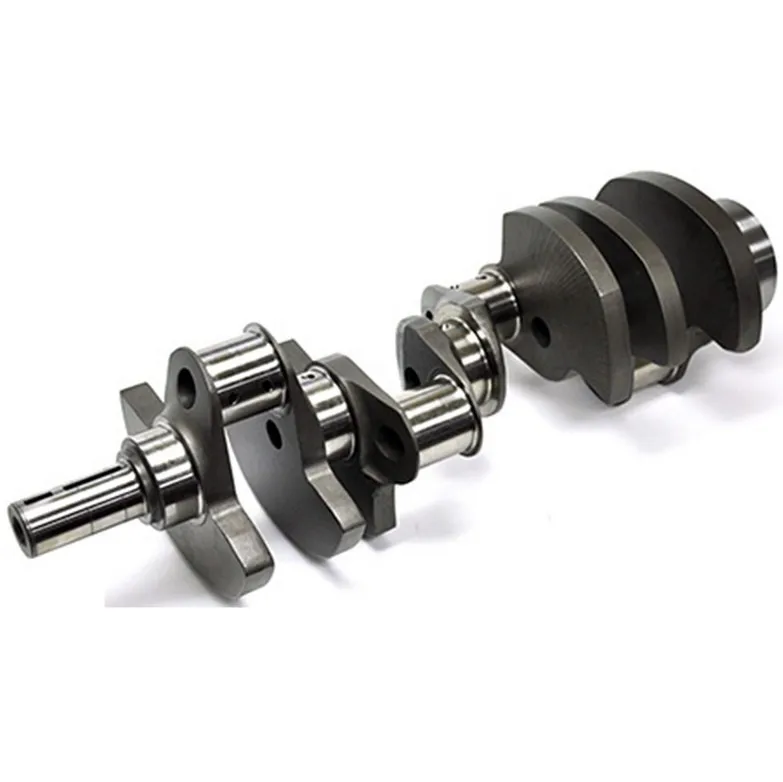

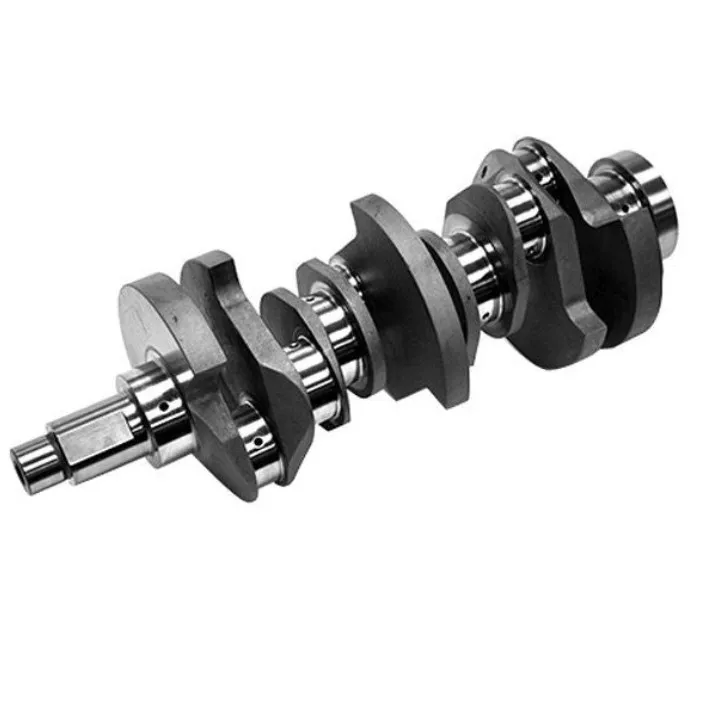

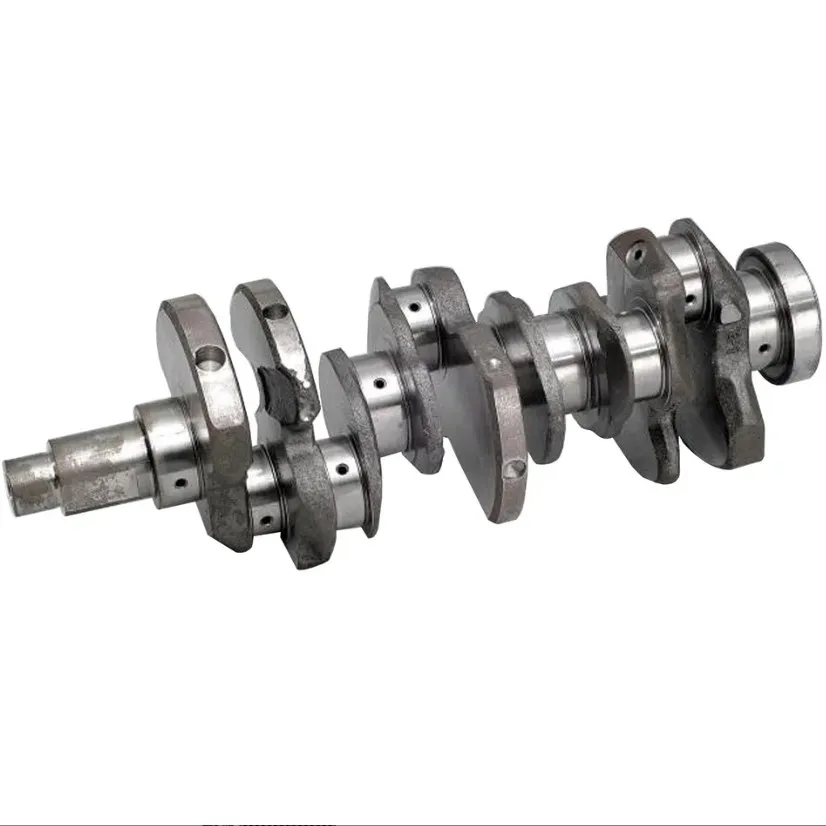

Коленчатый вал для Nissan Quest Infiniti G35 седан I35 M35 Q35 VQ35DE VQ35HR

Product Overview

Description

In stock High Performance Forged Steel Camshaft for Nissan Q35 VQ35DE VQ35HR Cranks





  Quick Detail



Material	Forged Steel
Date of Delivery	1-3 days if in stock,80-90 days if out of stock
Application	for Nissan VQ35 VQ35DE VQ35HR Crankshaft





    NLGROUP  DESIGN





customized design counterweight                        Pendulum Undercut Counterweight







Knife Edge Counterweights                                      Oil Groove Counterweights







Knife Edge Counterweights                                   Tapered Counterweights







Lighten Holes at Rod Journals









Technical Features





• Materials:40CrNiMoA  Heating treatment:HRC34-38

• Crankshaft will get thermal refining after normalizing,HRC34-38.The difference will be within 4HRC on same one cranks



• No over burning,carbon-free surface layer is within 0.3mm



• Folding,oilet,cracks, oxidation and other things is not permitted for Cranks macrostructure.

• Balance weight value need keep 0-20g.cm on counterweight of big end and small end



• Peening treatment will be done after balance weight

• Nitrogen treatment will be done after precision grind,compound layer depth is 0.008mm after polishing.diffusion layer is over 0.3mm,hardness on surface is not less than 500HV.

• No damage,scallops and other visible disadvantage on surface.



• Crankshaft will be cleaned up to make sure there is no filings in oil hole.



• magnetic flaw detecting will be done according to standard JB/76729-93



• Other size tolerance :standdars GB1804-79  IT14,No marked place  roughness:Ra6.3
