magnetic high temperature resistance microwave absorbing material
- Category: Filters >>>
- Supplier: Dalian Yingshi Microwave Absorption Material Co. Ltd.
Share on (62284735549):
Product Overview
Description
Product Description
Summary

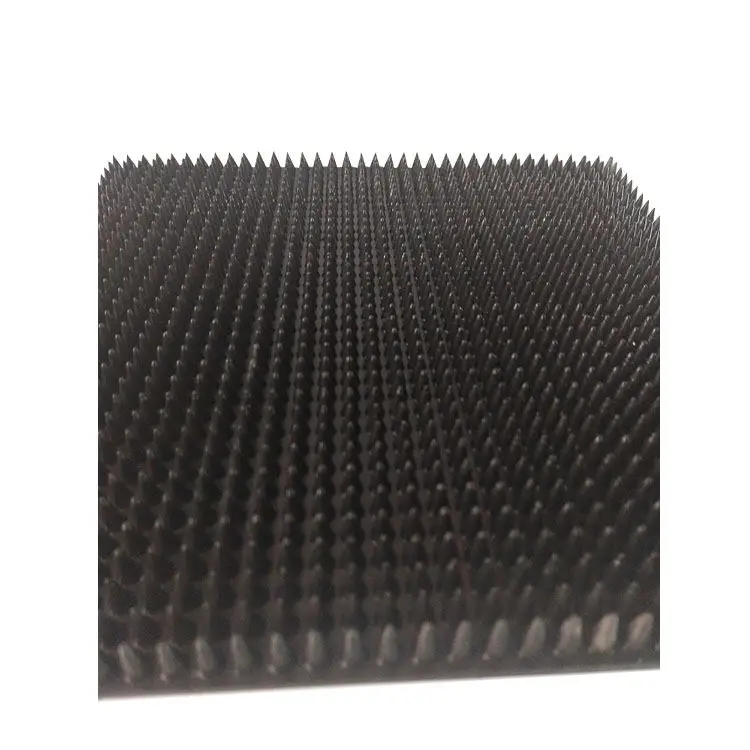

Rubber cone microwave absorbing material is thin ,flexible, good strength ,aging resistance

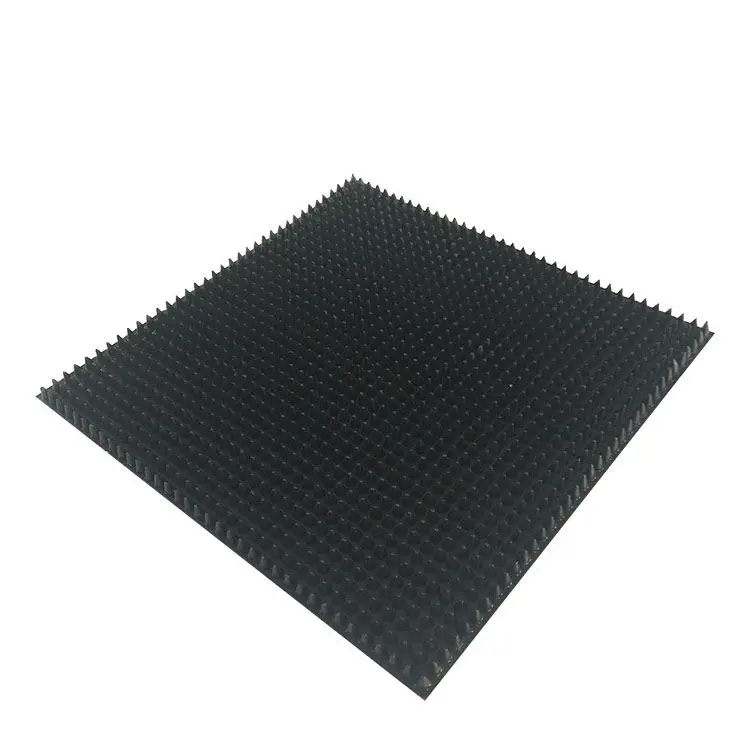

microwave absorber
Features and Benefies Market
Flexible, rubber, thin
Commercial Telecom
Used in harsh environment
Security and Defense
Cone
Electronic equipment test
Broadband, suitable for centimeter band Radar antenna
Radar antenna
absorption purposes, oblique incidence is better than flat
Specifications
Power capacity: 0.3W/cm²
Service Temperature °C : -55-100℃
Standard thickness Size : 6,10,16,25mm
Per piece : 200*200mm

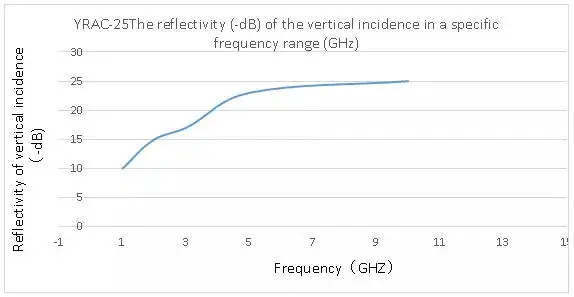

| Model | Thickness (mm) | Weight (Kg/m2) | The reflectivity (-dB) of the vertical incidence in a specific frequency range (GHz) | Size( mm) | ||||||
| 35 | 15 | 10 | 6 | 4 | 3 | 2.5 | ||||
| YRAC-10 | 10 | 7 | 25 | 20 | 17 | 12 | 200x200 | |||
| YRAC-25 | 25 | 15 | 25 | 25 | 25 | 20 | 17 | 13 | 10 | 200x200 |
Applications
The vicinity of the radar antenna
Send and receive antenna spacing plate
Ship mast and some upper parts
Radar storage, the inner wall of the shielding box
The test site of the ground and other parts of the reflection caused by absorption of harmful
reflection, interference
Related Products

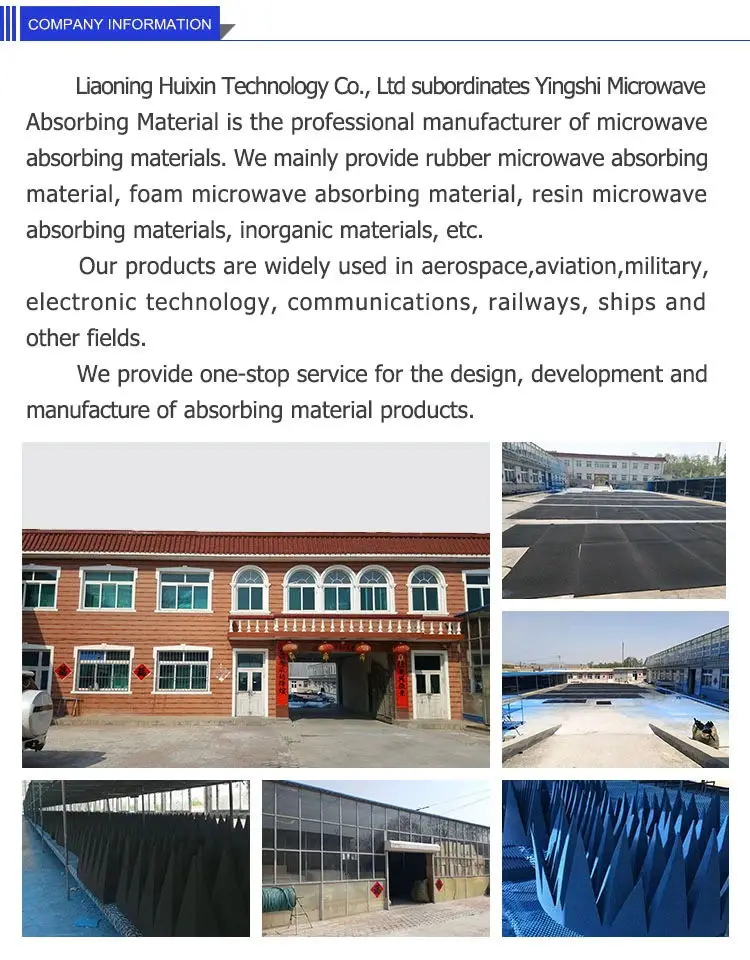

Company Information
Certifications
Production Reality
Packing & Shipping
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price,
2. Q: How can I get a sample to check your quality?
A: After we know your requirement, if need,will send the sample to you.
3. Q: Can you do the design for us?
A: Yes. You can tell us your requirement, we can manufacture the products as per your requirements.
4. Q: What's your terms of delivery?
A: We accept FOB, CIF, etc. You can choose the one which is the most convenient or cost effective .
