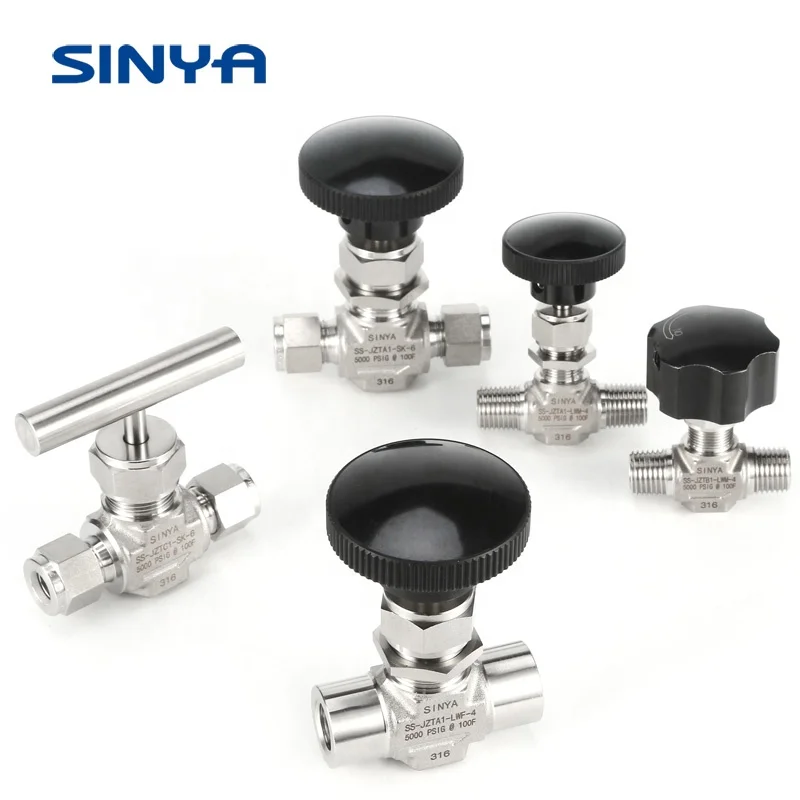

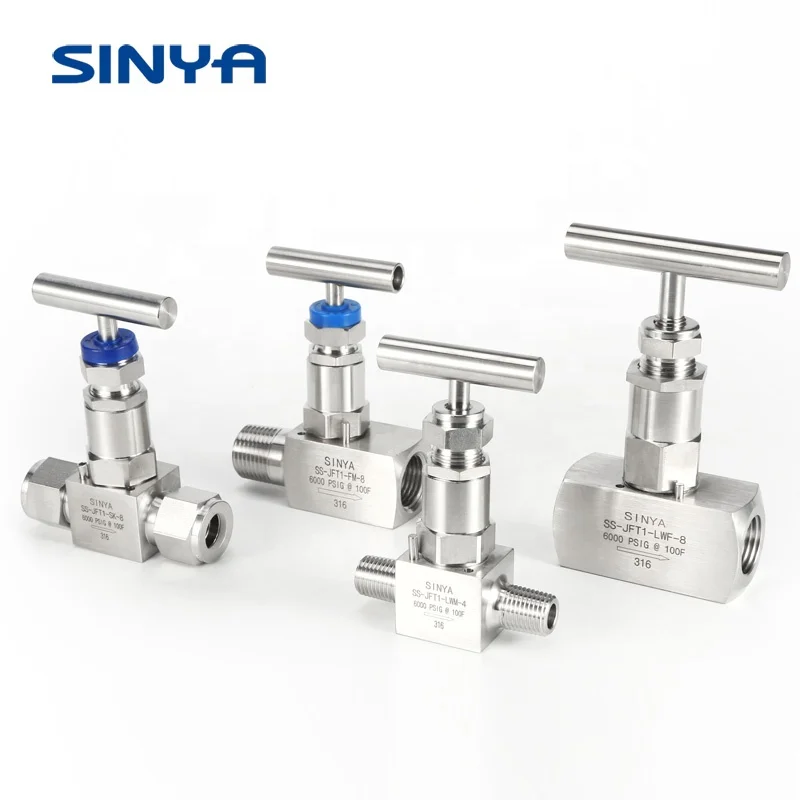

6000 PSI Manufacturer Forged Stainless Steel 316 Graphite Instrument Union Bonnet(Power Plant) Mini Bar Stock Needle Valves
- Category: >>>
- Supplier: Yangzhong Xinya Automatic Control Engineering Co. Ltd.
Share on (62284797779):
Product Overview
Description

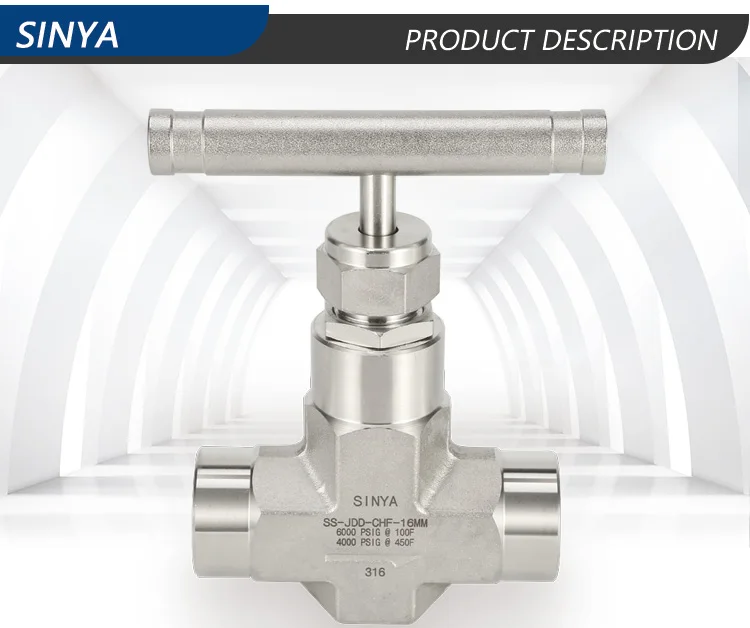

Product Description
1.316 stainless steel. | ||||||||
2.High pressure graphite seal . | ||||||||
3.Socket weld, gasket seal weld, butt weld . | ||||||||
4.Panel mouting and non-panel mouting . | ||||||||
5.With closeor cut function in fluid system . | ||||||||
6.With compact design can control bigger cv . | ||||||||
7.Two pieces articulated connection make non-rotating stem more reliable . | ||||||||
8.In the fully open position,the safety of the needle seat sealing can be obtained. | ||||||||
9.Stem thead and articulation place at top of packing prevent them from contacting medium . | ||||||||
10.High temperature graphite seal . | ||||||||
11.Working pressure up to 6000Psi（413bar). | ||||||||

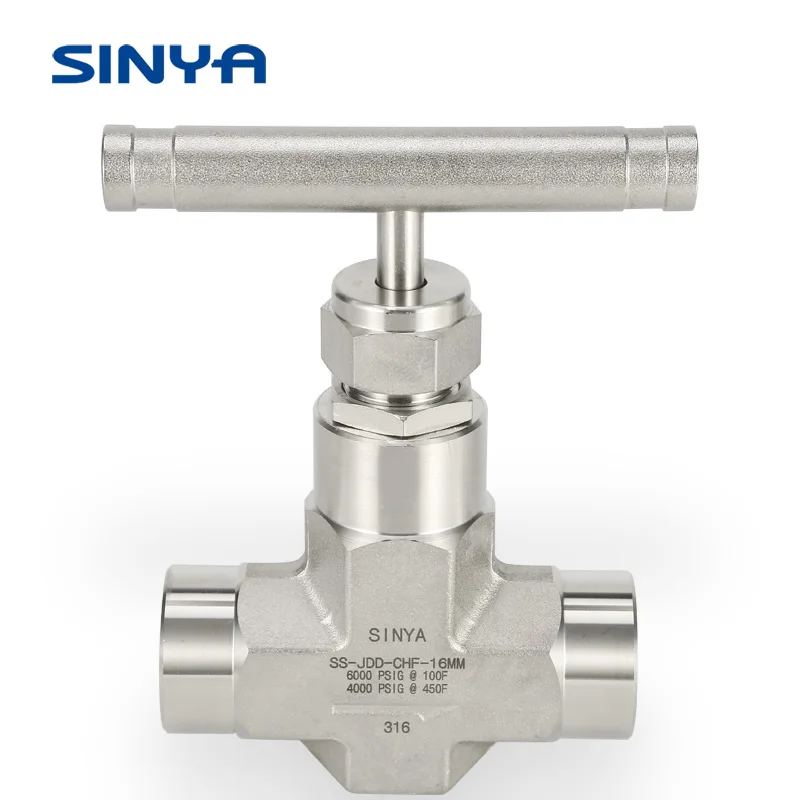

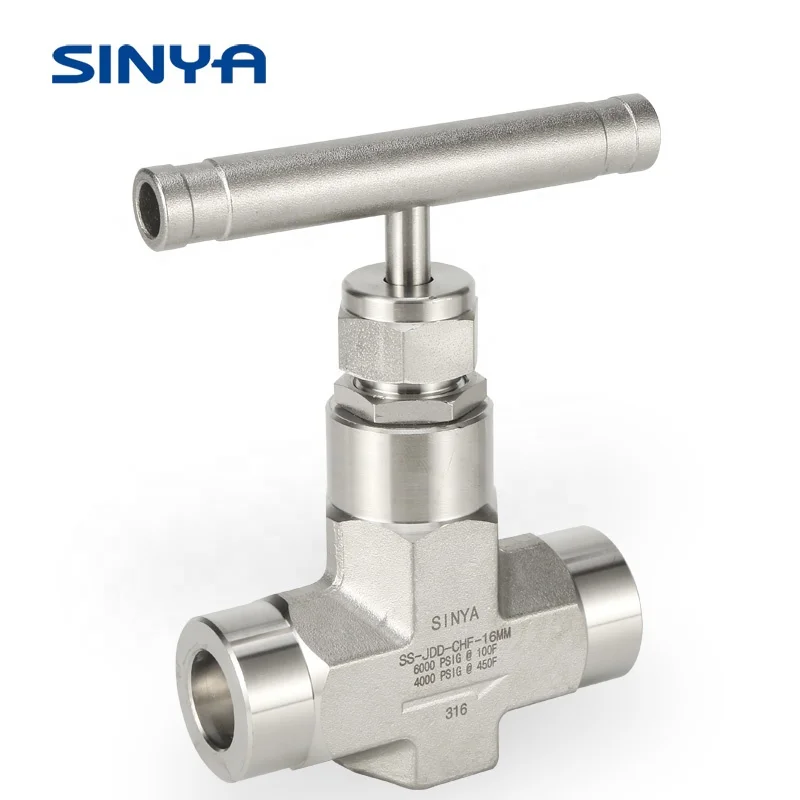

XYF-JDD-CHF socket weld series | ||||||||||

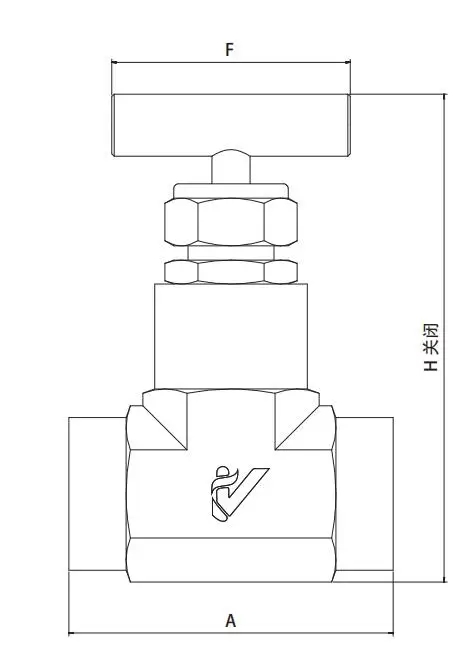

Ordering Number | End Connection | DN（mm) | Size (mm) | |||||||
Imperial Tube Butt Weld(in) | F | H | A | |||||||
-JDD-CHF-6 | 3/8 | 3 | 45 | 85 | 58 | |||||
-JDD-CHF-8 | 1/2 | 8 | 51 | 101 | 67 | |||||
-JDD-CHF-12 | 3/4 | 11 | 77 | 133 | 90 | |||||
-JDD-CHF-16 | 1 | 8 | 51 | 108 | 90 | |||||
metric tube butt weld(mm) | ||||||||||
-JDD-CHF-8mm | 8 | 3 | 45 | 81 | 51 | |||||
-JDD-CHF-10mm | 10 | 5 | 45 | 81 | 51 | |||||
-JDD-CHF-12mm | 12 | 5 | 45 | 81 | 57 | |||||
-JDD-CHF-14mm | 14 | 8 | 51 | 98 | 67 | |||||
-JDD-CHF-16mm | 16 | 8 | 51 | 98 | 67 | |||||
-JDD-CHF-18mm | 18 | 11 | 77 | 133 | 83 | |||||
-JDD-CHF-25mm | 25 | 11 | 77 | 133 | 83 | |||||

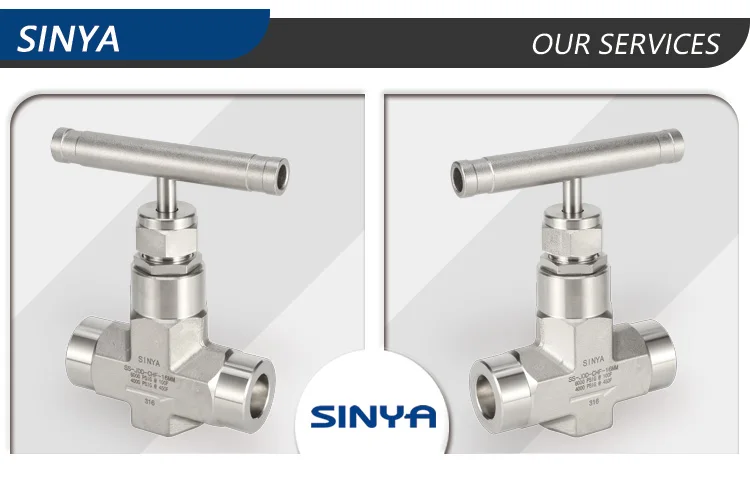

Our Services
Sinya tries to get the satisfaction of all users by providing Premium Quality products and services in the field of Instrumentation tube fitting & valves ,and also providing an appropriate combination of price, quality, satisfying services and fast delivery. Its products are provided based on three fundamental factors: 1) Quality 2) Variety 3) Reliability | ||||||||
1.Custom design, CAD drawing | ||||||||
2.P&ID | ||||||||
3.Component selection | ||||||||
4.Bill of material | ||||||||
5.Professional services such as bending and welding | ||||||||
6.Testing to guarantee the system | ||||||||
7.Professional packaging and delivery | ||||||||

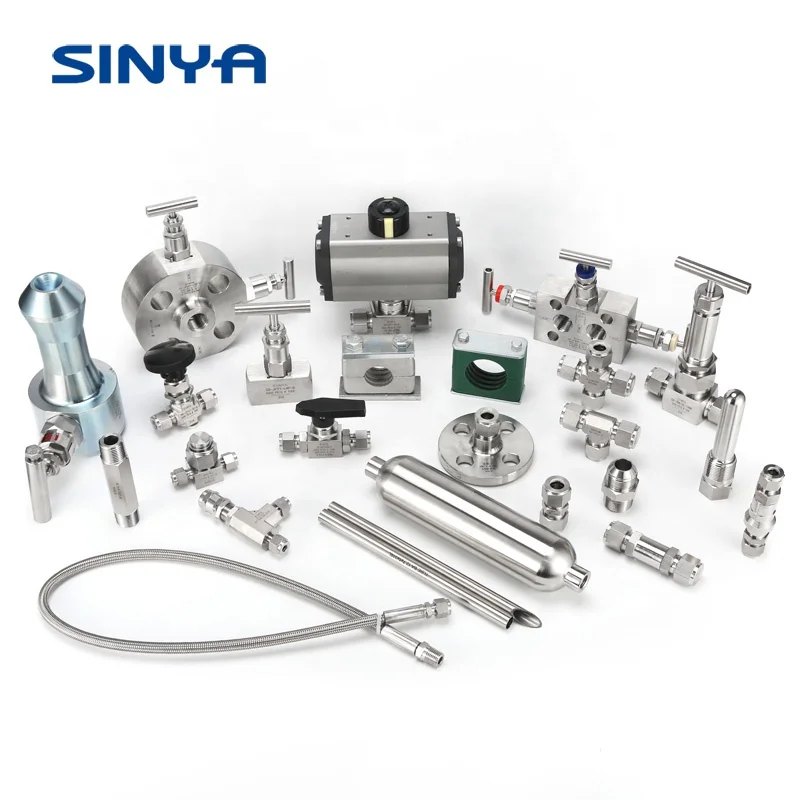

Products Display
Contact us to get more information : | ||||||||
Tube Fittings | Check Valves | Manifolds Valves | In-line Filters | Thermowells | ||||
Pipe Fittings | Relief Valves | Distribution Manifolds | Instrumentation Tubing | Syphons | ||||
Needle Valves | Air Headers | Bleed & Purge valves | Sample Cylinders | Tube Clamps | ||||
Ball valves | Gauge Valves | T-type Filters | Pots and Vessels | |||||
Packaging & Delivery
Mode of packing: | Export standard package or as your detail request. | ||||||||
Delivery time: | 2 weeks after receipt of payment | ||||||||
Mode of shipment: | By Express like DHL,Fedex,TNT Ups. | ||||||||
Our Company
1.Established in 1995. | ||||||||
2.We are professional manufacturer of Instrumentation Tube Fittings, Pipe Fittings, Needle valves, Ball Valves, Check Valves, Manifold Valves, DIN 2353 Fittings, Sampling systems, Water Heater Accessories. | ||||||||
3.Products are available in the variety of different materials, such as Stainless steel 316/316L, Duplex, Super Duplex, Hastelloy, Monel, Inconel, Incoloy, Titanium, Zirconium. | ||||||||
4.We located in Zhenjiang City, near shanghai port with convenient transportation access worldwide. | ||||||||
5.Our products are widely used in industries of Chemical, Petrochemical, Power Generation, Oil, Gas, Shipbuilding. | ||||||||
6.Always available to discuss your requirements and ensure full customer satisfaction. | ||||||||
7.We have Japanese Mazak CNC machine, 3D measure equipment, Raw Material chemical composition inspection equipment, High pressure test equipment, etc. | ||||||||
8.We have obtained ISO9001 certificate, CE Certificate. | ||||||||
9.Our products are exported to Middle east, North America, South America, South East Asia, Europe and other countries. | ||||||||
10.We also welcome OEM and ODM orders. Please feel free to contact and visit us. | ||||||||
