Product Overview
Description

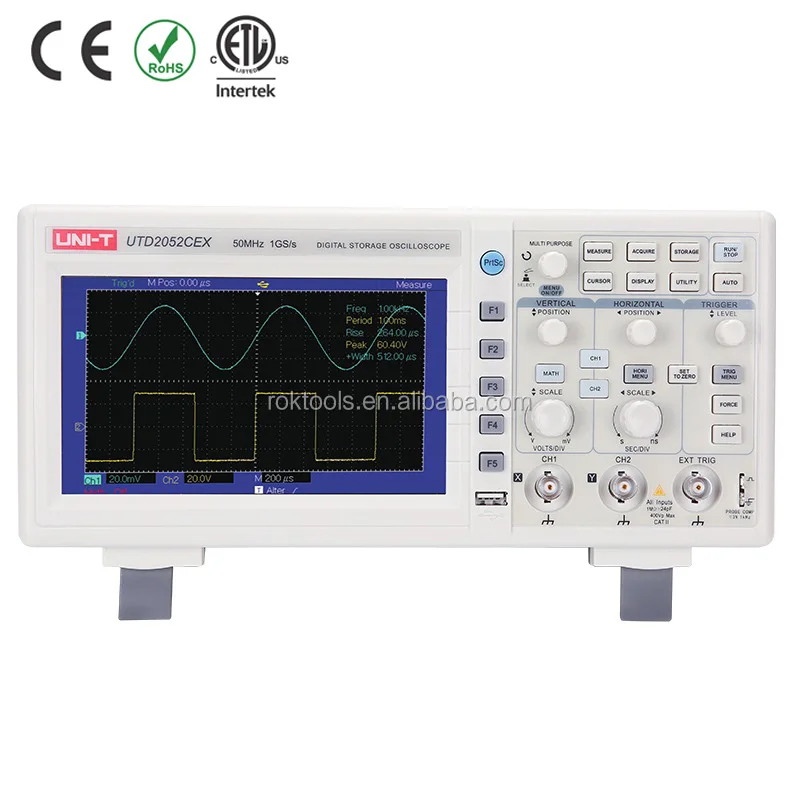

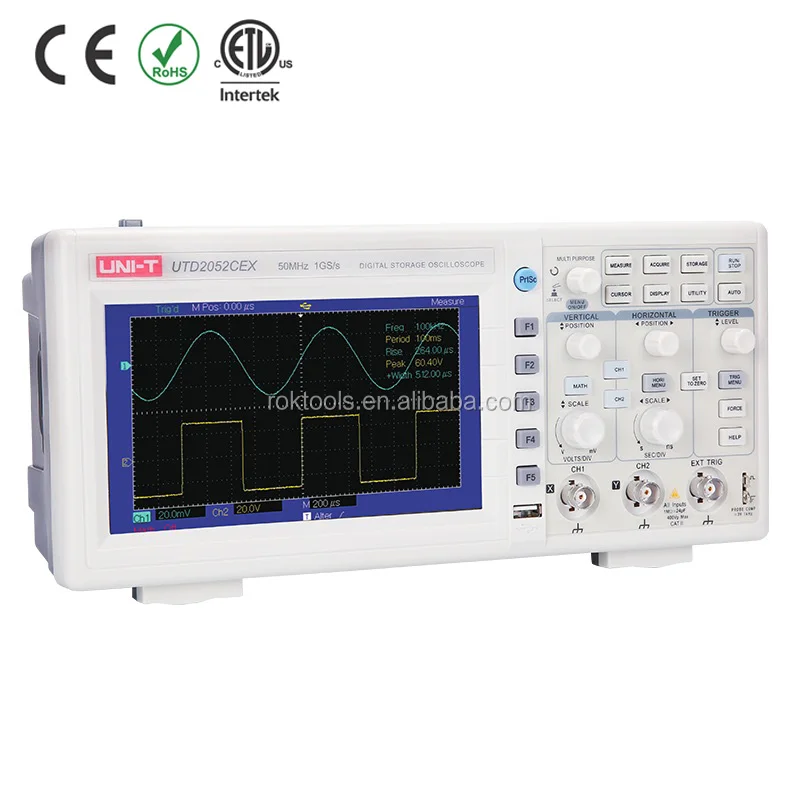

The New Interface Style Multilingual Menu Available Digital Storage Oscilloscope
1. 2 channels, wide vertical range: 1mV/div~20V/div;
2. 7 inch widescreen LCD display;
3. The new interface style;
4. Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;
5. USB drive system software upgrade;
6. Storage of waveform setups and interface waveform and setup reproduction;
7. Automatic measurement of 32 waveform parameters;
8. Unique waveform record and replay function;
9. Multilingual menu available
| Specifications | UTD2052CEX |
| Channels | 2 |
| Bandwidth | 50MHz |
| Sample Rate | 1GS/s |
| Rise Time | ≤7ns |
| Memory Depth | 25kpts |
| Waveform Acquisition Rate | ≥2000wfms/s |
| Vertical Sensitivity (V/div) | 1mV/div~20V/div |
| Timebase Range (s/div) | 2ns/div~50s/div |
| Storage | Setup, Wave, Bitmap |
| Trigger Modes | Edge, Pluse, Alternate |
| Interface | USB OTG |
| General Characteristics | |
| Power | 100-240VAC, 45-440Hz |
| Display | 7 inches 64k Color TFT LCD, 800×480 |
| Product Color | White and grey |
| Product Net Weight | 2.2kg |
| Product Size (W×H×D) | 306mm ×147mm × 122mm |

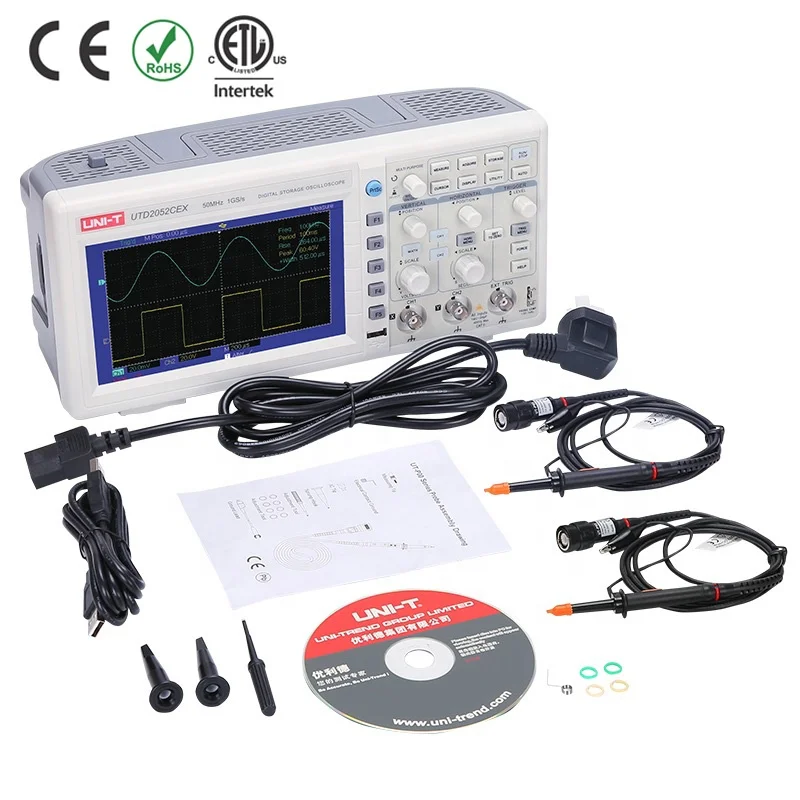

| Standard Accessories | Probe×2 (1×,10× switchable), Power Cord, USB Cable, PC Software CD |
| Standard Individual Packing | Gift Box, English Manual |
| Standard Quantity Per Carton | 2pcs |
| Standard Carton Measurement (L×W×H) | 450mm× 420mm × 280mm |
| Standard Carton Gross Weight | 8.5kg |
| Optional Accessories | LA Module |
