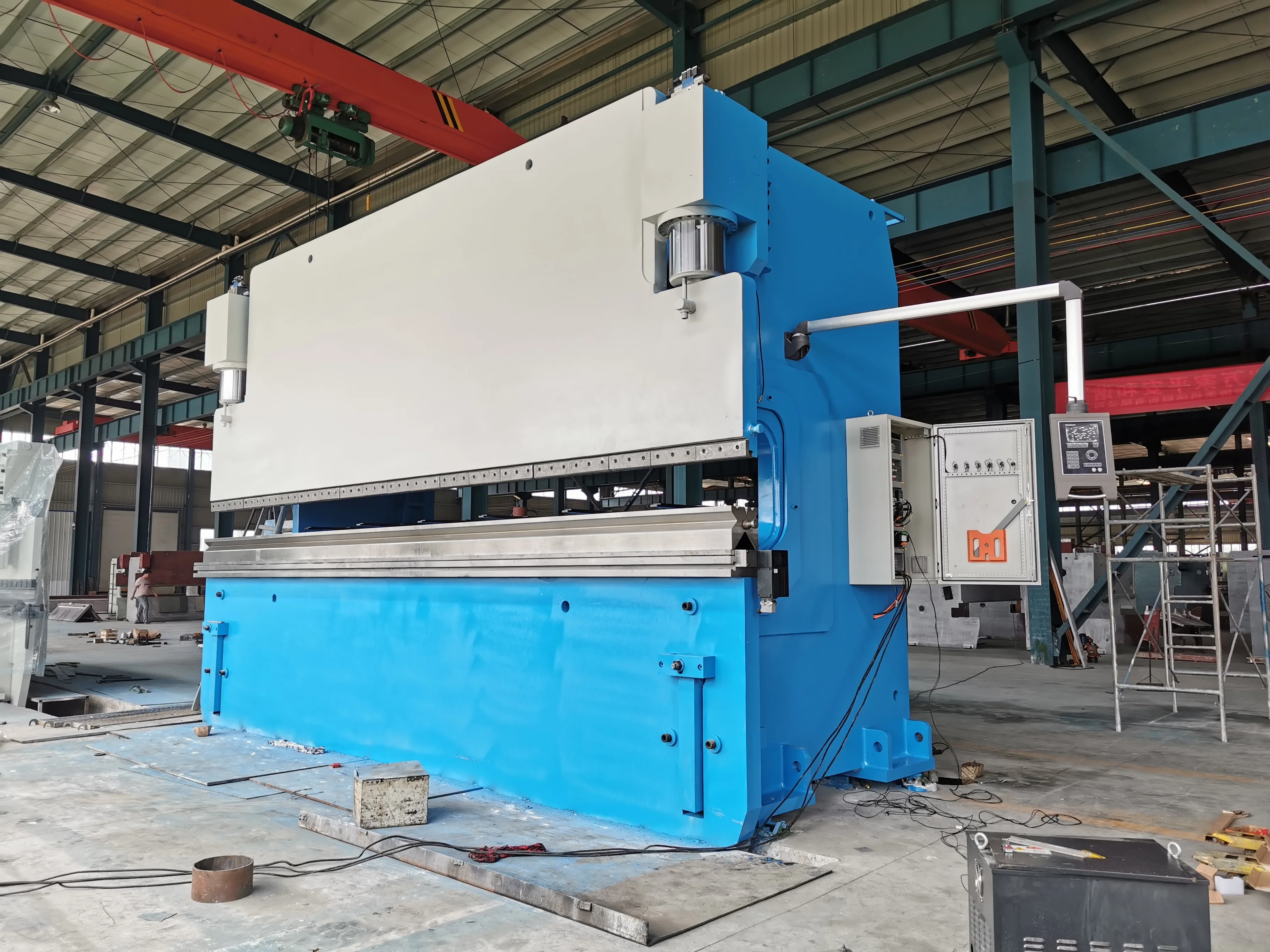

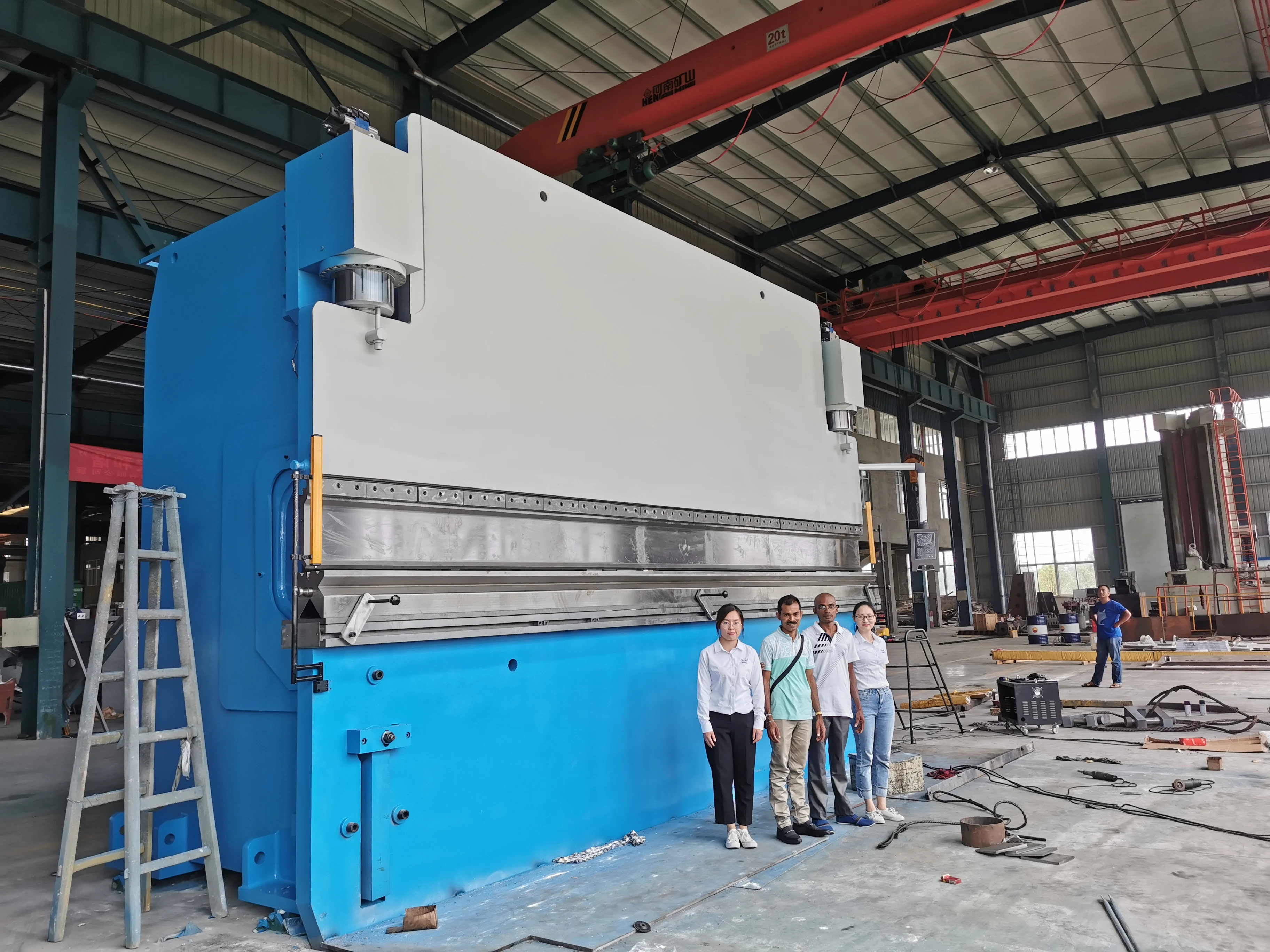

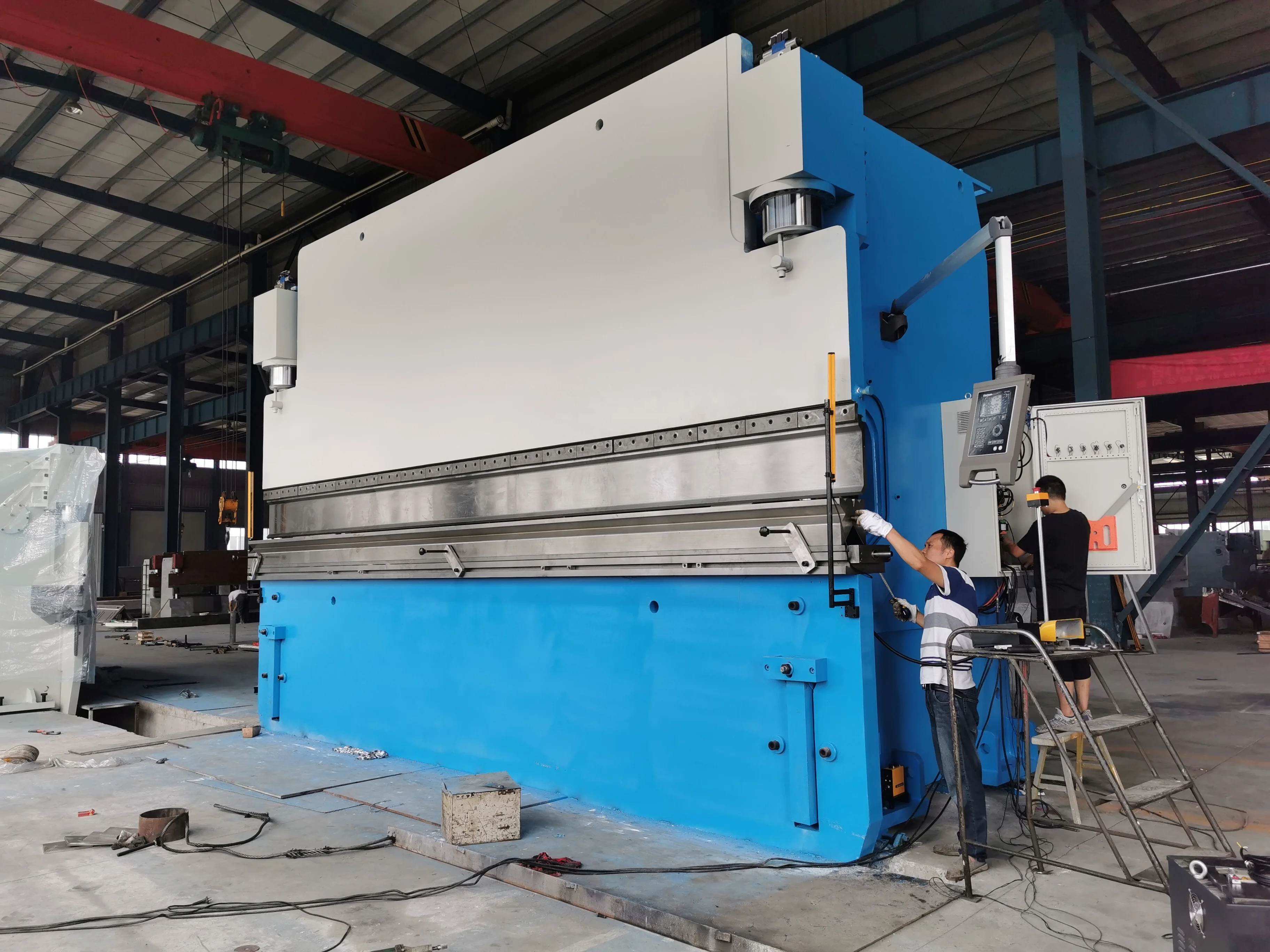

hydraulic cnc 6m press brake machine
- Category: Press Brake >>>
- Supplier: Anhui Runbang Heavy Industry Machinery Co. Ltd.
Share on (62284982852):
Product Overview
Description
NC and CNC hydraulic sheet metal bending brake
A press brake is a machine tool for bending sheet and plate material, most commonly sheet metal. It forms predetermined bends by clamping the workpiece between a matching punch and die.
Typically, two C-frames form the sides of the press brake, connected to a table at the bottom and on a movable beam at the top. The bottom tool is mounted on the table, with the top tool mounted on the upper beam.[
Torsion Bar Synchro NC Hydraulic Press Brake
1.Integrated steel plate welding structure;
2.double hydraulic cylinder transmission;
3.torsion bar synchro;
4.back gauge position X axis and ram stroke Y axis NC control; DA41 E300 CYBTOUCH8 bending angle control
5.multi-step programming memory
6. real-time bending amount display ;
7. power off memory of program technical data.
Electro-hydro Servo Synchro CNC Press Brake
1.integrated welding and vibratory stress relief;
2.electro-hydro servo valve and grating ruler for closed loop control;
2.high precision of backgauge position and re-positioning;
3.maximum 6 backgauge axis;
4.auto hydraulic crowning controlled by controller;
5.CNC system including DELEM (Netherlands), ESA (Italy), CYBELEC (Switzerland) etc.
Standard configuration | |||
NC press brake | WC67K | CNC press brake | WE67K |
Control system | Estun, Delem | Gear pump | America sunny |
Crescent gear pump | America sunny | Seal ring | Japan NOK |
Hydraulic system | Germany Rexroth | Control system | Delem, Cybelec,ESA |
Oil tank seal ring | Japan NOK | Grating ruler | Germany HEIDENHAIN |
Bite type fittings | Germany JS | Main motor | Sangta |
Motor | Germany Siemens | Servo motor | Nanjin Estun |

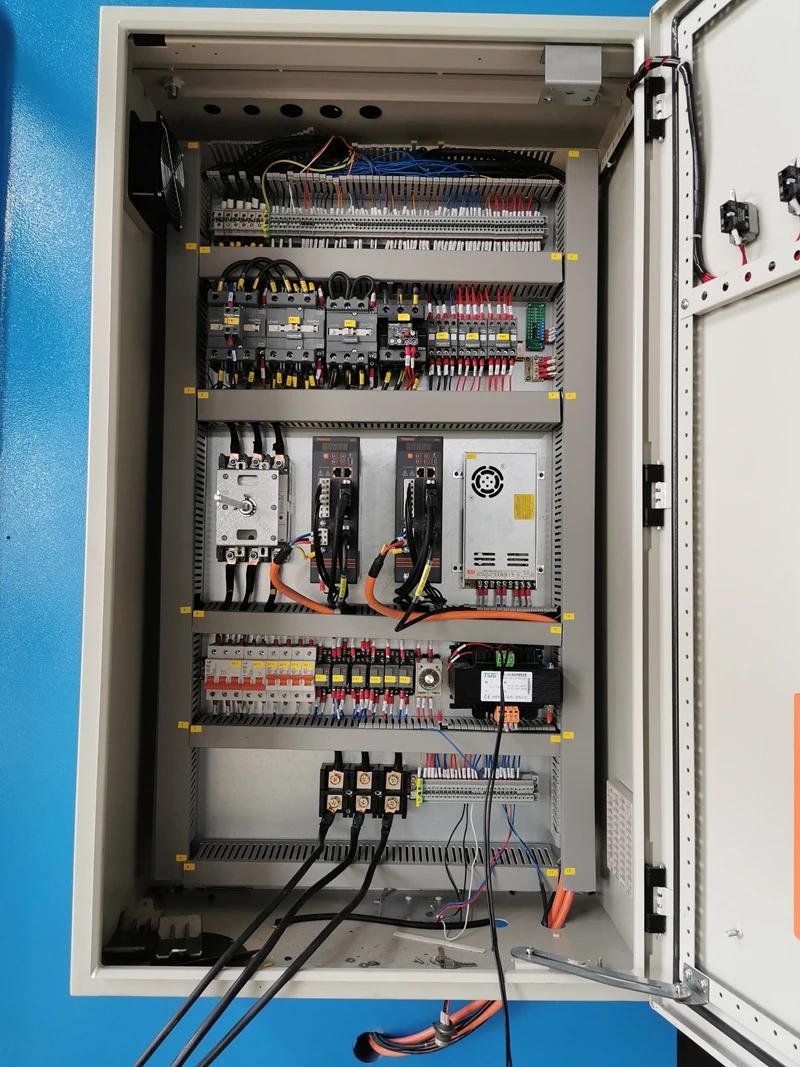

Electrical components | France Schneider | Main electronic components | France Schneider |
Mould | Material (42CrMo) | Oil cylinder | Jining taifeng |
Cylinder | Anhui Wuyang | square guide rail | Taiwan Hiwin |

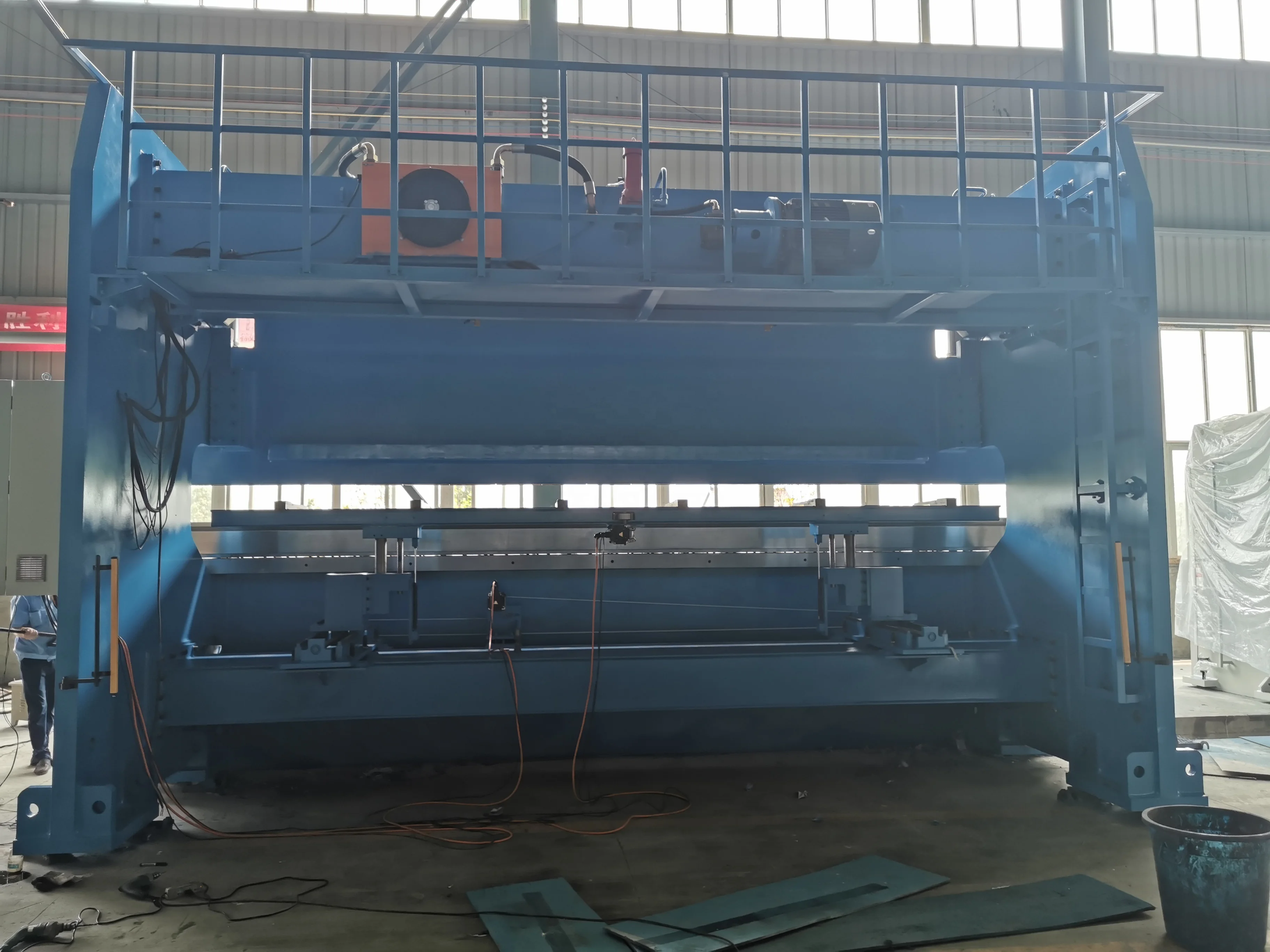

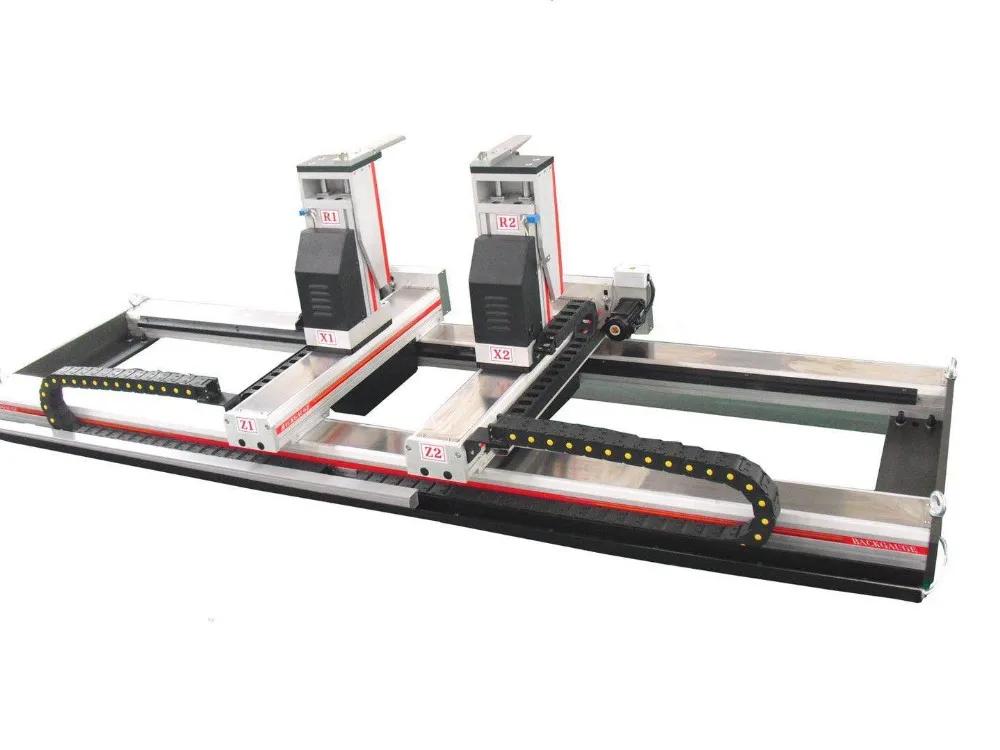

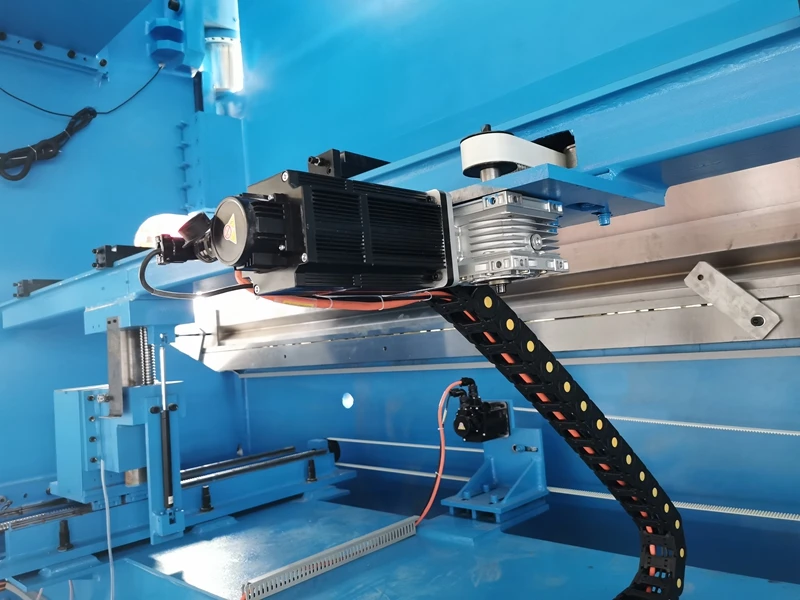

Back Gauge
Option: 1 axis to 6 axis back gauge according to your need
X / X+R / X+R+Z1+Z2 / X+R+Z1+Z2 / X+R+Z1+Z2+X Prime / X1+X2+R1+R2+Z1+Z2
6 axis
X1+X2+R1+R2+Z1+Z2

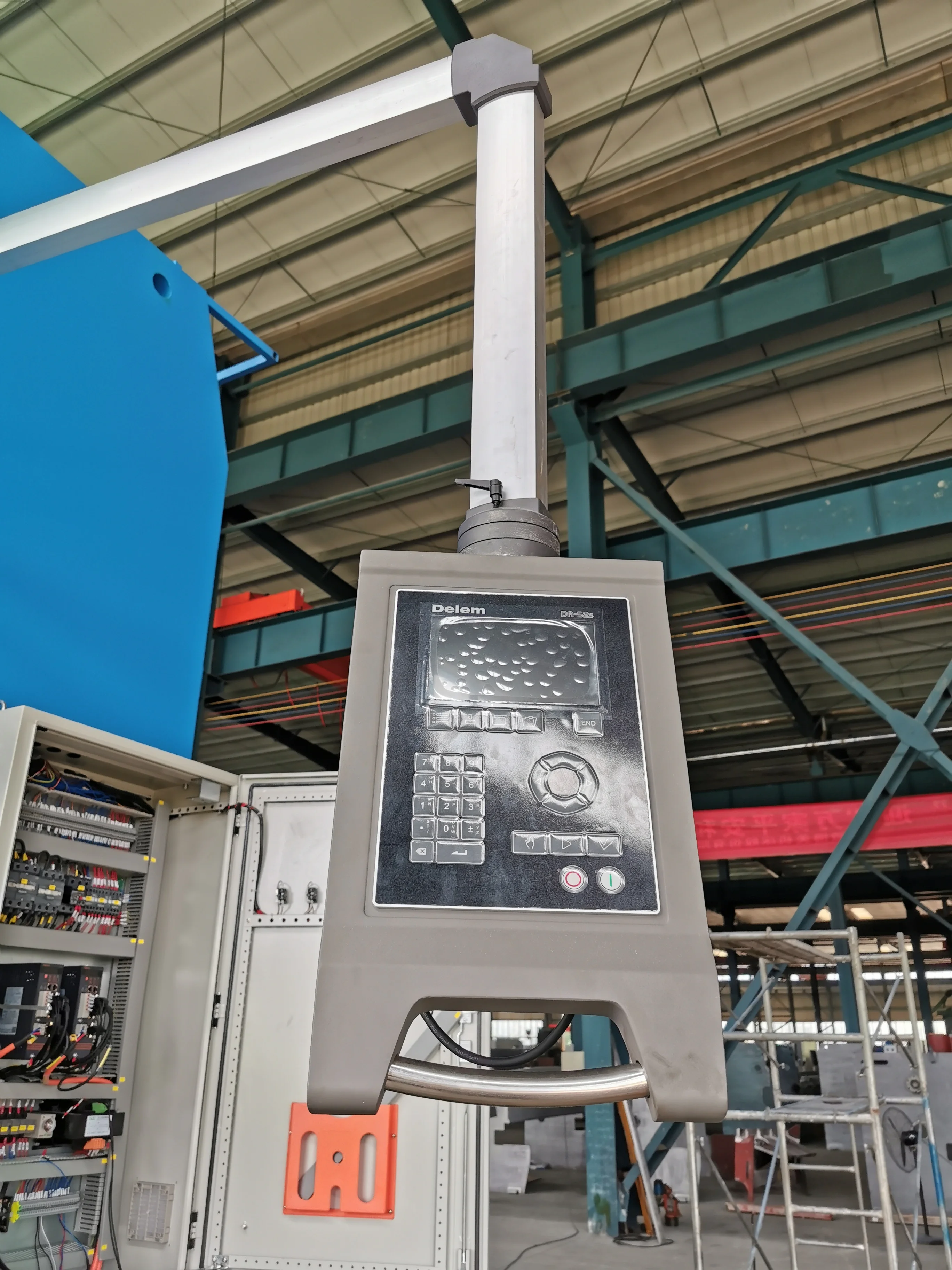

Press Brake Controller
For torsion bar synchro NC hydraulic press brake, we provide the E21 with steppor motor or E200, E300, DA41 and DA41s controller with servo system.
For electro-hydro servo synchro CNC press brake, we provide DA52s, DA58T, DA66T and CybTouch 8, CybTouch 12 controller.

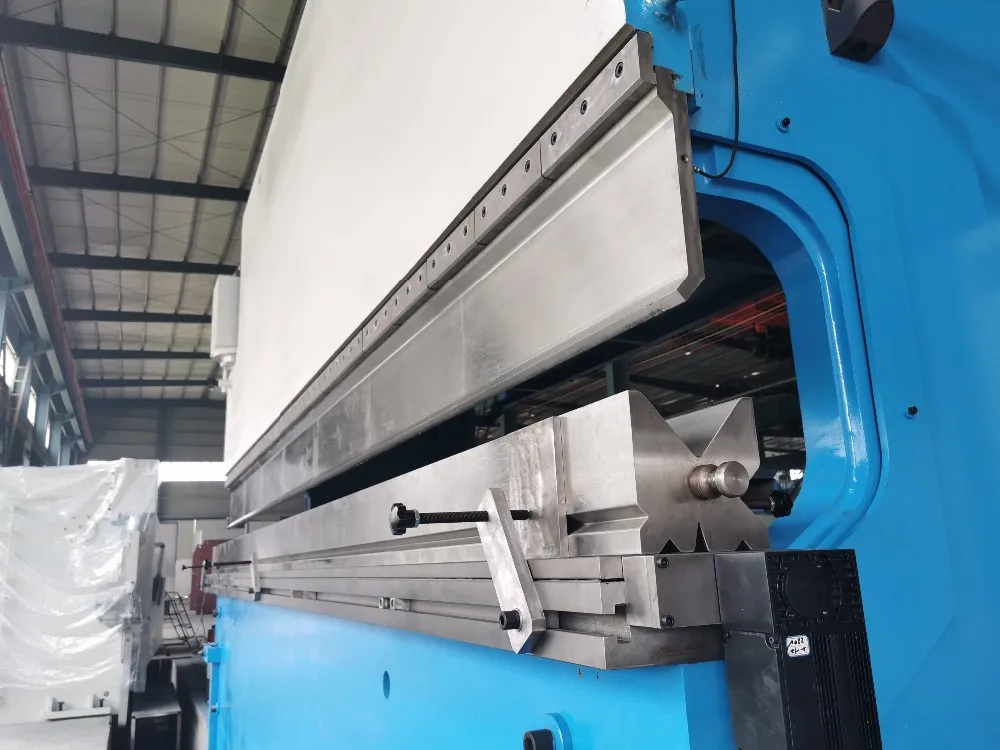

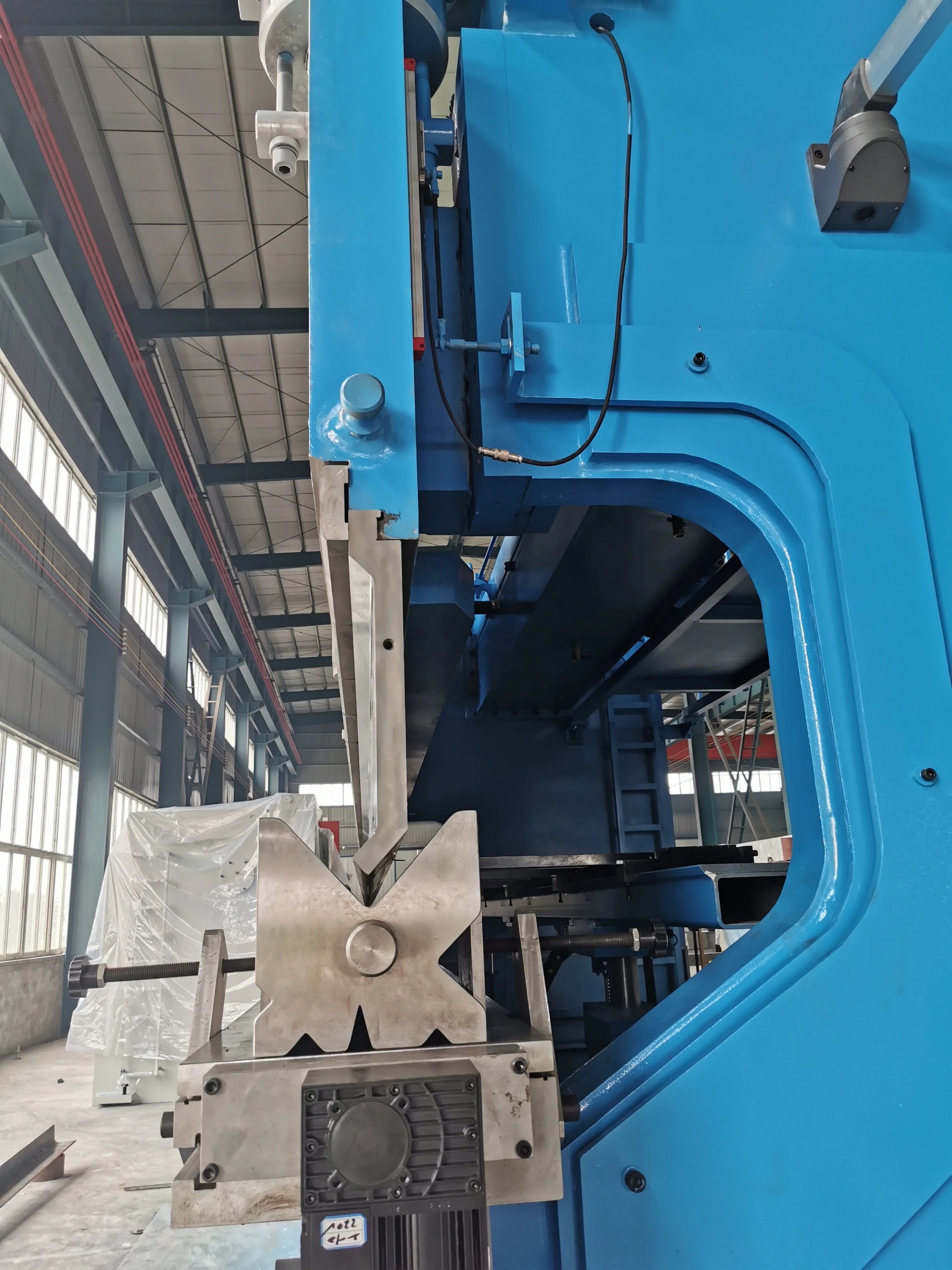

Standard Press Brake Toolings
Free Standard lower 4 way die block, and segment upper punch
Generally, the press brake toolings are customized based on final products or workpieces.
Additional press brake toolings
By your tool design or your workpiece drawings, We provide you various press brake upper punch, lower die, hemming tools, offset tools, tool clampings etc.
Payment Method | ||||
T/T | FOB | 30% T/T in advance, the balance paid before shipping | ||
CRF | 30% T/T in advance, paid the balance against copy of B/L | |||
CIF | ||||
L/C | L/C at sight or L/C 30 days is also accepted | |||
D/P | D/P is available for long-term cooperated customer | |||
Lead time | Normally 7-15 days after deposit or L/C received | |||
Trade Assurance Payment
100% product quality protection
100% on-time shipment protection
100% payment amount protection
Packaging & Delivery
Shipping Fee is depend on package size and weight
Plastic Film or wooden box or customized package Full container load or less container load
