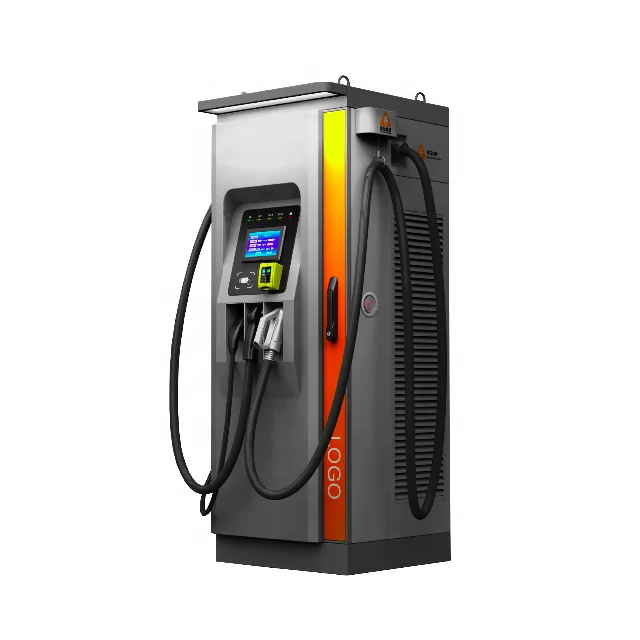

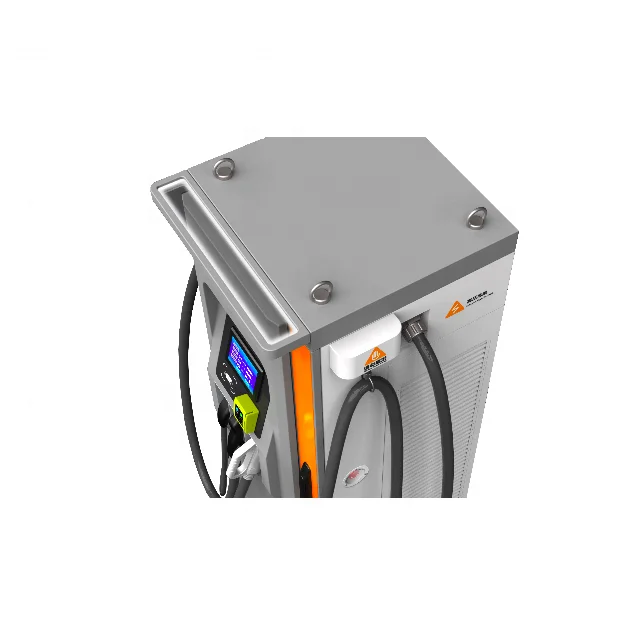

Ark eFlex Series DC Fast EV Charging Station with Up to 150kW DC and 22kW AC Output in CCS CHAdeMO and IEC 62196 Standards
Ark eFlex Series DC Fast EV Charging Station with Up to 150kW DC and 22kW AC Output in CCS CHAdeMO and IEC 62196 Standards
Ark eFlex Series DC Fast EV Charging Station with Up to 150kW DC and 22kW AC Output in CCS CHAdeMO and IEC 62196 Standards
Ark eFlex Series DC Fast EV Charging Station with Up to 150kW DC and 22kW AC Output in CCS CHAdeMO and IEC 62196 Standards

Ark eFlex Series DC Fast EV Charging Station with Up to 150kW DC and 22kW AC Output in CCS CHAdeMO and IEC 62196 Standards

Share on (62285136501):


Price:RUB 1,983,352.80 - RUB 2,135,918.40

Quantity:


Product Overview

Description

Quick Details

Port: Shanghai, Shenzhen
Payment Terms: L/C,T/T
Supply Ability: 1000 Unit/Units per Month
Brand Name: ARK or OEM
Charging Standards: CCS & CHAdeMO & IEC 61851
Warranty: 12 Months
Place of Origin: Jiangsu China
Efficiency: >94%
Rated Output Power: 150kW DC, 22kW AC
Output Current Range: 0 - 200A DC, 32A AC
Working Temperature: -20° C to +55° C
Input Frequency Range: 45 - 65Hz
Input Voltage Range: 260 - 530VAC
Model Number: UF150K1KCJ-AC22
Output Voltage Range: 150 - 1000VDC, 400VAC
Working Humidity: 5%-95%
Packaging Detail: (1) Wooden case package, dimension: 993*892*2024mm (2) Power modules outside the charger cabinet to be shipped independently in a wooden case to avoid the damage during shipping, dimension: 660*880*490mm (3) 15 units per 40' Container
