Manual wheat and rice harvester/hand operated mini paddy harvester

Product Overview

Description

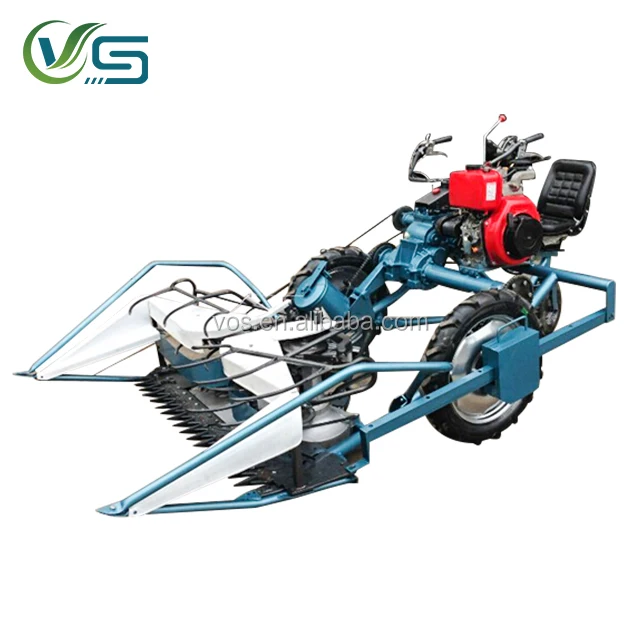

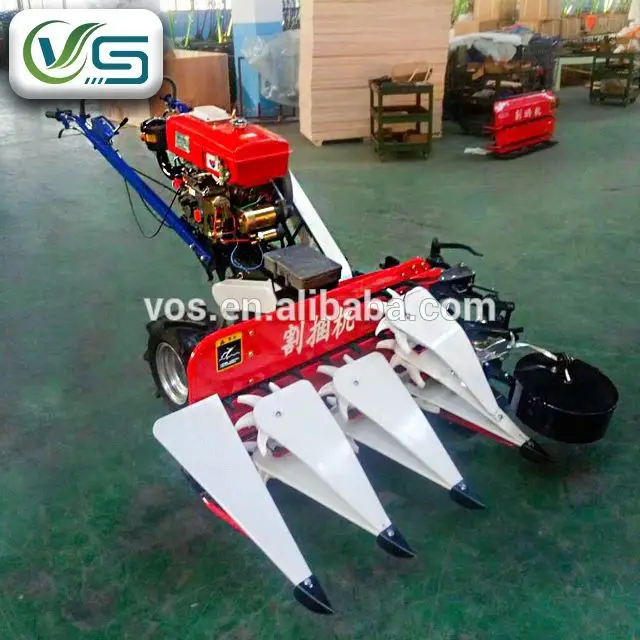

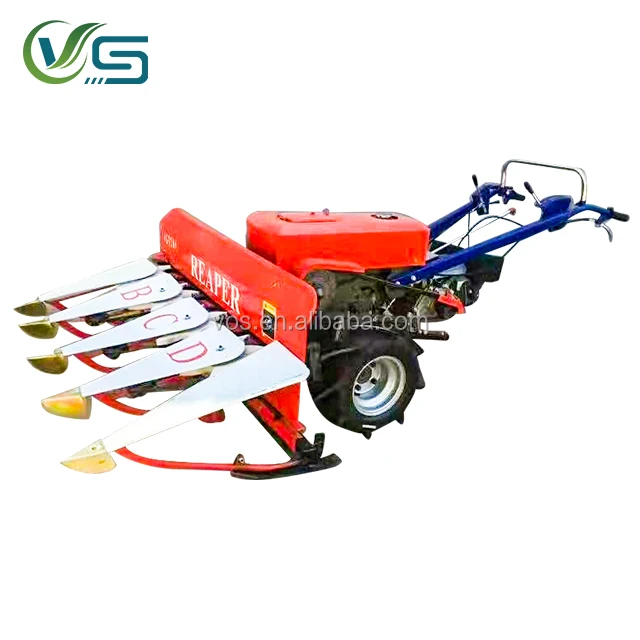

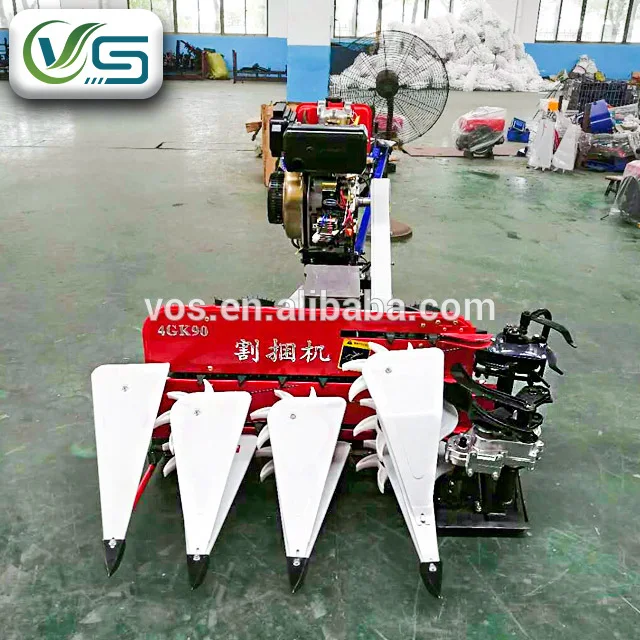

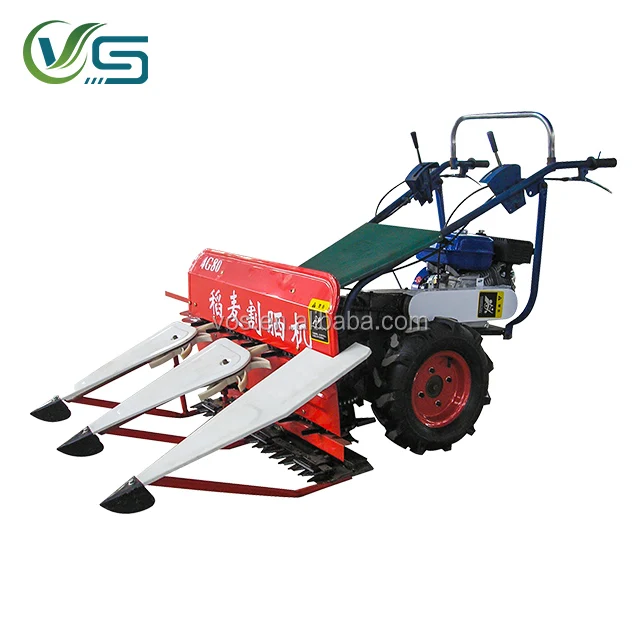

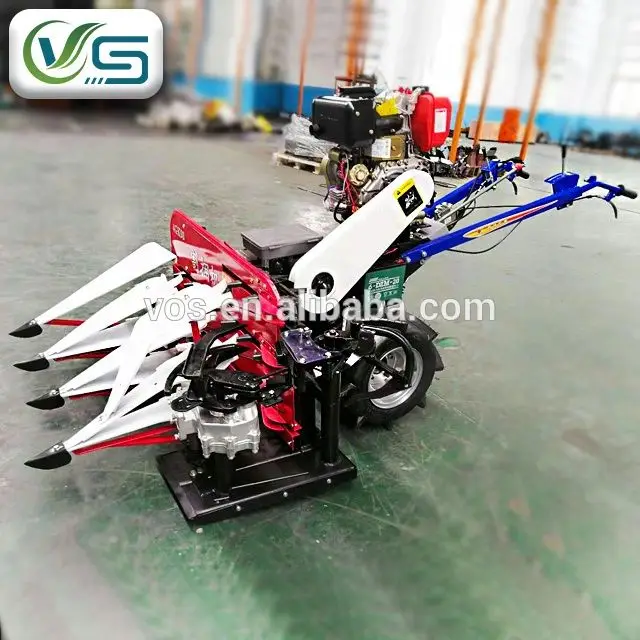

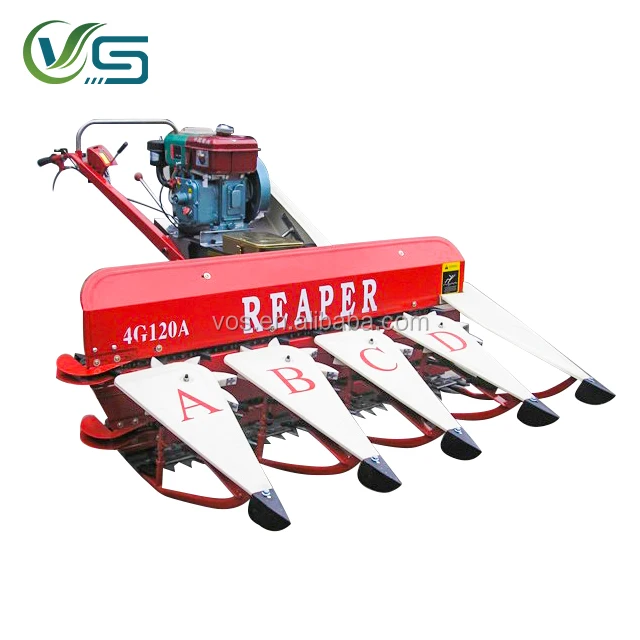

Manual wheat and rice harvester/hand operated mini paddy harvester

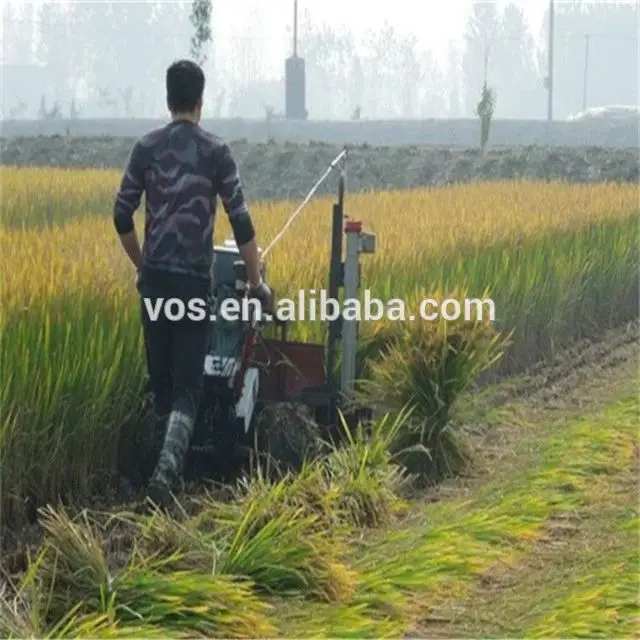

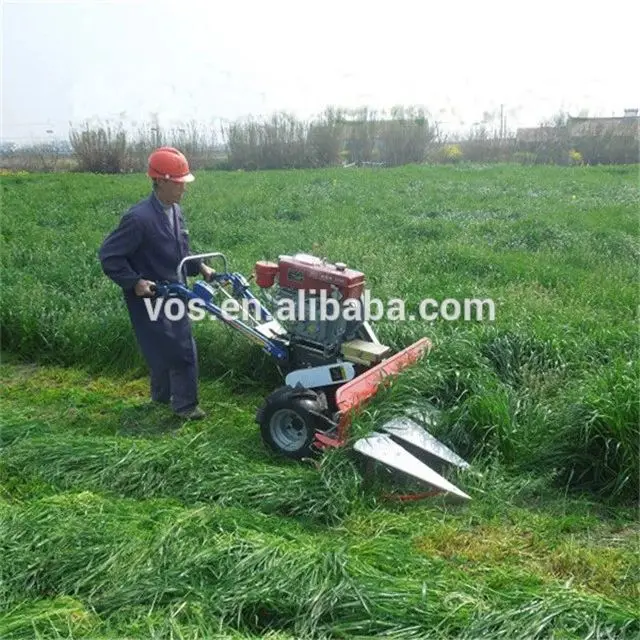

The hand operated mini paddy harvester mainly used for the harvesting of crops such as wheat, rice, soybeans, reeds,  alfalfa, rapeseed and other grains with a plant height not less than 50mm, and the cutting width can be 0.8/1.0/1.2/1.5 m. The transmission includes chain and sprocket. The customers can choose gasoline engine type or diesel engine type, it also can bind the materials cutted into bundles.

The hand operated mini paddy harvester has the advantages of compact structure, light and flexible, reliable use, simple operation, strong working performance and convenient maintenance.





Model	4GS-80	4GS-100	4GS-120	4GS-150
Cutter width(mm)	800	1000	1200	1500
Matched power	JF168 Gasoline Engine	170F Air Cooling  Diesel Engine/ JF270 Gasoline  Engine	170F Air Cooling Diesel Engine/ JF270 Gasoline Engine	170F Air Cooling Diesel Engine/ JF270 Gasoline  Engine
mini cutting height (mm)	≥50	≥50	≥50	≥30-50
placing type	Sidewise& Banded Placed	Sidewise& Banded Placed	Sidewise& Banded Placed	Sidewise& Banded  Placed
productivity (M2/Hour)	1300-2000	1600-2300	2000-3000	2300-3000
Net weight (kg)	116	210	216	230
Gross weight(kg)	146	250	260	300
Dimension(m)	2.1*1.1*1.0	2.1*1.25*1.0	2.15*1.5*1.1	2.25*1.85*1.1

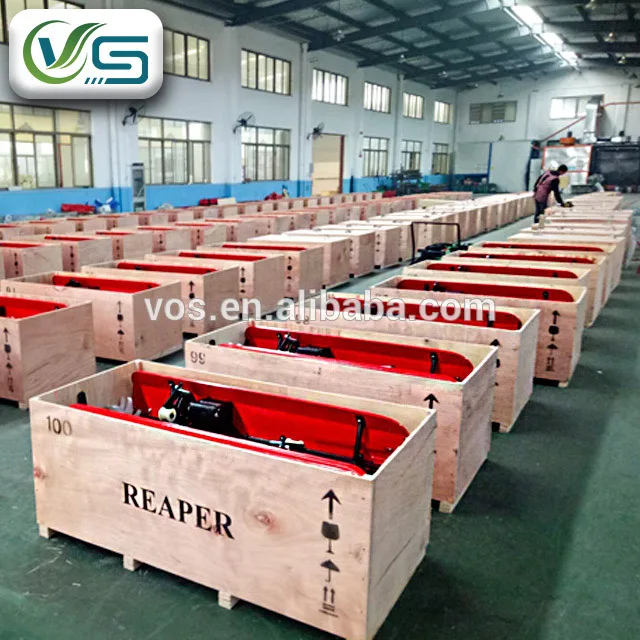

Package size(m)	1.05*1.0*0.65	1.30*1.05*0.65	1.47*1.05*0.65	1.8*1.07*0.65
40HQ/40GP	88/66	72/54	64/48	52/39
20GP	30	24	24	18

If you are interested in our hand operated mini paddy harvester, welcome to send inquiry or leave message to us, will reply you as soon as possible.
