SS304 электрическая сушильная печь с горячим воздухом большой емкости для сушки овощей Сушилка для фруктов

Product Overview

Description

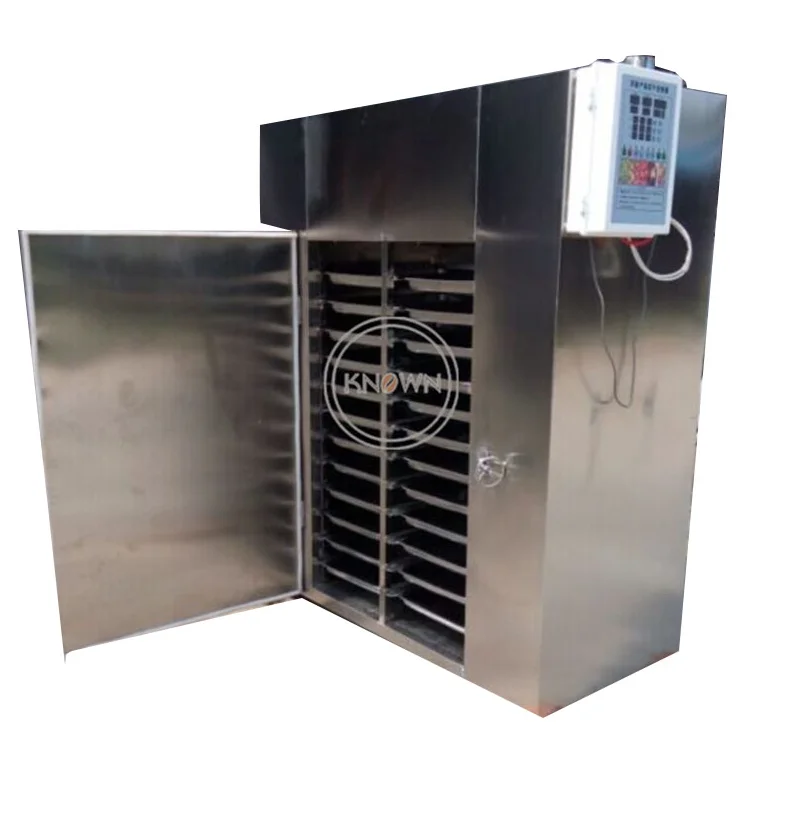

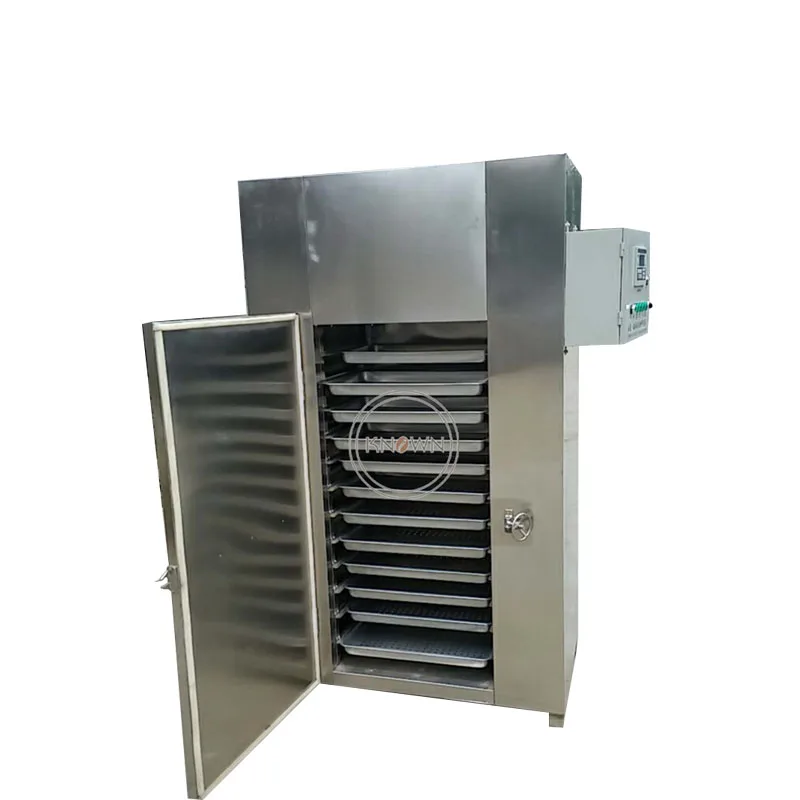

 SS304 large capacity electric hot air drying oven for vegetable  drying fruit dryer oven

Tona

Phone number/Whatsapp/Wechat ;+8613676911405





Work Principle

It has an adjustable air distribution plate, and the inside of which is evenly heated. It adopts low-noise and energy-saving built-in circulating fan to balance the operation and greatly reduce the noise and heat loss of the equipment. The air inlet is equipped with an air filter and equipped with a dehumidifier.The hot air circulation oven adopts a high temperature resistant circulating fan, and the hot air heated by the electric heating tube or the steam heat exchanger circulates in the tank, thereby enhancing the heat transfer, increasing the water evaporation rate and shortening the drying time. The whole box adopts a fully enclosed structure, and hot air circulates inside the box to properly discharge hot and humid air and replenish fresh air. The oven is equipped with an automatic temperature control system for precise temperature control.





Application

Meat	Beef, fish, seafood,Scallops, dried fish, kelp,
vegetable	Pumpkin, onion, spinach, carrot, celery, cowpea, pepper, beans, tomatoes, mushrooms, mushrooms, fungus, garlic, ginger,
Fruit	raisins, kiwi, banana, lychee, longan, apple, hawthorn, persimmon, scallop, dried fish, kelp , distiller's grains, chrysanthemum, dried rose food processing, etc.
Herd	Ginseng, Red Ginseng, Ginseng, Angelica, Cordyceps, Honeysuckle, Tradition, Schisandra, Astragalus and Konjac
Various types of tea	All kinds of flower tea, tea, fruit tea





Technical refer

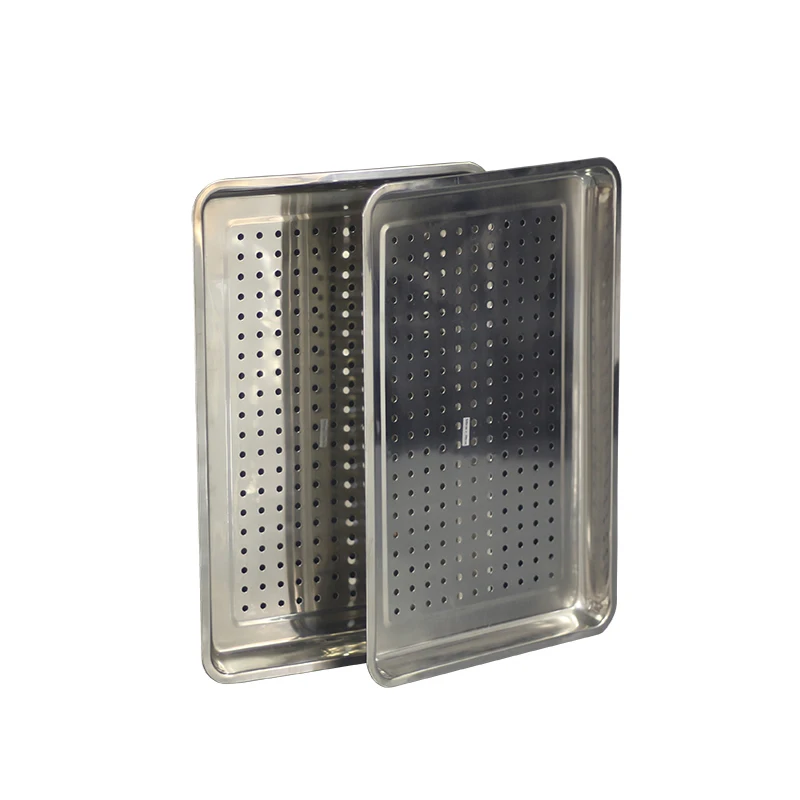

Product model	Drying amount(kg/b atch)	Dimensions (mm)	Electric heating power   (KW)	Circulation fan power (KW)	Tray Quantity (piece)	Tray size(mm)	The type of heating
KN-12	30	1.15*0.65*1.9	4.5	0.25	12	600*400*45	Electric   steam   coal   Heat pump natural gas Biological pellet
KN-24	60	1.5*0.7*1.9	6	0.55	24	600*400*45
KN-48	120	1.95*1.15*1.95	12	0.75	48	600*400*45
KN-96	240	2.5*1.5*2	96	1.1	96	600*400*45
KN-192	480	3.8*1.9*2.4	22	1.1*2	192	600*400*45
Remarks	The above are standard models. If there are special requirements, they can be customized according to customer requirements.



Our Advantage



1, More than 26 years exporthing experience

2,Customizable.

3, Control interface supports multiple languages

4, Ultra high temperature automatic power off

5,Warranty and support install service





Partners



Contact us to get more
