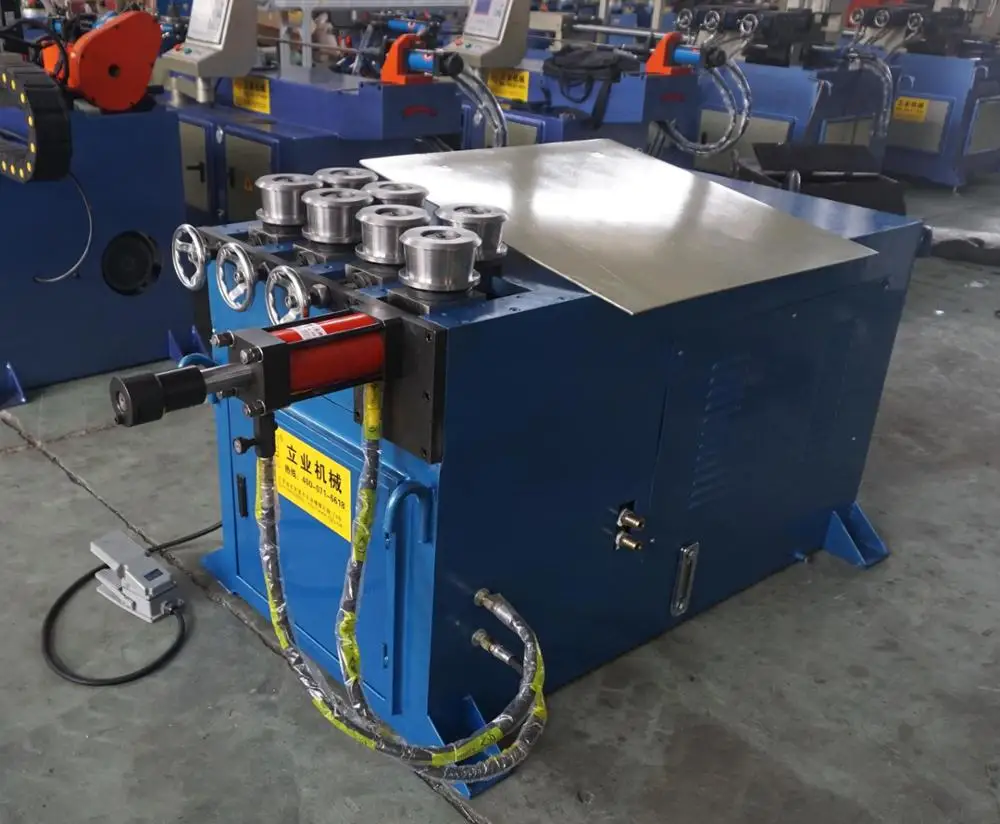

GY40 Profile rolling machine/stainless steel rolling pipe bending machines
Specification:
GY40

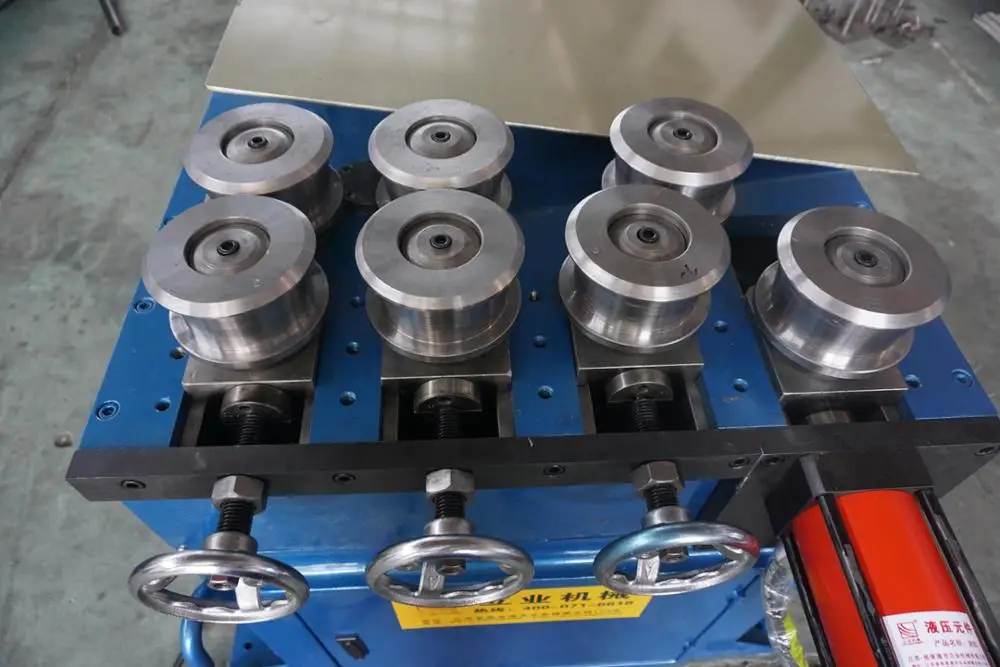

7 Rolls tube rolling machine
Specification
Max. pipe diameter (iron pipe) mm
Φ40×2.5
Min.bending radius
5D (5 times greater than the diameter of the tube )
Bending speed
80mm/s
Motor power
4kw
Power supply
380V 50HZ(Customizable)
Machine dimension
800*1000*1300mm
Machine weight
500KG
Note:Can be customized according to customer requirements.
Features:

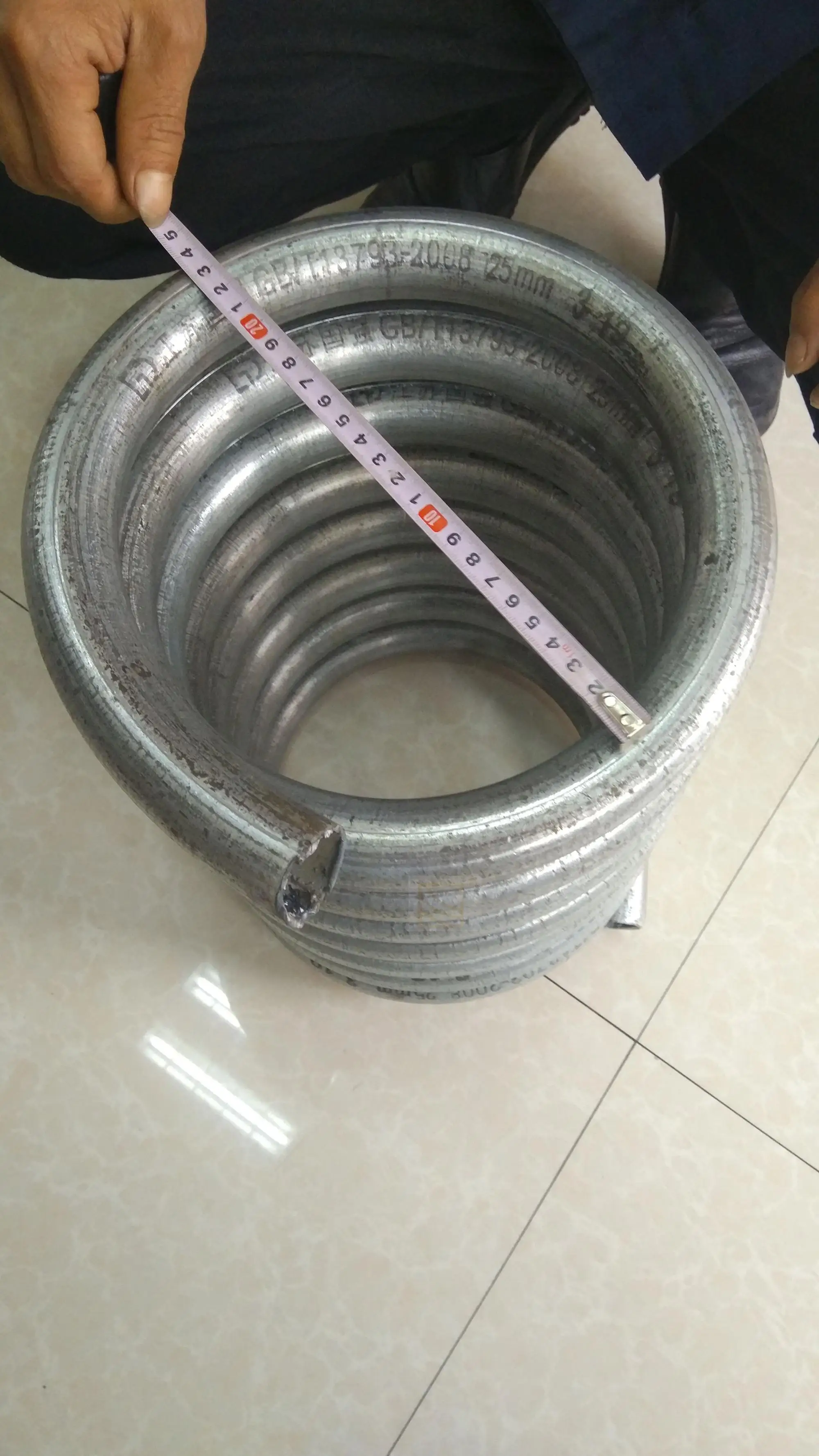

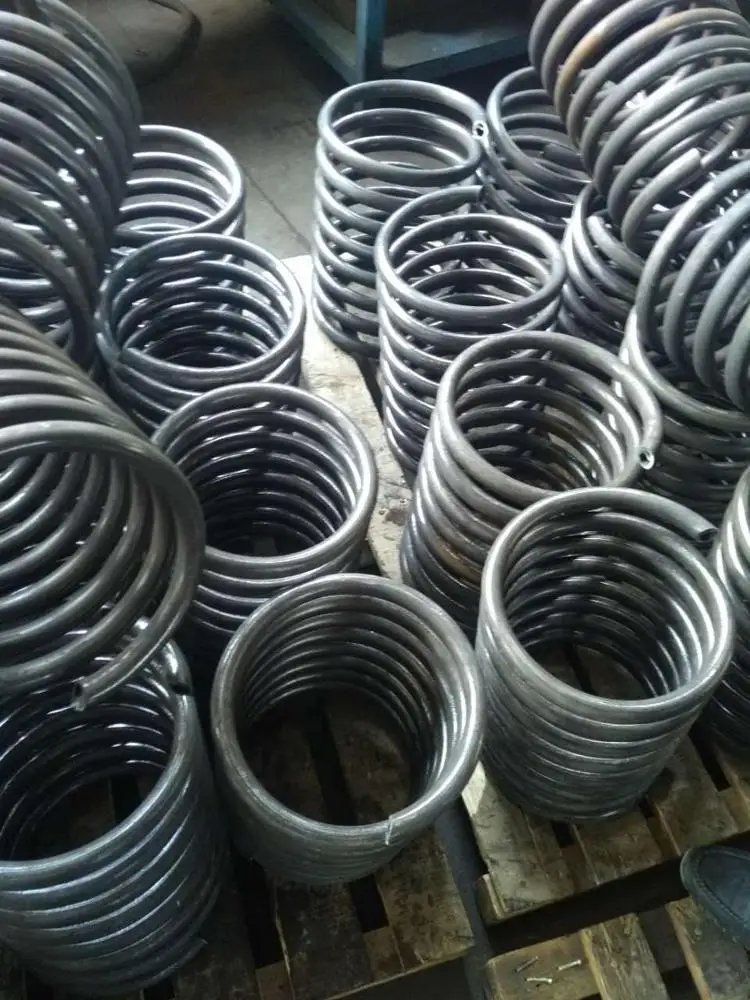

1. It applies full mechanical drive, with compact structure and high reliability. 2. Driven by seven wheels, it will not slip easily and the thin-wall can be bent. 3. The wheels at both sides are distributed asymmetrically, which shortens the linear segment. 4.The double foot switches are provided with emergency stop function, facilitating to operation. 5. It has balanced drive. Adjusting the pressing can obtain circular arc or spiral shape with different curvature. 6. Changing the groove shape of mould can process different metal profiles, such as angle steel, flat steel, round steel and other shaped cross section steel. 7. It can bend profile with large radius, which prevents the disadvantage of especially big bending mould. It is a necessary supplement to single-end and double-end series tube bender. 8. The product can have medium and large volume production and can operate fast with high efficiency.

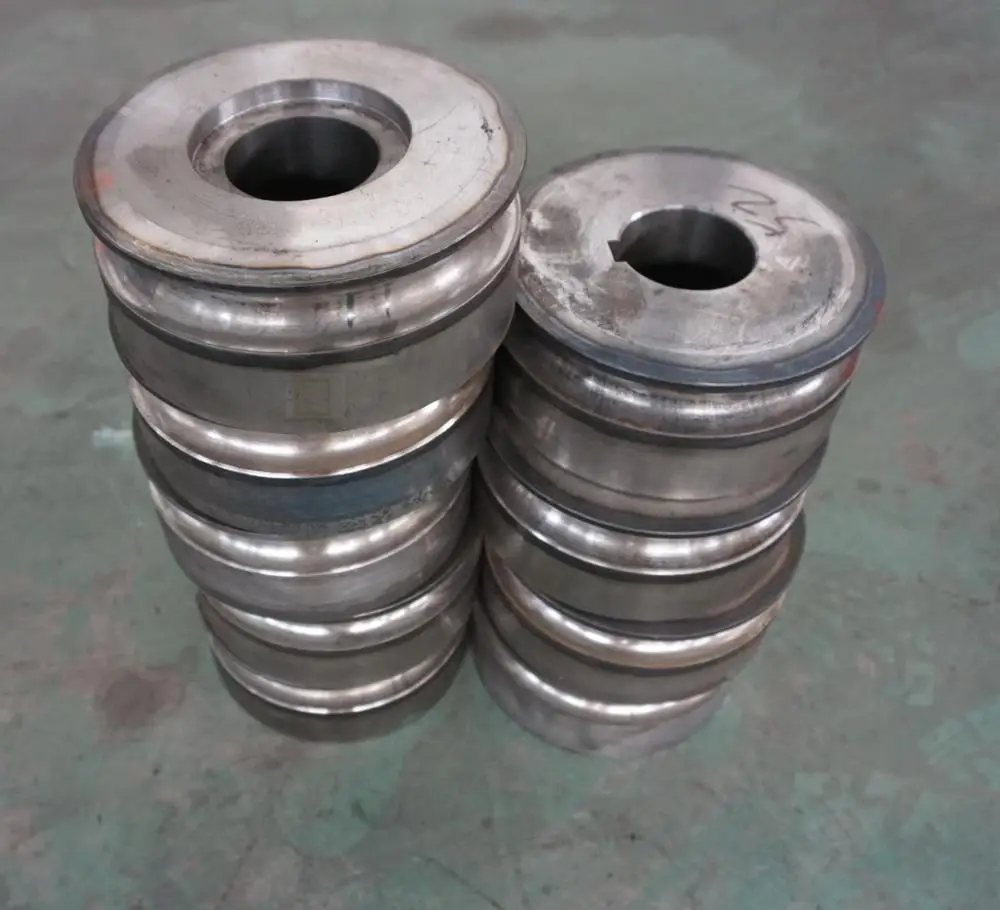

Standard accessories: One group of mould One set of common tool
