Product Overview

Description

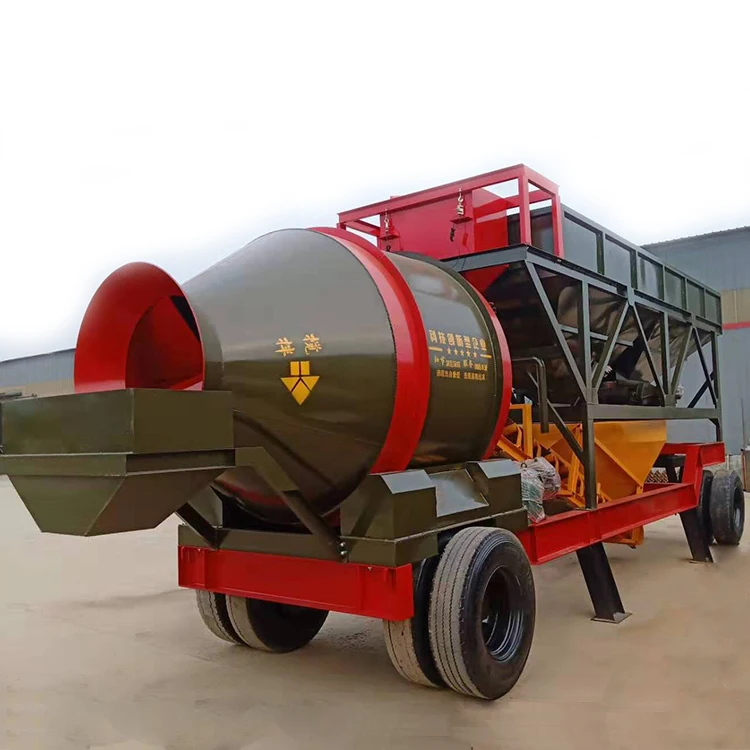

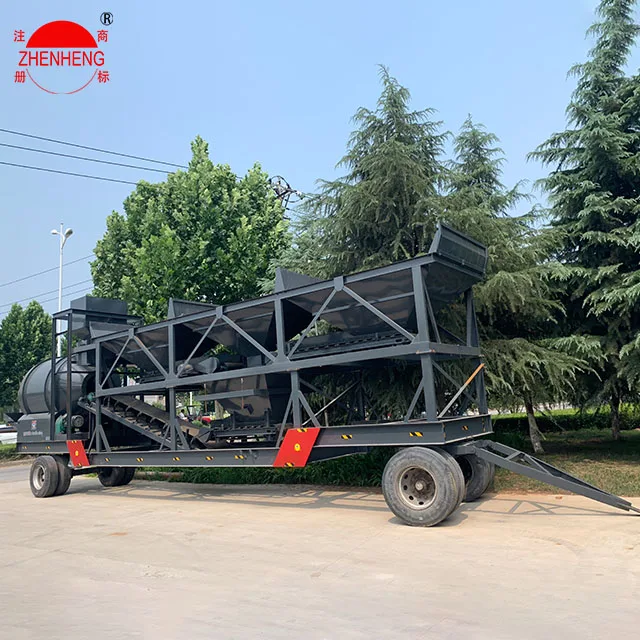

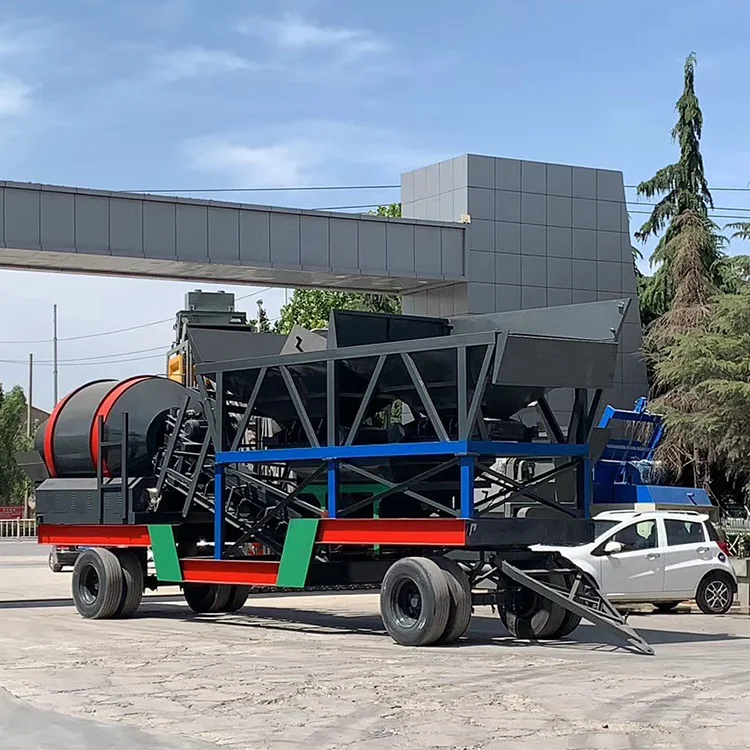

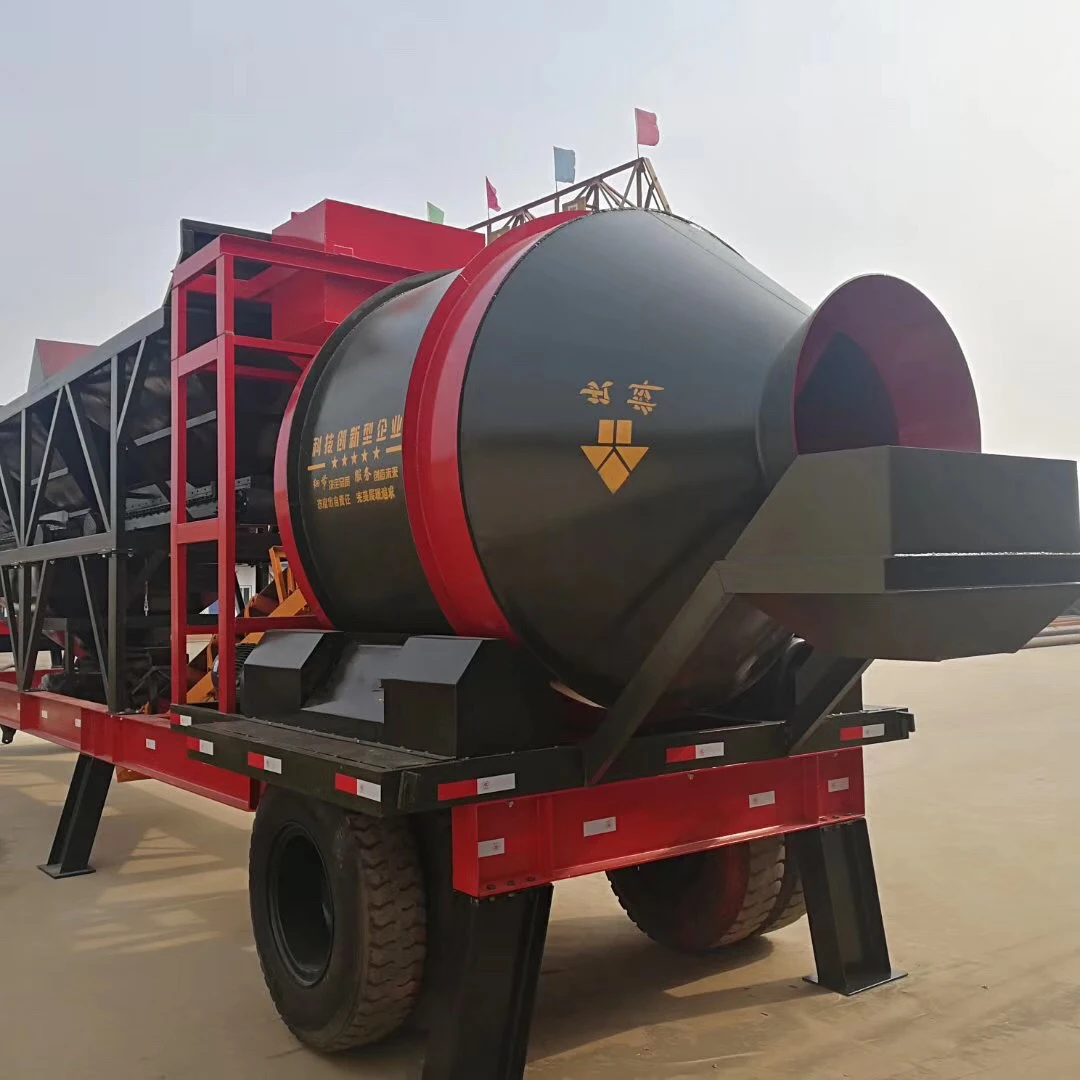

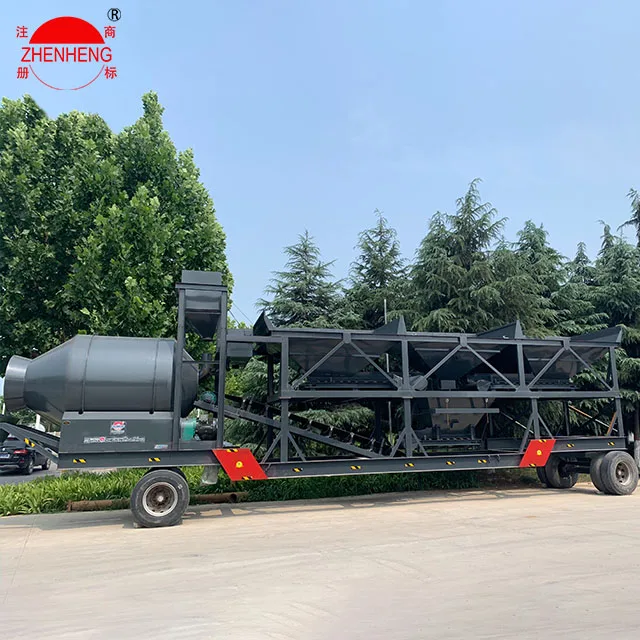

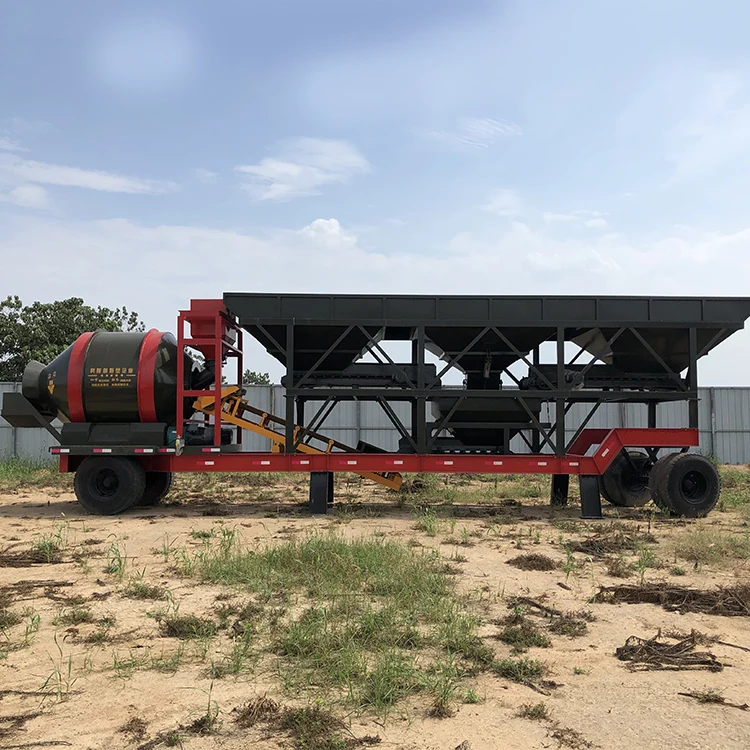

Customizable mobile concrete drum mixing station in Malaysia





Product Description


Customizable mobile concrete drum mixing station in Malaysia
























































































































































 Model JZM500-2JZM750-2JZM1000-2JZM1000-3JZM1500-2JZM1500-3
 Theory capacity25m³/h35m³/h50m³/h50m³/h75m³/h75m³/h
Discharging height1600mm1600mm1600mm1600mm1600mm1600mm
Total power44kw50kw58.9kw58.9kw66.9kw66.9kw
Dimension(L * W * H)8 X 2.2m X3.8m8m X 2.2m X3.8m10m X 2.3m X4.2m13.5m X 2.3m X 4.2m12m X 2.3m X 4.2m14.5m X 3.9m X 4.2m

Mixing System		Model of MixerJZM500JZM750JZM1000 JZM1000JZM1500 JZM1500
Mixing motor 2*5.5kw2*7.5kw2*11kw2*11kw2*15kw2*15kw
Discharging volume500L750L1000L1000L1500L1500L

Aggregate System		Model of BatcherPLD800-2PLD1200-2PLD1200-2PLD1200-3PLD1600-2PLD1600-3
Aggregate bin volume5m³×26m³×27m³×27m³×38m³×28m³×3
Max. Aggregate Dia60/80mm60/80mm60/80mm60/80mm60/80mm60/80mm

Measurement System		Cement weighing hopper500KG500KG560KG560KG900KG900KG
Water weighing support220KG220KG220KG220KG330KG330KG
Additive weighing support30KG30KG30KG30KG40KG40KG
Trailer Speed40-60Km/h40-60Km/h40-60Km/h40-60Km/h40-60Km/h40-60Km/h
Optional cement silo50/100T50/100T50/100T50/100T50/100T50/100T




The main features of the station:



A: The overall layout
Modular design,easy to disassemble.





B:structure characteristics
Unique water supply lines, automatic water supply system, reduced water time and increased production efficiency by 20 %





C:Traction mode
Trailer traction, easy to move and walk.





D: Control System
One-button start mode, simple operation, stable and reliable performance."







Company Information







Factory







Packing & Shipping


Packing & Shipping.jpg





Exhibitions&Projects







FAQ




Q1. Why Choose Us?
A:1.For end users, we are the manufacturer; the product quality has strict control, and for the same reason, the price is also competitive.
2.For the dealer, except first one, our company also has more than 30 years of sales & service experience, which can solve a variety of complex technical problems, and provide a full range of pre and after-sales service
3.For different area customers, we have an unique product, installed design accordingly to make sure you have a better using experience; for rainy, sandy areas, we will use a fully enclosed system to protect your equipment normal operation to reduce the impact of the environment; for wet climate areas, we have special processing techniques to reduce the probability of rusting the equipment and so on.
4.Delivery ability
We have rich experience engineers and professional team to solve different kinds of questions and promise the goods will be shipped as soon as possible when you confirm the order within 15 days





Q2. Which kind of concrete it can mix?
A:Heavy concrete, common concrete, light concrete. Light concrete we recommend our JSS series, it adds spiral blade and can mix more evenly.





Q3. What is the discharging mode of your concrete mixer?
A:Both hydraulic and pneumatic discharging modes are available. Hydraulic is more advanced and popular than pneumatic type. However we supply as per customer's requirement.





Q4. What is the material do you use for milling blades and lining board?
A:High chromium alloy wear resistant plate and high manganese alloy lining board.
