ANDELI inverter ac dc digital square wave pulse tig TIG 250PAC tig aluminum with aluminum alloy tig welder
- Category: Welding Equipment >>>
- Supplier: Andeli Group Co. Ltd.
Share on (62285570955):
Product Overview
Description
Specification
Item No | WSME-250 | ||||
MASTER TIG-250PAC | |||||
Rated Input Voltage | 1PH~230V±15% | ||||
Max.Load Power Capacity | TIG:7.8KVA | ||||
MMA:8.75KVA | |||||
Rated Duty Cycle(40 ℃） | 60% | TIG:250A/20V | |||
MMA:200A/28V | |||||
100% | TIG:200A/18V | ||||
MMA:160A/26.4V | |||||
Welding Current/Voltage Range | TIG:5A/10.2V-250A/20V | ||||
MMA:20A/20.8V-200A/28V | |||||
Open Circuit Voltage | 70-80V | ||||
Power Factor | 0.8 | ||||
Efficiency | 80% | ||||
TIG | TIG Pulse | Peak Current | 5A-250A | ||
Pulse Frequency | 0.2Hz-200Hz | ||||
Pulse Width(Ratio) | 1-100% | ||||
AC TIG | AC Frequency Range | 20Hz-250Hz | |||
AC Clean Width(AC Balance) | +40~-40 | ||||
AC Clean Ratio (AC Bias)% | +30~-50 | ||||
MIX TIG | MIX Frequency: | 1Hz-5Hz | |||
DC Balance:(%) | 20-80 | ||||
ARC-Staring Current | 5A-250A | ||||
Crater-filling Current | 5A-250A | ||||
Current Up-slope Time | 0.1S-15S | ||||
Current Down-slop Time | 0.1S-15S | ||||
Pre-Gas Time | 0.1S-15S | ||||
Flow-Gas Time | 0.1S-15S | ||||
Spot Arc Time | 0.1S-10S | ||||

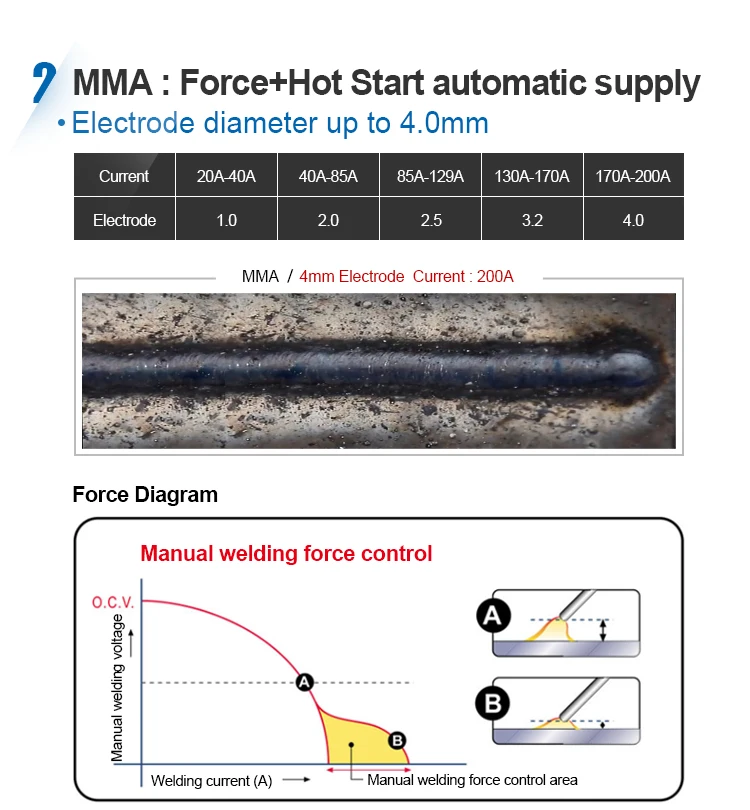

MMA | Arc Force | 10A-200A | |||
Hot Start Time | 0.1-3S | ||||
Hot Start Current | 10A-200A | ||||
Dimension | 490x230x385 | ||||
Weight | 23KG | ||||
FAQ
Q:Why choose us?
A: 1、We are a factory manufacturing the tools,best production capability,best quality control,best service.
2、100% QC inspection before shipping.
3、Competitive price.
Q:Can you help me design or modified the products as we request?
A:We have a R&D capability and professional&efficient team,so custom service and OEM/ODM are welcomed. We Will try our best to make it out as long as you have a good idea.
Q:What about the after-sales services?
A:Our company is responsible for the supplied product within its usage life.
Q:What about the samples?
A:We can supply samples.But we should charge the sample fee.And we will return after order confirmed.Customer should be responsible for the shipping fee when they require specific delivery method.
A: 1、We are a factory manufacturing the tools,best production capability,best quality control,best service.
2、100% QC inspection before shipping.
3、Competitive price.
Q:Can you help me design or modified the products as we request?
A:We have a R&D capability and professional&efficient team,so custom service and OEM/ODM are welcomed. We Will try our best to make it out as long as you have a good idea.
Q:What about the after-sales services?
A:Our company is responsible for the supplied product within its usage life.
Q:What about the samples?
A:We can supply samples.But we should charge the sample fee.And we will return after order confirmed.Customer should be responsible for the shipping fee when they require specific delivery method.
