High Quality Wholesale Price Mini Vacuum Tube Type Resistance Furnace
- Category: >>>
- Supplier: Zhengzhou ZYlab Instruments Co. Ltd.
Share on (62285649986):
Product Overview
Description

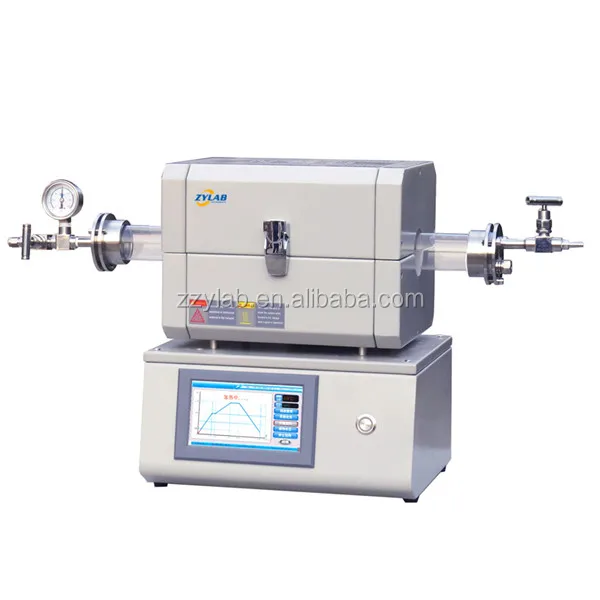

High Quality Wholesale Price Mini Vacuum Tube Type Resistance Furnace
Product Description
Introduction:
small size, high performance, very popular in labs. Can preset 15pcs temperature controlling curve, satisfy the vacuum sintering of the vast majority of materials, the sintering of the protective atmosphere and all kinds of CVD experiments, etc.
The first-class workmanship using high-quality materials, combined with ease of operation, make the Tube Type Resistance Furnace all-rounders in research and the laboratory.
Main Features:
1. High pure quartz tube as furnace tube, working temperature range from RT to 1200°C.
2. 51 segments programmable and auto control.
3. High purity alumina inorganic refractory, overall vacuum molding chamber, energy saving and ensure uniformity of temperature zone and a fast heating rate.
4. By using special lining import from Japan and top quality resistance wire heating elements, to ensure excellent heating and long using life.
5. Double layers steel casing with fan cooling, to ensure the surface of furnace below 50C, safety for the operator.
6.Ring heating, open structure, convenient observation for operator, able to meet rapid sintering of small sample
7. Low power consumable, exquisite structure and light weight, it is the ideal furnace for material research labs, also used in factory for small production.
Technical Data
Technical Data of Tube Type Resistance Furnace:
Model | O1200-50IT |
Chamber Material | Imported high quality alumina fiber refraction insulation |
Heating Element | High quality resistance wire |
Max.temperature | 1200℃ |
Working Temperature | ≤1150℃ |
Heating Rate | ≤30℃/min(advice:10℃/min) |
Length of Heating Zone | 200mm |
Length of Constant Temperature Zone | 120mm |
Tube Material | High purity quartz |
Tube Size | 50*600mm(Inner diameter 42mm) |
Sealing Mode | Vacuum Flange |
Control Mode | 7 inch Touch Screen, Intelligent PID Control |
Operating Interface | English Graphical Interface |
Temperature Accuracy | +/- 1.C |
Presetting Curve | 15 Presetting Curve, 51 Segments Programmable |
Protection Setting | Over Temperature Alarm, Over Current Protection, Broken Thermocouple Protection |
Thermocouple | K Type |
Certification | CE, ISO |
Working Voltage | AC 208-240V 50/60 Hz |
Power | 1.2KW |
Dimension | 380(L) * 350(W) * 450(H)mm |
Weight | 23kgs |
Standard Accessories | Quartz Tube, Vacuum Flange, Tube Block, O-ring, Protective Gloves, Crucible Tongs, Manual Book |

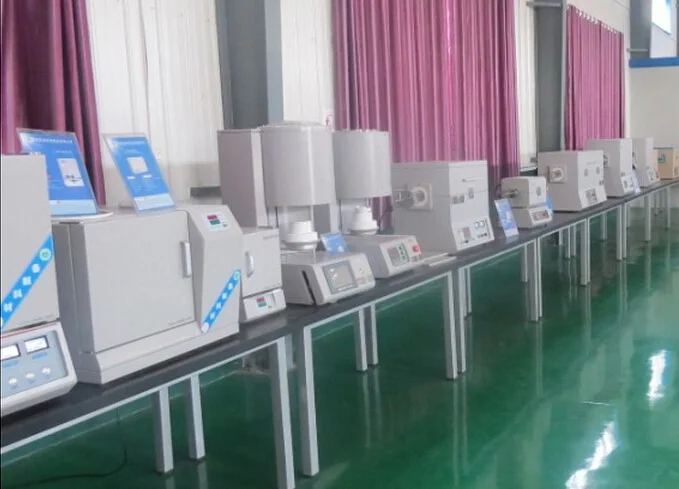

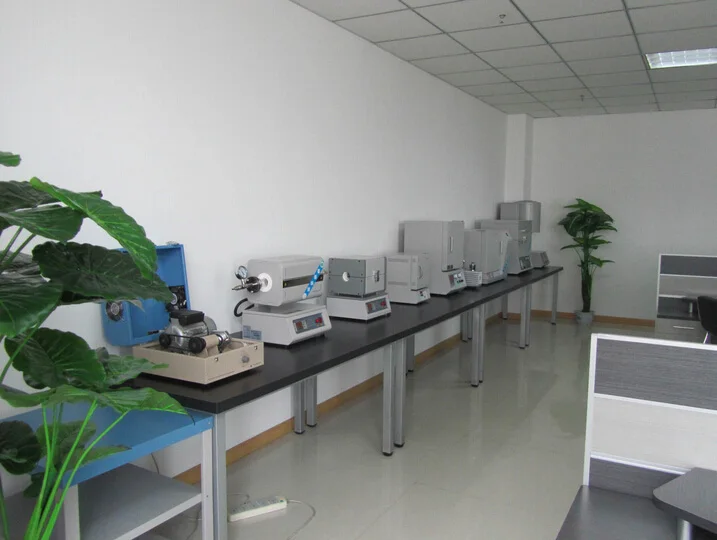

Company Information

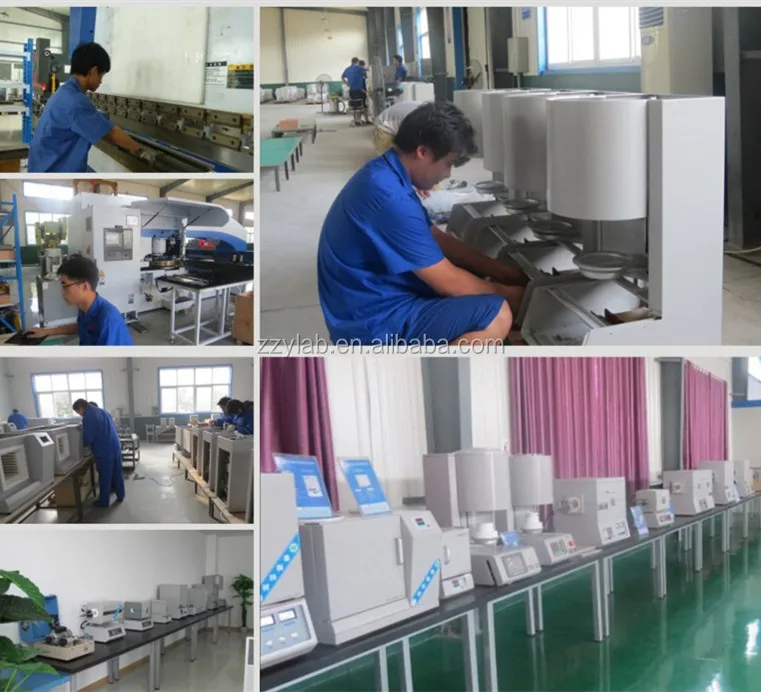

Our Professional Factory of Tube Type Resistance Furnaces:
We have enough in stock and a large number of semi-finished products, can delivery fast.
Welcome the customers and distributors to visit our factory for choosing and purchase!

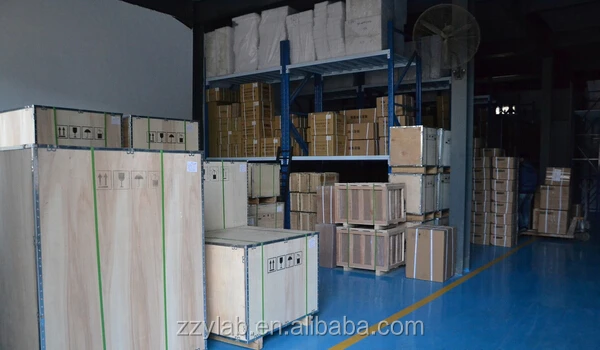

Packaging & Shipping
Packaging:
Standard wooden box with bubble bag and pearl cotton inside.
Shipping:
By sea: big dimension or large quantity or not urgent products, low price with a little long arrive time.
Usually within 11-45 days arrive.
By air: more than 100kgs or urgent products. Usually 7-10 days arrive, direct flight can arrive within 3-5 days.
By international express: such as FedEx/UPS/DHL/TNT/EMS or others. To door service is convenient and fast.
Usually 5-7 days arrive.
Also can arrange global shipment as clients’ requirement.
Our Services
l Professional team 24 hours online for any consulting support.
l Quick response with suitable solution and detailed quotation as clients’ requirement.
l Customized design is available.
Warranty:
Our products are warranted to be free from defects in materials or workmanship for one year (12 months) from the date of purchase. Within this period, we will replace any components that fail in normal use.
Note:This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
FAQ
How to buy?
Inquiry -- Negotiate -- Make Order --Products Confirmed -- Make Payment -- Start to Produce -- Production Finished -- Package -- Delivery -- After-sale Service -- Welcome to recommend and repeat order
How to contact us?
1. Chat by “Trade manager” on line.
2. Send message by below inquiry form.
3. Send email or call us directly.
Our professional service team will give you reply at the first time.
Choose us, you will get best service and perfect products!
Welcome your any inquiry and trail order!!
